      126599-01

      VIBR I/O MODULE
      In Stock

      Product Describe：

      VIBR I/O MODULE
      3500 Series
      0.1 Hz to 12 kHz
      Signal Integration
      1X vibration tracking
      Band-pass vibration

      Ask our team:

      Get a quick price for： 126599-01
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for 126599-01

      Technical specifications for 126599-01

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        126599-01
      • Estimated shipping dimensions:
        2.3x11x24.1cm
      • Weight:
        0.4 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Input Voltage:
        24 VDC
      • Input Channels:
        Up to 4 channels for phase reference inputs
      • Frequency Range:
        0 to 10 kHz
      • Phase Accuracy:
        +0.5 degrees
      • Temperature Range:
        -40°C to +70°C
      • nput Impedance:
        10 MΩ per channel
      • Integration:
        Velocity or acceleration
      • Filter Options:
        1X tracking
      • Resolution:
        16-bit ADC
      • Accuracy:
        ±0.5 % full scale
      • Terminal type:
        Internal Terminals
      • Sampling frequency:
        5 kHz
      • Accuracy:
        The alarm accuracy is within 0.13% of the required value
      • Power consumption:
        Typical power consumption is 7.7 Watts
      • Environmental Class:
        Operating Temperature -40 ° C to+70 ° C
      Ask for Quote

      Information

      Information

      Overview Manuals Internal Device Protection Core functions and applications

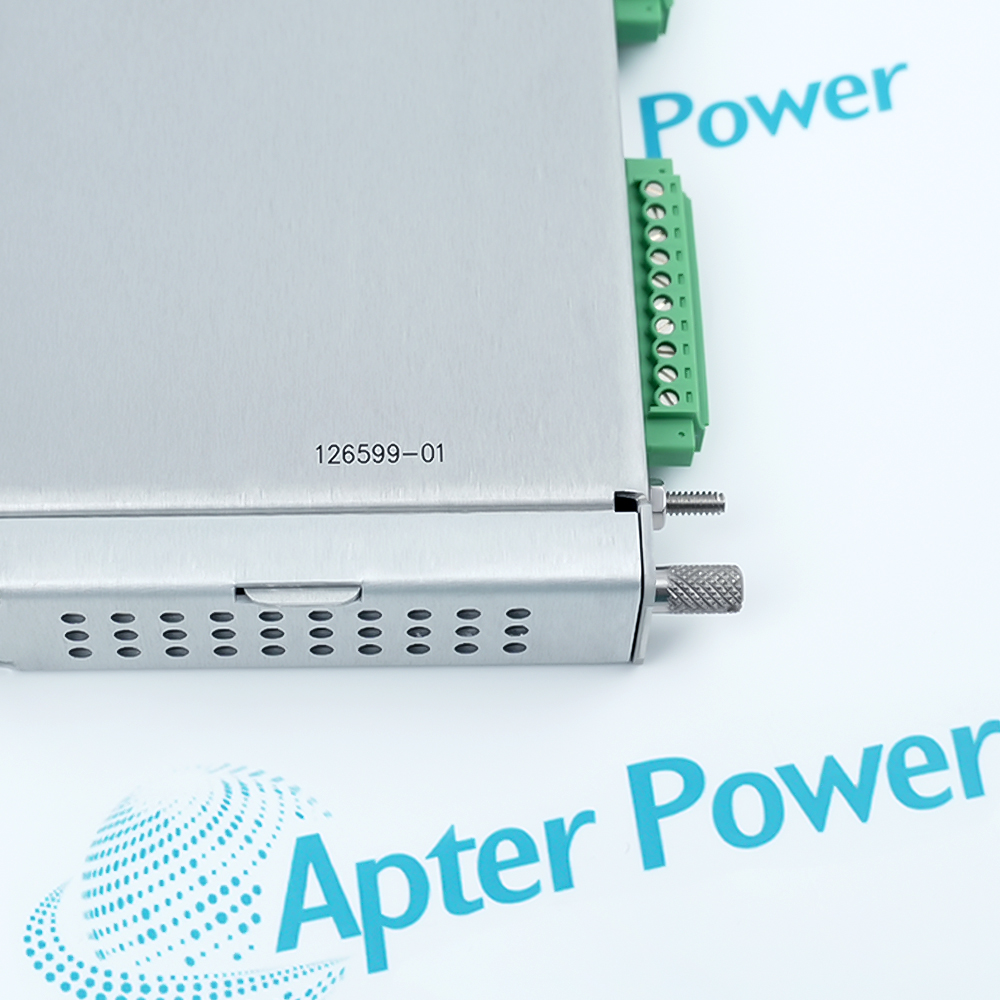

      The Bently Nevada 126599-01 is an Aero GT I/O (Input/Output) Module, specifically part of the 3500/44M Aeroderivative GT Vibration Monitor system designed for condition monitoring.
        • Time delay
        • Dual level alarm
        • Flexible filtering
      The 3500/44M 's Aero GT I/O modules interface to Velomitorsensors and accelerometers through Bently Nevada interfacemodules. The monitor uses the Prox/Velom I/O to interface toour .

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Bently Nevada 126599-01 VIBR I/O MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      This module integrates high-level channel independent electrical isolation and transient surge suppression circuits, which can effectively block high-energy surges or electromagnetic interference (EMI) from the field end from entering the rack backplane, thereby protecting the core processing cards from damage.
      Application field: Specially designed for aviation derived gas turbines, used for high-precision vibration monitoring and protection. Signal processing: It has 4 channels and can connect Velomitor sensors and accelerometers through interface modules.

      Alarm mechanism: By comparing real-time monitoring parameters with preset alarm points, automatic alarm or shutdown actions are triggered to ensure the safe operation of the equipment. Signal tracking: Supports two independent Keyphasor signal inputs, allowing different tracking filters to be used for each pair of channels.

      FAQS

      • What is the 126599-01 used for?
        It is an I/O module for the Bently Nevada 3500/44M Aero GT vibration monitoring system.
      • Is the 126599-01 a new or used part?
        It is usually supplied as a new in-stock replacement module.
      • What is 126599-01?
        126599-01 is a VIBR I/O Module
      • What is the 126599-01 typical shipping time?
        Generally, 1–3 days after payment is received, as reported by ControlTech-Supply.com.
      • What are the 126599-01 payment terms?
        Often 100% T/T before shipment. How is it packaged? Generally packed in cartons with foam padding for protection.
      Why Choose Apter Power?
      1.Full one year warranty on all components
      2.Professional after selling team
      3.Same-day dispatch payment come
      4.All units are fully tested well with certificate
      5.Speak With an Expert Sales Representative
      6.More than 20 years experience in automation
      7.Stable employees more than 10+ years working experience
      Common Applications
      • Oil & Gas
      • Power Generation
      • Petrochemical
      • Metallurgy
      • Railway
