      Bently Nevada 3500/64M 140734-05
      Bently Nevada 3500/64M 140734-05
      Bently Nevada 3500/64M 140734-05
      Bently Nevada 3500/64M 140734-05
      Bently Nevada 3500/64M 140734-05
      Bently Nevada 3500/64M 140734-05
      Product image is representative; revision or series may vary. Contact us to request a specific version.

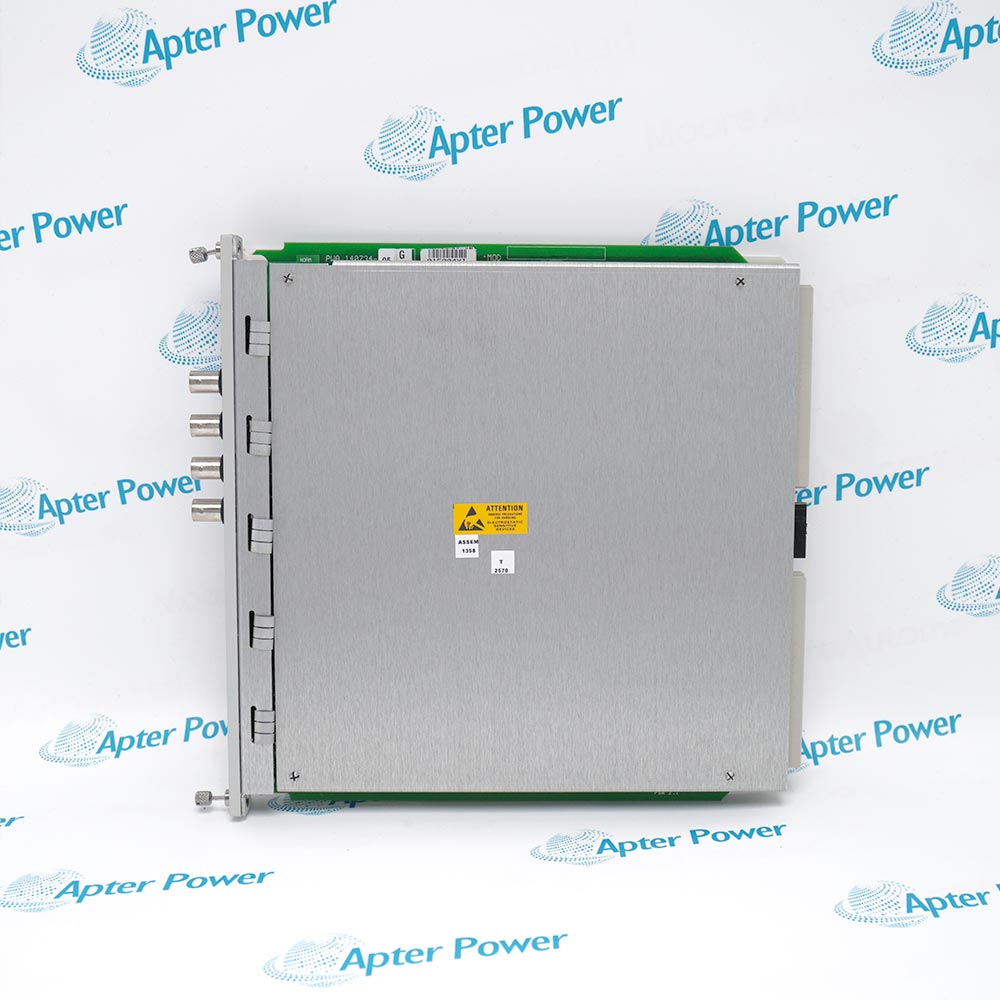

      3500/64M 140734-05

      Four-Channel Dynamic Pressure Monitor
      In Stock
      Ships by Monday, September 21
      Fast Shipping Available

      Product Describe：

      Bently Nevada 3500/64M 140734-05 is a Four-Channel Dynamic Pressure Monitor. It conditions pressure-transducer signals to supervise pulsation and high-frequency combustion or compressor pressure behavior.

      Ask our team:

      Get a quick price for： 3500/64M 140734-05
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 3500/64M 140734-05

      Technical specifications for 3500/64M 140734-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        140734-05
      • Estimated shipping dimensions:
        2.5x25.7x24cm
      • Weight:
        0.84 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Input channels:
        1 to 4
      • Accepted signals:
        2-wire; 3-wire pressure transducer
      • 3-wire input impedance:
        10 kOhm
      • 2-wire input impedance:
        1.5 to 3.5 MOhm typical
      • Dynamic-pressure sensitivity:
        100 mV/psi; 1.45 mV/mbar
      • 2-wire transducer supply:
        3.3 mA at 22 Vdc nominal
      • 3-wire transducer supply:
        -24 Vdc
      • Recorder output:
        +4 to +20 mA
      • Recorder load:
        0-600 Ohm
      • Recorder resolution:
        0.3662 uA per bit
      • Recorder update rate:
        100 ms or less
      • Low-mode frequency range:
        5 Hz to 4 kHz
      • Low mode without LP filter:
        Approximately 5.285 kHz
      • High-mode frequency range:
        10 Hz to 14.75 kHz
      • Buffered output impedance:
        550 Ohm
      • Operating temperature:
        -30 to +65 degC
      • Storage temperature:
        -40 to +85 degC
      • Relative humidity:
        95% non-condensing
      • Front rack space:
        1 full-height slot
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 3500/64M 140734-05 is a four-channel Dynamic Pressure Monitor for the 3500 rack. It conditions pressure-transducer signals to supervise pulsation and high-frequency combustion or compressor pressure behavior.
      • Processes four channels of pulsation or dynamic-pressure measurements
      • Supplies approved two-wire and three-wire pressure-transducer interfaces
      • Supports selectable low- and high-frequency monitoring modes
      • Produces conditioned measurements, alarms and recorder outputs for machinery protection

      3500/64M 140734-05 installs with 3500 rack, Approved 3500/64M I/O module, Two-wire or three-wire pressure transducers, 3500 Rack Configuration Software in an engineered 3500 Machinery Protection System configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this four-channel dynamic pressure monitor.

      Important Notice: Confirm the complete 3500/64M 140734-05 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 3500/64M 140734-05 Manuals and Guides
      Apter Power 3500/64M 140734-05 Product Technical Reference PDFBently Nevada 3500/64M 140734-05 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Reciprocating-compressor pulsation monitoringProcesses four channels of pulsation or dynamic-pressure measurements
      Combustion dynamic-pressure supervisionSupplies approved two-wire and three-wire pressure-transducer interfaces
      Process-gas pressure oscillation detectionSupports selectable low- and high-frequency monitoring modes
      High-frequency machinery pressure alarmingProduces conditioned measurements, alarms and recorder outputs for machinery protection
      Read the applicable Bently Nevada installation instructions before work. Verify 3500/64M 140734-05 and the installed 3500 Machinery Protection System configuration.
      1Confirm 140734-05 and its paired rear I/O module before removing the monitor.
      2Isolate transducer supplies and recorder loops before disturbing connections.
      3Record each channel's transducer type, sensitivity, mode and filter settings.
      4Do not apply the three-wire negative supply to a two-wire current-powered sensor.
      5Use ESD controls and protect buffered-output connectors during handling.
      6Restore low- or high-frequency mode according to the approved measurement duty.
      7Verify transducer bias and dynamic response before enabling channel alarms.
      8Inject a controlled signal and confirm recorder scaling plus Alert/Danger action.

      Technical notes

      Technical notes

      Match every channel to the actual two-wire or three-wire transducer, select the correct frequency mode and filter, confirm bias and sensitivity, then prove recorder and alarm response with controlled pressure-signal injection.

      FAQS

      • How does an engineer select low or high mode on 3500/64M 140734-05?
        Select the frequency mode required by the approved pulsation or dynamic-pressure measurement and configure the corresponding filter path.
      • Can two-wire and three-wire transducers be mixed on 3500/64M 140734-05?
        Only where each channel and rear I/O circuit is wired and configured for the installed sensor supply and signal arrangement.
      • What bias checks are required before enabling 3500/64M 140734-05?
        Verify the expected transducer bias or supply condition at every channel before accepting dynamic measurements or alarms.
      • How is recorder scaling validated for 3500/64M 140734-05?
        Inject a controlled pressure-equivalent signal and compare the monitor value with the connected 4-20 mA recording channel.
      • What may cause loss of high-frequency response on 3500/64M 140734-05?
        Review the selected monitoring mode, low-pass filter, transducer bandwidth, cabling and channel configuration before replacing hardware.
      • Which details must be recorded before replacing 3500/64M 140734-05?
        Record sensor type, sensitivity, wiring method, frequency mode, filters, full-scale range, setpoints and recorder assignment.
      • How should 3500/64M 140734-05 be tested after installation?
        Apply controlled dynamic signals across the intended band and verify buffered output, measured value, recorder response and alarm action.
      • Can another pressure monitor configuration be copied into 3500/64M 140734-05?
        Use only the approved configuration for the exact transducer and machinery duty; do not transfer settings from an unrelated channel or machine.
