      330910-00-05-50-02-00

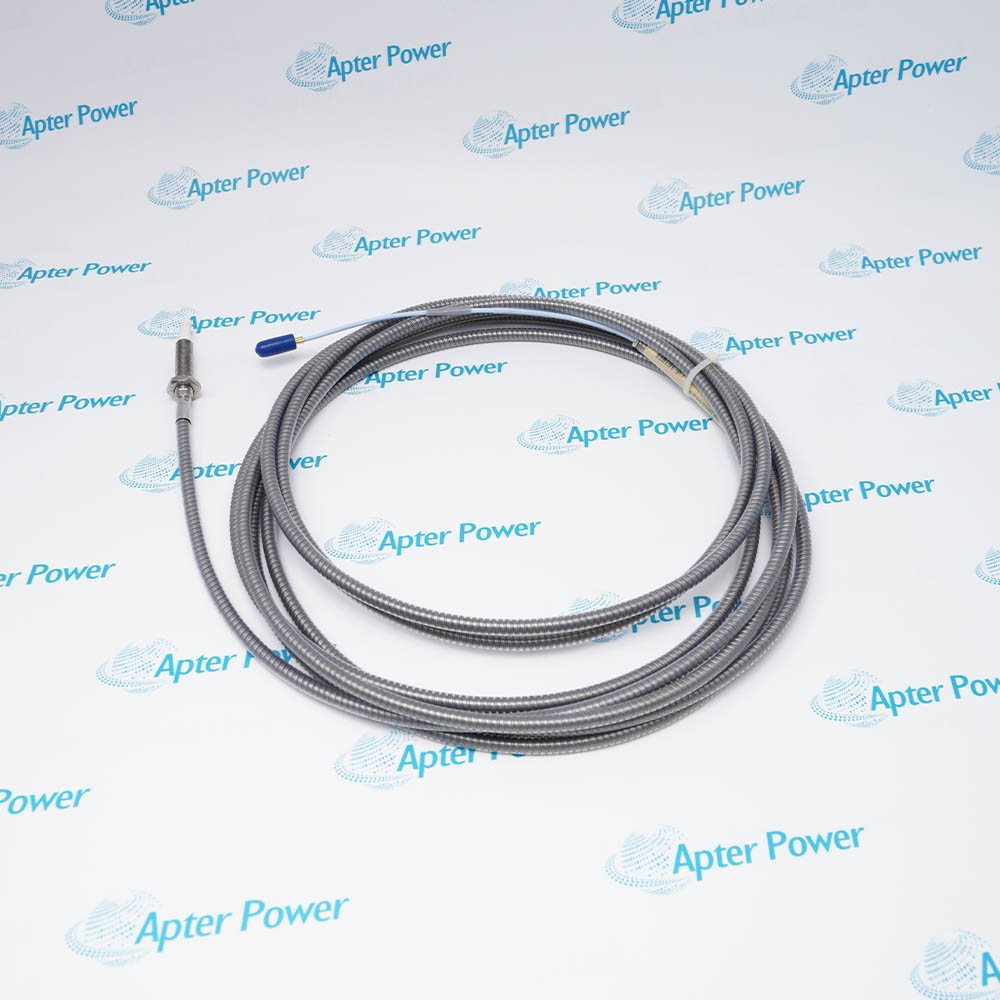

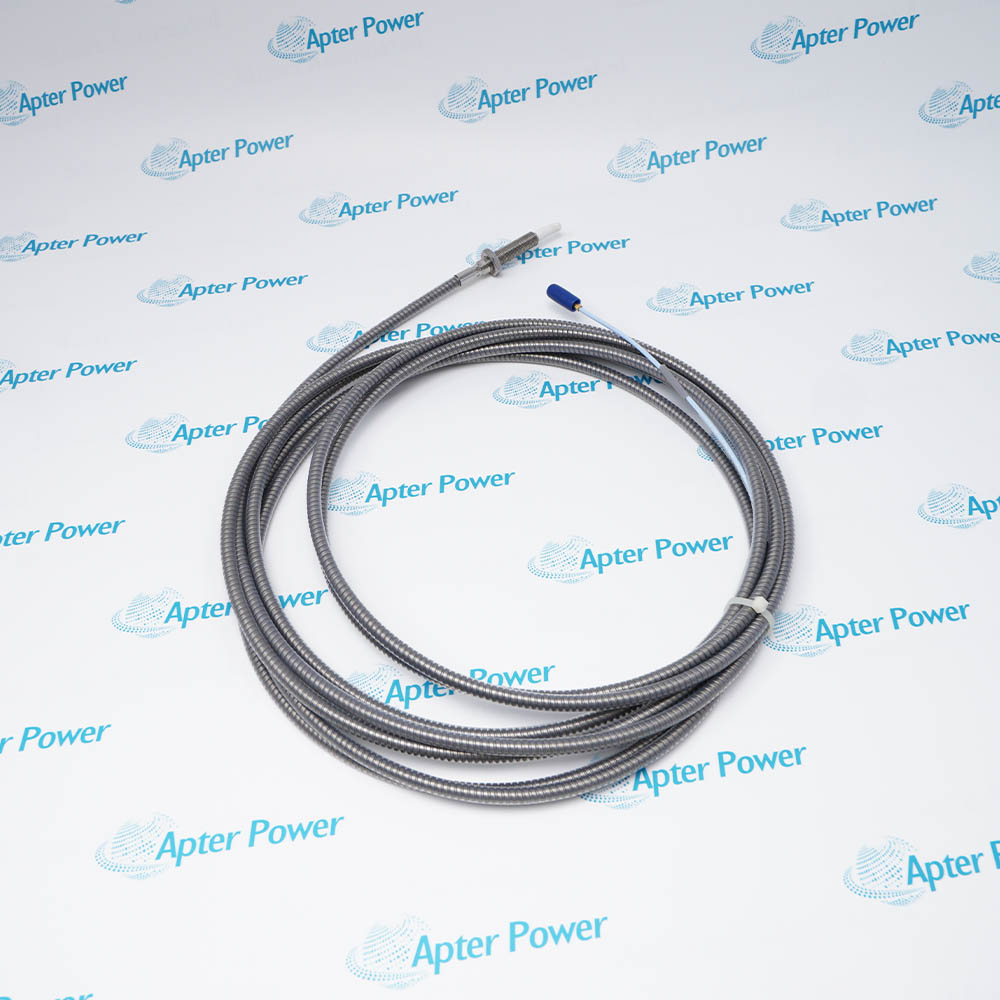

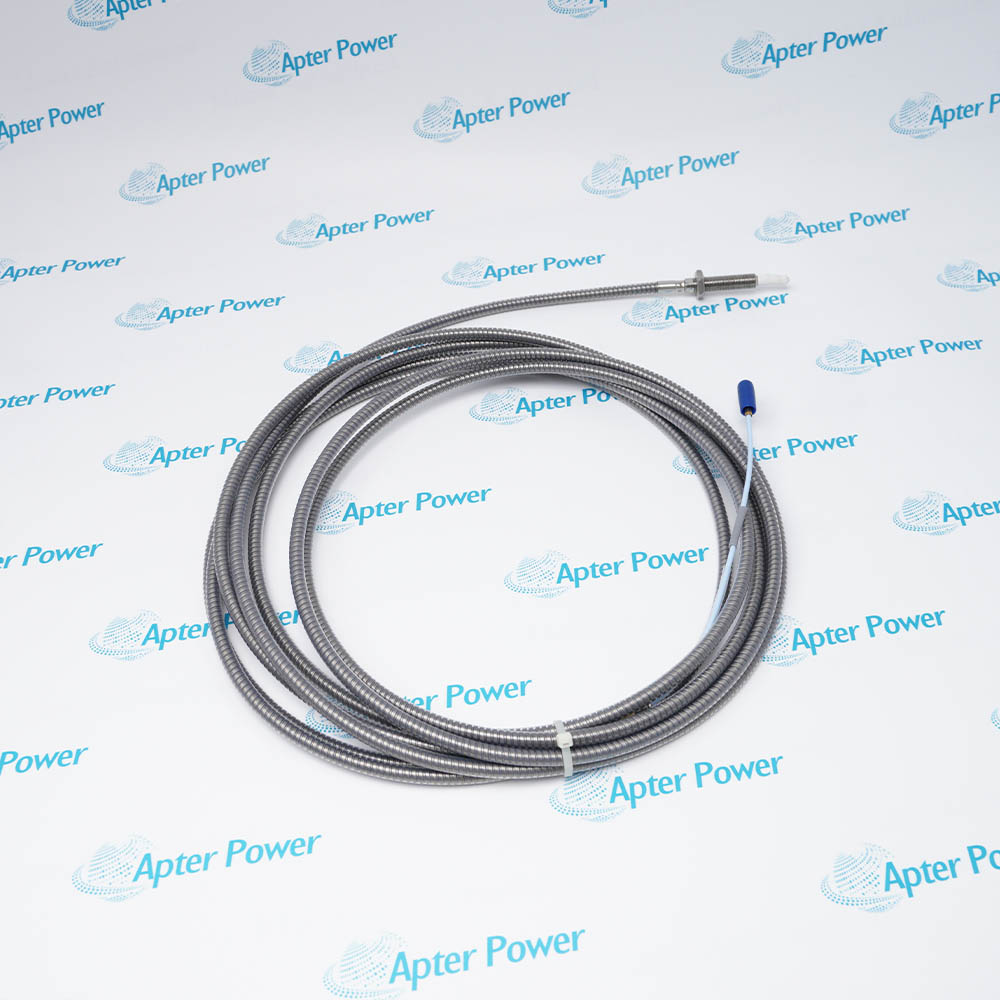

      3300 XL NSv Armored Metric Proximity Probe
      In Stock
      Ships by Thursday, September 17
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330910-00-05-50-02-00 is an armored metric 3300 XL NSv proximity probe. It senses shaft displacement in confined installations and supplies the eddy-current signal to a matched NSv Proximitor Sensor.

      Ask our team:

      Get a quick price for： 330910-00-05-50-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330910-00-05-50-02-00

      Technical specifications for 330910-00-05-50-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330910-00-05-50-02-00
      • Estimated shipping dimensions:
        23x23x4cm
      • Weight:
        0.5 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe construction:
        Armored
      • Thread:
        M10 x 1
      • Unthreaded length:
        0 mm
      • Case length:
        50 mm
      • Total probe length:
        5.0 m
      • Connector option:
        Miniature coaxial ClickLoc
      • Probe-cable type:
        Standard cable
      • Approval option:
        Not required
      • Probe-tip diameter:
        5.26 mm maximum
      • System linear range:
        1.5 mm (60 mils)
      • Approximate linear-range limits:
        0.25 to 1.75 mm
      • Approximate output span:
        -1 to -13 V DC
      • Recommended gap:
        1.0 mm (40 mils)
      • Incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • Scale-factor tolerance:
        +12.5% / -20%
      • Deviation from straight line:
        Less than +/-0.06 mm
      • Probe-cable impedance:
        75 ohm
      • Probe temperature:
        -52 to +177 degC
      • Proximitor Sensor supply:
        -17.5 to -26 V DC
      • Proximitor Sensor current:
        12 mA maximum
      • Proximitor Sensor output resistance:
        50 ohm
      • Field-wiring conductor range:
        0.2 to 1.5 mm2
      • Maximum field-wiring length:
        305 m
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      3300 XL NSv Armored Metric Proximity Probe provides the documented interface for its installed Bently Nevada 3300 XL NSv Proximity Transducer System system.
      • Uses armored metric construction for protected probe-lead routing
      • Fits an M10 x 1 threaded mounting position in confined machinery
      • Provides the compact side-view performance of the NSv probe family
      • Completes a matched five-metre NSv transducer arrangement

      330910-00-05-50-02-00 senses shaft-to-bearing relative displacement through the compact NSv eddy-current probe geometry and sends the signal to a matched NSv Proximitor Sensor. The installation uses the manufacturer-specified host position, companion hardware and field/control wiring for the intended industrial application.

      System commissioning includes identity checks, connection verification, controlled energization and functional diagnostics for 330910-00-05-50-02-00.

      Important Notice: Confirm the complete 330910-00-05-50-02-00 marking, approved system arrangement, connection records and controlled functional test before commissioning or replacement.

      Apter Power 330910-00-05-50-02-00 Manuals and Guides
      Apter Power 330910-00-05-50-02-00 Product Technical Reference PDF330910-00-05-50-02-00 Engineering Installation and Verification Workbook
      The first document organizes model-specific technical identity and engineering data. The second provides a separate field workflow for installation, connection checks and commissioning records.
      Confined radial shaft-vibration measurement3300 XL NSv Proximitor Sensor supports the engineered 330910-00-05-50-02-00 arrangement.
      Small-shaft axial-position monitoringCompatible Bently Nevada monitor channel supports the engineered 330910-00-05-50-02-00 arrangement.
      Process-compressor proximity measurementAISI 4140 steel target or validated equivalent supports the engineered 330910-00-05-50-02-00 arrangement.
      NSv transducer-loop renewalApproved probe mounting bracket supports the engineered 330910-00-05-50-02-00 arrangement.
      Read the applicable Bently Nevada installation instructions before work. Verify 330910-00-05-50-02-00 and the installed-system configuration.
      1Verify the complete 330910-00-05-50-02-00 marking, M10 x 1 thread and 50 mm case before removal.
      2Place the monitored machine and protection channel in the approved maintenance state.
      3Protect the compact NSv probe tip and threaded case from impact and contamination.
      4Support the five-metre armored lead so it cannot kink, rub or carry tensile load.
      5Keep the ClickLoc coaxial connection clean, dry and fully engaged.
      6Confirm the selected NSv Proximitor Sensor matches the five-metre probe system.
      7Set static gap within the documented NSv linear region while preserving shaft clearance.
      8Verify polarity, dynamic response and alarm action before restoring protection service.

      Technical notes

      Technical notes

      Match 330910-00-05-50-02-00 to the documented five-metre NSv Proximitor Sensor. Protect the armored lead and ClickLoc connection, set the static gap inside the NSv linear region, and prove channel polarity and response before service release.

      FAQS

      • What type of probe is 330910-00-05-50-02-00?
        It is an armored metric 3300 XL NSv proximity probe with M10 x 1 mounting for confined machinery installations.
      • What mechanical configuration is encoded by 330910-00-05-50-02-00?
        The order code specifies 0 mm unthreaded length, a 50 mm overall case and an M10 x 1 threaded body.
      • What cable execution is supplied with 330910-00-05-50-02-00?
        The order code specifies a five-metre standard probe cable and miniature coaxial ClickLoc connector.
      • Which Proximitor Sensor should be paired with 330910-00-05-50-02-00?
        Use the Bently Nevada 3300 XL NSv Proximitor Sensor configured for a five-metre system.
      • What linear range applies to 330910-00-05-50-02-00?
        The NSv system datasheet specifies a 1.5 mm linear range, approximately 0.25 to 1.75 mm from the target.
      • How should 330910-00-05-50-02-00 be statically gapped?
        Set the probe inside the documented linear region; the recommended NSv gap is approximately 1.0 mm.
      • How should the armored lead of 330910-00-05-50-02-00 be installed?
        Support the lead without kinks, crushing, abrasion or tensile loading and protect the ClickLoc interface from contamination.
      • What must be verified after replacing 330910-00-05-50-02-00?
        Verify the full model, five-metre system match, target material, static gap, polarity, dynamic response and monitor alarm action.
