      Bently Nevada 330904-00-03-70-01-CN
      Bently Nevada 330904-00-03-70-01-CN
      Bently Nevada 330904-00-03-70-01-CN
      Bently Nevada 330904-00-03-70-01-CN
      Bently Nevada 330904-00-03-70-01-CN
      Bently Nevada 330904-00-03-70-01-CN
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330904-00-03-70-01-CN

      3300 XL NSv M8x1 Armored Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

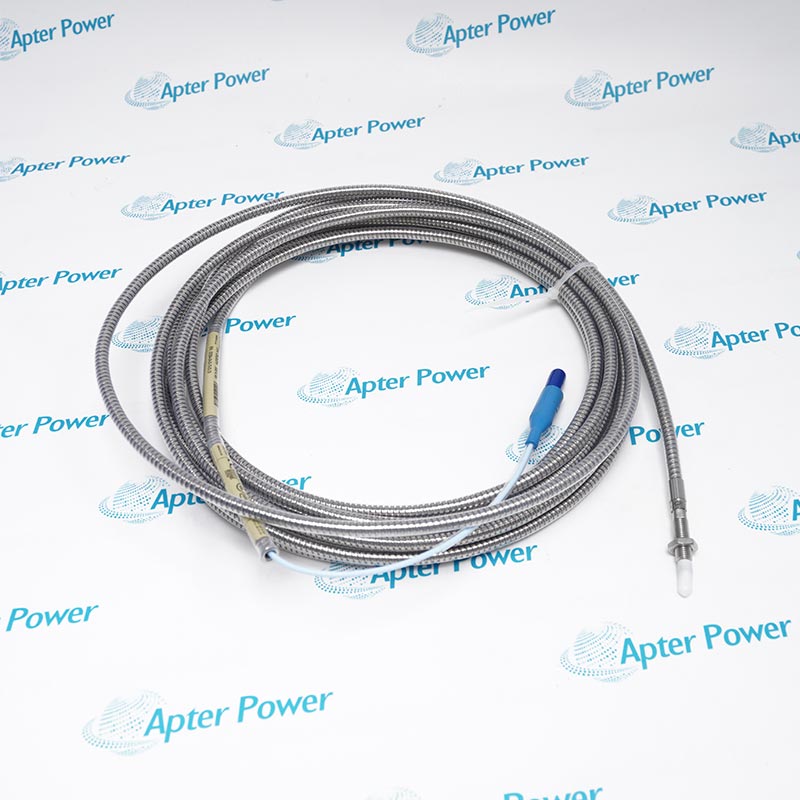

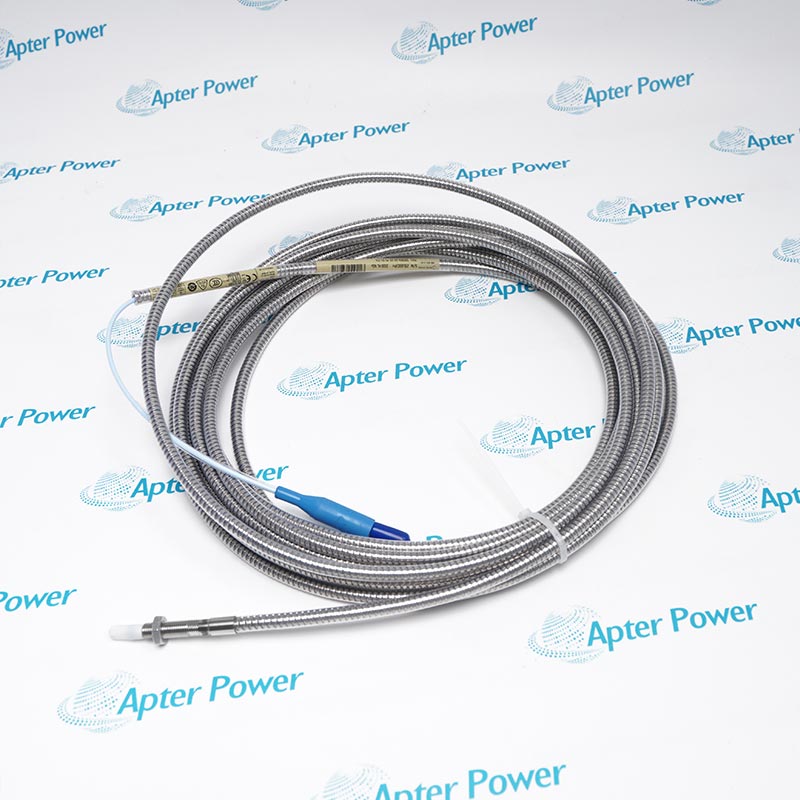

      Bently Nevada 330904-00-03-70-01-CN is an armored 3300 XL NSv proximity probe with M8x1 thread, 30 mm case length and 7.0 m total length. It supports vibration, position, speed and phase-reference measurements where compact probe geometry is required.

      Ask our team:

      Get a quick price for： 330904-00-03-70-01-CN
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330904-00-03-70-01-CN

      Technical specifications for 330904-00-03-70-01-CN

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330904-00-03-70-01-CN
      • Estimated shipping dimensions:
        28x28x4cm
      • Weight:
        0.62 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe family:
        3300 XL NSv
      • Thread:
        M8x1
      • Armor:
        Yes
      • Unthreaded length:
        0 mm
      • Overall case length:
        30 mm
      • Total length:
        7.0 m
      • Connector / cable:
        ClickLoc with protector, standard cable
      • System average scale factor:
        7.87 V/mm (200 mV/mil)
      • System linear range:
        1.5 mm (60 mil)
      • Cable pull strength:
        220 N (50 lb)
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      This compact armored probe configuration extends the NSv measurement system into restricted mounting locations used for vibration, position, speed or phase-reference monitoring.
      • Fits compact M8x1 probe locations with armored cable protection
      • Uses the locked ClickLoc connection with a connector protector
      • Supports small-target and restricted side-view measurement geometry
      • Integrates with the NSv probe, extension-cable and Proximitor system

      Thread 330904-00-03-70-01-CN into the approved M8x1 mounting location without twisting or crushing its armored 7.0 m lead. Mate it only with the correct NSv extension cable and Proximitor sensor, then set gap, verify polarity and prove the configured vibration or position channel.

      Important Notice: Confirm the full 330904-00-03-70-01-CN code, M8x1 mounting, 30 mm case, 7.0 m armored lead, ClickLoc protector, matched NSv extension cable and Proximitor, grounding, gap, polarity, configuration and alarm response.

      Apter Power 330904-00-03-70-01-CN Manuals and Guides

      The first document is a model-specific engineering data reference. The second is a distinct installation and commissioning workbook with field checks and acceptance records.

      Small-shaft radial vibration
      Measures radial motion where shaft diameter or side-view clearance limits a standard probe.
      Compressor axial-position monitoring
      Supports thrust-position measurement on compact flat targets.
      Tachometer and zero-speed pickup
      Provides a proximity signal for speed observation in an engineered NSv system.
      Keyphasor phase reference
      Generates a phase-reference pulse from a suitable rotating target for machinery diagnostics.
      Read the applicable Bently Nevada installation information before work. Verify 330904-00-03-70-01-CN and the installed 3300 XL NSv M8x1 Armored Proximity Probe configuration before isolation, wiring or commissioning.
      1
      Verify the complete 330904-00-03-70-01-CN order code and M8x1 thread.
      2
      Place the monitored machine and channel in the approved maintenance state.
      3
      Inspect the armored 7.0 m lead, TipLoc area and ClickLoc connector protector.
      4
      Prepare the M8x1 mounting hole and keep the probe body free of side load.
      5
      Route armor without sharp bends, crushing, abrasion or tensile loading.
      6
      Match probe and extension-cable lengths to the selected NSv Proximitor sensor.
      7
      Set the static gap within the configured linear range and confirm signal polarity.
      8
      Verify vibration, position, speed or phase response and alarms before service release.

      Technical notes

      Technical notes

      Thread 330904-00-03-70-01-CN into the approved M8x1 mounting location without twisting or crushing its armored 7.0 m lead. Mate it only with the correct NSv extension cable and Proximitor sensor, then set gap, verify polarity and prove the configured vibration or position channel.

      FAQS

      • What thread and armor construction are used by 330904-00-03-70-01-CN?
        The 330904 family is the M8x1 NSv probe with armor.
      • What do the 00 and 03 dimensional codes specify for 330904-00-03-70-01-CN?
        They specify 0 mm unthreaded length and 30 mm overall case length.
      • What total probe length is specified for 330904-00-03-70-01-CN?
        The -70 total-length option is 7.0 m.
      • Which connector arrangement is selected on 330904-00-03-70-01-CN?
        The -01 option is a standard-cable ClickLoc connector with connector protector.
      • Where is the NSv geometry useful for 330904-00-03-70-01-CN?
        It is intended for restricted counterbore, side-view or rear-view areas and for small targets.
      • Can it be mixed with a standard 8 mm Proximitor system 330904-00-03-70-01-CN?
        Use matched NSv components; the probe, extension cable and Proximitor sensor must form the engineered NSv system.
      • How should the armored lead be routed for 330904-00-03-70-01-CN?
        Avoid sharp bends, crushing, abrasion and tension, and secure the connector protector against fluid entry.
      • What should be tested after installing 330904-00-03-70-01-CN?
        Verify static gap, polarity, dynamic response, channel scaling, alarm action and connector security.
