Technical specifications for 330850-50-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330850-50-00
-
Estimated shipping dimensions:7.8x6x6.5cm
-
Weight:0.2 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
System length:5.0 m
-
Mounting:Panel mount
-
Agency approval option:None
Information
Overview
Manuals
Common Applications
Product Precautions

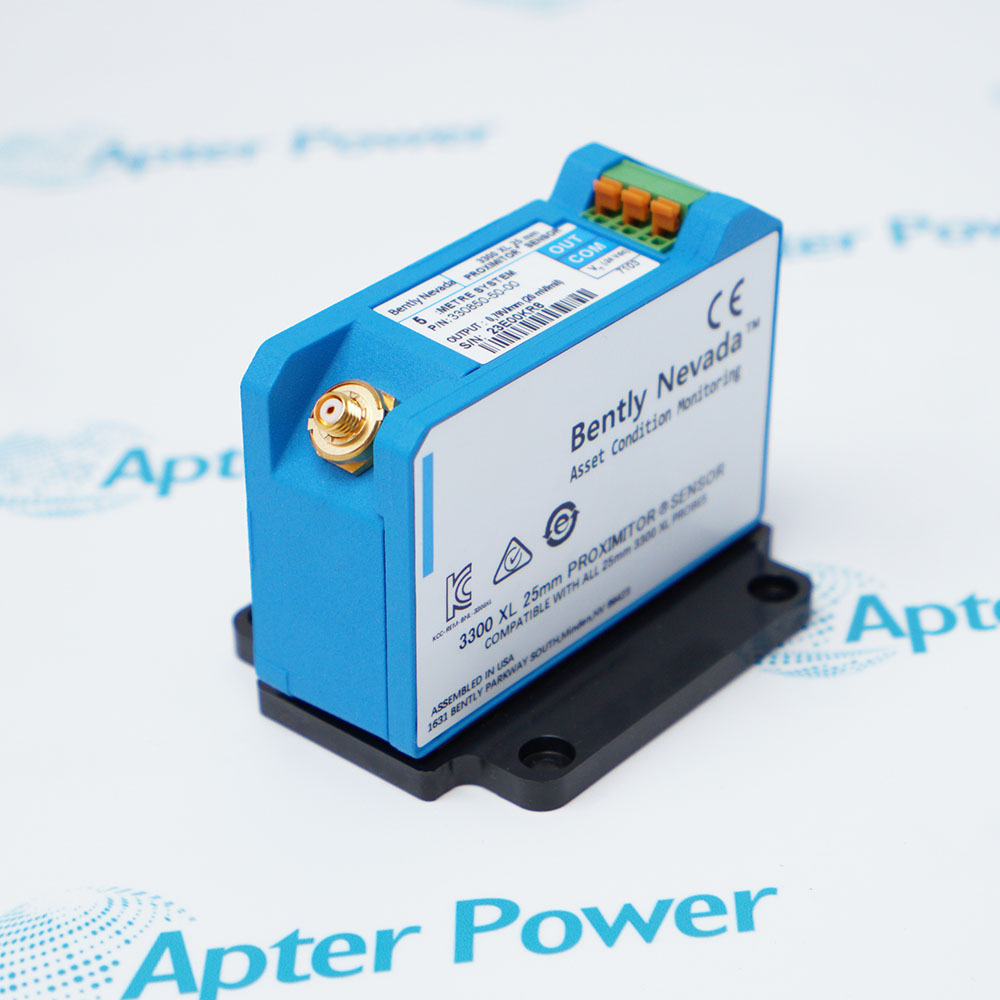

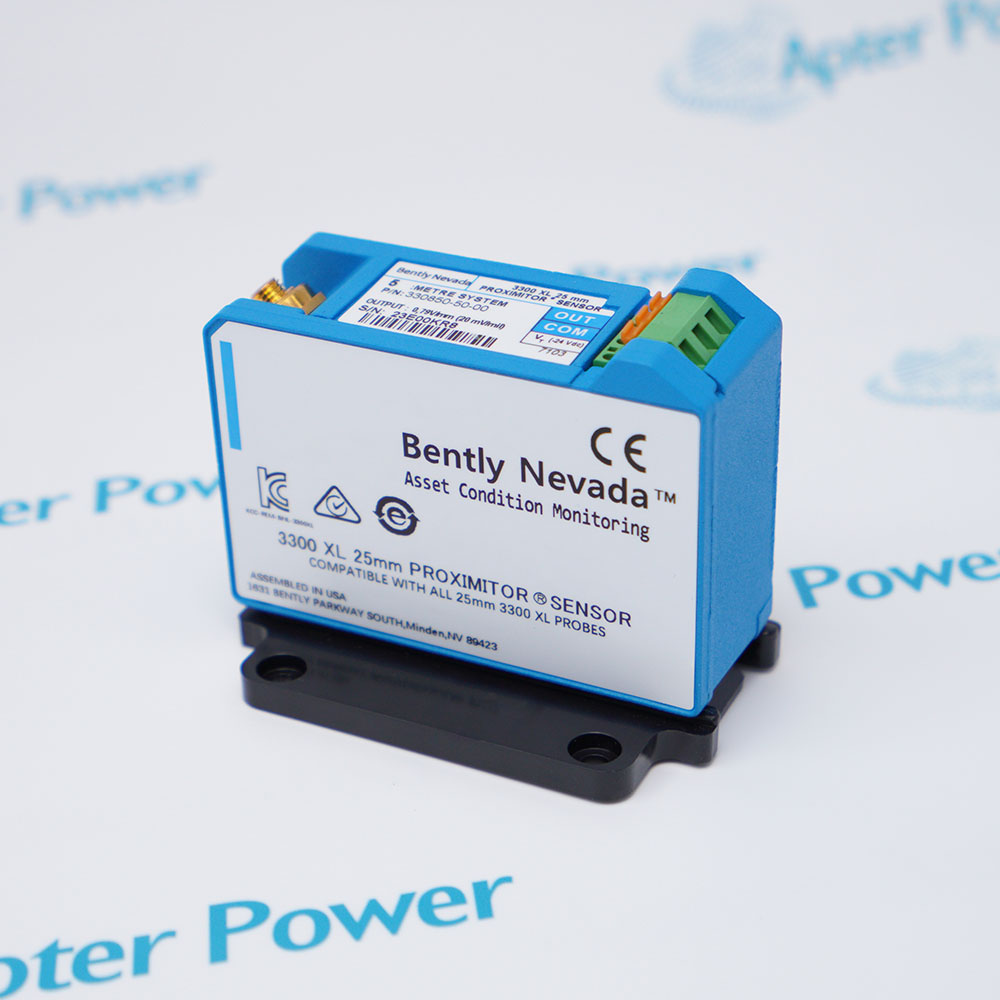

Bently Nevada 330850-50-00 is a panel-mounted 3300 XL 25 mm Proximitor Sensor for a 5 m system. It conditions the matched probe signal for large displacement monitoring.
- Drives a matched 25 mm proximity probe
- Linearizes the large-range eddy-current displacement signal
- Supplies a conditioned voltage to a compatible monitor input
- Provides the matched electronic element for the configured five-metre system
330850-50-00 installs with 3300 XL 25 mm probe, matched extension cable, compatible displacement monitor, panel mounting hardware in an engineered 3300 XL 25 mm Proximity Transducer System configuration.
The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 3300 xl 25 mm proximitor sensor.
Important Notice: Confirm the complete 330850-50-00 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.
Apter Power 330850-50-00 Manuals and Guides
Apter Power 330850-50-00 Product Technical Reference PDFBently Nevada 330850-50-00 Official Manual PDF
The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Turbine differential expansionDrives a matched 25 mm proximity probe
Large axial-position measurementLinearizes the large-range eddy-current displacement signal
Valve-position displacement monitoringSupplies a conditioned voltage to a compatible monitor input
Machine structural movement measurementProvides the matched electronic element for the configured five-metre system
Read the applicable Bently Nevada installation instructions before work. Verify 330850-50-00 and the installed 3300 XL 25 mm Proximity Transducer System configuration.
1Verify 330850-50-00 and the 5 m panel-mount execution.
2Isolate the monitor and Proximitor power before wiring work.
3Record probe, extension-cable, and monitor terminal identities.
4Use only matched 25 mm transducer-system components.
5Maintain panel clearance and grounding practice.
6Confirm supply polarity and field-wiring shield termination.
7Sweep the target through the commissioned measurement range.
8Verify scale, gap, alarms, and full mechanical clearance.
Technical notes
Mount 330850-50-00 on the panel with its specified clearance, match the 25 mm probe and cable to a 5 m system, and verify supply, gap, scale, polarity, and full travel.
FAQ View All FAQ
-
Which configuration check is essential when commissioning 330850-50-00?Restore only the approved model-specific channel, range, address, scale, or interface settings and compare them with the physical installation before enabling the process function.
-
How can an engineer function-test 330850-50-00 after installation?Apply a controlled input, reference, or limited output appropriate to 3300 xl 25 mm proximitor sensor, observe the system indication and diagnostics, and confirm the intended process response.
-
What should be checked if 330850-50-00 reports an unstable or incorrect value?Check seating, supply, grounding, shielding, matched components, mechanical installation, and the signal path before changing configuration or replacing additional hardware.
-
Can 330850-50-00 be replaced by a visually similar model without review?No. Verify the complete part number, electrical execution, connector arrangement, companion hardware, and approved software or rack configuration.
-
What commissioning evidence should be retained for 330850-50-00?Retain the full 330850-50-00 identity, as-left wiring and settings, measured functional-test results, final diagnostics, and authorization to return the affected equipment to service.
-
Which installed hardware must be matched before fitting 330850-50-00?Match the complete 330850-50-00 marking to 3300 XL 25 mm probe and matched extension cable, then confirm the assigned 3300 XL 25 mm Proximity Transducer System position and approved system configuration.
-
How should the field connections for 330850-50-00 be recorded before replacement?Record terminal or connector identity, polarity, shield, cable tag, channel assignment, and the as-found diagnostic state before disconnecting 330850-50-00.
-
What isolation is required before installing 330850-50-00?Place turbine differential expansion in the approved maintenance state, isolate every applicable power, signal, and stored-energy source, and prove the work area safe.
