Technical specifications for 330709-050-120-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330709-050-120-10-02-00
-
Estimated shipping dimensions:2.7×2.3×123cm
-
Weight:0.16 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Thread:M16 x 1.5
-
Lead armor:No
-
Unthreaded length:50 mm
-
Overall case length:120 mm
-
Total length:1.0 m
-
Connector and cable:ClickLoc connector; standard cable
-
Linear range:4 mm (160 mil) system reference
-
Nominal sensitivity:3.94 V/mm (100 mV/mil) system reference
-
Reference target:AISI 4140 steel
-
System rule:Use a matched 3300 XL 11 mm probe, extension cable and Proximitor
-
Probe construction:M16 x 1.5 standard-mount probe without armor
-
Signal-chain role:Extended-range non-contact sensing element
Information
Overview
Manuals
Common Applications
Product Precautions

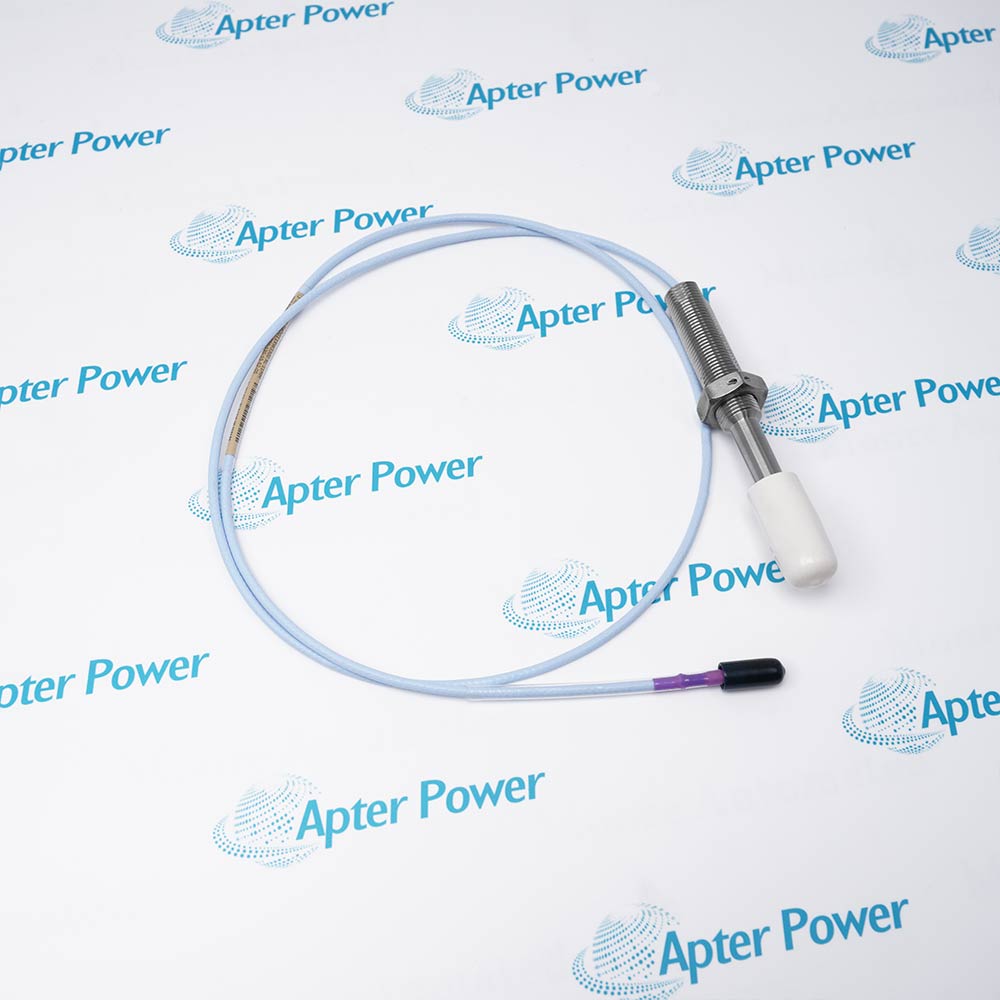

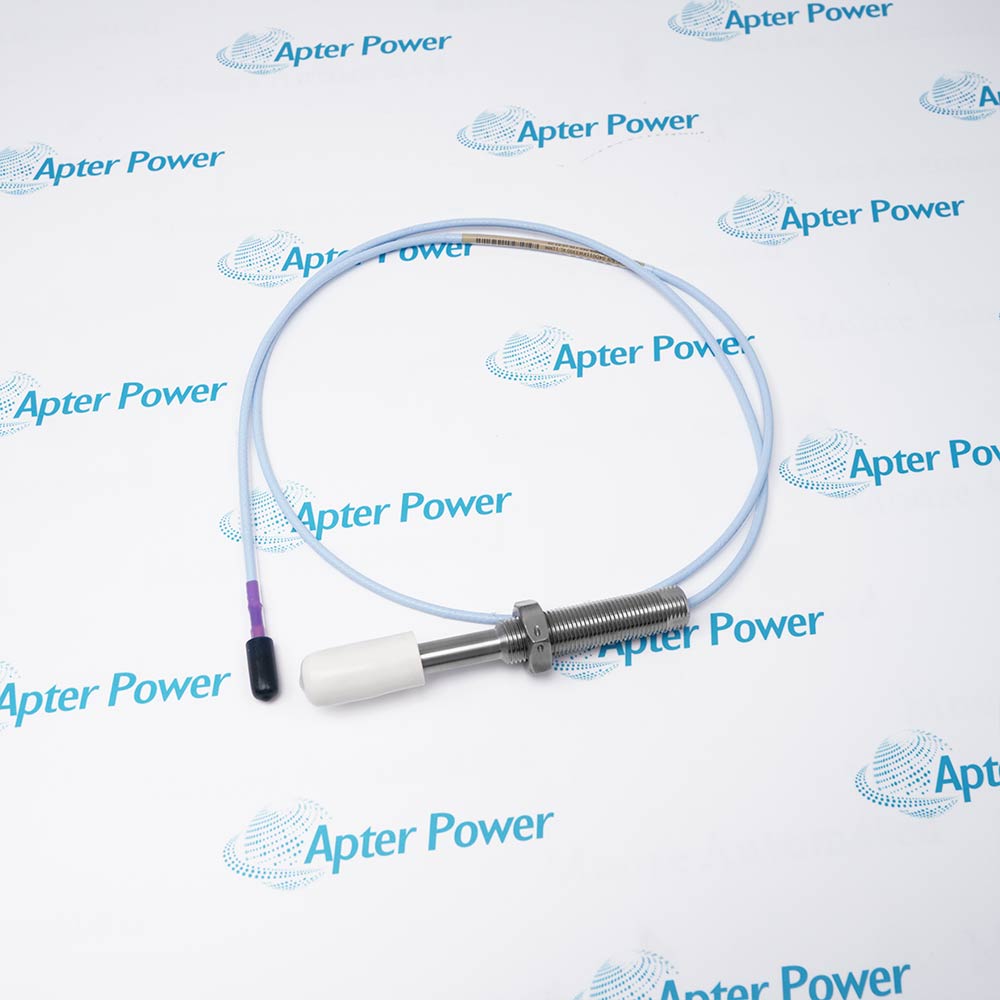

Bently Nevada 330709-050-120-10-02-00 provides a documented proximity probe function within its intended control or monitoring system.
- Uses the 330709 no-armor probe family with a M16 x 1.5 case.
- Combines 50 mm unthreaded length with a 120 mm overall case.
- Provides a 1.0 m standard lead with ClickLoc termination.
- Supports the documented 4 mm linear-range 3300 XL 11 mm system.
This probe belongs to an electrically matched extended-range chain. Mechanical reach, target geometry, cable length, Proximitor selection and installed gap must be verified as one configuration.
Important Notice: Verify the complete 330709-050-120-10-02-00 identity, mating hardware and controlled system procedure before installation.
Bently Nevada 330709-050-120-10-02-00 Manuals & Downloads
Official 3300 XL 11 mm System Datasheet Excerpt (PDF)Bently Nevada 330709-050-120-10-02-00 Installation & Commissioning Guide (PDF)
The Technical Reference organizes the exact ordering identity, applicable characteristics and system boundary for this proximity probe. The Installation & Commissioning Guide covers identification, pre-installation checks, connections, functional verification and the acceptance record.
Radial vibration
Measure relative shaft vibration where a 4 mm-range system is specified.
Axial position
Track shaft position or thrust movement at an approved target.
Differential expansion
Support machine-position measurements that require the 11 mm system range.
Condition monitoring
Feed gap and dynamic displacement signals to a compatible monitoring channel.
Use the complete Bently Nevada 330709-050-120-10-02-00 identity and the applicable controlled procedure before work.
1
Verify the full 330709-050-120-10-02-00 identifier before replacing another 11 mm probe.
2
Confirm the M16 x 1.5 mounting thread and 120 mm case envelope.
3
Check the 50 mm unthreaded section against the bracket and target geometry.
4
Match the 1.0 m lead with the extension cable and 11 mm Proximitor length.
5
Protect the ClickLoc connector from dirt, moisture and side load.
6
Maintain the approved target material, diameter and side-view clearance.
7
Set the operating gap from the matched system curve and machine travel.
8
Verify gap voltage, channel OK state and dynamic response before release.
Technical notes
Verify the complete 330709-050-120-10-02-00 identity, mating hardware and controlled system procedure before installation.
FAQ View All FAQ
-
Which system includes Bently Nevada 330709-050-120-10-02-00?It belongs to the 3300 XL 11 mm proximity transducer system.
-
Which thread is used on Bently Nevada 330709-050-120-10-02-00?The probe case uses a M16 x 1.5 thread.
-
Is Bently Nevada 330709-050-120-10-02-00 armored?No. This ordering family is the no-armor metric probe execution.
-
What mechanical lengths belong to Bently Nevada 330709-050-120-10-02-00?It has 50 mm unthreaded length and a 120 mm overall case.
-
What lead is selected on Bently Nevada 330709-050-120-10-02-00?The code selects a 1.0 m standard lead with ClickLoc termination.
-
What range applies to the matched Bently Nevada 330709-050-120-10-02-00 system?The documented 3300 XL 11 mm system linear range is 4 mm.
-
Can Bently Nevada 330709-050-120-10-02-00 be mixed with an 8 mm Proximitor?No. Use the matched 11 mm transducer chain specified for the installation.
-
What confirms commissioning of Bently Nevada 330709-050-120-10-02-00?Verify exact identity, matched chain, working gap, OK state and approved dynamic response.
