What is the 330380-90-00?

It is a 3300 XL 16mm High Temperature Proximitor Sensor manufactured by Bently Nevada.

What mounting configuration does the 330380-90-00 employ?

It employs a panel mount configuration, enabling integration into control panels and monitoring system enclosures.

What is the function of the 330380-90-00 in measurement?

It provides displacement data to perform shaft vibration and position monitoring in machinery setups.

What kind of physical environment is the 330380-90-00 primarily applied to?

It is used in high-temperature zones of industrial equipment and operates in extreme thermal environments where standard sensors fail to function.

Can the 330380-90-00 be used on steam turbines?

Yes, a typical application includes steam turbine shaft vibration monitoring, where it withstands elevated temperatures near turbine casings.

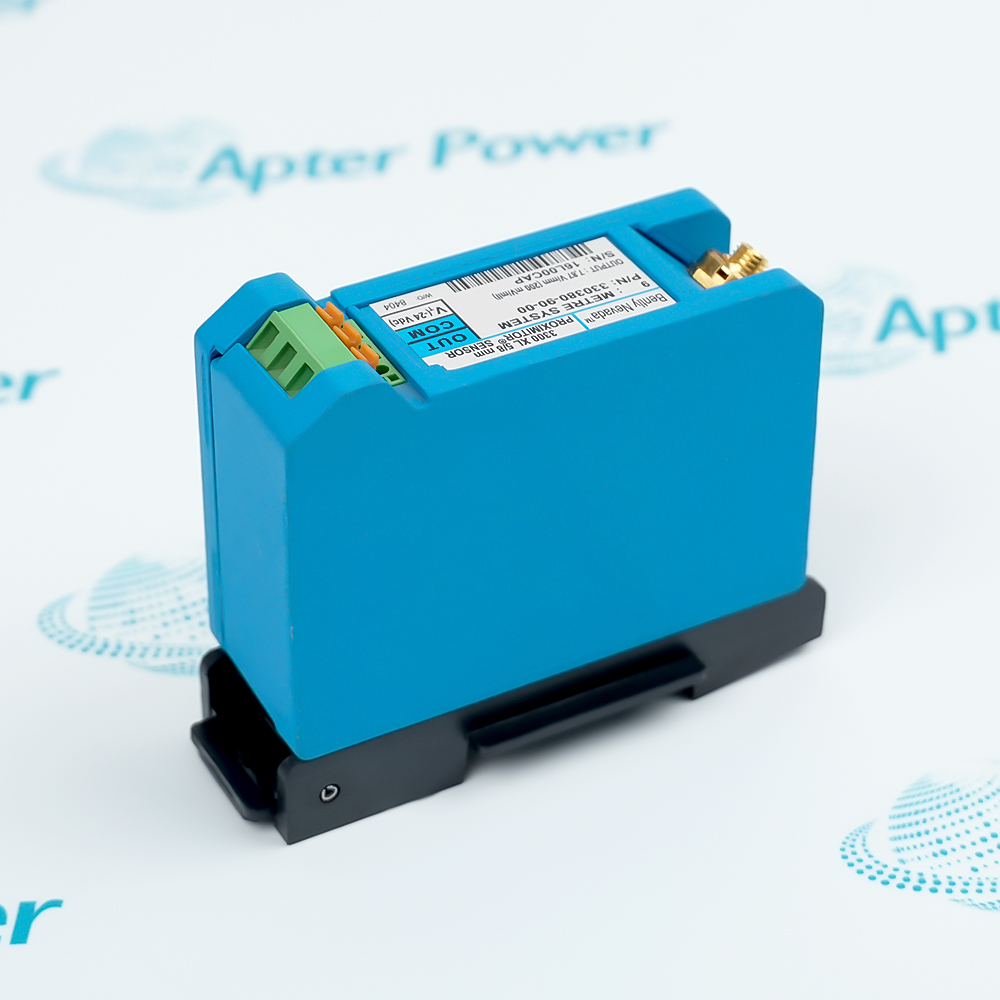

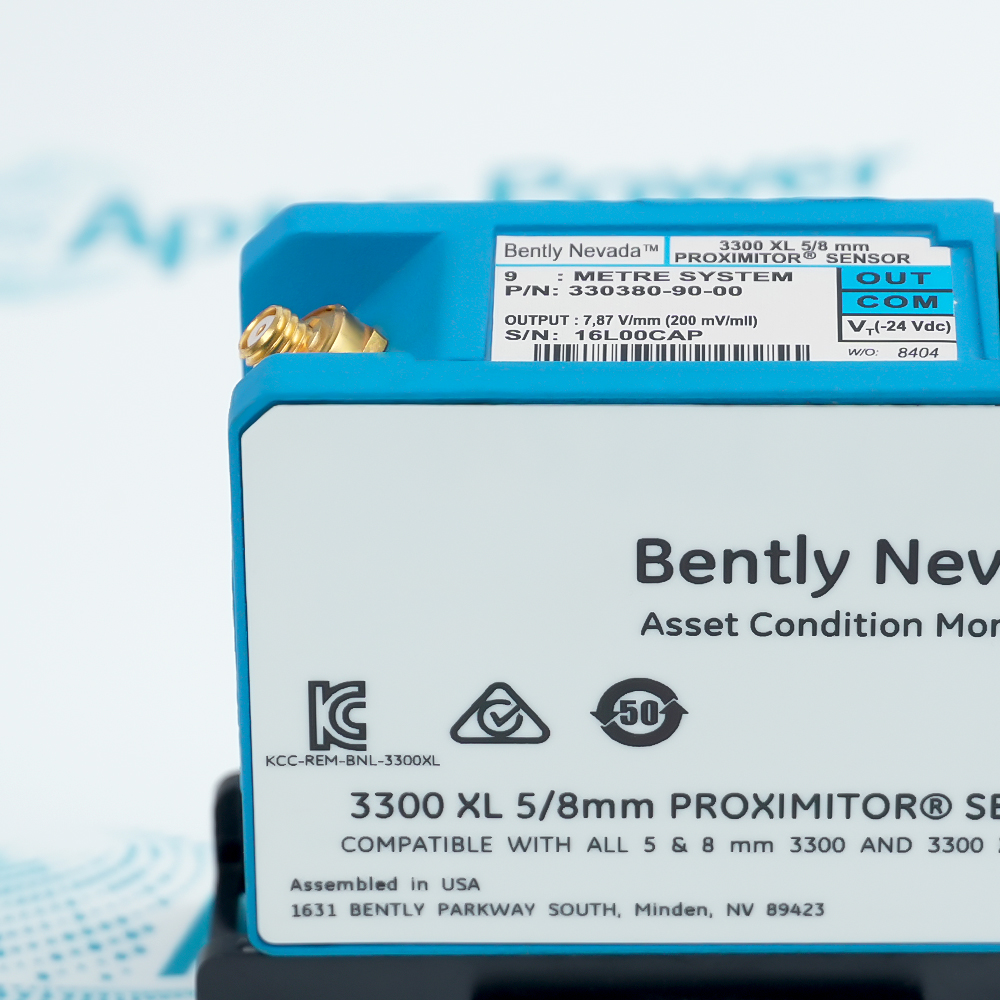

330380-90-00

Name: 330380-90-00
Brand: Bently Nevada
SKU: 330380-90-00

High Temperature Proximitor Sensor

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

9m panel-mount
3300 XL 16mm
High Temperature
Proximitor Sensor

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Warranty Policy

Review the applicable warranty coverage and claim process.
Return Notice

Check the return process and obtain approval before sending an item back.
Shipping Method

Review shipping arrangements, transit estimates and delivery responsibilities.
Parts Availability

Browse stock listings and confirm current availability with our team.
How to order

See how to submit an enquiry, review a quotation and confirm an order.

Get a quick price for 330380-90-00

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 330380-90-00

Manufacturer:

Bently Nevada
Product Category:

Machinery Monitoring Systems
Spare Part Number:

330380-90-00
Estimated shipping dimensions:

8.8x3.5x7cm
Weight:

0.2 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Total Length and Mounting Option:

9 meter, panel mount
Agency Approval:

Not required
Power Requirements:

Requires -19.6 Vdc to -26 Vdc at 9 mA maximum consumption
Output Resistance:

50 Ω
Incremental Scale Factor:

3.94 V/mm (100 mV/mil)
Linear Range:

4.0 mm (160 mils)

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The 330380-90-00 is a 3300 XL 16mm Temperature-rated Proximitor Sensor that functions within industrial vibration monitoring networks. This specific 330380-90-00 model operates with a total system cable length of 9 meters, which accommodates installation routing configurations across large-scale rotating machinery setups requiring extended cable range.

Threaded and smooth case styles for various types of probe mounting
Ceramic tip and stainless steel construction resists heat, moisture and corrosion
Hardline cable available in lengths of 1, 2 and 5 metres for routing cable through hot sections of the machine

The 3300 High Temperature Proximity System (HTPS) is designed to withstand the extreme temperatures found inside gas turbines, steam turbines and other types of rotating machinery. The 330380-90-00 functions as a temperature-rated proximity component to perform displacement measurement within thermal industrial environments where standard proximity sensors do not maintain operation.

In terms of application scenarios, the 330380-90-00 monitors shaft vibration and position variations within the temperature zones near steam turbine casings to output displacement data. It also monitors compressor thrust bearing positions to track proximity metrics in turbomachinery protection systems, and serves in gas expander and boiler feed pump frameworks subject to thermal environments.

Through these applications, the 330380-90-00 supplies data for rotor dynamics assessment and machinery health diagnostics across petrochemical processing, power generation, and heavy industrial facilities that require thermal management and machinery protection capabilities.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Bently Nevada 330380-90-00 High Temperature Proximitor Sensor Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Thermal Power Generation

Monitoring the radial vibration of heavy-duty steam turbine shafts.

Petrochemical Processing

Monitoring shaft axial deflection and thrust bearing position of crack gas compressors.

Coal Chemical & Gasification

Monitoring the bearing bush clearance of large reciprocating air-separation compressors.

Oil Refining & Hydrocracking

Monitoring the rotor dynamics of high-pressure water injection pumps and rich gas compressors.

Nuclear Power

Monitoring the shaft position of boiler feed pumps in nuclear conventional islands.

Cement & Building Materials Industry

Monitoring the mechanical offset at induced draft fan bearings within waste heat recovery frameworks.

The operation of the 330380-90-00 requires strict compliance with mechanical installation, electrical routing, and thermal environment protection specifications. Mechanically, the proximitor must be securely fixed to control panels or enclosures using its panel-mount configuration, maintaining proper electrical isolation between the housing and the grounding rail.

Electrically, its 9-meter total system cable length imposes strict impedance requirements, meaning field cutting or splicing of the cable is strictly prohibited, and the bend radius must remain within specified limits to prevent signal distortion.

Lastly, although this component is temperature-rated, technicians must periodically clear dust and localized moisture from the terminal blocks and check the tightness of the miniature coaxial connectors to prevent signal fluctuations caused by a drop in insulation resistance.

Alternative Names

330380 90 00 33O38O-9O-OO 330380-91-00 330380-92-00 330380-90-CN 330380-90-BR

Technical notes

The Bently Nevada 330380-90-00 is a 3300 XL series 16mm industrial temperature-rated proximitor sensor that employs a panel-mount structure and a standard configuration requiring no agency approval, featuring a 9-meter total system cable length. This component performs displacement measurement based on non-contact eddy current principles and functions in thermal industrial environments where standard sensors do not operate, serving in shaft vibration and axial position monitoring for steam turbines, compressors, gas expanders, and boiler feed pumps to supply data for machinery protection across power generation and petrochemical sectors.
