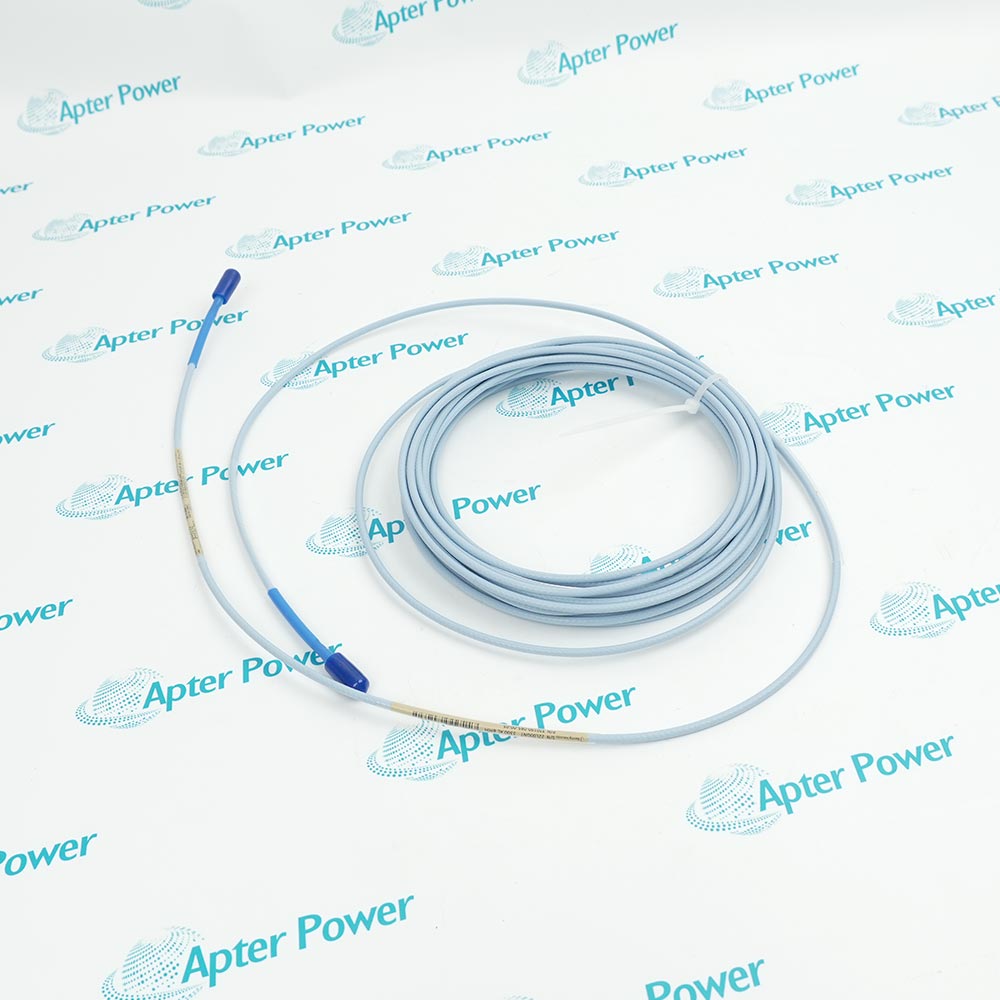

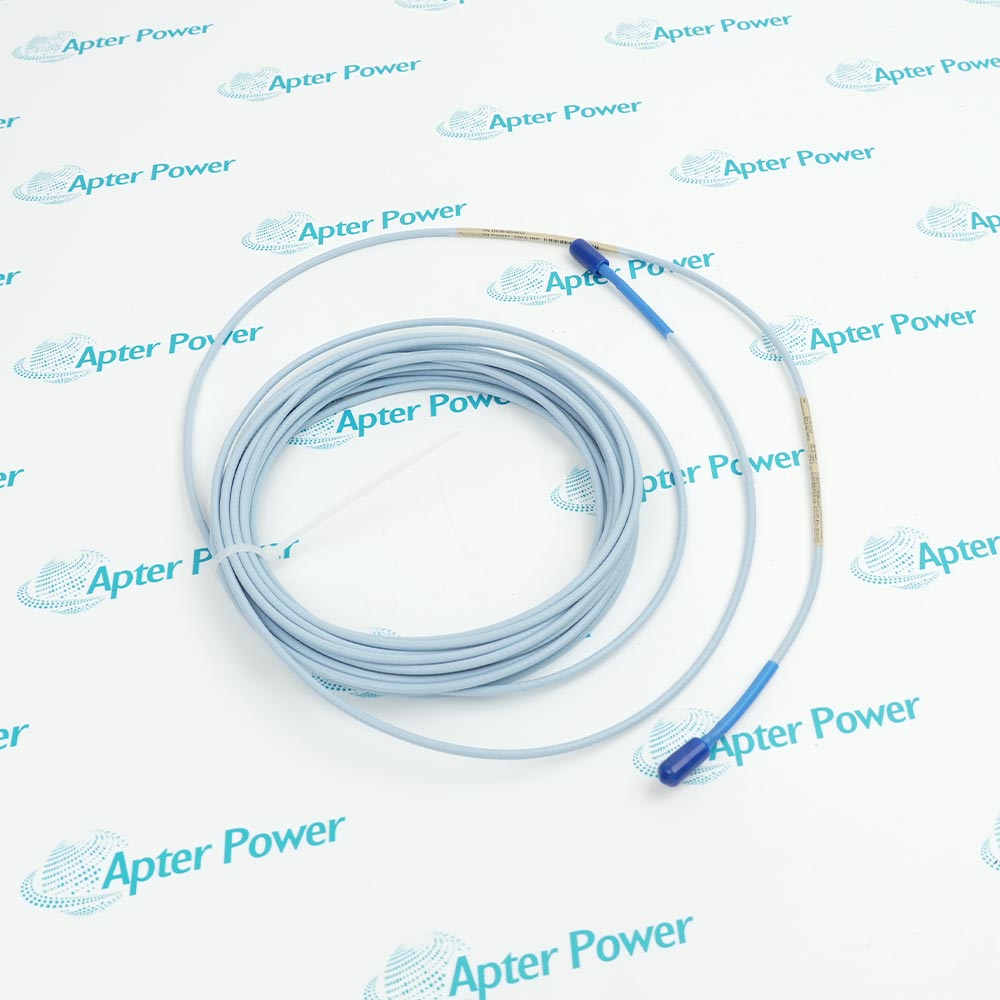

The 330190-085-00-05 is an 8.5-meter standard extension cable dedicated to the 3300 XL 8mm proximity transducer system, featuring global hazardous area approvals.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
The 330190-085-00-05 integrates a patented securing technology that provides a robust 330 N (75 lbf) pull strength at the connector joints, effectively preventing cable breakage caused by physical pulling in the field. Utilizing the 3300 XL series TipLoc™ patented molding method, the hardware structure is significantly strengthened to ensure stable and reliable signal transmission in harsh industrial vibration and oily environments.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330190-085-00-05 ETR Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Monitors the radial vibration of the steam turbine main shaft.
Hydraulic Power Generation
Measures the axial displacement of large hydro-generator units.
Nuclear Power Generation
Monitors the mechanical condition of the reactor main feedwater pump.
Petroleum Refining
Monitors bearing conditions of centrifugal compressors in hydrocracking units.
Natural Gas Transmission
Measures vibration of gas turbine-driven pump groups on long-distance pipelines.
Air Separation Industry
Monitors the mechanical vibration of air compressor shafts in large air separation units.
When using the 330190-085-00-05 extension cable, please strictly follow these installation and operation requirements. The cable bend radius must not be less than 25.4 mm to prevent damage to the internal coaxial structure.
Connector protectors must be installed at the joints to prevent onsite oil and moisture from penetrating. Cable routing must be kept away from high-voltage power cables to prevent electromagnetic interference. The total sensor system length must strictly match the 9-meter specification required by the Proximitor sensor, and cutting or splicing the cable is strictly prohibited.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
It is a 3300 XL Standard Extension Cable manufactured by Bently Nevada.
What is the length of the cable?
The cable is of 8.5 metres in length.
What is the operating temperature of the component?
Operating temperature ranges from -51 degrees Celsius to + 177 degrees Celsius.
