Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 330106-05-30-15-02-CN
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330106-05-30-15-02-CN
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330106-05-30-15-02-CN
-
Estimated shipping dimensions:1×0.9×118cm
-
Weight:0.05 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Probe Family:3300 XL 8 mm
-
Mounting Thread:M10 x 1
-
Construction:Reverse mount
-
Total Probe Length:15 = 1.5 m
-
Connector:02 = miniature coaxial ClickLoc; no protector
-
Cable Type:Standard; 75 ohm triaxial; FEP insulation
-
Agency Approval Option:CN = China-specific approval selection
-
Probe Tip Material:Polyphenylene sulfide (PPS)
-
Probe Case Material:AISI 303 or 304 stainless steel
-
Connector Material:Gold-plated brass or beryllium copper
-
Nominal Probe DC Resistance:7.73 +/- 0.50 ohm
-
Maximum Connector Torque:0.565 N m
-
Recommended Reverse-Mount Case Torque:7.5 N m; reverse mount
-
Probe Operating / Storage Temperature:-52 to +177 deg C
-
Matched System Linear Range:2 mm; approximately 0.25 to 2.3 mm
-
Matched System Scale Factor:7.87 V/mm (200 mV/mil) nominal
-
Radial Vibration Gap Setting:-9 VDC nominal
-
Matched System Frequency Response:0 to 10 kHz; +0 / -3 dB
-
Calibration Target:AISI 4140 steel
-
Supported Electrical System Lengths:5 m with 3.5 m extension; 9 m with 7.5 m extension
-
Proximitor Maximum Current:12 mA
-
Proximitor Supply, Non-incendive Circuit:-17.5 to -26 VDC; per drawing 140979
-
Proximitor Supply with Barriers:-23 to -26 VDC
-
Proximitor Output Resistance:50 ohm
-
Proximitor Housing Material:A308 aluminum
-
Proximitor Operating Temperature:-52 to +100 deg C
-
Proximitor Storage Temperature:-52 to +105 deg C
-
Maximum Reverse-Mount Case Torque:22.6 N m; reverse mount
-
Extension Cable Minimum Bend Radius:25.4 mm
-
Extension Cable Capacitance:69.9 pF/m typical
-
Fixed Reverse-Mount Prefix:330106-05-30
-
3.5 m Extension Center Resistance:0.77 +/- 0.12 ohm
-
7.5 m Extension Center Resistance:1.65 +/- 0.25 ohm
-
Minimum Flat Target Diameter:15.2 mm
-
Recommended Minimum Shaft Diameter:76.2 mm
Information
Overview
Manuals
Common Applications
Product Precautions

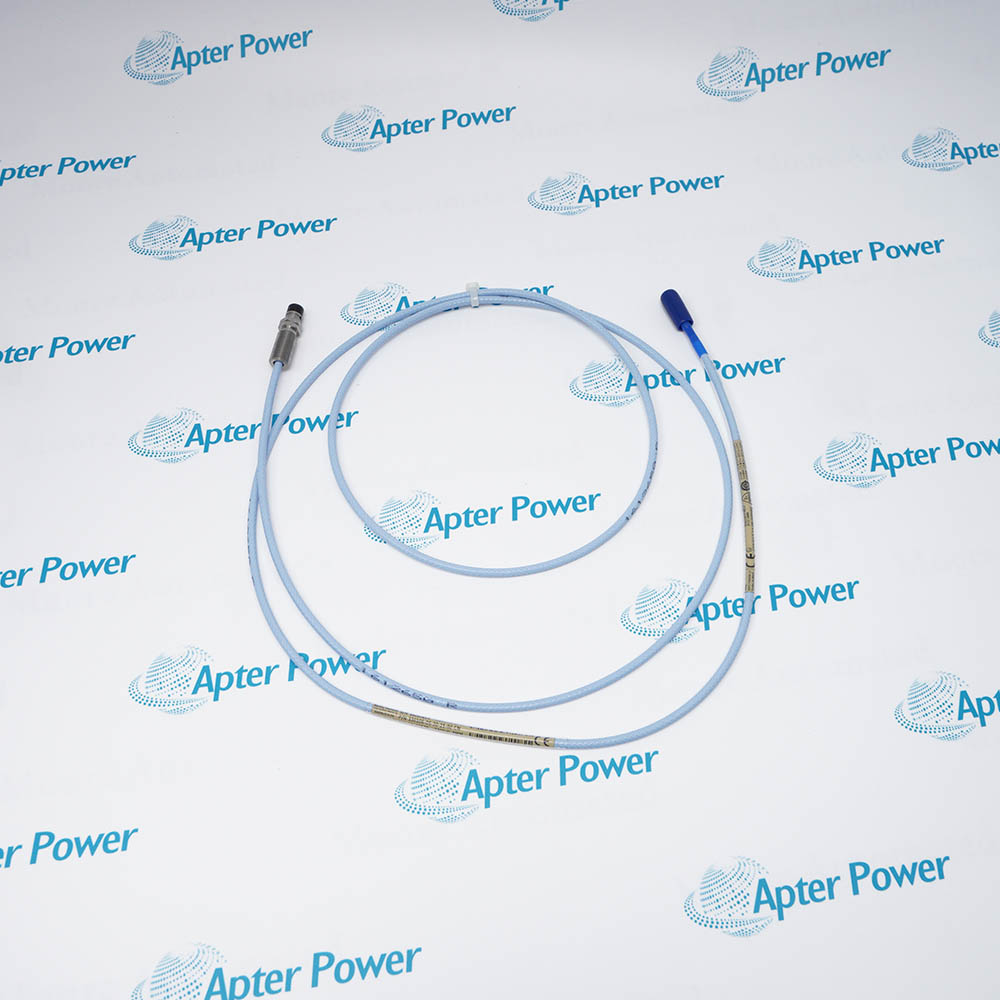

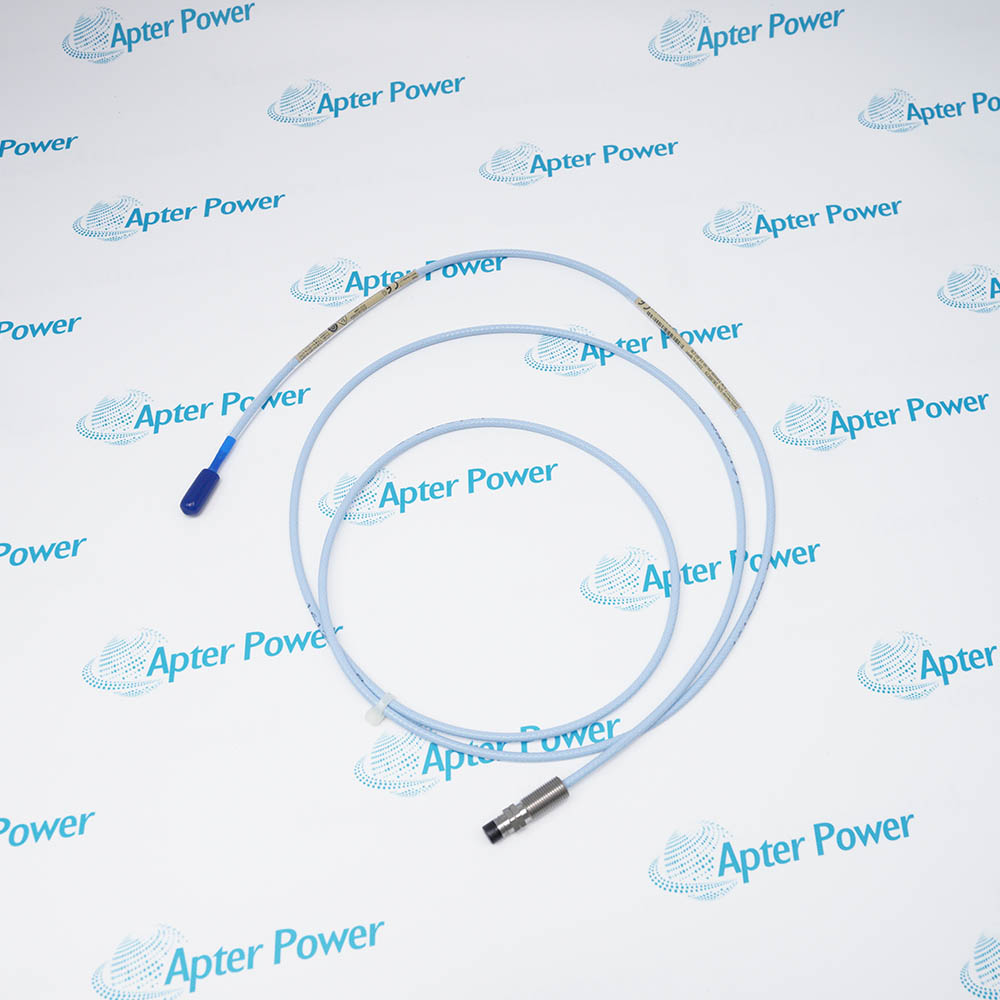

Bently Nevada 330106-05-30-15-02-CN is an M10 x 1 reverse-mount 3300 XL 8 mm probe with a 1.5 m standard ClickLoc lead. Its matched transducer system measures shaft-relative vibration and position.
- Mounts in the reverse direction within the engineered probe-sleeve arrangement.
- Uses the standard coaxial ClickLoc interface for the sensing connection.
- Works through a selected extension and Proximitor as one transducer channel.
- Retains the country-specific CN approval selection in the complete order code.
The reverse-mounted probe is one component of the assembled measurement chain. Select the extension and conditioner electrical length together, and inspect the probe sleeve, target calibration and monitoring channel before applying a shaft displacement signal.
Important Notice: Use the reverse-mount installation instruction, rather than the standard forward-mount case torque. The CN option does not establish an area classification or installation rating without the applicable marking and approved circuit.
Bently Nevada 330106-05-30-15-02-CN Manuals & Downloads
330106-05-30-15-02-CN Technical Reference (PDF)330106-05-30-15-02-CN Installation & Commissioning Guide (PDF)
The technical reference covers configuration, signal characteristics and performance conditions. The installation guide organizes system pairing, connection checks and channel commissioning.
Sleeve-mounted sensing
Use the reverse-mount execution in an engineered probe sleeve that provides the intended support and orientation.
Radial shaft-motion channels
Measure shaft movement relative to a fluid-film bearing through a matched 3300 XL 8 mm displacement chain.
Axial conductive targets
Read static target position when the receiving monitor and target geometry are configured for that measurement.
Protected reference installations
Supply an appropriate speed or phase-reference channel from the selected target feature and approved installation arrangement.
Bently Nevada 330106-05-30-15-02-CN installation checks: match the electrical length, protect the ClickLoc junction and verify the conditioned signal before release.
1
Verify the fixed 330106-05-30 reverse-mount interface and receiving M10 x 1 support.
2
Pair the 1.5 m lead with a selected 3.5 m or 7.5 m extension for the matching 5 m or 9 m sensor.
3
Use 7.5 N m recommended reverse-mount case torque and keep within the 22.6 N m maximum.
4
Protect the standard ClickLoc junction and insulate it from ground; the selected code has no connector protector.
5
Treat CN marking and the actual circuit approval separately from mechanical sleeve fit.
6
Check target geometry and probe separation before interpreting calibration or adjacent-channel interaction.
7
Keep the standard probe, extension and Proximitor within their separate temperature and accuracy conditions.
8
Check the loaded negative DC supply and both static position and dynamic channel behavior before release.
Technical notes
Use the reverse-mount case torque and a matched 5 m or 9 m electrical chain. The 1.5 m probe lead requires the selected 3.5 m or 7.5 m extension; CN approval is assessed from the installed marking and circuit.
FAQ View All FAQ
-
What installation structure is identified by 330106-05-30 in 330106-05-30-15-02-CN?The fixed prefix identifies the M10 x 1 reverse-mount 8 mm execution. Use the corresponding receiving probe-sleeve arrangement; do not decode 05 and 30 with the adjustable forward-mount AA/BB table.
-
Can the 1.5 m lead of 330106-05-30-15-02-CN be used with the probe-only 1 m sensor?The 1 m sensor configuration is a 1 m probe only. This 1.5 m execution instead needs the selected 3.5 m or 7.5 m extension to complete a 5 m or 9 m system.
-
Which resistance values belong to the extensions paired with 330106-05-30-15-02-CN?The 3.5 m extension has nominal center-conductor resistance 0.77 +/- 0.12 ohm; the 7.5 m extension has 1.65 +/- 0.25 ohm. These are extension center-to-center values, separate from the probe center-to-outer resistance.
-
Why is the usual forward-mount case torque inappropriate for 330106-05-30-15-02-CN?Reverse-mount probes have 7.5 N m recommended case torque and 22.6 N m maximum. The standard fully supported forward-mount row gives different values and must not be transferred to this execution.
-
Is FluidLoc normally required by the sleeve arrangement used with 330106-05-30-15-02-CN?The ordering notes state that FluidLoc is unnecessary for most 330105/330106 installations because of the probe sleeve. This -02 execution uses standard cable; assess the application before selecting a separate FluidLoc option.
-
Where is the CN approval availability of 330106-05-30-15-02-CN established?The country-specific guide lists CN for base 330106. CN covers applicable China hazardous-area requirements, while the actual product marking and associated circuit establish the permitted installed use.
-
What target geometry limits apply to a channel containing 330106-05-30-15-02-CN?The datasheet specifies a 15.2 mm minimum flat-target diameter and a 76.2 mm recommended minimum shaft diameter. Smaller shafts can alter the scale factor; use the appropriate target calibration.
-
How can adjacent probes affect measurements made with 330106-05-30-15-02-CN?At the center of the linear range, maintain the stated separation guidance: generally 40 mm for axial position and 38 mm for radial vibration, to limit cross-talk to 50 mV or less under the documented shaft conditions.
