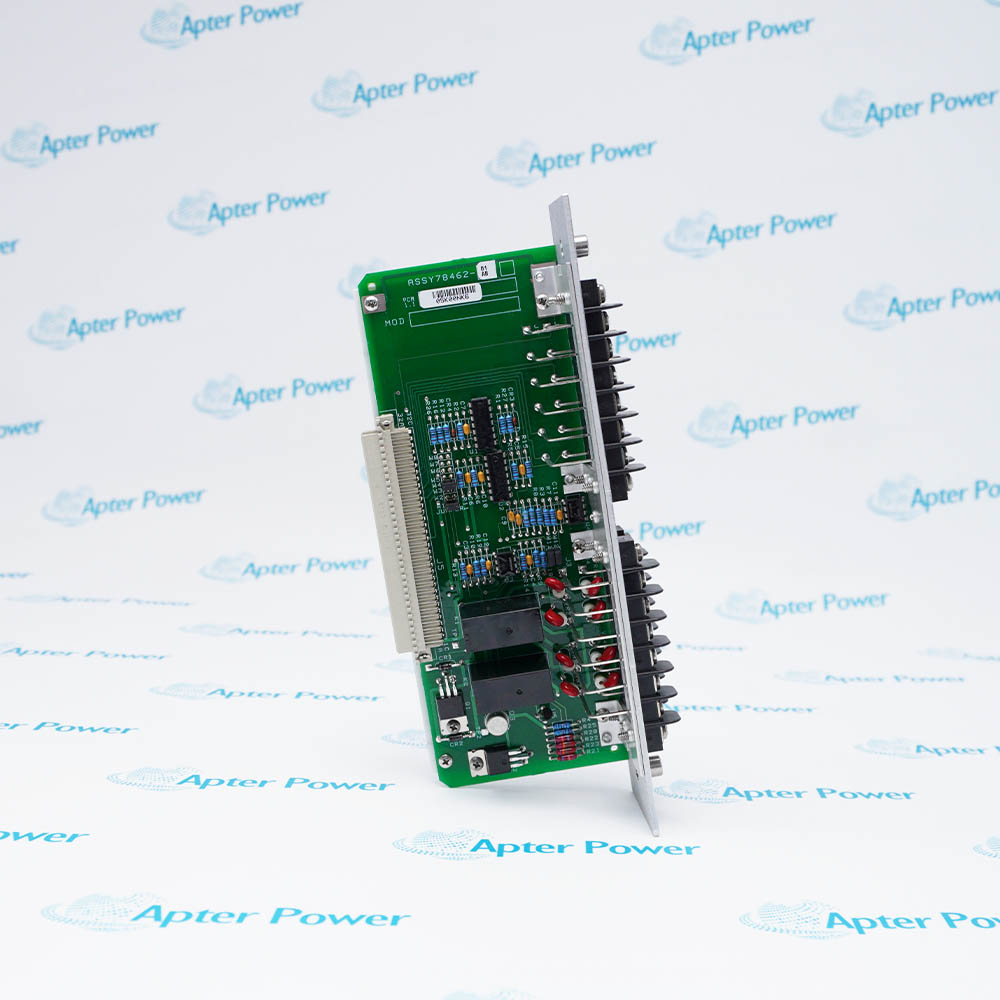

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 330104-00-16-10-02-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy
-
Match the complete marking
Include 330104-00-16-10-02-00 and any revision or assembly number visible on the item. Keep the exact reference on your enquiry and quotation.
-
Check the offered item before ordering
Request available label and connector photos. Have your maintenance team compare the offered 330104-00-16-10-02-00 with the installed equipment and applicable Bently Nevada documentation.
Technical specifications for 330104-00-16-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330104-00-16-10-02-00
-
Weight:0.58 kg
-
Tariff Code:8537101190
-
Product type:3300 XL 8 mm proximity probe
-
Case thread:M10 x 1
-
Armor:Included in 330104 design
-
Unthreaded length:00: 0 mm
-
Case length:16: 160 mm
-
Total probe length:10: 1.0 m
-
Connector:02: Miniature coaxial ClickLoc
-
Cable type:Standard cable
-
Agency approval option:00: Not required
-
Measurement function:Static position and dynamic vibration through a matched system
Information
Overview
Downloads
Applications / Compatibility
Product Precautions
- Bently Nevada 330104-00-16-10-02-00 supports non-contact shaft observation in a matched 3300 XL 8 mm transducer chain for vibration and position monitoring.
Product type: Armored proximity probe
Connection: Miniature coaxial ClickLoc, standard cable
Measurement chain: Probe with matched cable and Proximitor sensor
Connection: Miniature coaxial ClickLoc, standard cable
Measurement chain: Probe with matched cable and Proximitor sensor
Bently Nevada 330104-00-16-10-02-00 uses the metric 330104 armored probe design. Its option sequence specifies zero unthreaded length, a 160 mm case, 1.0 m total probe length and a miniature coaxial ClickLoc connector with standard cable. Approval option 00 selects no agency approval; it does not establish hazardous-area certification.
The 3300 XL 8 mm system produces a voltage related to the distance between the probe tip and the observed conductive surface. It supports static position and dynamic vibration measurements, including shaft observation in fluid-film-bearing machines. The probe is one component of that measurement chain; match the Proximitor sensor and total cable configuration before applying system sensitivity or linear-range values.
The probe construction uses TipLoc attachment of the tip and CableLoc attachment of the cable. The ClickLoc connection locks by hand and resists loosening without a separate locking tool. Keep the standard-cable selection distinct from FluidLoc and extended-temperature variants, and establish the installed gap with the actual target and complete transducer chain before releasing the channel.
The 3300 XL 8 mm system produces a voltage related to the distance between the probe tip and the observed conductive surface. It supports static position and dynamic vibration measurements, including shaft observation in fluid-film-bearing machines. The probe is one component of that measurement chain; match the Proximitor sensor and total cable configuration before applying system sensitivity or linear-range values.
The probe construction uses TipLoc attachment of the tip and CableLoc attachment of the cable. The ClickLoc connection locks by hand and resists loosening without a separate locking tool. Keep the standard-cable selection distinct from FluidLoc and extended-temperature variants, and establish the installed gap with the actual target and complete transducer chain before releasing the channel.
Controller platform reference: 3300 XL 8 mm system. Match the installed configuration before replacement.
Technical downloads for 330104-00-16-10-02-00: an original Bently Nevada reference excerpt and an Apter Power installation planning guide.
-
Bently Nevada 330104-00-16-10-02-00 technical reference
Original Bently Nevada excerpt - PDF, 4 pages, 447.7 KB. The 330104 ordering definition applies to 330104-00-16-10-02-00. Measurement performance belongs to the complete matched probe, cable and Proximitor sensor system. -
Bently Nevada 330104-00-16-10-02-00 installation planning guide
Prepared by Apter Power - PDF, 5 pages, 96.6 KB. Identity, configuration, connection and controlled acceptance planning.
The 330104 ordering definition applies to 330104-00-16-10-02-00. Measurement performance belongs to the complete matched probe, cable and Proximitor sensor system. The planning guide is prepared by Apter Power; apply the complete manufacturer instructions and the stated applicability boundaries.
System and supply context: The 330104 ordering definition applies to 330104-00-16-10-02-00. Measurement performance belongs to the complete matched probe, cable and Proximitor sensor system. Accessories are included only when itemized in the quotation.
Platform applications: The following applications describe 3300 XL 8 mm system functions. Match the complete 330104-00-16-10-02-00 identity to the installed system before selecting a replacement.
Platform applications: The following applications describe 3300 XL 8 mm system functions. Match the complete 330104-00-16-10-02-00 identity to the installed system before selecting a replacement.
-
Radial shaft vibration
Observe shaft movement with a matched transducer system on a suitable fluid-film-bearing machine. Keep the sensing target and installed gap within the applicable system conditions. -
Axial position measurement
Use a suitable conductive target and the correct probe orientation for axial position. Establish the reference gap using the complete matched measurement chain. -
Speed and phase reference
A suitable target feature and supporting monitoring equipment allow speed or Keyphasor-related sensing. Confirm target geometry and the intended channel function. -
Armored probe routing
Protect the probe cable at the machine with the selected armored construction. Route and secure the connection without imposing installation loads on the sensing tip.
Prepare 330104-00-16-10-02-00 against the installed configuration and applicable Bently Nevada instructions. Plan isolation and the resulting interruption of system operation before replacement.
Match the mounting thread
Confirm the M10 x 1 machine thread and usable case engagement before mounting.
Keep the electrical chain matched
Verify total cable configuration and Proximitor sensor selection before connecting the monitoring channel.
Set the operating gap
Establish the gap on the actual target and verify the chain response before normal service.
Respect cable selection
This reference has standard cable; do not assume FluidLoc sealing or extended-temperature performance.
Protect the connector
Keep the ClickLoc joint clean, correctly engaged and protected from installation damage.
Verify approval scope
Final option 00 does not establish hazardous-area approval. Use only an arrangement approved for the installation.
Alternative Names
330104-00-16-10-02-00
Bently Nevada 330104-00-16-10-02-00
Technical notes
Installation relationship: The 3300 XL 8 mm system produces a voltage related to the distance between the probe tip and the observed conductive surface. It supports static position and dynamic vibration measurements, including shaft observation in fluid-film-bearing machines. The probe is one component of that measurement chain; match the Proximitor sensor and total cable configuration before applying system sensitivity or linear-range values.
Configuration: The 330104 ordering definition applies to 330104-00-16-10-02-00. Measurement performance belongs to the complete matched probe, cable and Proximitor sensor system.
Technical reference: Bently Nevada 3300 XL 8 mm Proximity Transducer System, 141194 Rev. AN.
FAQ View All FAQ
-
What measurement chain does 330104-00-16-10-02-00 require?Use the probe with the appropriate cable configuration and matched Proximitor sensor. System output and accuracy depend on the complete transducer chain.
-
Which mounting thread is used on 330104-00-16-10-02-00?The metric 330104 design uses an M10 x 1 thread and includes armor. Match the machine mounting thread before installation.
-
What do the 00 and 16 length options mean on 330104-00-16-10-02-00?The first 00 indicates zero unthreaded length. The 16 case-length option is 160 mm in the metric ordering definition.
-
What does the 10 option specify for 330104-00-16-10-02-00?It specifies a 1.0 m total probe length. This is not the complete electrical system length unless the selected system configuration makes it so.
-
Which connector and cable are selected for 330104-00-16-10-02-00?Option 02 selects a miniature coaxial ClickLoc connector and standard cable. It is distinct from the FluidLoc and connector-protector selections.
-
Does 330104-00-16-10-02-00 include hazardous-area approval?The final 00 is the no-agency-approval selection. Do not claim an approval based on another probe variant or a system certificate.
-
Can 330104-00-16-10-02-00 be used for static and dynamic measurement?The matched 3300 XL 8 mm system supports static position and dynamic vibration measurements. The sensing target, gap and system components must suit the intended measurement.
-
Why must the target and gap be checked when installing 330104-00-16-10-02-00?The probe observes a conductive surface through a complete calibrated system. Target characteristics and the installed gap affect the usable measurement, so verify the chain response on the intended machine target.
