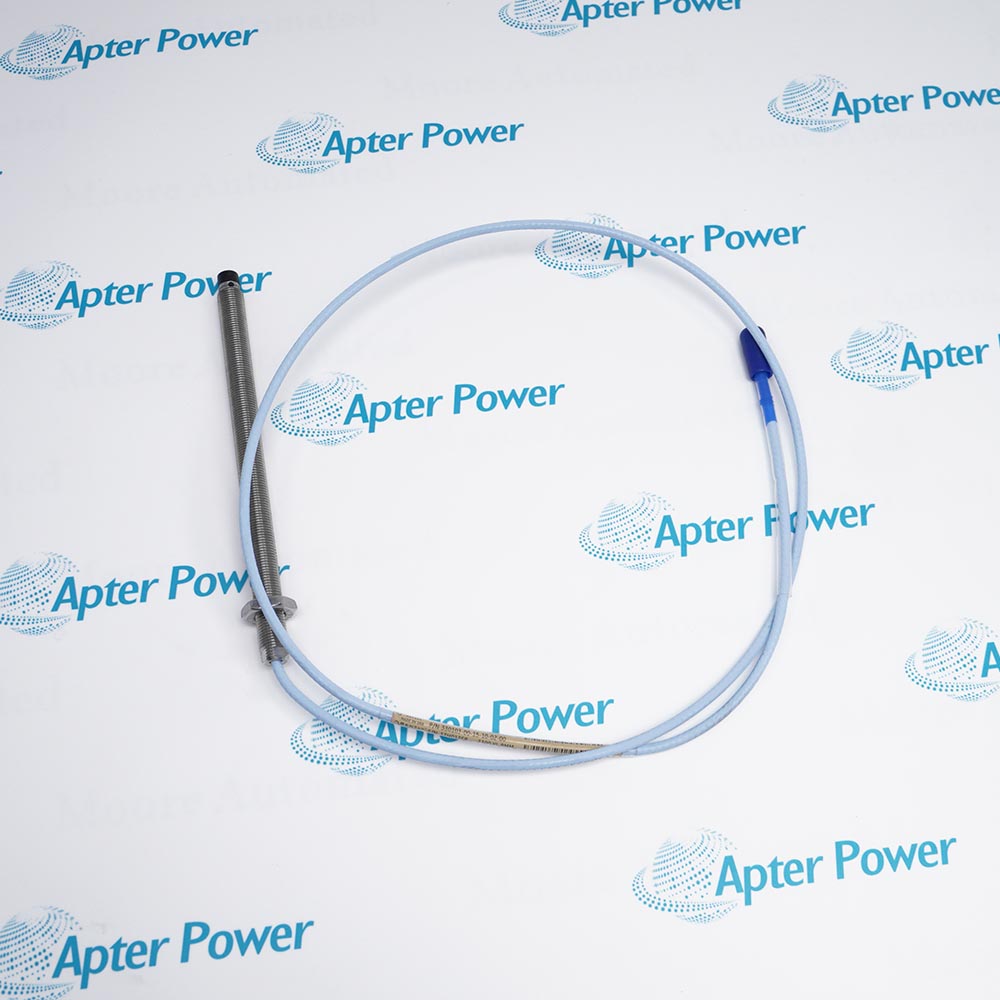

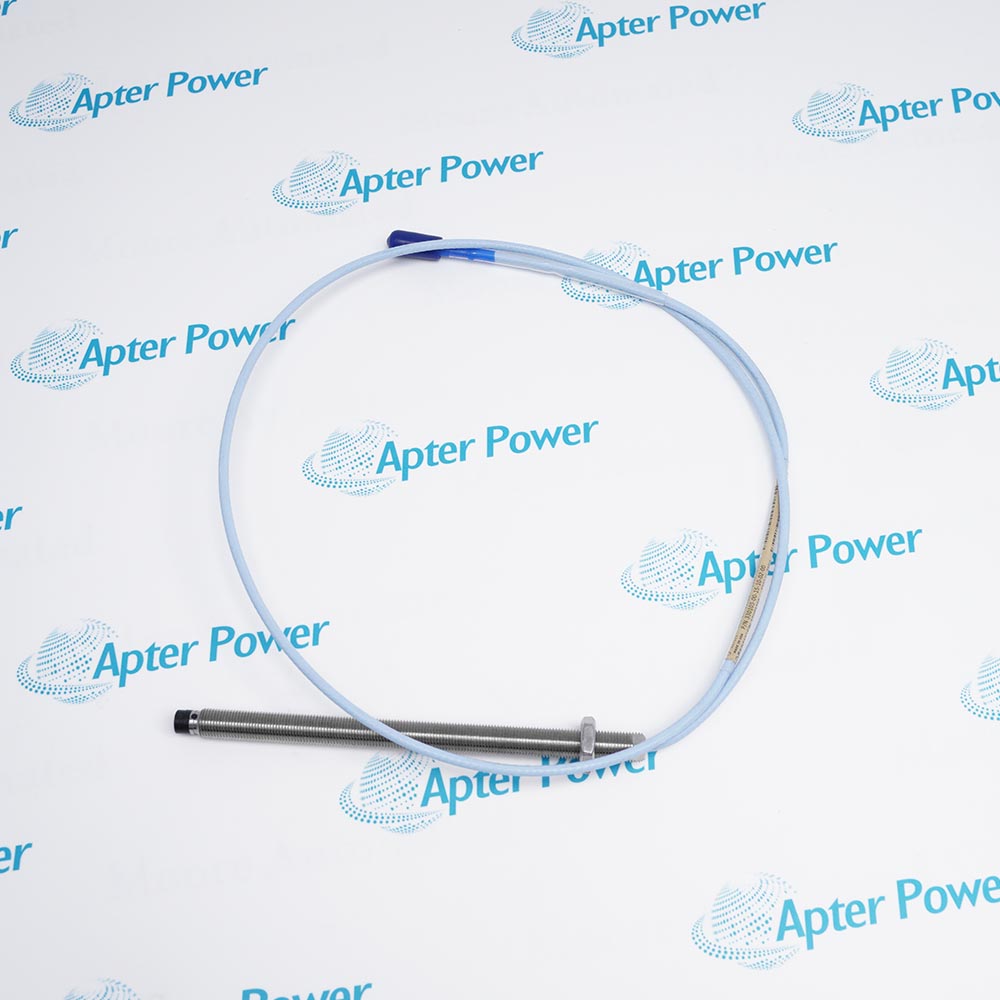

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 330103-00-15-10-02-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330103-00-15-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330103-00-15-10-02-00
-
Estimated shipping dimensions:1.8×1.5×112cm
-
Weight:0.1 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Thread:M10 x 1
-
Lead armor:No
-
Unthreaded length:0 mm
-
Overall case length:150 mm
-
Total length:1.0 m
-
Connector and cable:ClickLoc connector with standard cable
-
Linear range:2 mm (80 mil) system reference
-
Nominal sensitivity:7.87 V/mm (200 mV/mil) system reference
-
Reference target:AISI 4140 steel
-
System rule:Probe plus extension cable must equal the Proximitor electrical length
-
Probe construction:M10 x 1 standard-mount probe without armor
-
Signal-chain role:Non-contact eddy-current sensing element
Information
Overview
Manuals
Common Applications
Product Precautions
Bently Nevada 330103-00-15-10-02-00 provides a documented proximity probe function within its intended control or monitoring system.
- Uses the 330103 M10 x 1 probe execution without lead armor.
- Selects 0 mm unthreaded length and a 150 mm overall case.
- Provides a 1.0 m total lead with clickloc connector with standard cable.
- Belongs to the documented 2 mm-range 3300 XL 8 mm transducer system.
The probe, extension cable and Proximitor operate as one calibrated chain. Installation therefore checks mechanical reach, total electrical length, connector condition, static gap and dynamic channel response together.
Important Notice: Verify the complete 330103-00-15-10-02-00 identity, mating hardware and controlled system procedure before installation.
Bently Nevada 330103-00-15-10-02-00 Manuals & Downloads
Official 3300 XL 8 mm System Datasheet Excerpt (PDF)Bently Nevada 330103-00-15-10-02-00 Installation & Commissioning Guide (PDF)
The Technical Reference organizes the exact ordering identity, applicable characteristics and system boundary for this proximity probe. The Installation & Commissioning Guide covers identification, pre-installation checks, connections, functional verification and the acceptance record.
Radial vibration
Observe relative shaft vibration at a qualified metallic target.
Axial position
Measure shaft-position change where the machine design provides an approved mounting point.
Keyphasor reference
Provide a shaft-event signal when the installed system uses a suitable target.
Condition monitoring
Supply static gap and dynamic displacement information to a compatible monitor.
Use the complete Bently Nevada 330103-00-15-10-02-00 identity and the applicable controlled procedure before work.
1
Confirm the complete 330103-00-15-10-02-00 label before removing the installed probe.
2
Verify the M10 x 1 machine thread and available case envelope.
3
Check the 0 mm unthreaded section and 150 mm case length against the mounting geometry.
4
Match the 1.0 m probe lead with the extension cable and Proximitor electrical length.
5
Keep the ClickLoc joint clean, dry and free of side load.
6
Do not twist, shorten or splice the calibrated lead.
7
Set gap from the matched system response and approved machine procedure.
8
Record gap voltage, channel OK state and dynamic response before release.
Technical notes
Verify the complete 330103-00-15-10-02-00 identity, mating hardware and controlled system procedure before installation.
FAQ View All FAQ
-
Which transducer family includes Bently Nevada 330103-00-15-10-02-00?It belongs to the 3300 XL 8 mm proximity transducer system.
-
Which thread is used on Bently Nevada 330103-00-15-10-02-00?The probe case uses an M10 x 1 thread.
-
Is Bently Nevada 330103-00-15-10-02-00 armored?This execution is supplied without lead armor.
-
What mechanical lengths are selected on Bently Nevada 330103-00-15-10-02-00?The probe has 0 mm unthreaded length and a 150 mm overall case.
-
What total lead length is selected on Bently Nevada 330103-00-15-10-02-00?The ordering code selects a 1.0 m total length.
-
Which connection is used by Bently Nevada 330103-00-15-10-02-00?ClickLoc connector with standard cable.
-
What system sensitivity applies to Bently Nevada 330103-00-15-10-02-00?The matched 3300 XL 8 mm system has a nominal 7.87 V/mm sensitivity against the stated reference target.
-
What confirms commissioning of Bently Nevada 330103-00-15-10-02-00?Verify the matched chain, static gap, stable OK state and approved dynamic response.
