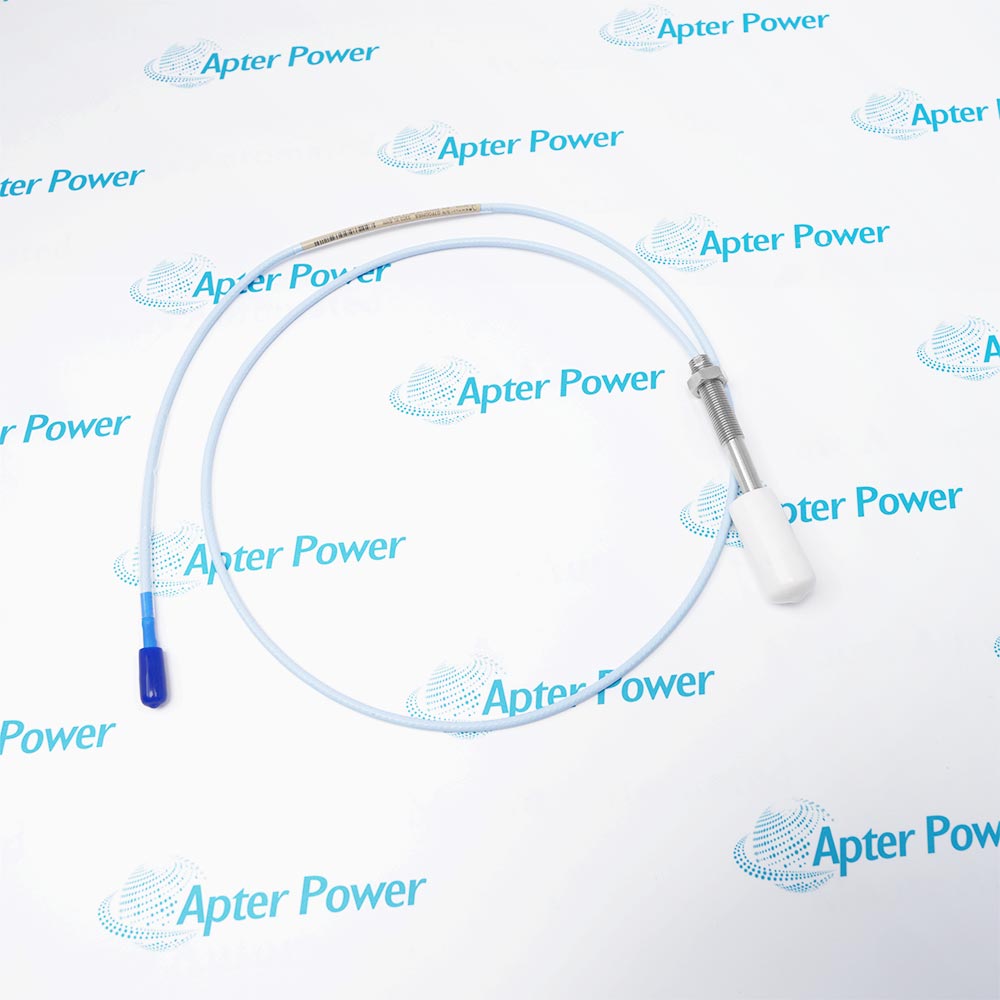

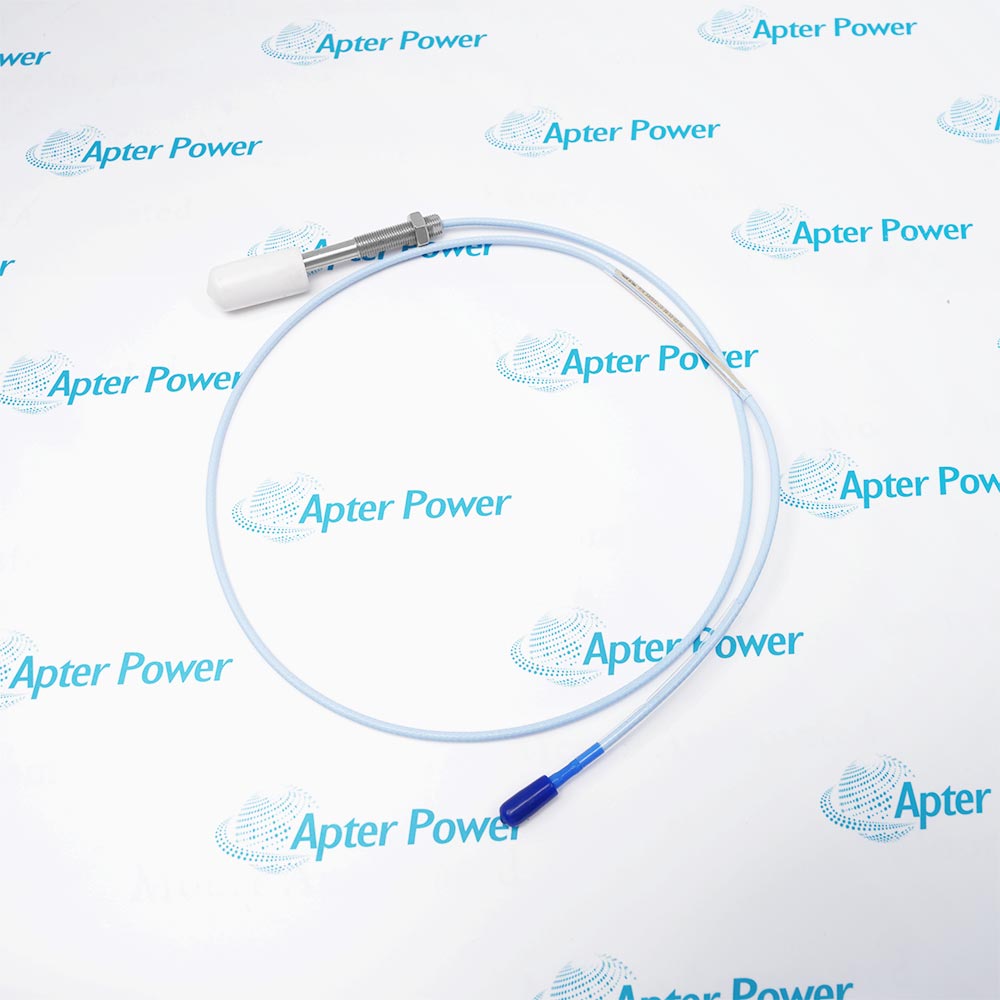

      330101-20-36-10-02-00

      3300 XL 8 mm Proximity Probe
      In Stock
      Ships by Sunday, November 8
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      Bently Nevada 330101-20-36-10-02-00 is a 3300 xl 8 mm proximity probe. It performs its documented measurement, power, connection or protective function within the installed 3300 XL 8 mm Proximity Transducer System.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 330101-20-36-10-02-00
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 330101-20-36-10-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        330101-20-36-10-02-00
      • Estimated shipping dimensions:
        1.6x1.3x113cm
      • Weight:
        0.08 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe construction:
        Without armor
      • Mounting thread:
        3/8-24 UNF
      • Unthreaded length:
        2.0 in
      • Case length:
        3.6 in
      • Total probe length:
        1.0 m
      • Connector:
        Miniature coaxial ClickLoc
      • Probe-cable type:
        Standard cable
      • Approval order code:
        00
      • Probe-tip diameter:
        8.0 mm
      • System linear range:
        2.0 mm (80 mils)
      • Approximate linear-range limits:
        0.25 to 2.3 mm
      • Approximate output span:
        -1 to -17 V DC
      • Recommended gap:
        1.27 mm (50 mils)
      • Nominal output at recommended gap:
        -9 V DC
      • Incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz, +0/-3 dB
      • Minimum flat target diameter:
        15.2 mm
      • Recommended minimum shaft diameter:
        76.2 mm
      • Probe cable impedance:
        75 Ohm
      • Probe cable temperature:
        -52 to +177 degC
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      3300 XL 8 mm Proximity Probe provides the documented interface for its installed 3300 XL 8 mm Proximity Transducer System system.
      • Detects shaft-to-bearing relative position without contact
      • Forms the sensing element of a matched 3300 XL 8 mm loop
      • Carries the eddy-current signal through a 75 Ohm coaxial lead
      • Supports radial vibration, axial position and shaft centerline observation

      The probe senses shaft-to-bearing relative displacement without mechanical contact and carries the eddy-current signal through its integral coaxial lead. The installation uses the manufacturer-specified host position, companion hardware and field/control wiring for the intended industrial application.

      System commissioning includes identity checks, connection verification, controlled energization and functional diagnostics for 330101-20-36-10-02-00.

      Important Notice: Confirm the complete 330101-20-36-10-02-00 marking, approved system arrangement, connection records and controlled functional test before commissioning or replacement.

      Apter Power 330101-20-36-10-02-00 Manuals and Guides
      Apter Power 330101-20-36-10-02-00 Product Technical Reference PDF330101-20-36-10-02-00 Engineering Installation and Verification Workbook
      The first document organizes model-specific technical identity and engineering data. The second provides a separate field workflow for installation, connection checks and commissioning records.
      3300 XL 8 mm Proximity Transducer System installed-base serviceMatched 3300 XL 8 mm Proximitor Sensor supports the engineered 330101-20-36-10-02-00 arrangement.
      3300 XL 8 mm Proximity Transducer System compatibility reviewCompatible Bently Nevada monitor channel supports the engineered 330101-20-36-10-02-00 arrangement.
      3300 XL 8 mm Proximity Transducer System installation planningAISI 4140 steel target or approved equivalent supports the engineered 330101-20-36-10-02-00 arrangement.
      3300 XL 8 mm Proximity Transducer System controlled commissioningSupported probe bracket and coaxial routing supports the engineered 330101-20-36-10-02-00 arrangement.
      Read the applicable Bently Nevada installation instructions before work. Verify 330101-20-36-10-02-00 and the installed-system configuration.
      1Verify the complete 330101-20-36-10-02-00 marking and installed position before work.
      2Place the connected equipment in the approved maintenance state.
      3Isolate applicable power and signal energy before disconnecting wiring.
      4Use ESD controls and protect connectors from contamination or damage.
      5Record as-found cable, terminal, shield and grounding identity.
      6Restore only the approved system configuration for this exact catalog number.
      7Inspect mechanical mounting and cable support before energization.
      8Complete controlled diagnostics and a functional response test before release.

      Technical notes

      Install 330101-20-36-10-02-00 only in the documented 3300 XL 8 mm Proximity Transducer System position and preserve the recorded connections. After installation, restore the approved configuration and complete controlled diagnostic and functional checks.

      FAQ View All FAQ

      • What system role does 330101-20-36-10-02-00 perform?
        It provides the documented 3300 xl 8 mm proximity probe function within the 3300 XL 8 mm Proximity Transducer System.
      • Which identity checks are required before installing 330101-20-36-10-02-00?
        Match the complete catalog marking, installed hardware position and companion components to the approved equipment record.
      • How should wiring or cabling for 330101-20-36-10-02-00 be handled?
        Preserve connector identity, routing, shielding and grounding exactly as recorded for the installed system.
      • What must be isolated before replacing 330101-20-36-10-02-00?
        Place the connected machine or controller in its approved maintenance state and isolate the applicable power and signal energy.
      • How is 330101-20-36-10-02-00 configured after installation?
        Restore the documented channel, range, address or system-length configuration that applies to this exact assembly.
      • Which commissioning checks apply to 330101-20-36-10-02-00?
        Use controlled energization followed by identity, connection, diagnostic and functional-response checks.
      • Can a similar catalog number replace 330101-20-36-10-02-00 directly?
        Only after the complete ordering code, mechanical interface, electrical function and installed-system compatibility have been matched.
      • What maintenance record should be retained for 330101-20-36-10-02-00?
        Record the as-found identity and connections together with the as-left configuration and functional-test result.
