With more than 30.000 high-quality spare parts, they can be sold immediately. Our large inventory allows us to quickly meet customer needs, thereby reducing downtime and protecting production schedules. Our timely delivery time provides you with security and save money.

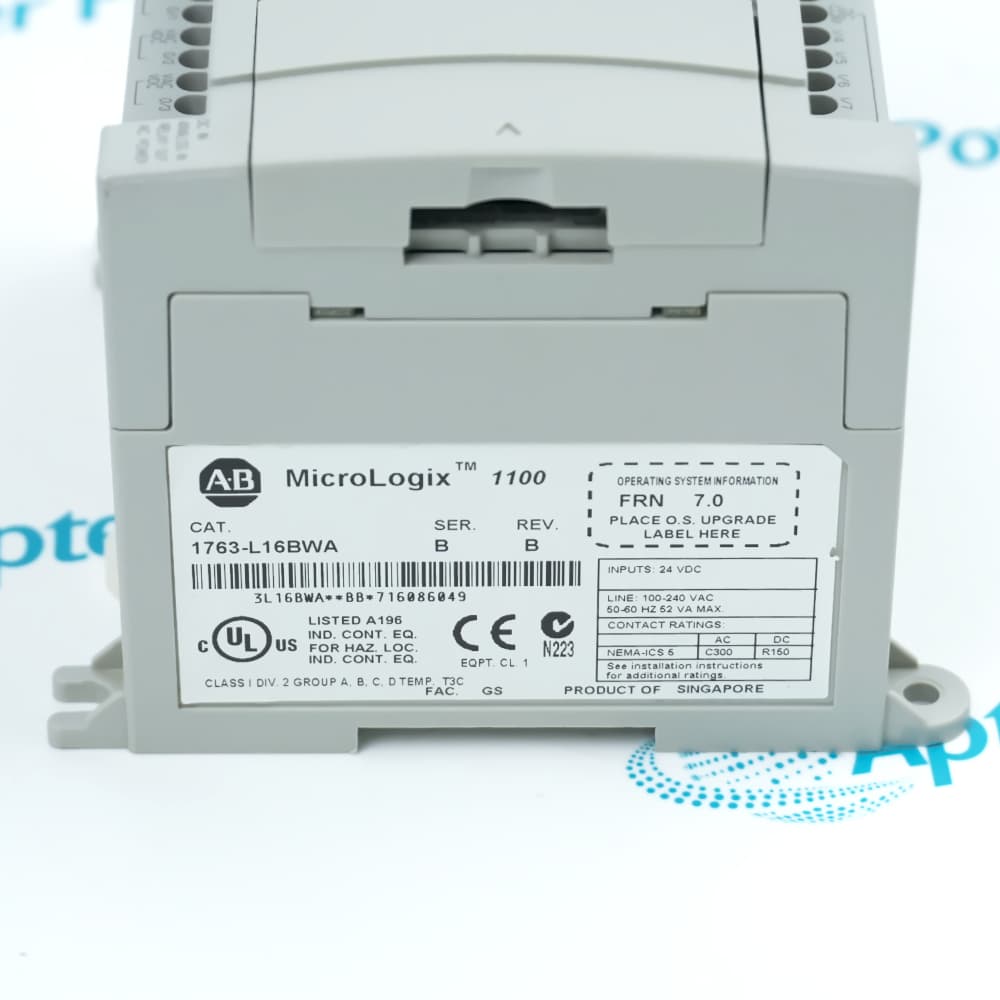

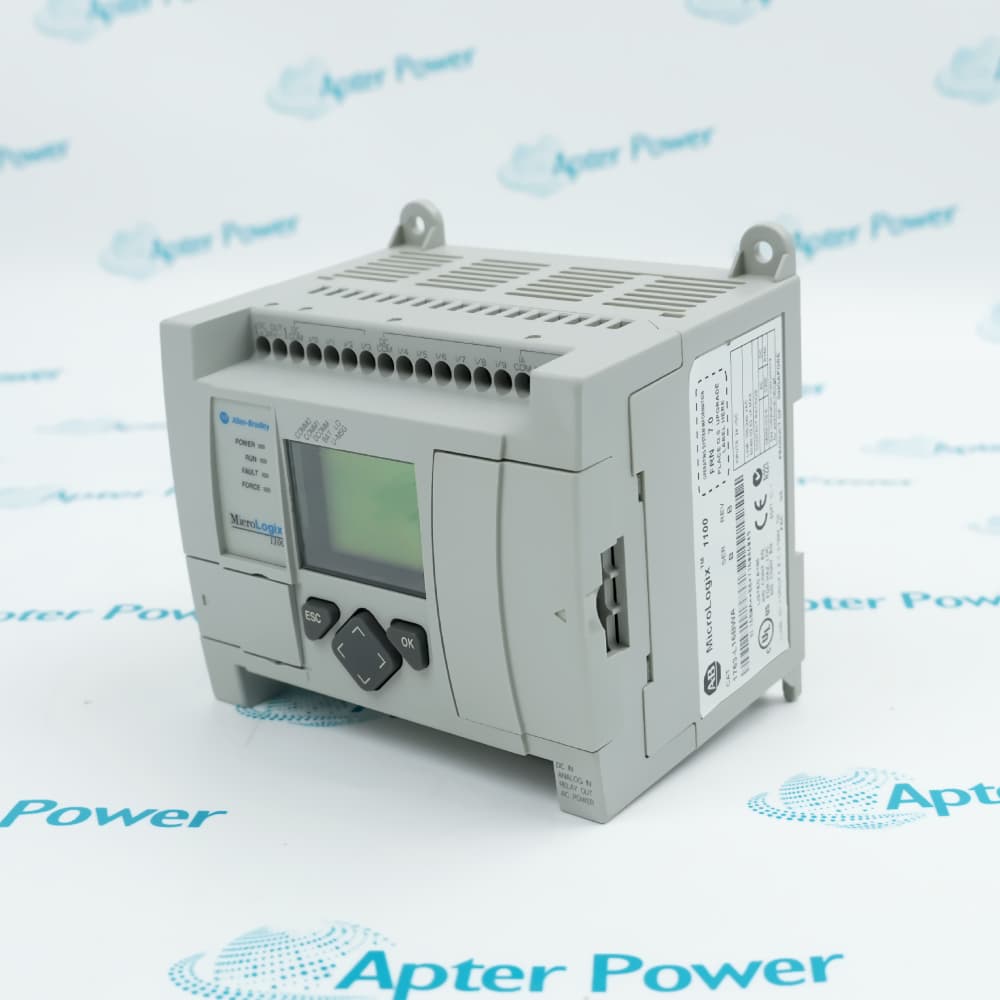

The 1763-L16BWA is a micro programmable logic controller belonging to the Bulletin 1763 product family under the MicroLogix 1100 hardware platform. This controller functions as a self-contained, independent control unit within industrial automation networks. In the logic control hierarchy, it serves as a decentralized terminal capable of executing programmed instructions to manage localized machinery and process loops.
The device natively integrates two 0-10V analog input channels
Supports direct input of 85-265V AC power
Built-in Ethernet port and isolated serial port, supporting EtherNet/IP and Modbus protocols
The hardware catalog numbers identify this specific variant as a fixed-base chassis that contains factory-integrated power supply circuits, physical input channels, output contacts, and dual network communication ports. The fixed-base architecture of the 1763-L16BWA incorporates a multi-signal physical interface totaling 16 integrated points on its terminal blocks.Features 12 points of 24V DC discrete inputs. These physical circuits support both sink and source wiring topologies.
Within these 12 channels, specific terminals (Inputs 0 through 3) are equipped with high-speed counter hardware capable of reading pulse trains up to 40 kHz.Contains 2 channels of integrated voltage inputs. These embedded channels accept standard 0 to 10V DC analog signals and pass them through an internal analog-to-digital converter, translating the physical voltage into a 10-bit unsigned integer ranging from 0 to 1023 in the controller registers.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 1763-L16BWA MicroLogix 1100 Controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Water and Wastewater Treatment
Controls chemical dosing pumps based on 0-10V flow meter signals and manages backwash valve sequencing through relay outputs.
Packaging Machinery
Tracks film feeding speed using high-speed counter inputs linked to rotary encoders and controls heat-sealing bars.
Pumping Stations
Monitors well levels via analog pressure transmitters and coordinates alternating start/stop cycles of lead and lag pumps.
Food and Beverage Processing
Coordinates the opening and closing times of sanitary mixing valves and transmits batch status data via Modbus to local HMIs.
Automated Car Wash Systems
Sequences spray nozzles, high-pressure pumps, and brush motors based on vehicle presence inputs from photoelectric eyes.
Solar Tracking Systems
Calculates sun angles using analog pyranometer signals and activates actuator motors to orient solar panels throughout the day.
First, the two built-in analog inputs (IV1 and IV2) only support 0-10V DC voltage signals and must never be connected directly to 4-20mA current signals; an external 500-ohm precision resistor must be wired to convert the current into voltage if current instruments are used.
Second, the digital inputs (I0 to I11) share a single common terminal (COM0), meaning all channels within this group must use a uniform Source or Sink 24V DC wiring configuration, and mixed wiring is strictly prohibited.
Lastly, as this model was officially discontinued in 2022, always back up its internal flash memory programs during routine maintenance and prepare hardware migration blueprints to the Micro800 series or CompactLogix systems for future replacement.
The Allen-Bradley 1763-L16BWA Micro Programmable Controller belongs to the Bulletin 1763 product family and is a compact MicroLogix 1100 controller. The module base integrates a rich set of built-in input and output interfaces, containing twelve 24V DC digital input channels, two 0-10V DC analog input channels, and six relay output contacts. In terms of network communication, this hardware features factory-integrated RS-232 serial and Ethernet communication ports to satisfy data exchange and networking requirements with other industrial equipment.
How much user program and user data space is available on the 1763-L16BWA?
The 1763-L16BWA has 4K of user program space and 4K of user data space.
How many digital inputs does the 1763-L16BWA have?
The 1763-L16BWA has four fast 24 Volt DC inputs and six 24 Volt DC inputs.
What Ethernet protocols are available to the 1763-L16BWA?
The only Ethernet protocols supported by the 1763-L16BWA is Ethernet/IP messaging.
Do you offer global delivery services?
yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.
How many parts do you have in stock?
We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies.
