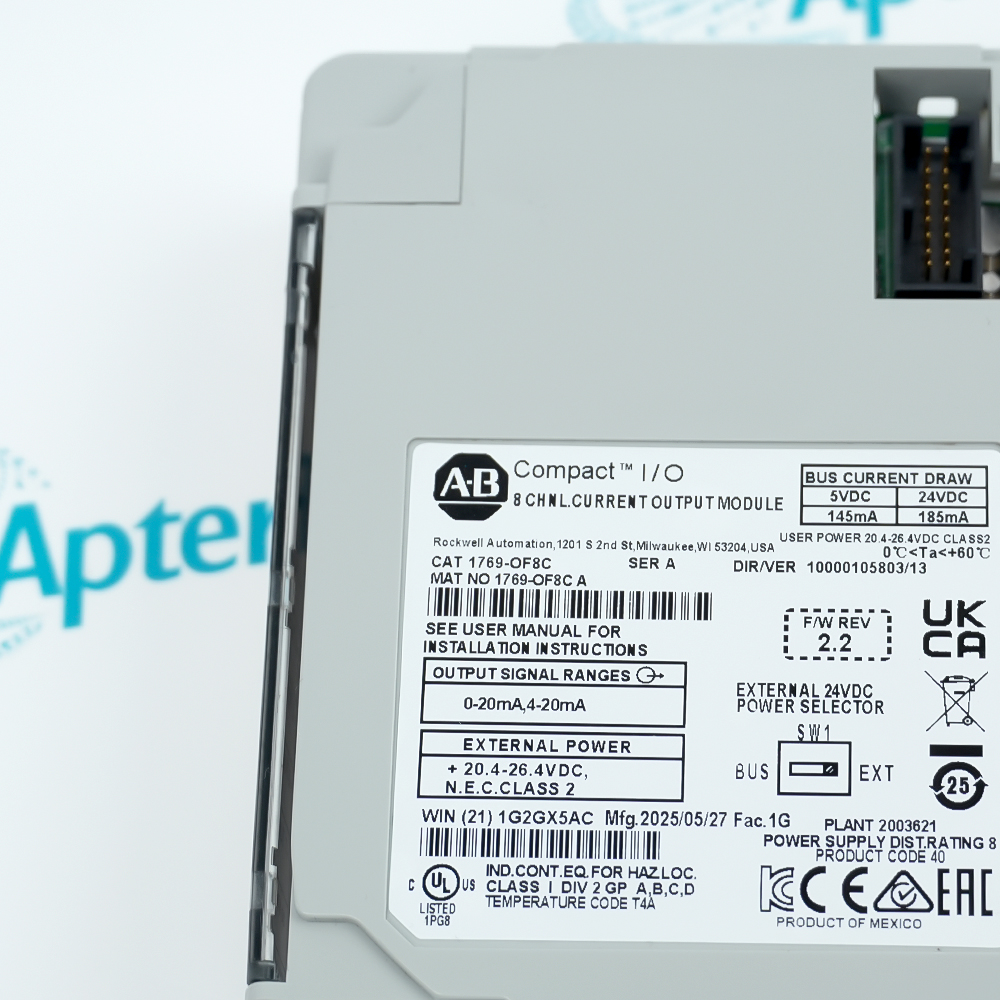

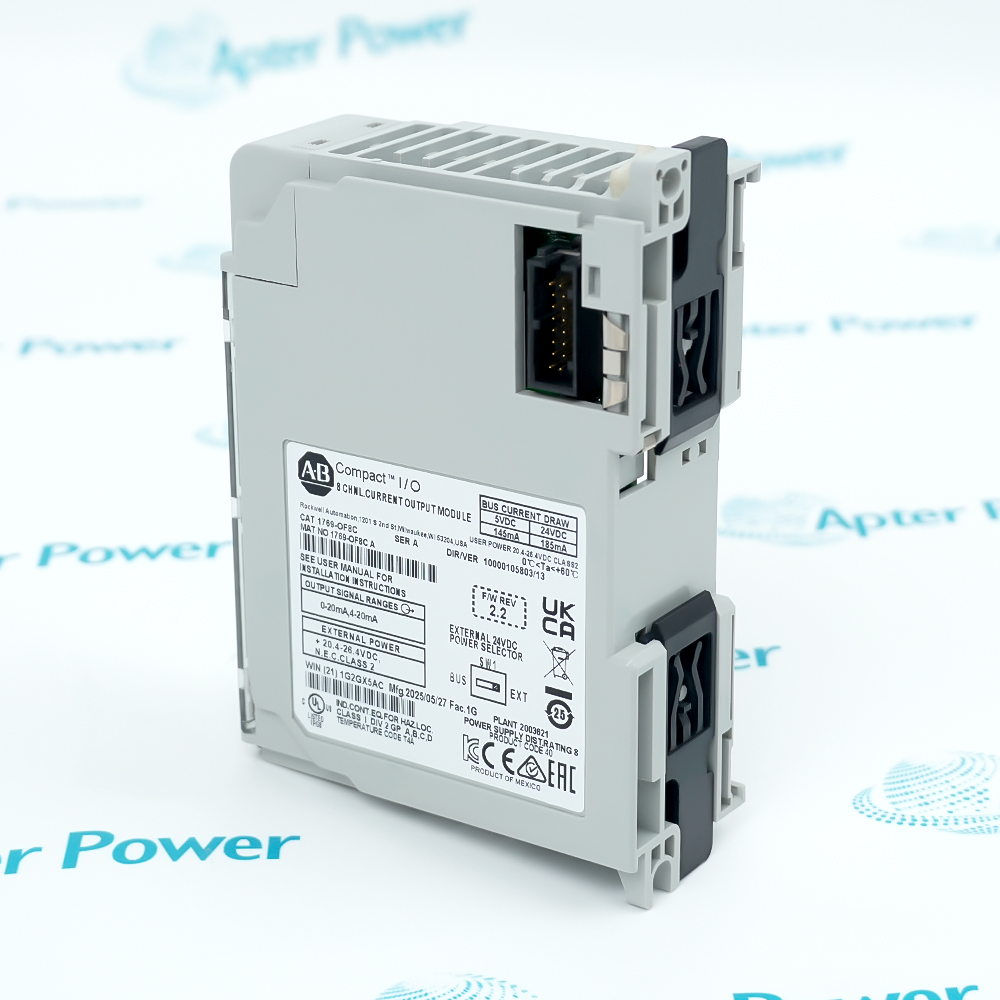

The 1769-OF8C is a Compact I/O 8-channel analog current output module manufactured by Rockwell Automation. It converts digital signals within a controller into standard industrial current signals for precise driving of proportional valves, frequency converters,and various actuators.
16-bit High-Resolution DAC
Per-Channel Configuration & Fail-Safe
Digital Filtering & Response
The Allen-Bradley CompactLogix 1769 programmable controllers are designed to provide a cost-effective, compact control solution for small to medium-sized applications. Includes integrated safety and adoption of the same programming software, network protocol and information capabilities included in all Logix controllers.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1769-OF8C CompactLogix Analog Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Precisely adjusting proportional pressure control valves on oil pipelines.
Chemical Processing
Controlling the opening of steam regulating valves based on temperature feedback to maintain reactor temperatures.
Pharmaceuticals
Regulating motorized damper actuators in cleanroom HVAC systems to maintain differential pressure.
Pulp & Paper
Regulating pulp flow rates and pressure control for paper machine drying systems.
Steel & Metallurgy
Controlling proportional servo valves in hydraulic systems for roll gap adjustment in rolling mills.
Semiconductor
Connecting to Mass Flow Controllers (MFCs) to precisely regulate process gas flow.
When using the 1769-OF8C, an external 24V DC field power supply must be connected, or the output channels will fail to function. It is essential to adhere to its distance rating of 8 slots, ensuring it is installed close to the power supply module. Additionally, shielded twisted-pair cables with proper grounding should be used to eliminate electromagnetic interference, and Safe State values must be correctly configured in the software to prevent unintended actuator movement during communication loss.
The 1769-OF8C is a Compact I/O 8-channel analog current output module designed specifically for CompactLogix control systems.
What output signal ranges does 1769-OF8C support?
It supports standard current signal outputs, typically ranging from 0...20 mA or 4...20 mA.
How to provide power to the 1769-OF8C?
It draws system power via the 1769 bus and also requires an external 24V DC field power supply to power the output loops.
What is the maximum load impedance for 1769-OF8C?
With a 24V DC supply, each channel can typically drive a load impedance of up to 500 Ω.
How is the 1769-OF8C positioned in the system?
It belongs to the Compact I/O series and can be connected directly to the right of a CompactLogix controller or via a communication adapter.
