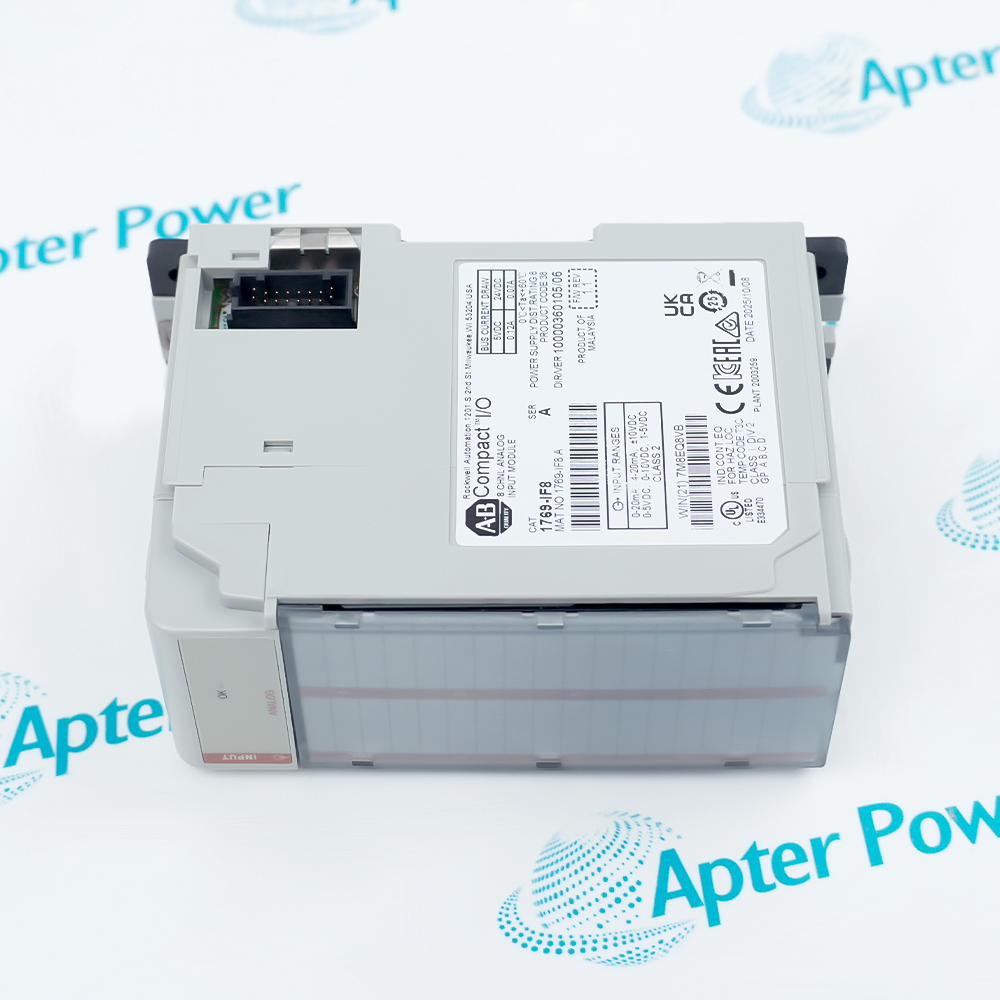

The 1769-IF8 is an 8 channel analog current voltage input module for programmable automation controller racks. This hardware belongs to the CompactLogix 1769 series system family and functions as a high performance expansion module for the Bulletin 1769 Compact I/O product line.
The 1769 platform offers current, voltage, thermocouple, and RTD modules
Over-range and under-range detection
Optional ability to direct output device operation during an abnormal condition
The hardware architecture integrates into small to medium sized automation control solutions and shares identical programming software, network protocols, and information capabilities with all Logix controllers. The module interfaces via local backplane bus cabling to execute hard real time process data acquisition under a unified control architecture.
This single hardware unit contains eight individually configurable channels that receive analog current and voltage signals directly from field sensors. The module architecture embeds over range and under range detection mechanisms and provides selectable system response modes upon an input sensor fault. Furthermore, the hardware contains selectable protective features that enable direct control over output device operation during abnormal physical process conditions.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 1769-IF8 CompactLogix 8 Pt Analog Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas
Pipeline pressure monitoring and custody transfer flow measurement.
Chemical Processing
Reactant flow control and reactor pressure monitoring.
Pharmaceutical Manufacturing
Bioreactor environment control and cleanroom monitoring.
Power Generation
Steam pressure and turbine cooling fluid flow tracking.
Pulp and Paper
Slurry consistency control and steam drying pressure tracking.
Steel and Metallurgy
Cooling water flow tracking and furnace draft pressure monitoring.
When using the 1769-IF8, ensure shielded twisted-pair cables are correctly grounded to eliminate noise, verify the module stays within its backplane power supply limits (max 8 modules away), and match the Studio 5000 software configuration (Voltage/Current) exactly with your physical sensor wiring to avoid damage.
Alternative Names
Alternative Names
17691F8I769IF8
Technical notes
Technical notes

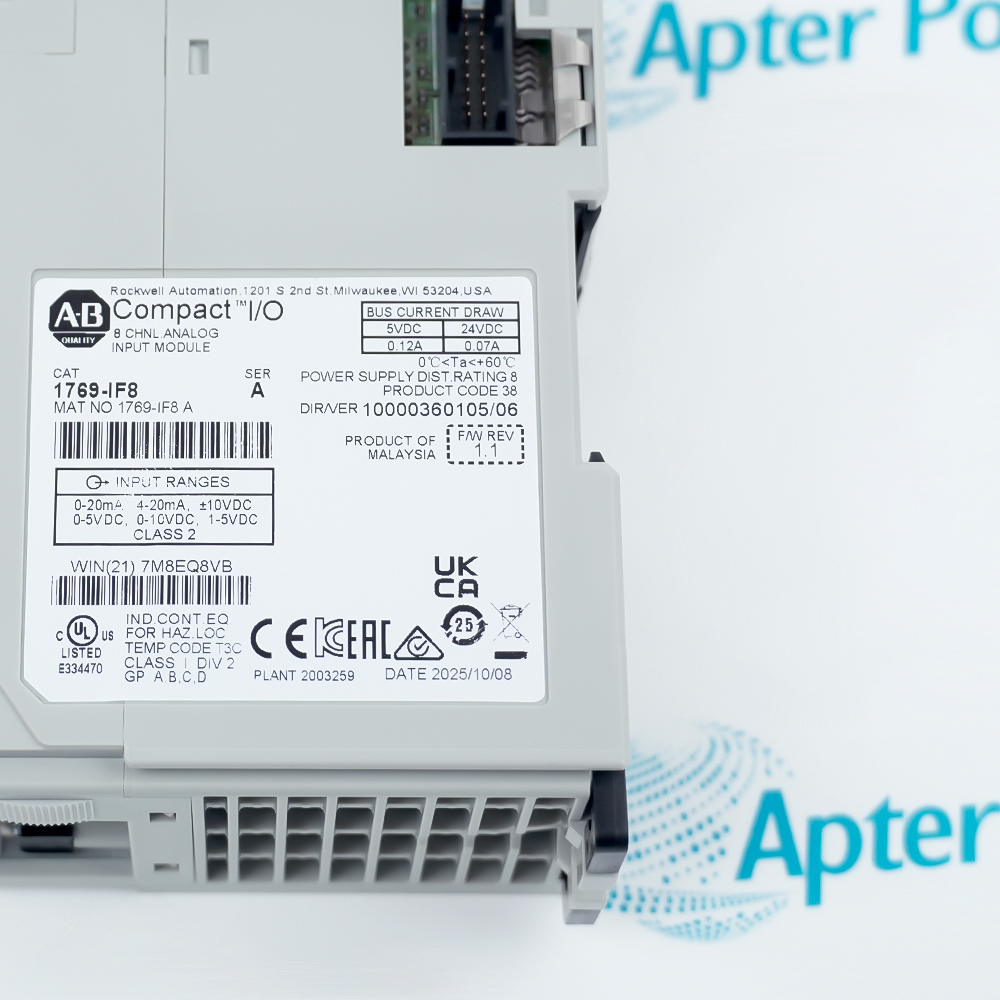

The 1769-IF8 draws operating power directly through the 1769 backplane bus cable, with rated current consumption specifications of a maximum of 120 mA on the 5.1V DC rail and concurrently a maximum of 70 mA on the 24V DC rail. These two metrics must be strictly deducted during total system power consumption calculation and power supply budget selection.
The 1769-IF8 is an 8-channel high-density analog input module under the Allen-Bradley brand of Rockwell Automation.
What is the core function of the 1769-IF8?
This module receives analog voltage or current signals from field sensors and physically converts them into digital data readable by the controller.
How many physical input channels are supported by the 1769-IF8 hardware?
The hardware supports up to 8 single-ended input channels or 8 differential input channels.
Which Allen-Bradley controller families are compatible with the 1769-IF8?
It is directly compatible with CompactLogix 5370 controllers, MicroLogix 1500 systems, or deployed via Ethernet adapters as distributed remote I/O.
