193-EC2CB

Electronic Overload Relays
In Stock
Ships by Saturday, November 14
Fast Shipping Available

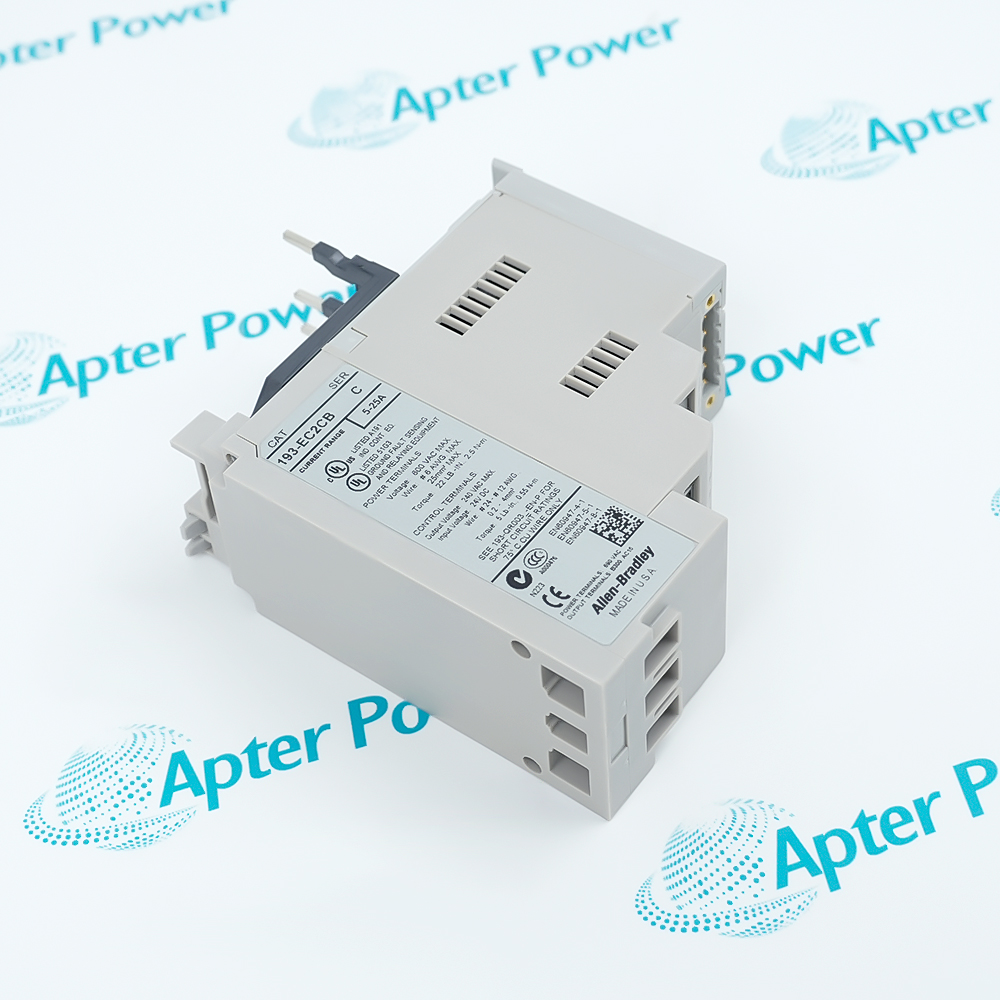

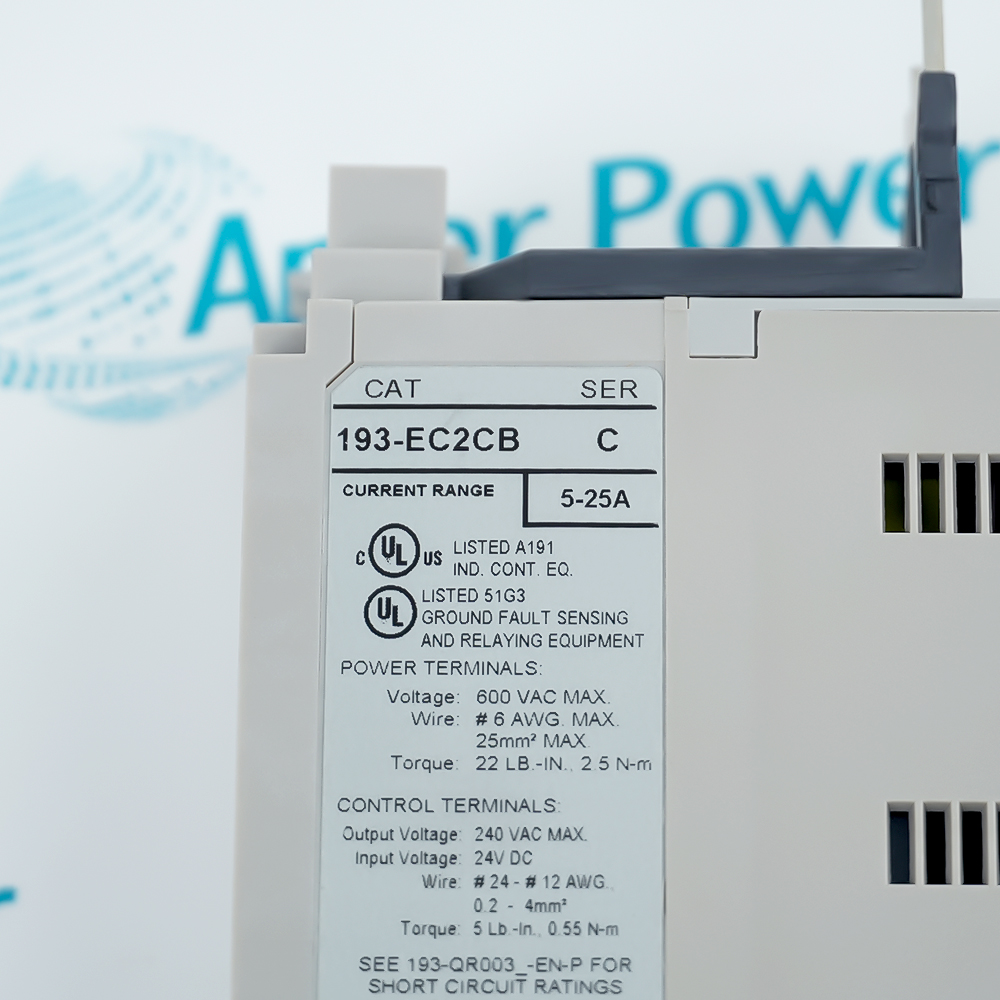

Allen-Bradley 193-EC2CB
Allen-Bradley 193-EC2CB
Allen-Bradley 193-EC2CB
Allen-Bradley 193-EC2CB
Allen-Bradley 193-EC2CB
Allen-Bradley 193-EC2CB
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Electronic Overload Relays
C09…C23
E3 Plus with internal
ground fault sensor
Get a quick price for 193-EC2CB
E-mail *
Mobile *
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 193-EC2CB

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    193-EC2CB
  • Estimated shipping dimensions:
    4.5x10.5x12.5cm
  • Weight:
    0.38 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Current Adjustment Range:
    5 to 25 Amperes
  • Rated Operational Voltage:
    600V AC (Main Circuit)
  • Rated Insulation Voltage:
    690V AC
  • Frequency:
    50/60 Hz
  • Inputs:
    4 Inputs (Sinking, 24V DC)
  • Outputs:
    2 Outputs (Relay contacts, 1 NO and 1 NO/NC)
  • Protocol:
    DeviceNet (Supports Node Address 0-63)
  • Operating Temp:
    -20 °C to +55 °C (-4 °F to +131 °F)
  • Protection Rating:
    IP20 (Finger-safe)

Information

Overview Manuals Common Applications Product Precautions
The 193-EC2CB is an E3 Plus Electronic Overload Relay for industrial motor control systems. It features an adjustable full-load current range of 5 to 25 A and an adjustable trip class from 5 to 30. Utilizing solid-state sensing technology, the device monitors motor operating conditions to provide protection against overload, phase loss, and current imbalance.
    • 5...25 A Current Range: Integrated primary loop monitoring
    • Internal Ground Fault Protection: No external CT required
    • Integrated I/O (4 In/2 Out): Reduces external hardware needs
The 193-EC2CB provides electronic overload protection with integrated diagnostics and programmable operating parameters for motor control and maintenance systems. The relay utilizes True RMS current sensing to monitor single-phase and three-phase motors operating at 50/60 Hz. Adjustable trip configurations, programmable warning parameters, and a manual Test/Reset interface adapt the protection characteristics to specific motor requirements. The hardware delivers diagnostic data and status indications to isolate overload conditions during troubleshooting phases.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 193-EC2CB Electronic Overload Relays Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Extraction
Used for current monitoring and overload protection of motors driving water injection pumps and associated gas compressors in oil production fields.

Petrochemical & Refining
Applied to provide phase loss and current imbalance protection for low-voltage explosion-proof centrifugal pumps and material agitator motors in chemical plants.

Thermal Power Plants
Serves as the protection core in Motor Control Center (MCC) cubicles for coal handling systems, pulverizing systems, and low-voltage auxiliary drives in power plants.

Iron & Steel Metallurgy
Applied for overload trip protection of charging hoists, slag pot carriers, and small-to-medium converter auxiliary tilting drive motors in steel mills.

Paper & Printing Industry
Provides long-term continuous thermal overload protection for pulp transfer pumps and small chest agitators in the papermaking section.

Pharmaceuticals & Bio-chemicals
Protects critical low-voltage power distribution loops for cleanroom HVAC circulation fans and autoclave circulation pumps.
 When wiring, pass the main motor cables through the internal CT windows. Ensure the Full Load Amps (FLA) and trip class are configured accurately based on the motor nameplate.

Maintain correct DeviceNet network termination resistors to prevent communication failures during operation. As this series is discontinued, it is recommended to pre-plan and stock lifecycle replacement solutions (such as the E300 series).

Technical notes

As a member of the Allen-Bradley Bulletin 193 E3 Plus family, the 193-EC2CB is widely used in motor starters, conveyor systems, pumps, compressors, fans, HVAC equipment, water treatment facilities, manufacturing production lines, material handling systems, and process control applications. It provides reliable overload protection for industrial motors while supporting consistent machine operation and preventive maintenance in automated control systems.

FAQ View All FAQ

  • What device is the 193-EC2CB?
    It is an Allen-Bradley E3 Plus Electronic Overload Relay used for industrial motor current protection.
  • What is the current operating range of the 193-EC2CB?
    Its adjustable Full Load Amps (FLA) range is 5 to 25 A.
  • How to install and use the 193-EC2CB?
    Mount it directly below a compatible contactor or independently via DIN rail, and pass the main motor cables through its internal CT windows.
  • What are the I/O interface specifications on the 193-EC2CB?
    It features 4 integrated digital inputs (24V DC) and 2 relay outputs.
