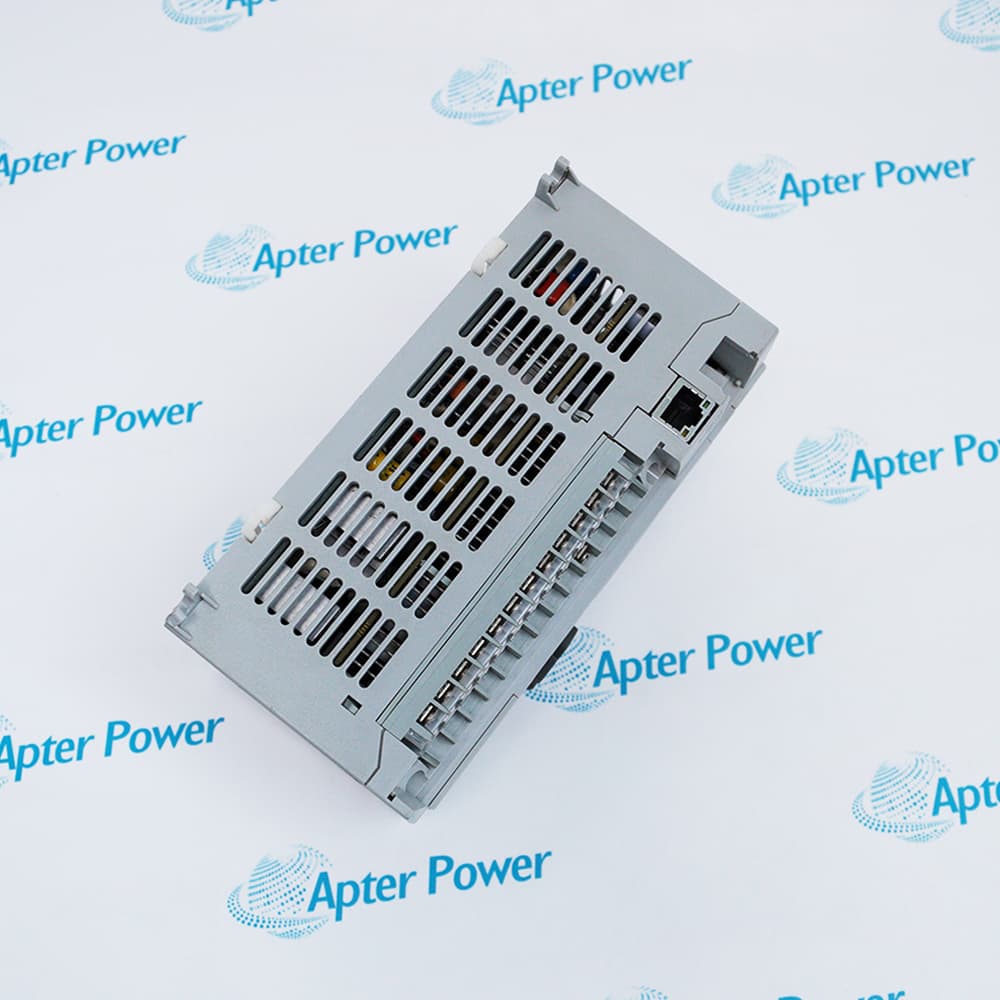

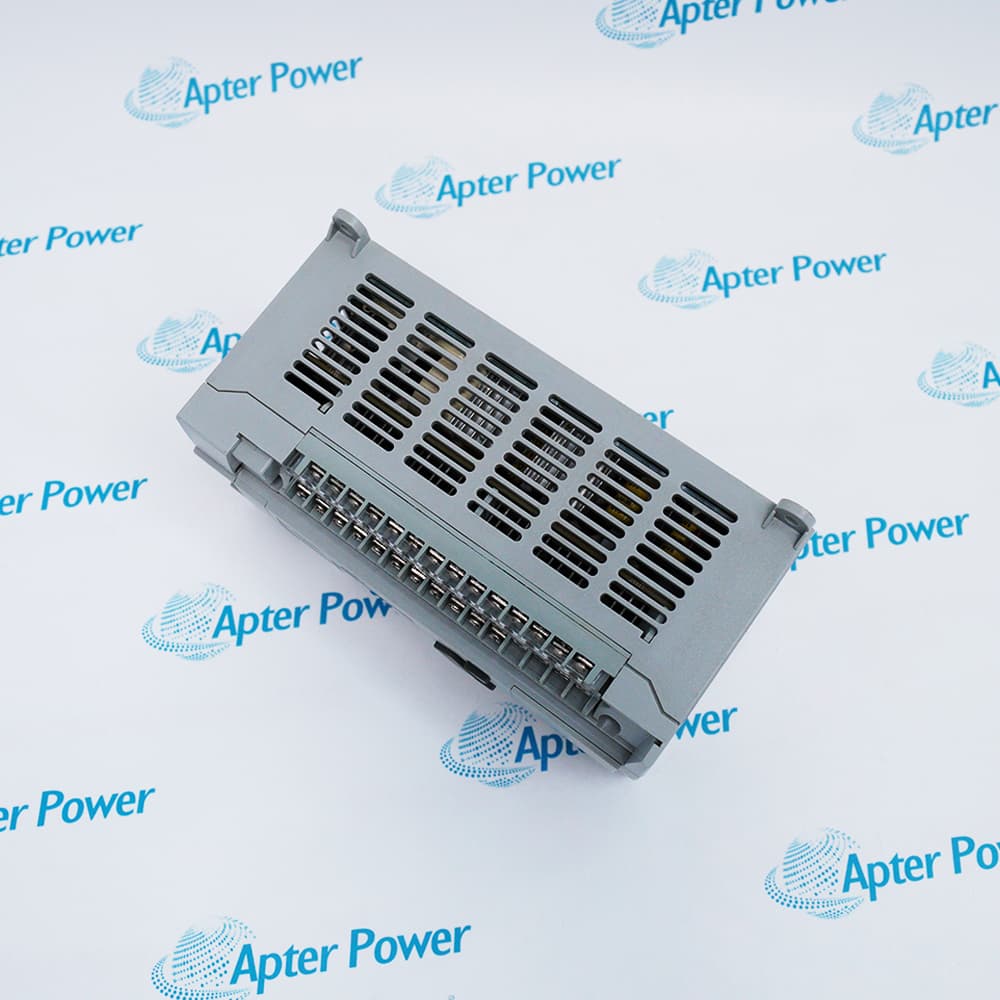

1766-L32BXBA
PLC MODULE
In Stock
Product Describe：
PLC MODULE
MICROLOGIX 1400
12 DIGITAL FAST 24V DC INPUTS
8 DIGITAL 24V DC INPUTS
6 RELAY OUTPUTS
3 FAST 24V DC OUTPUTS
3 NORMAL 24V DC OUTPUTS
4 ANALOG (12 BITS) INPUTS
2 ANALOG (12 BITS) OUTPUTS
The 1766-L32BXBA is a specialized member of the MicroLogix 1400 family, designed as a versatile 24V DC powered controller. This model features a built-in LCD for status monitoring and configuration, integrating 20 digital inputs, 12 digital outputs, and embedded analog I/O to handle diverse control requirements in a single hardware platform.
Embedded Analog I/O
Integrated Ethernet/IP Port
On-board LCD Display
Engineered for high-performance automation, the 1766-L32BXBA provides expansive networking through an integrated Ethernet/IP port and dual RS-232/RS-485 serial ports. According to official specifications, it supports high-speed counter (HSC) inputs and pulse train outputs (PTO) for basic motion control, operating reliably within an industrial temperature range of -20°C to +60°C while maintaining a Pollution Degree 2 rating for clean, dry environments.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1766-L32BXBA PLC MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Water Treatment
Used in pumping stations and filtration systems to monitor tank levels and flow rates via integrated analog I/O. It provides reliable control for chemical dosing pumps and ensures seamless data reporting through Ethernet/IP.
Oil Production
Applied in wellhead monitoring and artificial lift systems to manage pressure and temperature parameters in real-time. The controller's wide operating temperature range ensures stable performance in harsh outdoor oilfield environments.
Building Automation
Integrated into HVAC control panels to manage air handling units and lighting schedules for commercial facilities. It utilizes embedded PID loops to maintain precise climate control while reducing overall energy consumption.
Food Processing
Deployed in automated mixing and conveyor systems to synchronize material handling and packaging sequences. The high-speed counter (HSC) inputs allow for precise positioning and sorting of products on high-speed production lines.
Power Generation
Utilized in remote monitoring of solar tracking arrays and backup generator sets to optimize energy efficiency. It supports multiple communication protocols for integration with SCADA systems to monitor grid stability and load status.
Material Handling
Applied in palletizers and high-speed sorting machinery to coordinate the movement of multiple motorized axes. It utilizes pulse train outputs (PTO) for basic motion control, ensuring accurate placement and transfer of industrial goods.
The 1766-L32BXBA is engineered for industrial machinery such as automated labeling systems and wastewater pumping stations. It supports high-speed counter (HSC) inputs with a maximum frequency of 100 kHz for precision counting tasks. The robust digital and analog I/O allows for direct interface with proximity sensors, pressure transmitters, and solenoid valves.
In motion control applications, this unit acts as the primary controller for driving stepper motors or servo drives through its pulse train outputs (PTO). The integrated PID instruction set allows it to manage complex feedback loops in temperature control systems. Its wide operating temperature range (-20°C to +60°C) ensures functionality in demanding industrial environments.
What are the integrated I/O specifications for the Allen-Bradley 1766-L32BXBA controller?
The 1766-L32BXBA provides 12 fast 24V DC inputs, 8 normal 24V DC inputs, 6 relay outputs, 3 fast DC outputs, and 3 normal DC outputs. It also features embedded analog I/O, consisting of 4 voltage inputs and 2 voltage outputs.
Which communication ports are available on the 1766-L32BXBA for networking?
This controller is equipped with three onboard communication ports: one isolated RS232/RS485 combo port (Port 0), one Ethernet/IP port (Port 1), and one non-isolated RS232 port (Port 2).
What are the power supply requirements for the Allen-Bradley 1766-L32BXBA unit?
The 1766-L32BXBA requires a 24V DC power supply. According to the official installation instructions, the input voltage range must be maintained between 20.4V DC and 26.4V DC to ensure stable operation.
How does the 1766-L32BXBA handle memory backup and program storage?
The controller utilizes non-volatile flash memory for program and data storage. For additional backup, it supports the 1766-MM1 memory module, which provides a convenient way to store, backup, or transport user programs.
What environmental conditions must be maintained for the 1766-L32BXBA during operation?
This equipment is intended for use in clean, dry environments with a Pollution Degree 2 rating. The operating temperature must be kept within the range of -20°C to +60°C (-4°F to +140°F) to prevent internal damage.
