What is the line-connected motor current for a 150-F135NBDB?

The Line connected motor current of 150-F135NBDB is 34 to 135 A @ 600/Y/690V AC, 3-phase

What is the Delta connected motor current for a 150-F135NBDB?

The Delta connected motor curren of 150-F135NBDB is 59 to 234A @ 500/575V AC, 3-phase

What is the dielectric withstand rating of 150-F135NBDB?

The dielectric withstand rating of the 150-F135NBDB is 2500V per IEC for power circuits.

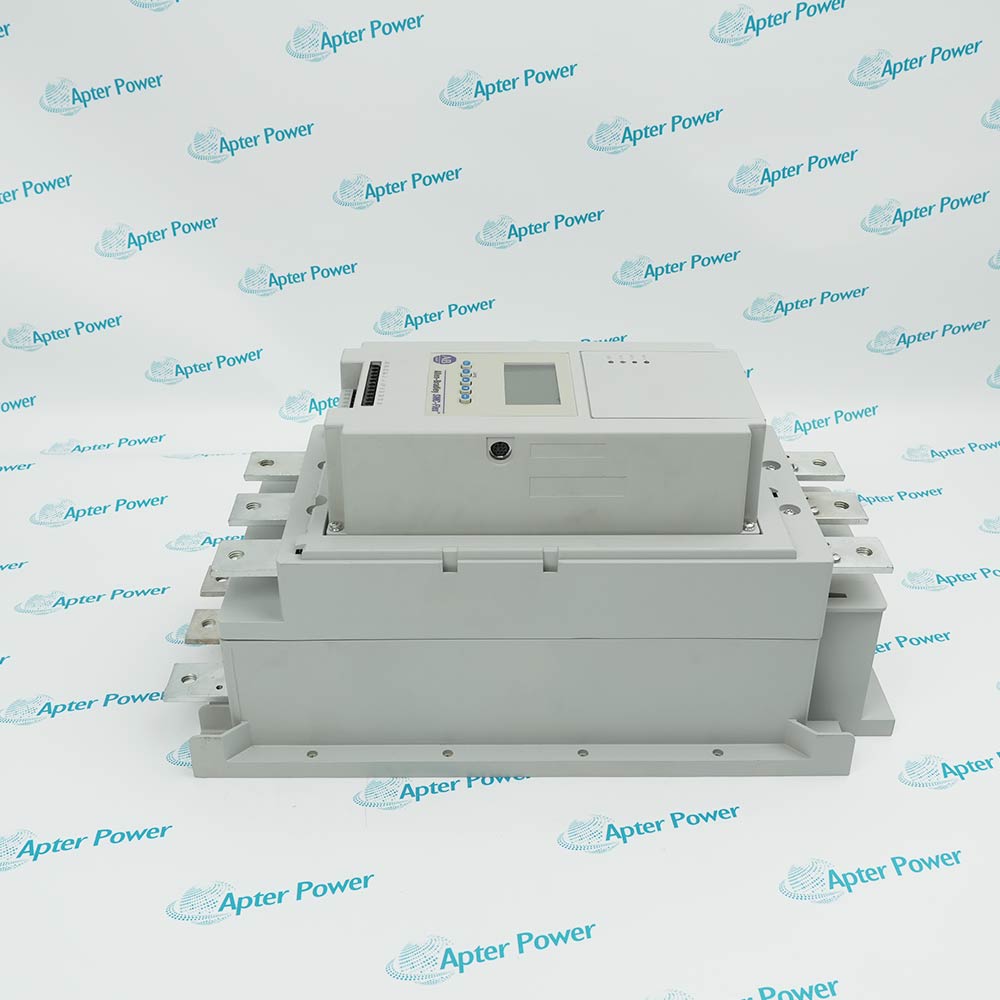

Product image is representative; revision or series may vary. Contact us to request a specific version.

150-F135NBDB

Name: 150-F135NBDB
Brand: Allen-Bradley
SKU: 150-F135NBDB

Flex Smart Motor Controller

In Stock

Product Describe：

Flex Smart Motor Controller
Soft starter
Pump control
Trip classes
10, 15, 20 and 30
Trip current rating
117% of motor FLC

Ask our team:

Phone:
+86 180 3023 5313
E-Mail:
sales13@apterpower.com

Get a quick price for： 150-F135NBDB

Quantity*

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy.

Technical specifications FAQ

Technical specifications for 150-F135NBDB

Manufacturer:

Allen-Bradley
Product Category:

PLC Systems
Spare Part Number:

150-F135NBDB
Estimated shipping dimensions:

4.4x10.8x14.1cm
Weight:

0.82 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Transformer control module:

75VA @ 100...240V AC (-15%, +10%)
Heatsink fan rating:

20VA @ 110/120V AC or 220/240V AC
Rated impulse voltage:

6000V per IEC for power circuit
Dielectric withstand:

2500V per IEC for power circuit
Line connected motor current:

34 to 135 A @ 600/Y/690V AC, 3-phase
Delta connected motor current:

59 to 234A @ 500/575V AC, 3-phase

Ask for Quote

FAQS

What is the line-connected motor current for a 150-F135NBDB?

The Line connected motor current of 150-F135NBDB is 34 to 135 A @ 600/Y/690V AC, 3-phase
What is the Delta connected motor current for a 150-F135NBDB?

The Delta connected motor curren of 150-F135NBDB is 59 to 234A @ 500/575V AC, 3-phase
What is the dielectric withstand rating of 150-F135NBDB?

The dielectric withstand rating of the 150-F135NBDB is 2500V per IEC for power circuits.
