      Allen-Bradley 1764-LSP
      Allen-Bradley 1764-LSP
      Allen-Bradley 1764-LSP
      Allen-Bradley 1764-LSP
      Allen-Bradley 1764-LSP
      Allen-Bradley 1764-LSP
      Product image is representative; revision or series may vary. Contact us to request a specific version.

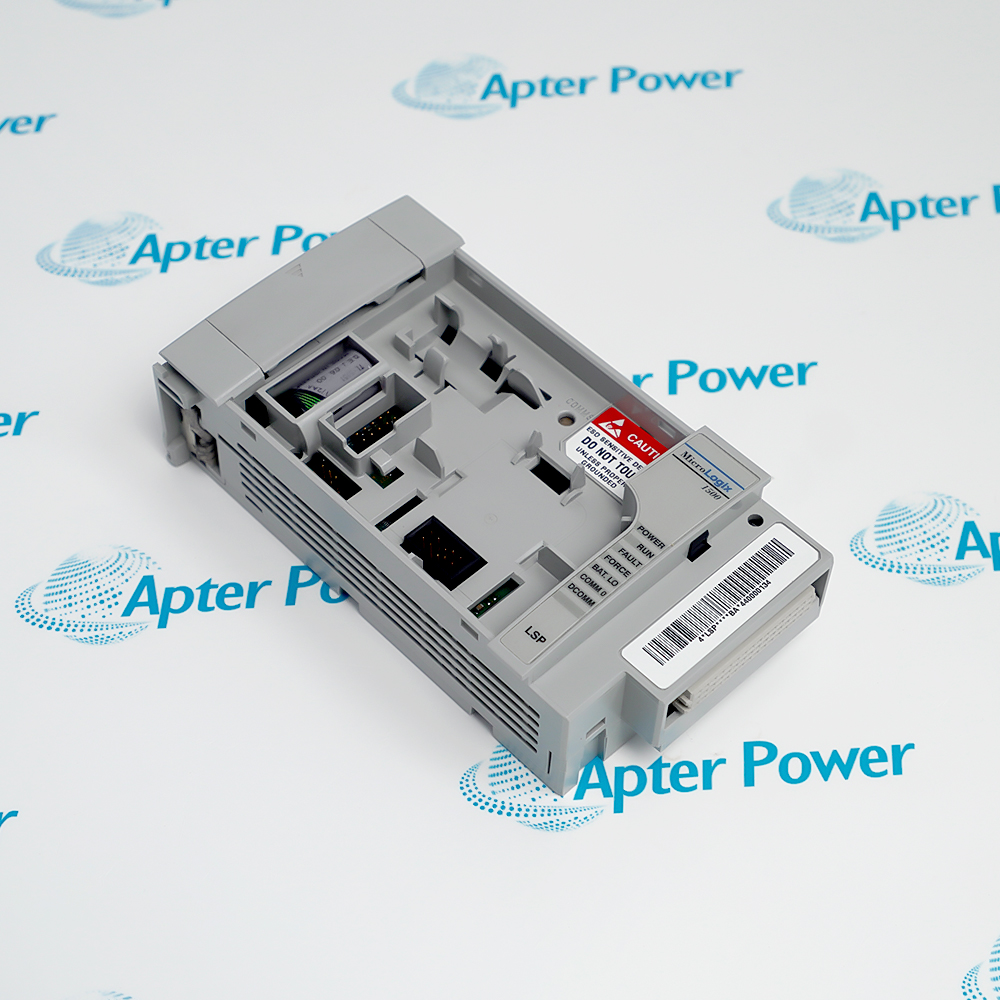

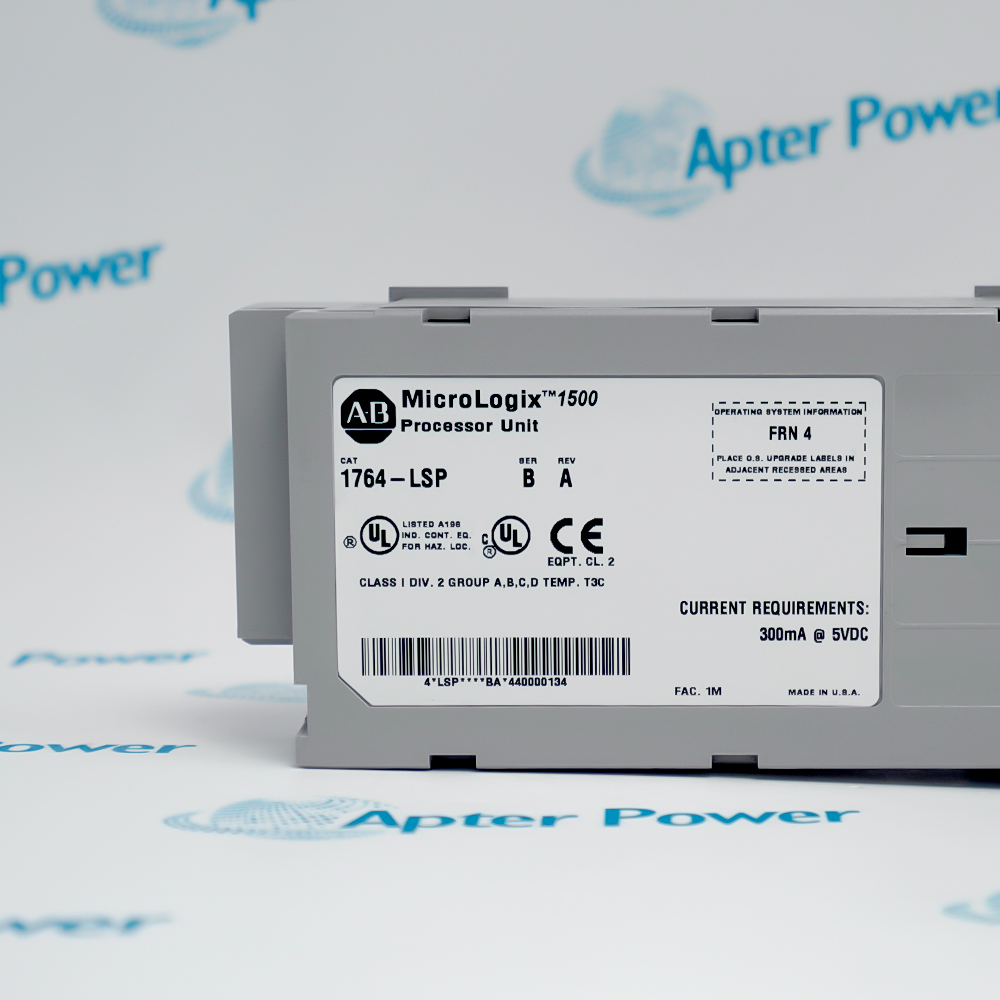

      1764-LSP

      PLC Processor
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Allen-Bradley 1764-LSP is the standard MicroLogix 1500 processor with 7.65K words of configurable program and data memory. It supports DF1, DH-485, Modbus RTU and ASCII communications through the documented controller arrangement.

      Ask our team:

      Get a quick price for： 1764-LSP
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 1764-LSP

      Technical specifications for 1764-LSP

      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC Systems
      • Spare Part Number:
        1764-LSP
      • Estimated shipping dimensions:
        15.3x4.2x8.8cm
      • Weight:
        0.18 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Controller family:
        MicroLogix 1500
      • Processor type:
        Standard processor
      • Configurable memory:
        7.65K words for program and data
      • Communications:
        DF1, DH-485, Modbus RTU and ASCII
      • Expansion I/O:
        Bulletin 1769 Compact I/O
      • Optional memory:
        1764-MM1 memory module
      • Optional clock:
        1764-RTC or 1764-MM1RTC
      • Lifecycle:
        Discontinued by Rockwell Automation
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Allen-Bradley 1764-LSP is the standard MicroLogix 1500 processor with 7.65K words of configurable program and data memory. It supports DF1, DH-485, Modbus RTU and ASCII communications through the documented controller arrangement.
      • Provides configurable MicroLogix 1500 program and data memory
      • Supports multiple serial communication protocols
      • Works with documented Bulletin 1769 expansion I/O
      • Accepts optional memory and real-time-clock modules

      Apply Allen-Bradley 1764-LSP only in the documented system position after checking its interfaces, companion hardware and configured values.

      Important Notice: Confirm the full 1764-LSP marking, installed revision, compatible hardware and approved commissioning record before release.

      Allen-Bradley 1764-LSP Manuals & Downloads
      Allen-Bradley 1764-LSP Technical Reference (PDF)Allen-Bradley 1764-LSP Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Standalone machine control
      Executes MicroLogix 1500 ladder logic with local and expansion I/O.
      Serial device integration
      Communicates through the configured DF1, DH-485, Modbus RTU or ASCII protocol.
      Legacy controller replacement
      Restores an identical processor after program, firmware and base-unit checks.
      Program backup
      Uses the approved optional memory module to preserve and transfer the application.
      Read the applicable Allen-Bradley instructions before work. Verify Allen-Bradley 1764-LSP and the installed system configuration before commissioning.
      1
      Verify the complete 1764-LSP catalog number and series.
      2
      Upload and save the controller program, data and communication settings before removal.
      3
      Confirm the MicroLogix 1500 base unit and Bulletin 1769 I/O arrangement.
      4
      Match the installed firmware and programming-software compatibility.
      5
      Power down the controller and observe ESD controls before handling the processor.
      6
      Check optional memory and real-time-clock modules before transfer.
      7
      Restore the exact communication protocol, node address and baud settings.
      8
      Verify I/O, communications and the controlled machine sequence before release.

      Technical notes

      Technical notes

      Use only the complete Allen-Bradley 1764-LSP identity and the current manufacturer documentation. Verify the installed revision, companion hardware, wiring and saved configuration before replacement or release.

      FAQS

      • What is Allen-Bradley 1764-LSP?
        It is the standard processor for the MicroLogix 1500 controller family.
      • How much configurable memory does Allen-Bradley 1764-LSP provide?
        Rockwell Automation lists 7.65K words shared between program and data.
      • Which protocols are supported by Allen-Bradley 1764-LSP?
        The official product record lists DF1, DH-485, Modbus RTU and ASCII communications.
      • Which expansion I/O is used with Allen-Bradley 1764-LSP?
        The MicroLogix 1500 system uses documented Bulletin 1769 Compact I/O modules.
      • Which backup options are available for Allen-Bradley 1764-LSP?
        The controller accepts the 1764-MM1 memory module and 1764-MM1RTC memory/clock module.
      • What must be saved before replacing Allen-Bradley 1764-LSP?
        Save logic, data, communication settings, I/O configuration, firmware and any memory-module record.
      • What confirms successful commissioning of Allen-Bradley 1764-LSP?
        Correct RUN status, cleared fault tables, verified I/O and communications, and a controlled machine test confirm release.
