150-C30NBR

SMC-3 Smart Motor Controller
In Stock
Ships by Saturday, November 21
Fast Shipping Available

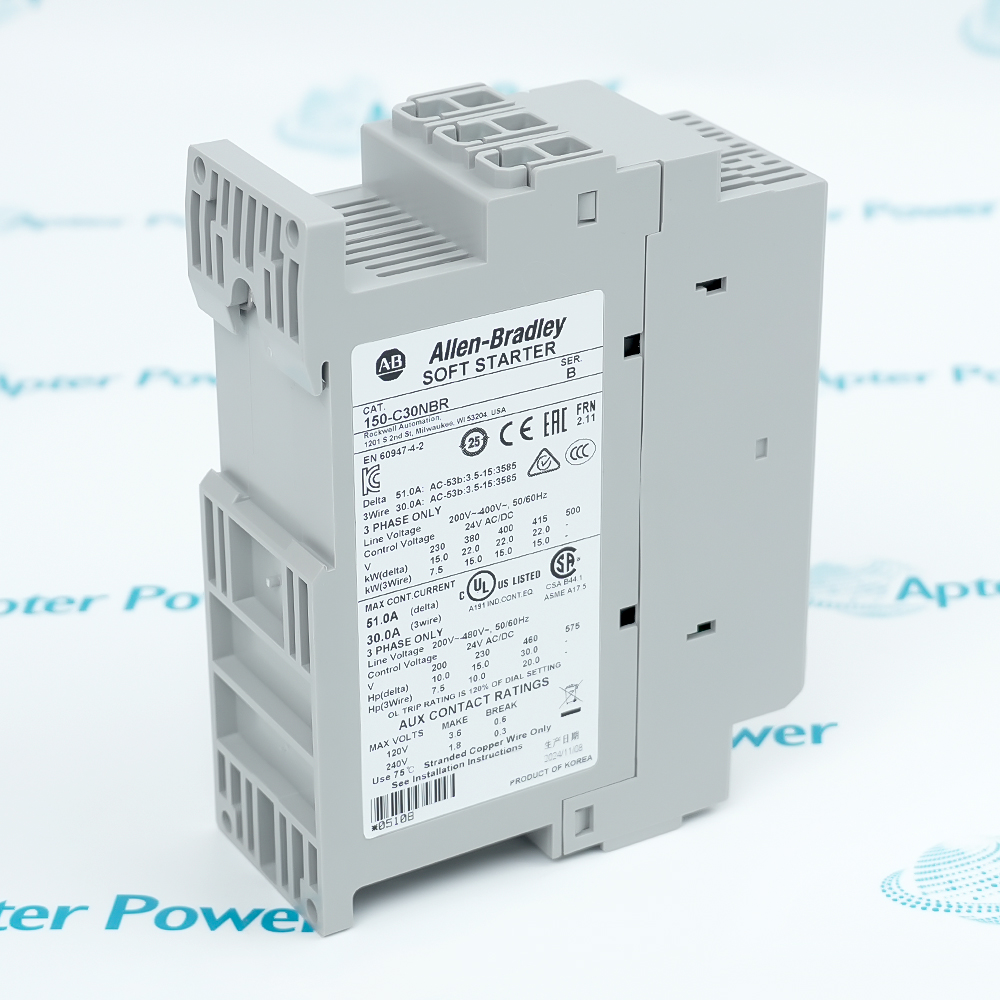

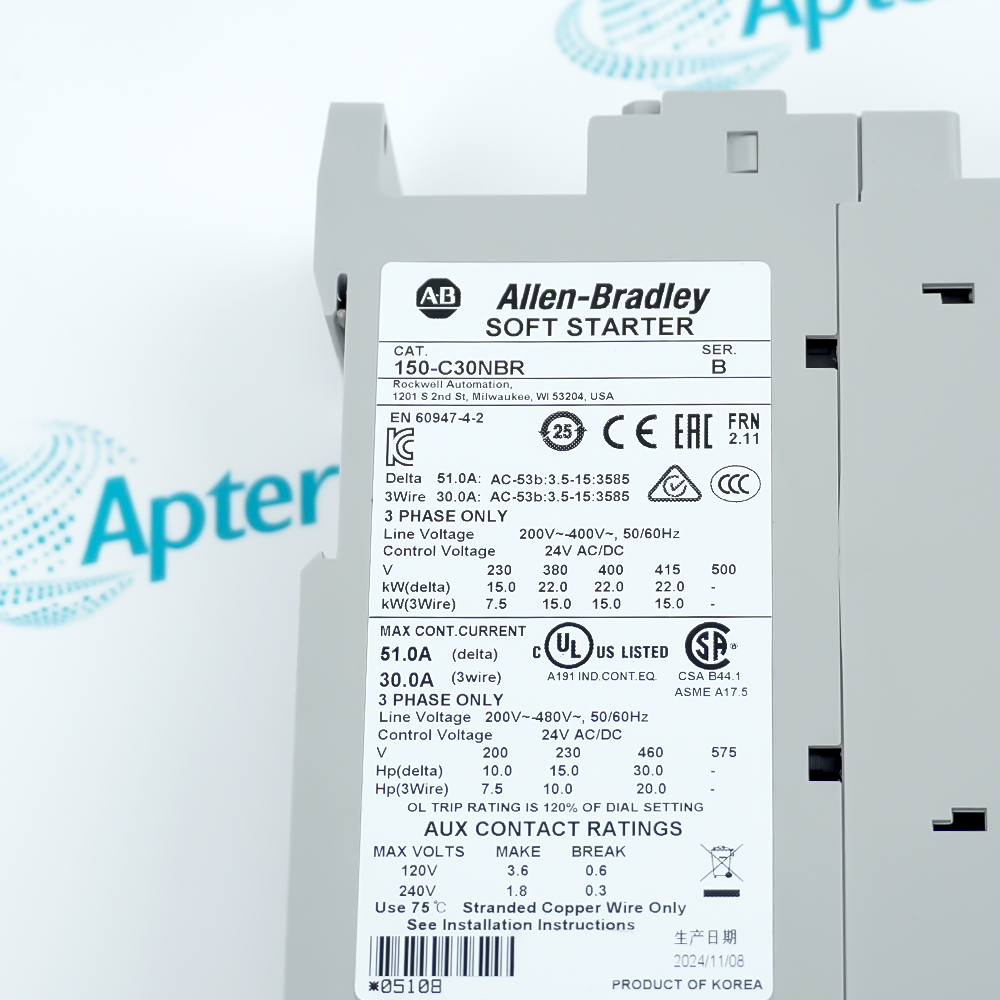

Allen-Bradley 150-C30NBR
Allen-Bradley 150-C30NBR
Allen-Bradley 150-C30NBR
Allen-Bradley 150-C30NBR
Allen-Bradley 150-C30NBR
Allen-Bradley 150-C30NBR
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Soft starter 30A
with motor protection
supply voltage 480V AC
control voltage 24V AC/DC
Get a quick price for 150-C30NBR
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 150-C30NBR

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    150-C30NBR
  • Estimated shipping dimensions:
    19.7x21x44.2cm
  • Weight:
    13.5 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Control Voltage:
    24V AC / 24VDC
  • Product Family:
    SMC-3 Smart Motor Controller
  • Bulletin Number:
    150
  • Operating Modes:
    Soft Start, Kickstart, Current Limiting, Coast to stop, and Soft-stop.
  • Line Voltage:
    200…460V AC, 3-Phase, 50 and 60 Hz
  • Output Current range:
    Line-Connected Motors: 10-30 Amperes, Delta Connected Motors: 14.3-43 Amperes
  • Output power range:
    Line Connected motors: 3.0-20 HP; 15kW Delta connected motors: 22 Kw and 10-30 HP
  • Rated Voltage:
    200-460V AC
  • Input Line:
    200-460V AC, 3-Phase, 50/60 HZ

Information

Overview Manuals Common Applications Soft Starter Benefits
The 150-C30NBR is a smart motor controller and low-voltage soft starter manufactured by Allen-Bradley. This device belongs to the SMC-3 product series and utilizes a 3-wire connection configuration in an Open Type structure to manage the start and stop sequences of three-phase induction motors.
    • Compact footprint for reduced panel space
    • Easy and secure setup for process optimisation
    • Five start/stop modes to suit application requirements
The main circuit operates on a rated voltage of 200V to 460V AC at 50/60 Hz, with a rated control power supply of 24V AC/DC. It carries a rated operational current of 30 A for line connections and expands to 43 A when utilized with delta-connected motors.

The hardware configuration includes an integrated bypass contactor that alters the main circuit conduction path once the motor reaches full operational speed. It contains a microprocessor-based electronic motor overload protection system that gathers data via three-phase current transformers and provides an adjustable electronic overload trip via front-panel dials. Additionally, the unit incorporates rotary DIP switches for parameter adjustments, two sets of built-in auxiliary contacts for overload/fault and up-to-speed status signaling, and a status LED indicator to display operational conditions and fault types.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 150-C30NBR SMC-3 Smart Motor Controller Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Water and Wastewater Treatment
Controls the soft starting of high-power submersible and centrifugal pumps to prevent "water hammer effects" from damaging pipelines during sudden shutdowns.

HVAC and Commercial Refrigeration
Manages the starting current of large chillers, cooling tower fans, and reciprocating compressors to reduce grid loads on plant power distribution systems.

Mining and Quarrying
Drives conveyor belts and light-duty crushers to lower mechanical stress during startup and extend the operational life of belts and gearboxes.

Metallurgy and Steel Industry
Controls the smooth start and stop of cooling fans, slag conveyor rollers, and water supply pumps in water-quenching systems.

Pulp and Paper Industry
Drives pulp agitators, paper cutter power shafts, and waste conveyor systems to prevent mechanical shocks during paper cutting and processing.

Plastics and Rubber Extrusion
Operates pellet mixing machinery, material handling blowers, and conveyor belts at finished product drop-off stations.
 The 150-C30NBR helps reduce motor starting current, minimize mechanical shock, and improve overall system reliability. Compared with direct-on-line starting, the controller provides smoother acceleration, lower stress on driven equipment, and enhanced protection for motors operating in demanding industrial environments.

Revisions

Revision Part #

Also known as

150-C30NBR Ser A
150-C30NBR/A, Series A, Rev A
150-C30NBR Ser B
150-C30NBR/B, Series B, Rev B

Alternative Names

150-C30N8R 150-C3ONBR 150C30N8R 150C30NBR 150C3ONBR 15O-C30NBR 15O-C3ONBR 15OC30NBR 15OC3ONBR I50-C30NBR I50C30NBR I5O-C3ON8R I5OC3ON8R

Technical notes

Allen-Bradley 150-C30NBR belongs to a compact modular series, containing built-in motor overload protection, SCR thermal monitoring, and voting-style internal diagnostic feedback logic. Through panel adjustment, it supports current limit start, kickstart, and soft stop functions, which reduce grid inrush currents and mechanical impacts during the startup of high-power motors.

FAQ View All FAQ

  • What is the 150-C30NBR?
    It is an Allen-Bradley SMC-3 series 30 A smart motor soft starter.
  • What is the core function of the 150-C30NBR?
    It reduces inrush current and mechanical wear during three-phase induction motor start-up.
  • What is the current rating of the 150-C30NBR?
    It is 30 A for line connection and up to 43 A for delta connection.
  • What input voltages does the 150-C30NBR support?
    It supports 3-phase 200V to 460V AC at 50/60 Hz.
