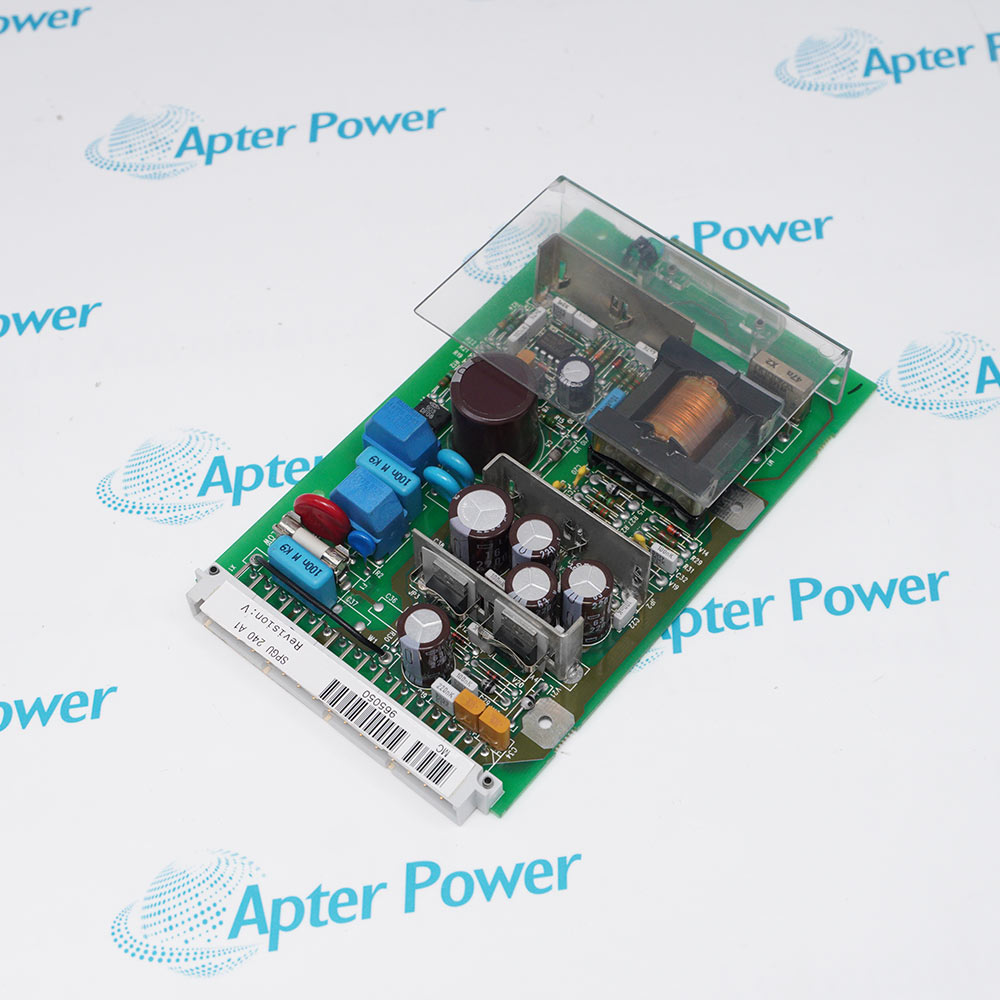

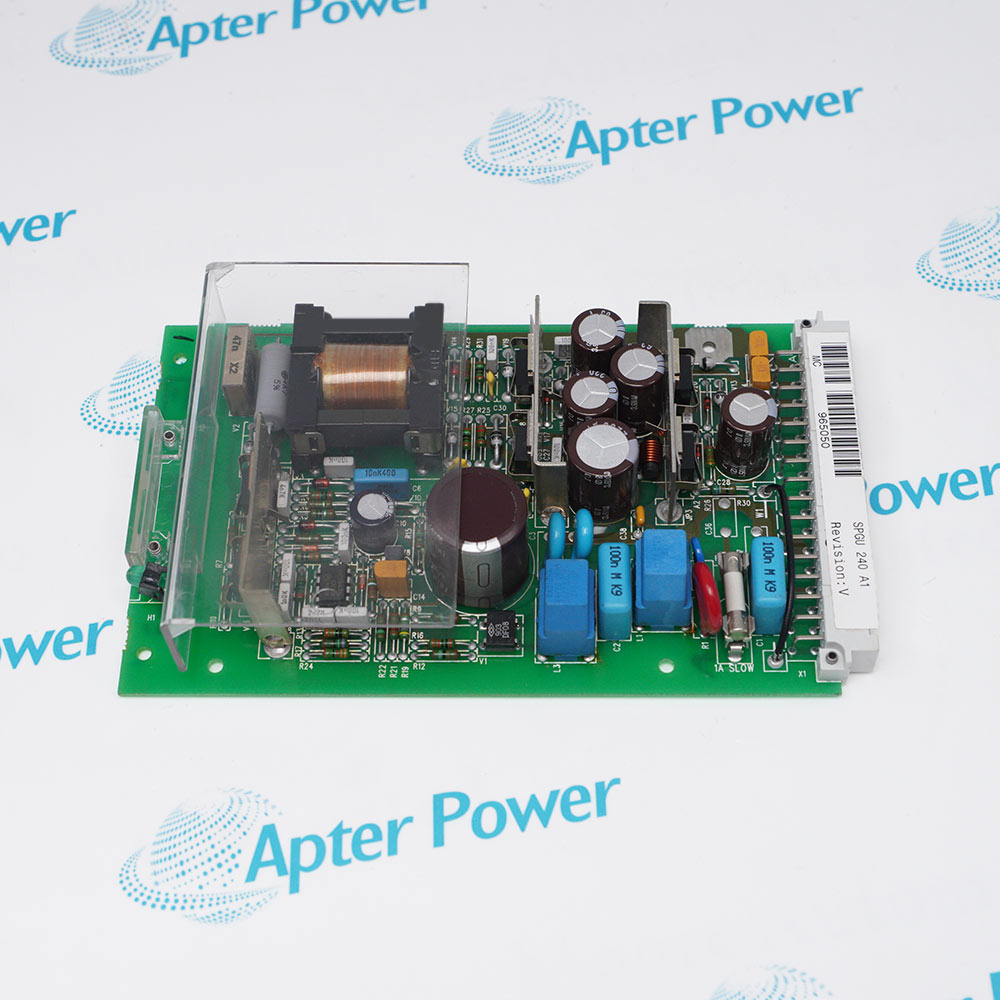

SPGU240A1

Auxiliary Power Supply Module
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

ABB SPGU240A1 is an auxiliary power-supply module for applicable ABB protection relay assemblies. It accepts the specified AC or DC input range and supplies the relay electronics through an isolated conversion stage.
  • Manufacturer part number
    SPGU240A1
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    17cm × 10cm × 3cm
  • Country of Origin
    Sweden
Get a quick price for SPGU240A1
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Send the full SPGU240A1 marking, quantity and current label photos. We review the installed relay case and auxiliary supply that need clarification.

  • 1

    Confirm the offer

    Check the quoted SPGU240A1 reference, condition, included items and expected dispatch date before approving your order.

  • 2

    Arrange dispatch

    Confirm delivery details and receive the tracking number for SPGU240A1 when it becomes available.

  • Match the complete marking

    Include SPGU240A1 and any revision or assembly number visible on the item. Keep the exact reference on your enquiry and quotation.

  • Check the offered item before ordering

    Request available label and connector photos. Have your maintenance team compare the offered SPGU240A1 with the installed control hardware and applicable ABB documentation.

Technical specifications for SPGU240A1

  • Manufacturer:
    ABB
  • Product Category:
    General Automation
  • Spare Part Number:
    ABB SPGU 240 A1; SPGU240A1
  • Weight:
    0.26 kg
  • Tariff Code:
    8537101190
  • Logic supply output:
    +8 V (unstabilized)
  • Amplifier supply +:
    +12 V
  • Operating input range:
    80–265 V AC/DC
  • Nominal AC options:
    110, 120, 230 or 240 V AC
  • Nominal DC options:
    110, 125 or 220 V DC
  • Input fuse:
    1 A slow
  • Amplifier supply -:
    -12 V
  • Relay coil supply:
    +24 V

Information

Overview Downloads Applications / Compatibility Product Precautions
  • SPGU240A1 energizes the electronics of a compatible ABB protection relay from the site auxiliary supply.
Supply role: Isolated auxiliary power conversion
Host boundary: Installed protection relay case and panel
Service control: Match supply range and input fuse
The SPGU 240A1 execution is intended for the higher auxiliary-voltage range. Its operating supply spans 80–265 V AC/DC, with nominal selections of 110, 120, 230 or 240 V AC and 110, 125 or 220 V DC. The alternative SPGU 48B2 serves a different lower DC range.

ABB specifies a 1 A slow input fuse for the SPGU 240A1 circuit. The primary and secondary sides are transformer isolated. In the assembled relay, a green Uaux indication confirms that the auxiliary-supply path is operating.

Replacement selection must account for the relay case, system panel marking and installed auxiliary supply. Match the complete module identity and host relay configuration before exchanging the supply; a common form factor does not establish voltage-range compatibility.
Controller platform reference: ABB SPGU protection-relay power-supply family. Match the installed configuration and interfaces.
Technical downloads for ABB SPGU240A1: an Apter Power technical reference and installation verification guide.
Apter Power references for SPGU240A1; verify the installed relay supply configuration and follow site procedures during service.
Installation and commissioning checks for ABB SPGU240A1.
Verify supply selection

Measure and identify the site AC or DC auxiliary voltage before fitting the module.

Check the relay case

Compare host relay type, supply-module position and front-panel marking with the installed unit.

Use specified fuse

Maintain the 1 A slow fuse type in the appropriate protection position.

Isolate before removal

Disconnect auxiliary supply and follow the relay service procedure before extracting the module.

Inspect indications

Check the host Uaux indication and any self-supervision alarm after re-energization.

Test relay operation

Confirm the complete protection relay responds correctly under the approved site test plan.

Alternative Names

SPGU 240 A1; ABB SPGU240A1

Technical notes

Voltage boundary: The 80–265 V AC/DC operating range applies to the 240A1 module.

Fuse selection: Use the ABB-listed 1 A slow fuse and inspect the host supply circuit.

Host behavior: Uaux indication and self-supervision are checked on the complete relay assembly.

FAQ View All FAQ

  • How is the supply range of SPGU240A1 distinguished from SPGU 48B2?
    The 240A1 accepts 80–265 V AC/DC; 48B2 is the lower 18–80 V DC execution.
  • What does a dark Uaux indicator after fitting SPGU240A1 suggest?
    Check the incoming auxiliary voltage, protective fuse, seating and host relay supply path.
  • Can SPGU240A1 be inserted with the relay energized?
    Follow the ABB relay service procedure and isolate auxiliary power before module removal or insertion.
  • What should be checked if the host relay reports self-supervision after a SPGU240A1 change?
    Check the auxiliary input, module seating and secondary supply behavior under the relay diagnostic procedure.
  • Does SPGU240A1 define the host relay contact rating?
    No; contact and protection ratings belong to the particular host relay assembly.
  • What evidence should accompany a SPGU240A1 replacement?
    Record the existing module marking, host relay type, auxiliary supply and installed fuse.
  • How should AC and DC options of SPGU240A1 be reviewed?
    Compare the site supply type and operating range with ABB SPGU 240A1 data and the relay case marking.
  • What completes acceptance of SPGU240A1 after installation?
    Verify stable supply indication, cleared alarms and the host relay functional checks.
