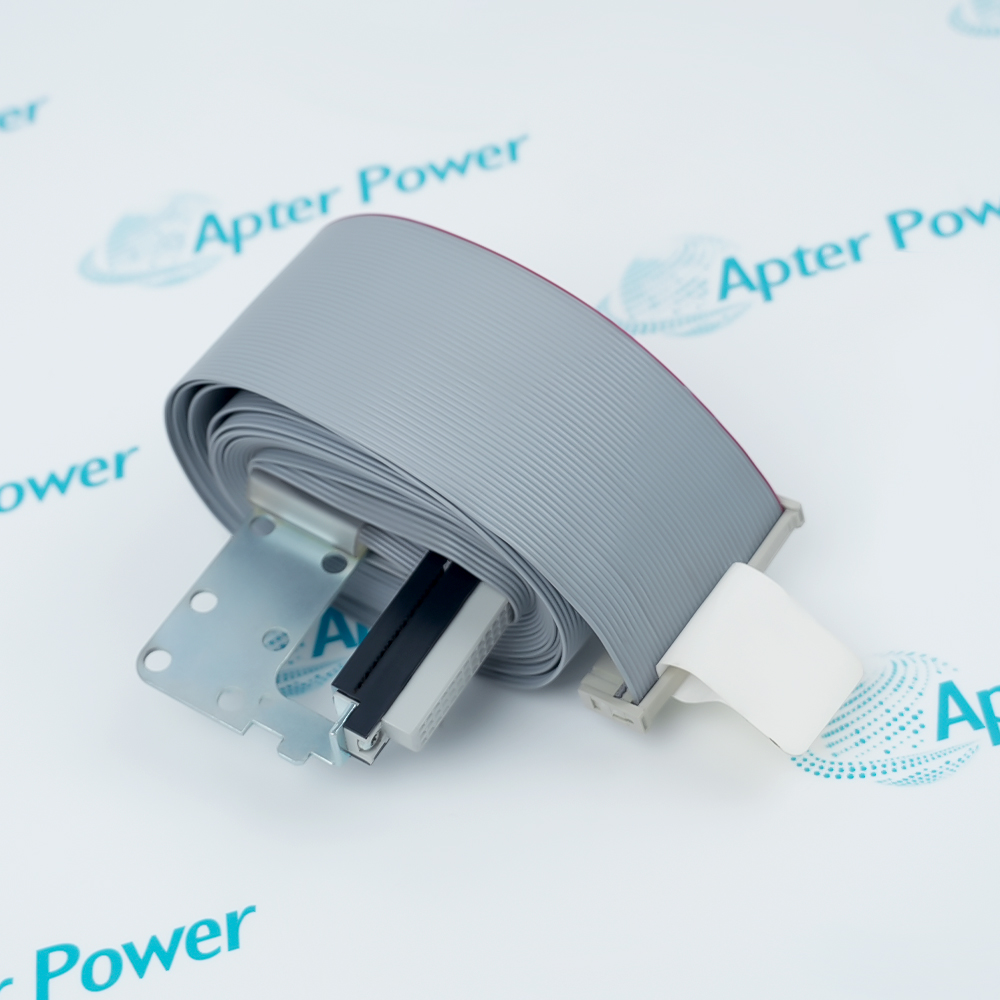

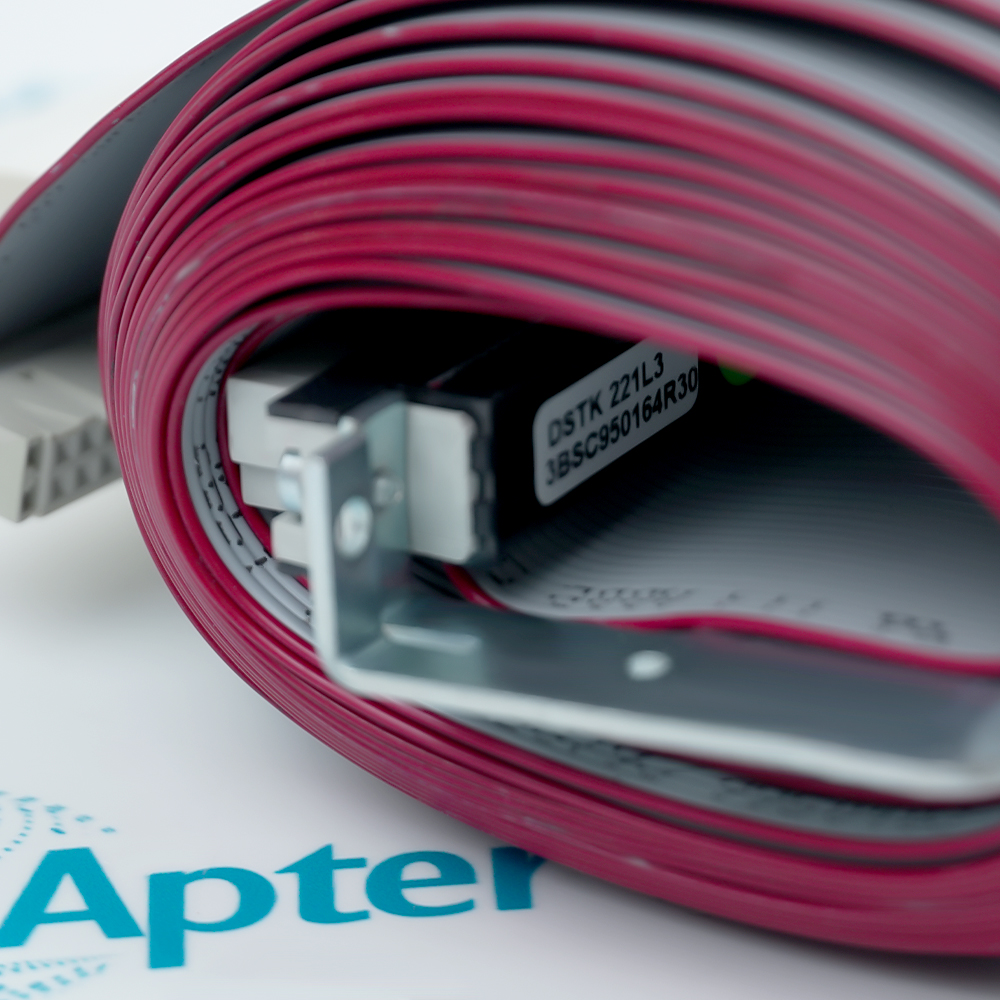

ABB DSTK221L3 is an evidence-bounded three-metre ribbon-cable assembly in the Bailey INFI 90 / Harmony Rack installed-base context. ABB maps DSTK 221L3 exactly to Product ID 3BSC950164R30 and identifies it as a ribbon-cable assembly.
- Product ID: 3BSC950164R30
- ABB type: DSTK 221L3
- Assembly: Ribbon cable, 3 m
- Connectors: 64-pole and 40-pole
System role: The assembly provides a documented prefabricated cable connection in the Advant Master / S100 I/O installed-base context. The page publishes only functions and ratings stated by the cited ABB material; sibling and successor data are not transferred. Architecture boundary: ABB states a 3 m, 40-pole ribbon cable with 64-pole and 40-pole connectors; verify connector orientation and the referenced spare-contact support before installation. Exact cable, termination, firmware, revision and host dependencies must be checked against the physical assembly and approved project drawings. For maintenance, migration or replacement work, verify identity, companion hardware, wiring, addressing, power, network settings and commissioning tests before returning the loop or node to service. Current formal lifecycle phase, origin, HS code, dimensions and logistics weight remain HOLD without exact ABB evidence.
Important Notice: Verify the complete ABB DSTK221L3 nameplate, revision and installed-system documentation before use.
Apter Power DSTK221L3 3BSC950164R30 Manuals and Guides
Important Notice: The first link is the model-specific product-parameters PDF prepared only from the cited ABB official evidence; the second link is the Apter Power product information manual. Confirm the physical nameplate, current ABB documents, and host-system requirements before installation or replacement.
Installed-base maintenanceSupports evidence-led identification and replacement planning for ABB DSTK221L3.
System documentationProvides a source-traceable boundary for rack, network, I/O and termination records.
Commissioning reviewGuides pre-power checks, companion-module verification and controlled functional testing.
Migration assessmentSeparates exact-model facts from successor, sibling and family-level information.
Read and follow the exact ABB documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
1Verify the complete ABB DSTK221L3 nameplate, revision and installed-system documentation before use.
2Do not substitute another DSTK length or connector revision on the basis of family similarity.
3De-energize and follow the site's approved electrical and process-safety procedure before disturbing hardware or field wiring.
4Back up controller, network, I/O, addressing and configuration data before replacement or firmware work.
5Verify every companion module, termination unit, cable, connector and power source from approved drawings.
6Do not copy electrical, communication, mechanical or lifecycle values from a related model or successor.
7Perform a documented loop, network or functional test and confirm alarms and fail states after work.
8Current formal lifecycle phase, origin, HS code, dimensions and logistics weight remain HOLD without exact ABB evidence.
