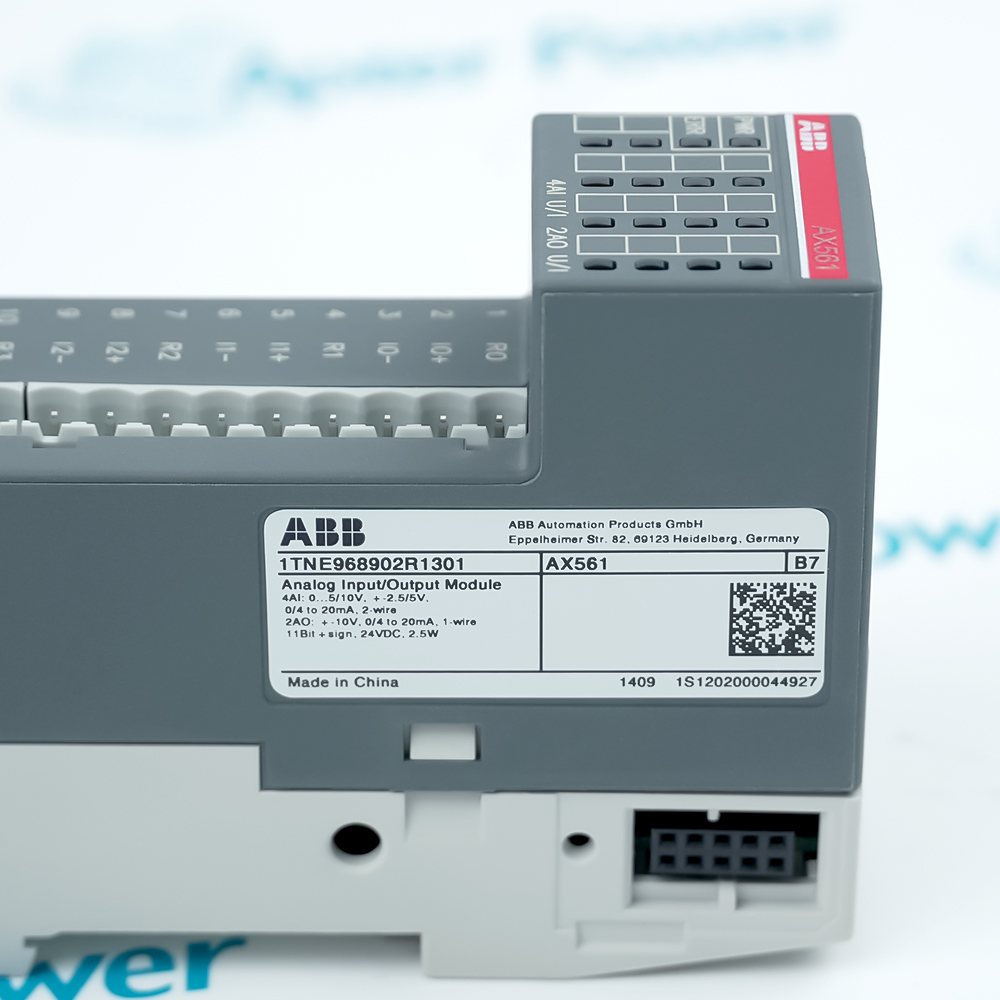

AX561-1TNE968902R1301 is an ABB S500-eCo analog input/output module with four analog inputs and two analog outputs. Each channel supports the voltage or current ranges published for the module and is configured within the connected ABB controller application.
- ABB
- 4 analog inputs, voltage/current
- 2 analog outputs, voltage/current
- +/-2.5 V, +/-5 V, 0 to 5 V, 0 to 10 V, 0/4 to 20 mA
The module converts field voltage and current signals into controller process values and converts controller commands into analog voltage or current outputs for transmitters, actuators, drives, and other continuous-control devices.
Important Notice: Use the complete AX561-1TNE968902R1301 code and verify the physical nameplate and current ABB documentation before installation or replacement.
Apter Power AX561-1TNE968902R1301 Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published ABB information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
ABB S500-eCo I/O
Maintains the documented mixed analog acquisition and output range matching role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact ABB documentation and host-equipment instructions before use. Verify AX561-1TNE968902R1301 from the physical nameplate.
Check 1
Match every character of AX561-1TNE968902R1301 to the physical nameplate before work.
Check 2
Use the exact ABB manual, wiring drawing, and safety instructions for the installed revision.
Check 3
De-energize and apply the required lockout, discharge, ESD, and stored-energy controls before removal.
Check 4
Back up firmware, parameters, controller project, calibration, and network settings where applicable.
Check 5
Verify supply, signal type, polarity, grounding, shielding, connector pinout, load, and environmental limits.
Check 6
Commission with the manufacturer test procedure and record results before returning equipment to service.
