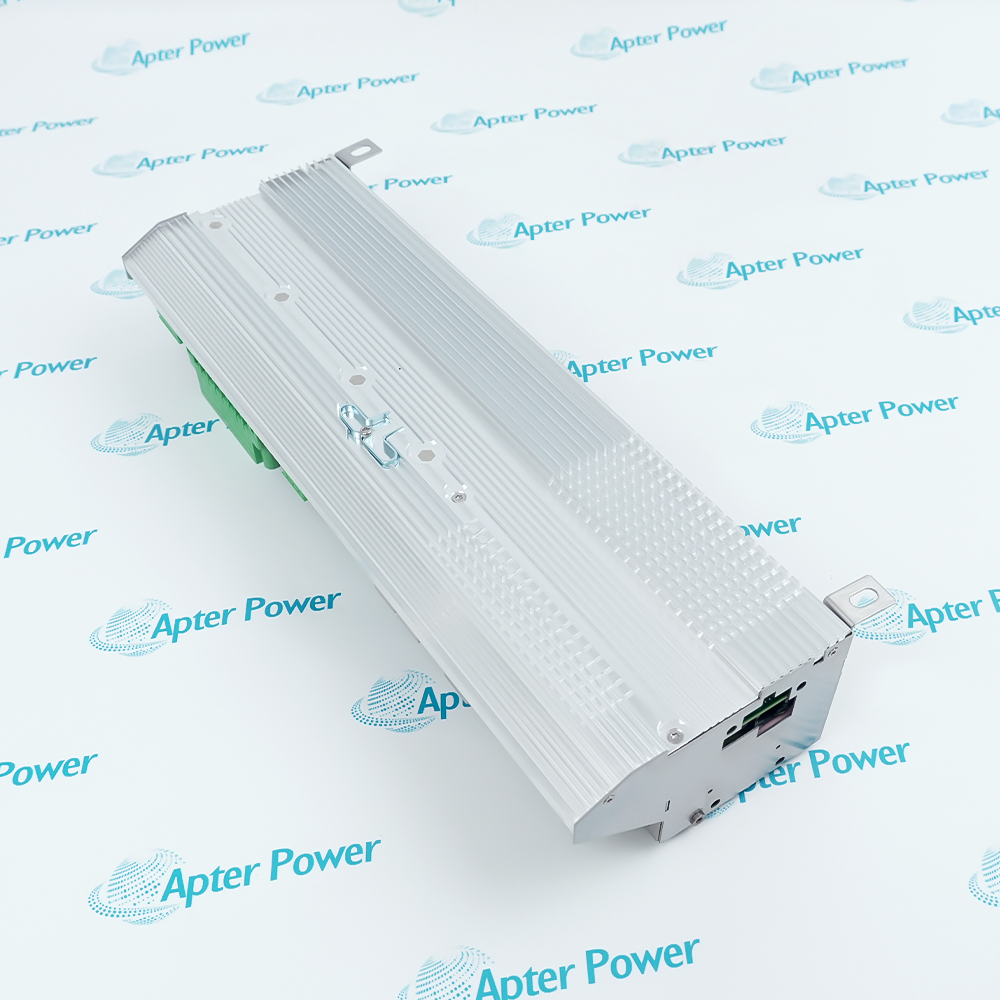

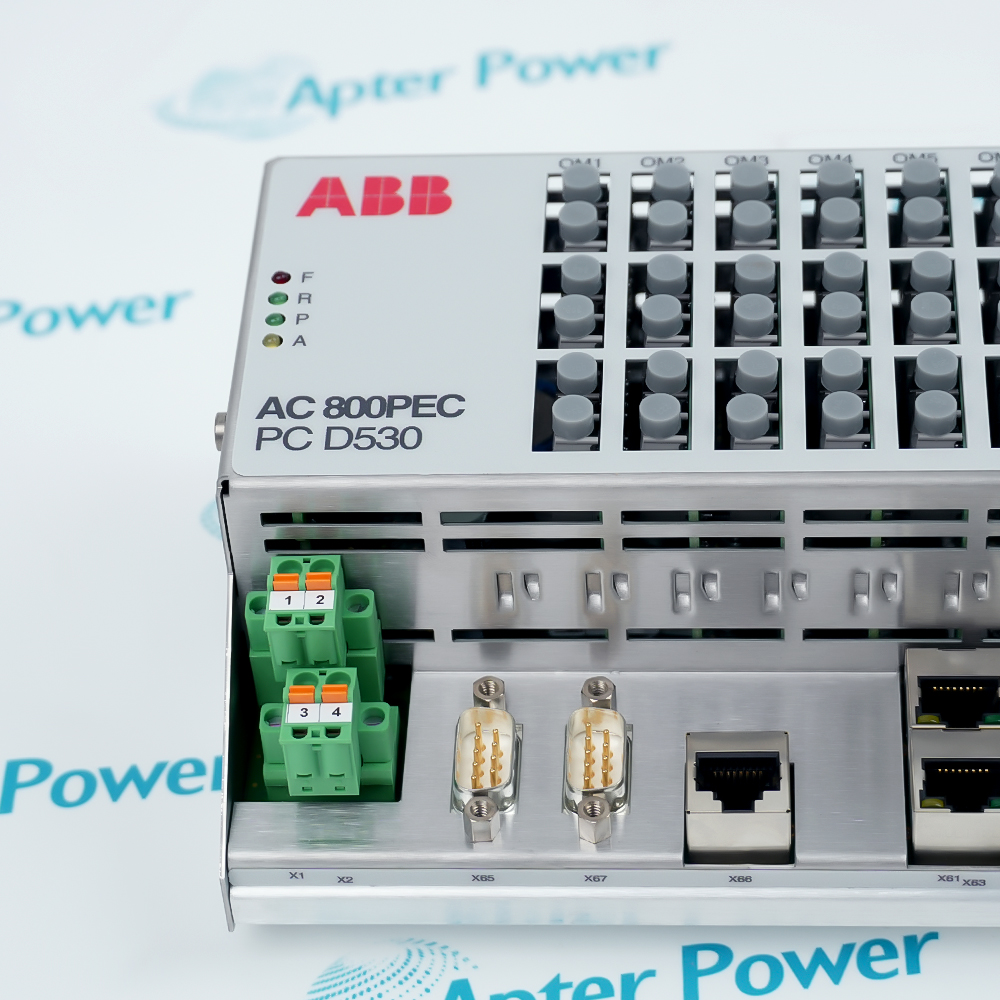

ABB PC D530 A102, identification number 3BHE041343R0102, is the standard controller board identified by ABB as a Communication Control Measurement (CCM) component for UNITROL 6000 X-power (G2) excitation systems.
- Manufacturer: ABB
- Identification number: 3BHE041343R0102
- Type: PC D530 A102
- Functional designation: CCM — Communication Control Measurement
Within the excitation system it belongs to the controller layer that supports communication, control and measurement functions. ABB's UNITROL 6000 documentation describes system-level regulation, protection, monitoring, event recording and time synchronization; those are UNITROL 6000 capabilities and must not all be represented as exclusive board-level specifications. The board is used with the configured UNITROL 6000 X-power (G2) hardware, software, measuring circuits, converter interfaces and service tools selected for the installed project. ABB does not publish board-level channel counts, connector pinout, supported signal ranges or standalone wiring data in the sources cited here. Typical system environments include synchronous generators in steam, gas, nuclear and hydro power plants and large motors in process industries such as steel, mining and oil and gas. Selection and replacement must be based on the physical order code, board revision and the project-specific ABB UNITROL documentation.
Important Notice: Do not describe it as an AC 800M general-purpose PLC, pulse-input module, stand-alone exciter, complete excitation system or an I/O module. ABB identifies it as a controller board within UNITROL 6000 X-power (G2).
Apter Power 3BHE041343R0102 PCD530 A102 Manuals and Guides
Important Notice: The first link is the product-parameters PDF prepared only from the cited manufacturer information; the second link is the Apter Power product manual. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
Power-plant generator excitation
Controller-board role within configured UNITROL 6000 systems for generators in steam, gas, nuclear and hydro power plants.
Industrial synchronous-motor excitation
Used within UNITROL 6000 installations serving large motors in steel, mining and oil-and-gas process industries.
Excitation control and measurement
Supports the CCM controller layer of UNITROL 6000 X-power (G2); exact board signal allocation remains project-specific and is not published in the cited sources.
Excitation-system monitoring and service
Operates within a UNITROL 6000 architecture whose system functions include monitoring, protection, event recording and service tools.
Read and follow the current ABB documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
1
Verify order code 3BHE041343R0102, type PC D530 A102 and the physical board revision before replacement.
2
Use it only in the UNITROL 6000 X-power (G2) configuration approved for the installed project; do not assume compatibility from a similar-looking board.
3
Back up the applicable UNITROL parameters, project files and diagnostic records before removal or exchange.
4
Apply the ESD, isolation and board-handling procedures in the current ABB UNITROL service documentation; replacement should be carried out by qualified personnel.
5
Do not wire or commission from unverified third-party pinouts, voltage ranges or channel specifications; use the project-specific ABB drawings and manuals.
