Get a quick price for DSQC201 YB560103-AB
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for DSQC201 YB560103-AB
-
Manufacturer:ABB
-
Product Category:Robot Systems
-
Spare Part Number:DSQC201 YB560103-AB
-
Estimated shipping dimensions:21.1x14x2.1cm
-
Weight:0.18 kg
-
Tariff Code:8537101190
-
Counliy of origin:Sweden
-
Hardware type:Robot control module
-
Part reference:YB560103-AB
-
System domain:Legacy ABB robot controller
-
Commissioning basis:Installed-slot diagnostics and controlled function
Information
Overview
Manuals
Common Applications
Product Precautions

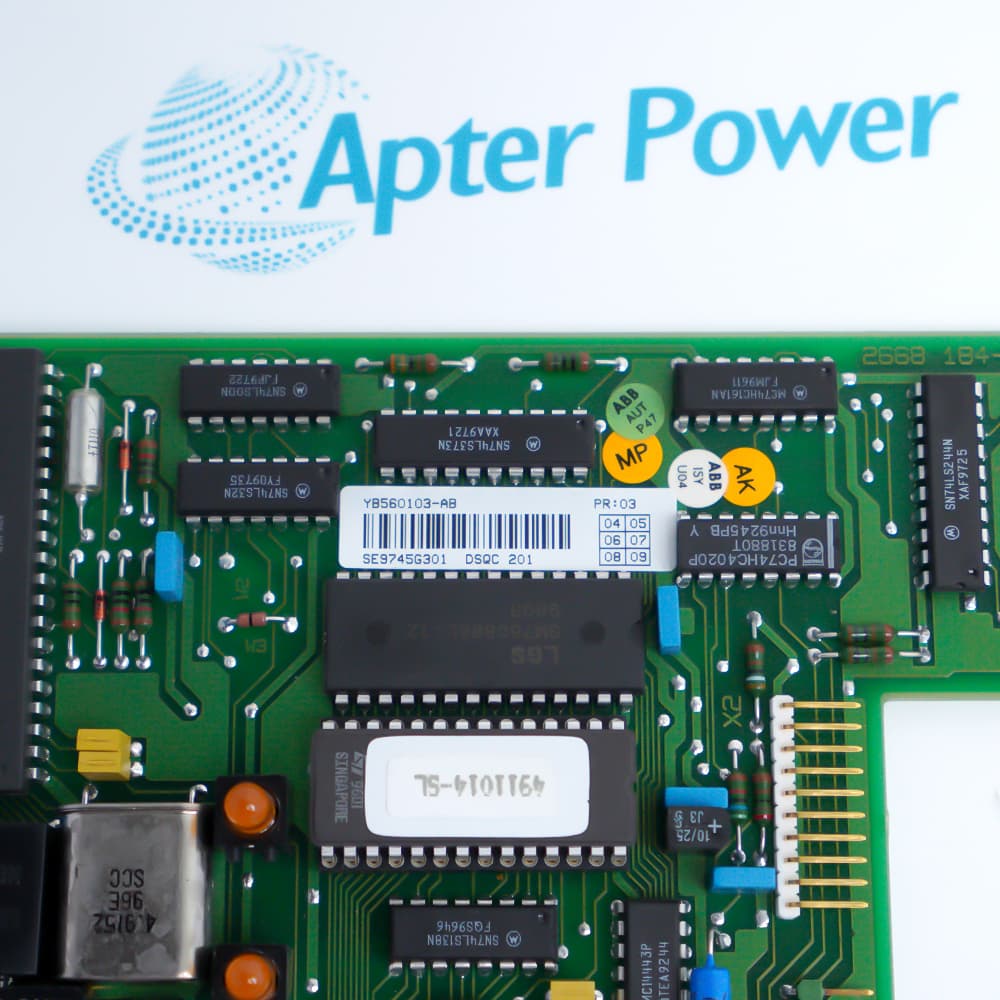

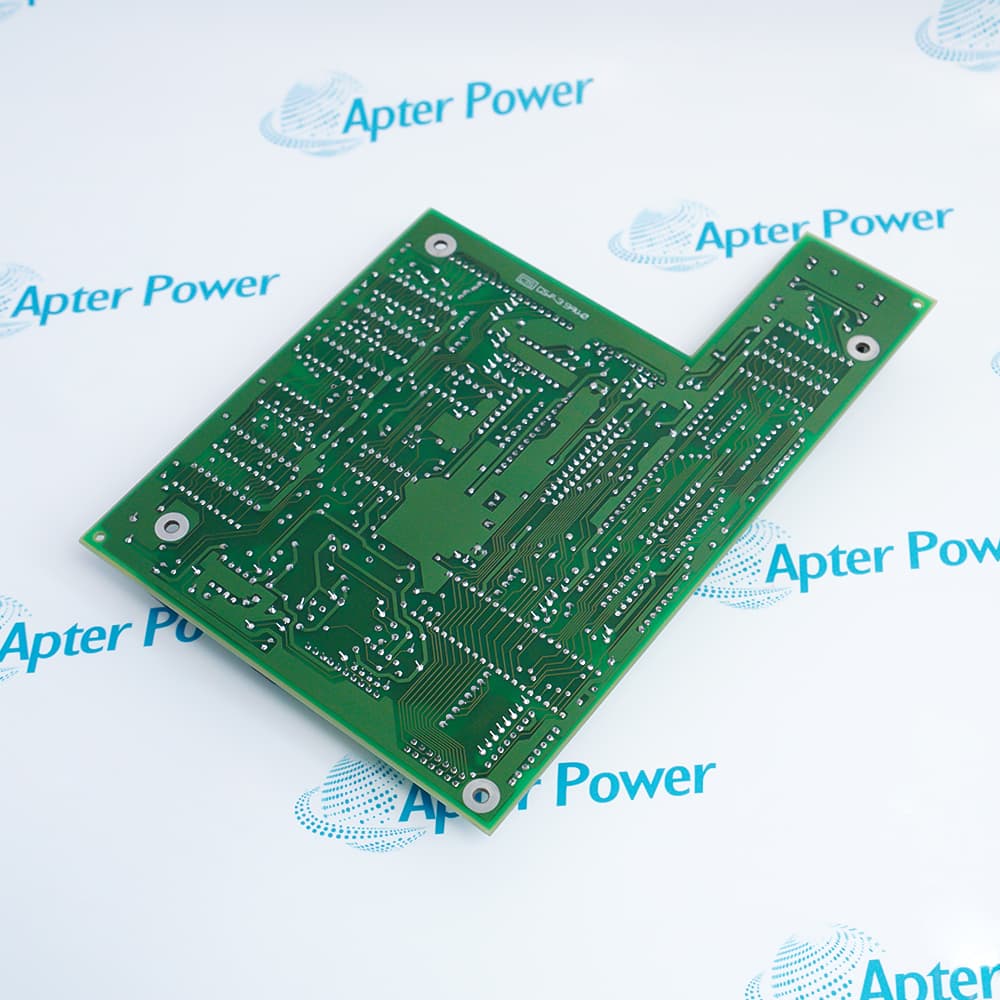

ABB DSQC201 YB560103-AB occupies a controller-board position within a maintained ABB robotic control system.
- Exact identification pairs DSQC201 with YB560103-AB.
- Designed as a replaceable robot-controller board assembly.
- Connector locations and installed board settings must be captured before removal.
- Functional acceptance follows the specific controller diagnostics assigned to its slot.
This robot control module belongs to a defined hardware position in an ABB robot-control installation. Match the installed label, connectors, slot and service record before commissioning.
Important Notice: Verify the complete ABB DSQC201 YB560103-AB marking, installed position and mating interfaces before installation.
ABB DSQC201 YB560103-AB Manuals & Downloads
ABB DSQC201 YB560103-AB Technical Reference (PDF)ABB DSQC201 YB560103-AB Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
Legacy robot maintenance
Replace the documented DSQC201 board position without changing adjacent controller hardware.
Cabinet recovery
Restore the recorded connector and slot arrangement after board service.
Control-system refurbishment
Inspect the module position and backplane during planned maintenance.
Controlled restart
Confirm the slot diagnostics and affected robot function before production.
Before installing ABB DSQC201 YB560103-AB, confirm the documented system, interfaces and controlled configuration.
1
Confirm the complete product marking and the recorded controller position before removal.
2
Save the controller configuration and maintenance record required by the site procedure.
3
Label every connector and photograph its orientation before disconnection.
4
Isolate controller power and apply electrostatic-discharge controls before handling the board.
5
Inspect the slot, backplane, connector contacts and retention hardware before installation.
6
Restore only the documented cable routes, board settings and mechanical supports.
7
Check controller diagnostics and board indications during controlled startup.
8
Validate the affected robot function and interlocks before enabling automatic operation.
Technical notes
Verify the complete ABB DSQC201 YB560103-AB marking, installed position and mating interfaces before installation.
FAQ View All FAQ
-
How is ABB DSQC201 YB560103-AB identified for replacement?Use the complete DSQC201 and YB560103-AB marking together with the installed slot record.
-
What type of assembly is ABB DSQC201 YB560103-AB?It is a replaceable robot control module for legacy ABB controller hardware.
-
What cabinet information should be preserved before removal?Preserve the slot, connector orientation, cable labels and any visible board-setting positions.
-
Why should adjacent modules be left unchanged during DSQC201 service?The work should isolate the recorded DSQC201 position and avoid creating unrelated controller changes.
-
What handling method applies to ABB DSQC201 YB560103-AB?Use the site isolation procedure and ESD-safe handling for the exposed electronic assembly.
-
How should the module be checked at power-up?Observe the controller startup sequence and the diagnostics assigned to the installed slot.
-
What completes functional testing of ABB DSQC201 YB560103-AB?Verify the affected controller function, interlocks and robot response under controlled conditions.
-
What prevents substitution with another DSQC201 revision?The full YB560103-AB suffix and the installed-system record must match before selection.
