Technical specifications for 3HAC033388-001
-
Manufacturer:ABB
-
Product Category:DCS Systems
-
Spare Part Number:3HAC033388-001
-
Estimated shipping dimensions:15.5x11x2cm
-
Weight:0.1 kg
-
Tariff Code:8537101190
-
Counliy of origin:Switzerland
-
Controller Platform:S4 / S4C / S4C+
-
Signal Cable Rated Voltage:30V / 50V DC (For encoders and sensors)
-
Power Cable Rated Voltage:600V AC (For servo motor power supply)
-
Temperature Range:Regular working environment -10°C to +50°C
-
Connection Range:Branching from robot base to all joint motors of Axis 1 to 6
-
Sheath Material:Special Polyurethane (PUR), wear and coolant resistant
-
Torsion Resistance:Compliant with high-frequency, multi-angle 3D robot torsion
Information
Overview
Manuals
Common Applications
Product Precautions

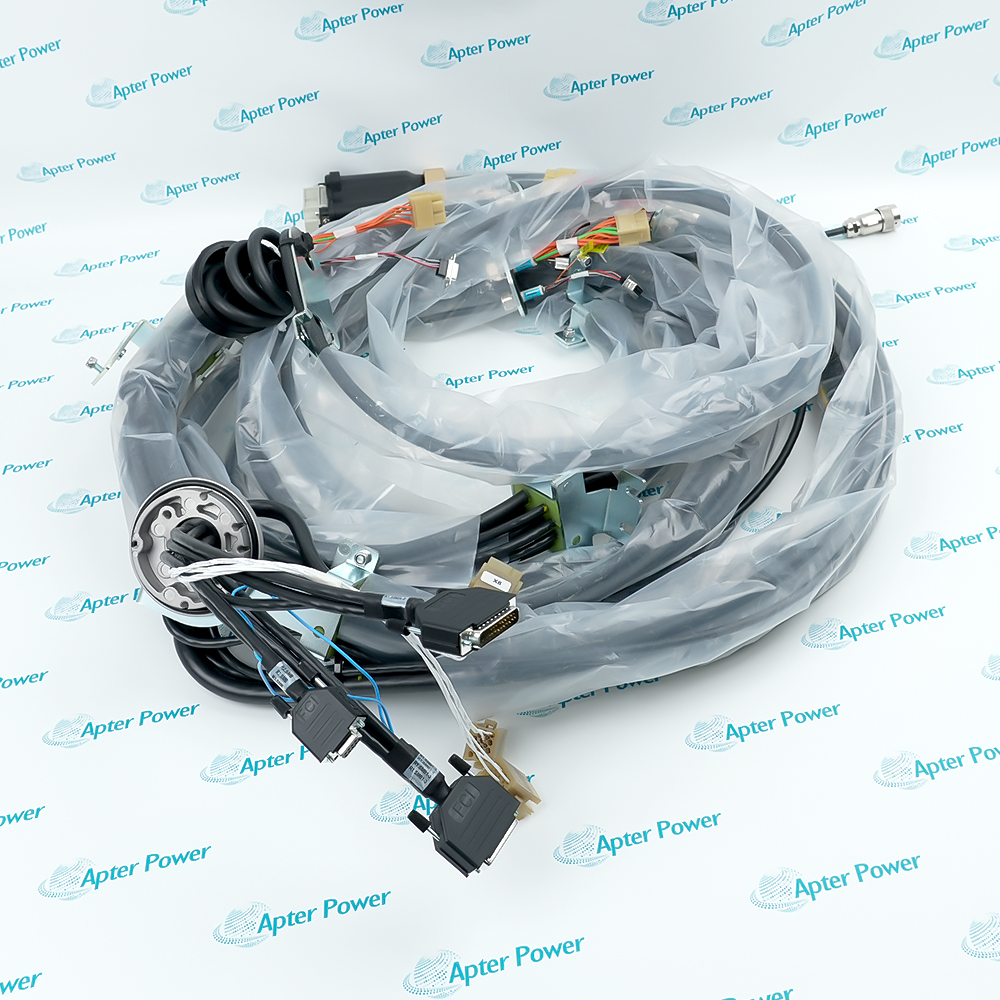

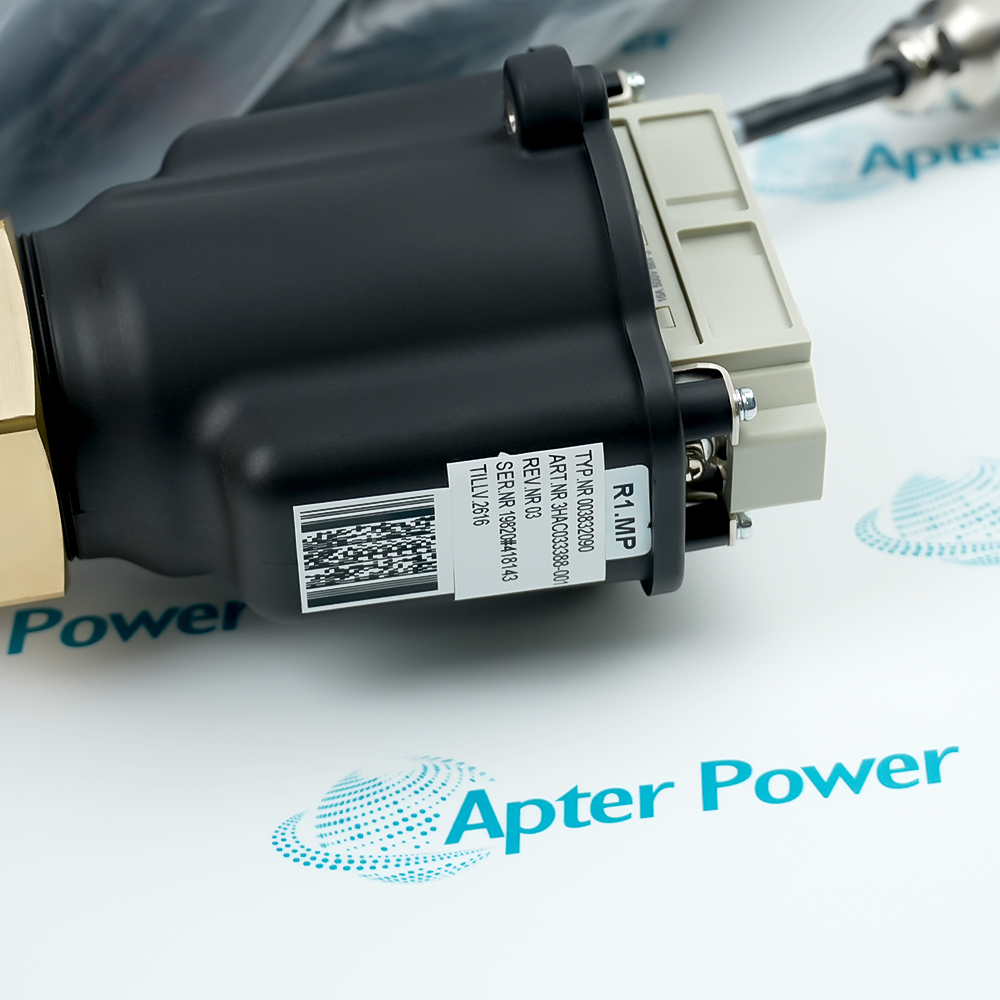

The 3HAC033388-001 is an original equipment manufacturer (OEM) robot manipulator cable harness manufactured by ABB. It is custom-engineered specifically for heavy-duty robot series including IRB 6600, IRB 6640, and IRB 6650. Branching from the robot base, this harness establishes complete and dependable electrical connectivity to all servo motors, encoders, and sensors across Axis 1 through Axis 6.
- Extreme Fatigue Resistance & Long Lifespan
- Superior EMC Protection & Zero Signal Loss
- Extreme Environmental Tolerance
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB 3HAC033388-001 Harness Axis 1-6/Robot Body Cable, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing Industry
Used for Body-in-White (BiW) spot welding, heavy car body panel handling, and chassis spraying in automated painting lines.
Foundry and Forging Industry
Used for rapid extraction of die castings, heavy forging transfer, and burr grinding/cleaning in high-temperature and high-dust environments.
Construction Machinery Manufacturing
Used for heavy-duty arc welding and assembly handling of large thick-plate steel structural parts like excavator buckets and crane booms.
Aerospace Manufacturing
Used for automated drilling and riveting of large aircraft fuselage panels and wing skins, as well as handling of oversized composite components.
Glass and Building Materials Industry
Used for the safe handling and palletizing of oversized architectural glass, overweight precast concrete components, or ceramic sanitary products.
Shipbuilding & Marine Engineering
Used for automated heavy-plate welding of large ship sections and block decks, as well as heavy-duty polishing of massive propeller blades.
When using the 3HAC033388-001 cable harness, the core precautions are proper routing and prevention of wear or stretching [3HAC033388-001]. First, routing must be restored strictly according to the official manual with sufficient bending allowance [3HAC033388-001], preventing cables from snapping during high-speed, large-range movements. Second, regularly check the wear in drag chains and active joints. If the sheath is damaged, do not run with faults or repair by welding; replace it directly to avoid burning motors [3HAC033388-001]. Finally, always recalibrate the robot's revolution counters after any unplugging or replacement to ensure motion precision [3HAC033388-001].
FAQ View All FAQ
-
What kind of product is 3HAC033388-001?3HAC033388-001 is an industrial robot cable harness (Harness axis 1-6) manufactured by ABB [3HAC033388-001].
-
What are the primary functions of 3HAC033388-001?Its core function is to provide complete electrical connections for axes 1 to 6 of the robot.
-
Which robot models are compatible with 3HAC033388-001?This cable harness is a customized, highly flexible cable primarily designed for ABB IRB 6600 and its derivative series (such as IRB 6640 and IRB 6650) heavy-duty industrial robots.
-
What is the expected lifespan of 3HAC033388-001?Its lifespan depends on the robot's movement intensity and working environment.
-
What precautions should be taken when installing 3HAC033388-001?The main power of the robot must be completely cut off before replacement.
