The 3HAC029105-002 is a ventilation circulation component specifically designed for industrial automation cabinets. By providing uninterrupted air convection in industries such as automotive final assembly and electronics manufacturing, it timely dissipates heat from internal components to prevent system downtime caused by localized overheating.
As an original ABB cabinet part, it perfectly matches internal air ducts, mounting holes, and connectors for quick, modification-free replacement
Specially built for high-dust, high-humidity, and high-temperature environments, working with cabinet protection systems to maintain internal air circulation
Meets 24/7 continuous operation demands, efficiently eliminating local heat accumulation in control cabinets to prevent sudden downtime from overheating
The main task of this component is to create continuous air convection within enclosed or semi-enclosed cabinets, promptly extracting and replacing accumulated heat. This prevents the localized temperature inside the cabinet from exceeding the normal bearing range of the components, thereby eliminating sudden system lockups, data transmission interruptions, and unscheduled downtime caused by excessive temperatures at the source.
In complex industrial manufacturing sites, such as metal smelting, glass melting, and rubber tire extrusion workshops, which are often accompanied by high temperatures, high humidity, or large dust particles, this component works in conjunction with the cabinet's external filters or heat exchange systems to effectively maintain the airflow inside the control box.
This prevents dust containing conductive impurities from accumulating electrostatically on the core circuit boards, acting as a barrier for the control system against harsh external environments. As a regular stock item in factory electromechanical equipment management and maintenance, repair, and operations (MRO), timely inspection and replacement of this component during seasonal maintenance before summer high temperatures, during regular equipment overhauls, or when the system issues an over-temperature warning can directly reduce sudden maintenance costs for enterprises and ensure the on-time delivery of large-scale, multi-process linked projects.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB 3HAC029105-002 Fan Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing Industry
In body shops (welding, assembly) and final assembly lines, the fan cools the control cabinets of welding and handling robots operating under continuous heavy loads.
Electronics & Semiconductor Industry
Used to cool precise control boxes of robots performing dispensing, surface mounting, and wafer handling, maintaining high-precision motion stability.
Lithium Battery Manufacturing Industry
Prevents control cabinets of large handling and welding robots from shutting down due to heat on automated cell assembly, stacking, and PACK production lines.
Plastics & Injection Molding Industry
Cools manipulator control systems that extract parts, deburr, and cut gates alongside injection molding machines, heavily relying on cooling in hot workshops.
Chemical & Petrochemical Industry
Maintains air circulation and heat dissipation within sealed enclosures of specialized robots handling hazardous chemicals or explosive coatings, often placed in positive-pressure cabinets.
Rail Transit & Shipbuilding Industry
Provides heat dissipation support during continuous high-intensity operations for heavy-duty gantry and thick-plate welding robots working on locomotive frames and ship section structures.
During the use of 3HAC029105-002, regularly clean the cabinet filters and check the air inlets/outlets, and never run it with the cabinet door open under live-power or high-dust conditions. Additionally, conduct preventive inspections and timely replacements before summer high temperatures or when the system issues an over-temperature warning to prevent air circulation blockage from causing heat accumulation and downtime on core boards.

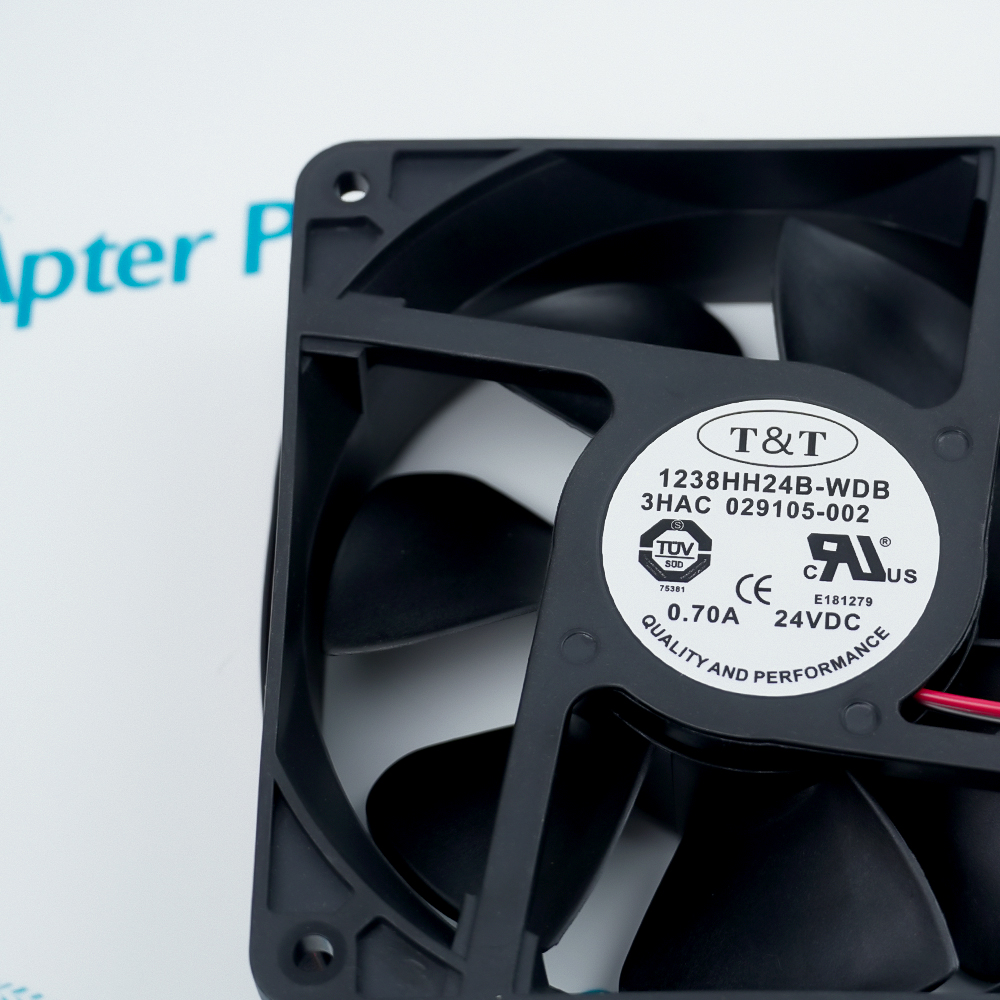

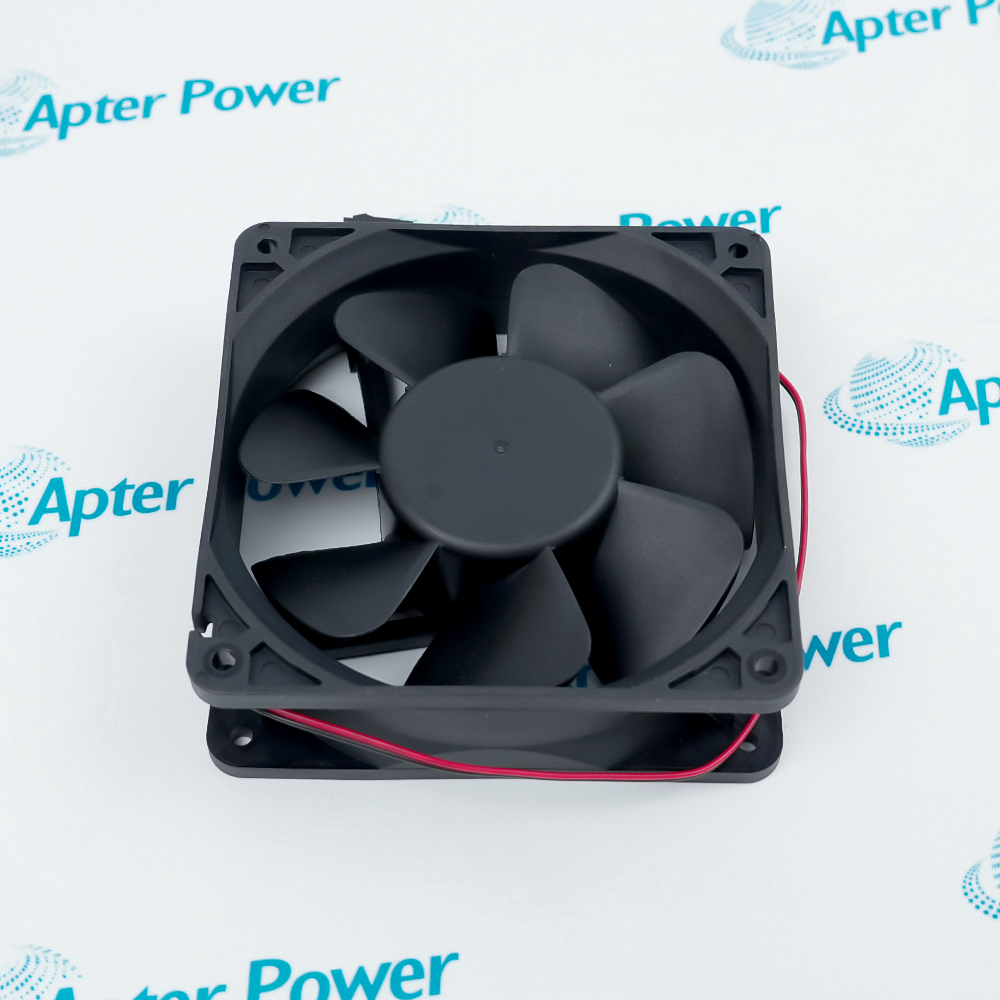

The ABB 3HAC029105-002 is a 24V DC / 0.70A high-airflow cooling fan engineered specifically for IRC5 robot control cabinets. Built with dual ball bearings and flame-retardant PBT material, it is equipped with a 3-wire speed-detection plug and deployed directly within the core drive and power supply areas. Through forced convection, the fan rapidly exhausts heat accumulated from the high-frequency operation of high-power servo modules, maintaining internal thermal balance and preventing system shutdowns caused by over-temperature conditions.
It is an original high-airflow DC axial cooling fan specifically designed for ABB IRC5 industrial robot control cabinets.
Which components inside the control cabinet is 3HAC029105-002 commonly used to cool?
It is primarily used to provide forced-convection cooling for high-power servo drive modules, rectifier modules, and main power supply boards inside the control cabinet.
How to install and use 3HAC029105-002?
After powering off the control cabinet, snap it into the designated drive cooling duct bracket, plug in the dedicated connector, and confirm the airflow arrow points out of the cabinet.
What are the characteristics of the wiring plug on 3HAC029105-002?
It features an original factory-matched 3-wire plug that includes positive and negative power lines, as well as a speed monitoring signal wire to feed the fan status back to the system.
How does the robot system behave when 3HAC029105-002 malfunctions?
The FlexPendant will pop up drive unit over-temperature or abnormal fan speed alarms, and in severe cases, it will lock the robot to prevent operation.
