Get a quick price for DATX 100 3ASC25H208
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for DATX 100 3ASC25H208
-
Manufacturer:ABB
-
Product Category:DCS Systems
-
Spare Part Number:DATX 100 3ASC25H208
-
Estimated shipping dimensions:21.5x20x3.5cm
-
Weight:1.06 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Operating Voltage:24 V DC
-
Frequency Range:50 Hz – 60 Hz
-
Operating Conditions:-20 °C to +60 °C
-
Humidity:10 % – 90 %（Non-condensing）
-
Insulation Resistance:100 MΩ
Information
Overview
Manuals
Common Applications
Application

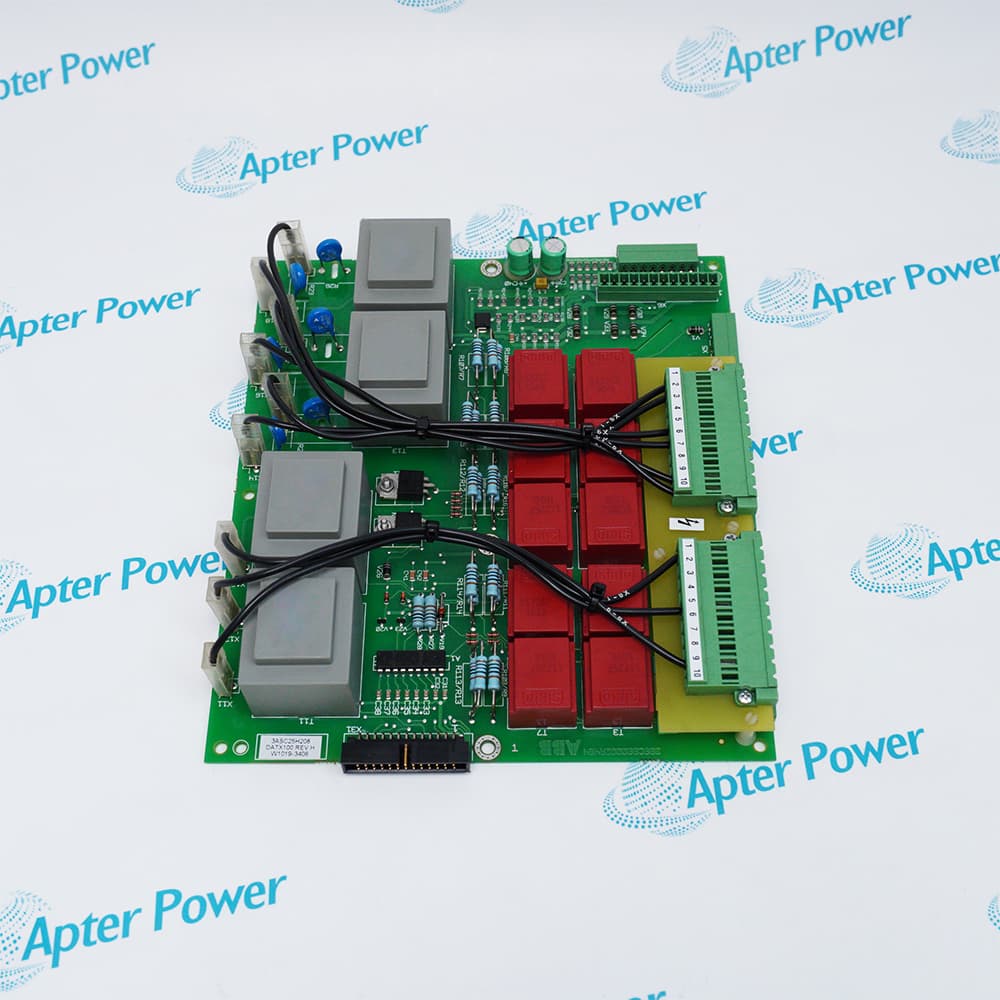

The DATX 100 3ASC25H208 is a high-performance pulse transformer board from ABB, specifically designed for industrial drives and automation systems. It serves as a reliable interface between control circuits and power modules, converting high-frequency pulses while providing electrical isolation for safe and stable operation.
- Model Reliability
- Signal Isolation
- Industrial Compatibility
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB DATX 100 3ASC25H208 pulse transformer board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Plant Automation
Essential for managing high-frequency control pulses in turbine and generator systems. Enhances signal reliability between control circuits and power modules. Supports safe and stable operation in continuous industrial environments.
Industrial Drives
Controls drive-level logic signals for motors and actuators. Ensures accurate pulse transmission in heavy-duty manufacturing lines. Improves noise immunity for precise motion control.
Process Control Systems
Interfaces between PLC/DCS systems and power modules to regulate automated processes. Enhances system stability and reduces signal errors. Suitable for complex chemical, water, and energy processes.
Oil & Gas Facilities
Supports safe signal conversion and isolation in high-demand offshore and onshore installations. Protects sensitive control circuits from voltage spikes. Ensures reliable operation under harsh environmental conditions.
Water Treatment Plants
Manages automated pump and filtration systems with precise signal handling. Improves reliability in large-scale water distribution networks. Reduces maintenance risks caused by signal interference.
Renewable Energy Systems
Optimizes signal control for solar inverters and wind turbine drives. Provides high-frequency pulse isolation for safe energy conversion. Enhances operational efficiency in variable renewable energy applications.
The primary application of the DATX 100 module is in signal conversion and isolation within industrial automation systems. The board’s transformer design converts input pulse signals and provides galvanic separation between low‑voltage control circuits and power circuitry — a key requirement in safety‑critical automation architectures.
This board is engineered for integration into control cabinets and drive modules where reliable signal transformation and electrical isolation are essential. With a net weight of approximately 1.03 kg and UNSPSC classification under automation parts, the 3ASC25H208 supports consistent mechanical and electrical interfacing in machinery from motor drives to distributed control hardware.
This board is engineered for integration into control cabinets and drive modules where reliable signal transformation and electrical isolation are essential. With a net weight of approximately 1.03 kg and UNSPSC classification under automation parts, the 3ASC25H208 supports consistent mechanical and electrical interfacing in machinery from motor drives to distributed control hardware.
FAQ View All FAQ
-
What is DATX100 3ASC25H208 used for?The DATX100 3ASC25H208 is a pulse transformer board designed to convert and transmit high‑frequency control pulses in industrial automation systems, providing electrical isolation and signal conditioning between control and power circuits.
-
What functions does DATX100 3ASC25H208 perform?This board performs pulse signal conversion, signal isolation, and amplification to reduce interference and improve system stability. It can also support high‑precision data acquisition and processing in complex automation environments.
-
Can DATX100 3ASC25H208 be integrated into automation systems?Yes, the DATX100 3ASC25H208 is widely compatible with industrial automation and process control systems. It can interface with PLC, DCS, robotics, and other control architectures for reliable signal handling.
-
Is DATX100 3ASC25H208 suitable for harsh industrial environments?Yes, this model is designed as a rugged industrial component with high reliability and anti‑interference performance, suitable for continuous operation in factory and process environments.
-
How to replace DATX100 3ASC25H208 safely?Always power down the drive or control system before removing the DATX100 3ASC25H208 board. Follow ABB’s installation guidelines, handle the board using ESD precautions, and ensure proper seating and connection to avoid signal errors or damage.
