It is a compact analog input/output module that provides 16 channels within a single module to enable the measuring or output of all standard analog signals.

What standard current signal ranges does AIO216 support?

It supports standard current signal types within the ranges of 0 to 20 mA and 4 to 20 mA.

What are the voltage ranges of AIO216?

Its voltage measurement span covers ranges from ±10 V to ±10 mV.

What other temperature sensors does AIO216 support besides RTDs?

It also supports all standard types of thermocouples.

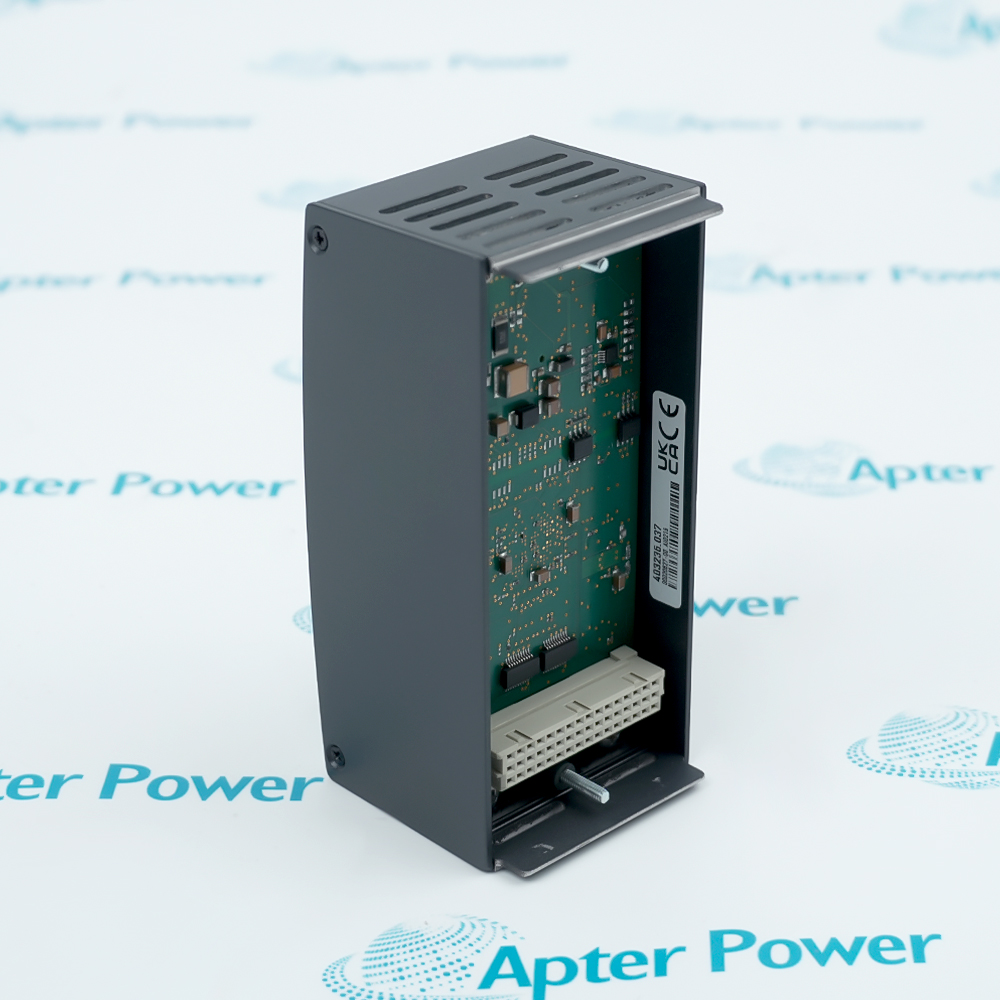

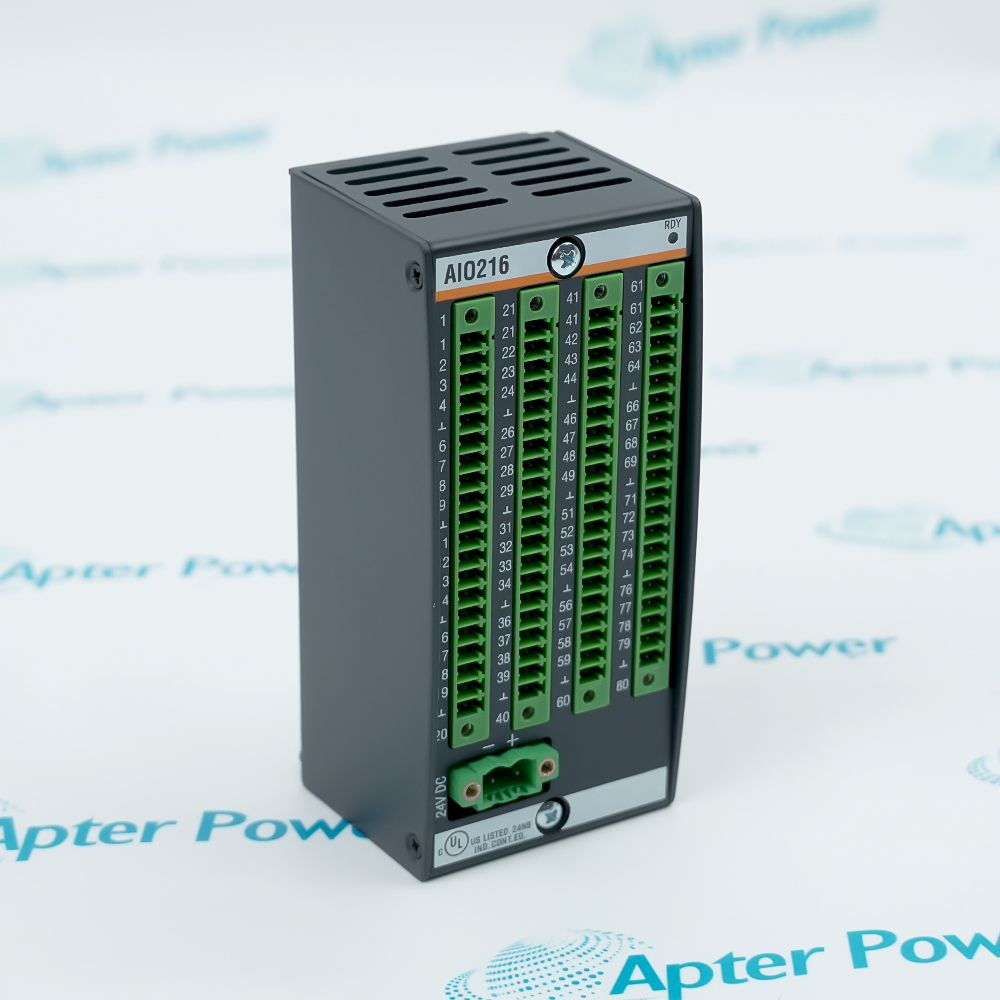

AIO216

Name: AIO216
Brand: bachmann
SKU: AIO216

Input/Output Module

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Universal Analog
Input/Output Module
16-ch compact analog
I/O module (0/4–20 mA, ±10 V to ±10 mV)

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Warranty Policy

Review the applicable warranty coverage and claim process.
Return Notice

Check the return process and obtain approval before sending an item back.
Shipping Method

Review shipping arrangements, transit estimates and delivery responsibilities.
Parts Availability

Browse stock listings and confirm current availability with our team.
How to order

See how to submit an enquiry, review a quotation and confirm an order.

Get a quick price for AIO216

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for AIO216

Manufacturer:

bachmann
Product Category:

PLC Systems
Spare Part Number:

AIO216
Estimated shipping dimensions:

5.3x5.8x11.8cm
Weight:

0.22 kg
Tariff Code:

8537101190
Counliy of origin:

GERMANY
Digital resolution:

16 bit
Measuring range:

±105 % of nominal range
Permitted common mode voltage:

Max. ±1 V
Refresh cycle time:

100 µs
Cut-off frequency:

4 kHz to 0.5 Hz adjustable channel by channel
Filter slope:

> 80 dB/decade
Input current:

±20 mA or 0 mA to 20 mA or 4 mA to 20 mA
Input impedance:

Max. 300 Ω
External withstand voltage:

±24 V
Temperature inputs:

Pt100/Pt1000
Connection technology:

2-, 3- or 4-wire
Input impedance:

> 100 kΩ
Value of LSB:

0.1 K; measured value in 1/10 Kelvin

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The AIO216modules enable the measuring or output of all standard analog signals. The AIO208 offers 8 channels and the AIO216 16 channels compactly in a single module. The standard signal types for current (0 to 20 mA and 4 to 20 mA) and voltage ranges (±10 V to ±10 mV) allow the connection of a wide range of sensors and actuators. A minimum 14 bit resolution makes it possible to also measure signals that do not fully utilize the measuring range (e.g. 0 to 5 V) with a sufficiently high resolution.

All outputs overload, short circuit and external voltageproof
Measuring range monitoring freely adjustable (±105 %)
Error message on overload and overtemperature and undervoltage of the supply

Temperatures are playing an important role in an increasing number of processes. These modules therefore also support Pt100/Pt1000 in 2-, 3- and 4-wire measuring circuits, as well as all standard thermocouples. For each channel, a second channel with unused signal types can be used in addition to the primary configured signal type. For example, a current output can be assigned to a voltage input so that up to twice the number of channels per module are provided. This enables one module to cover virtually all analog signal measuring tasks instead of having to use many different modules for each signal type. A costeffective solution that simplifies logistics and servicing. Different modes can be combined and set simply using a configuration wizard in the SolutionCenter engineering tool.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

BACHMANN AIO216 Input/Output Module Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Wind Power Industry

Acquiring hydraulic cylinder position signals from wind turbine pitch systems, and monitoring Pt100/Pt1000 temperatures of generator windings and main bearings.

Metallurgy and Steel Industry

Monitoring high temperatures inside blast furnaces and heat-treatment furnaces via thermocouple sensors, and outputting 4-20mA signals to control gas valve openings.

Oil and Gas Extraction

Connecting pressure transmitters and flow meters (±10V/4-20mA) on oil pipelines to achieve real-time pressure monitoring and overpressure alarming for long-distance pipelines.

Rail Transportation Industry

Monitoring the operating temperatures of electric locomotive transformers and traction motors, and transmitting pneumatic analog signals from braking systems to the main control unit.

Thermal Power and Heating Systems

Monitoring boiler steam pipeline pressure and superheated steam temperature, and outputting current signals to adjust feedwater pump inverter frequencies.

Paper and Printing Industry

Acquiring analog signals from tension sensors and outputting proportional control voltages to adjust rewinder motor torque.

When using the Bachmann AIO216 module, channel modes including current, voltage, or resistance must be correctly configured in the software to avoid incorrect signal sourcing, and analog lines must use shielded twisted-pairs with single-point grounding at the cabinet side to prevent EMI. Furthermore, 3-wire or 4-wire connections are recommended for RTDs to compensate for lead resistance, and lastly, any module swapping or rewiring must be performed under complete power-off conditions with proper ESD protection.

Alternative Names

AI0216 A1O216 AIO2I6 A102I6

Technical notes

AIO216 is a 16-channel compact analog input/output module featuring 500 V system galvanic isolation. The hardware supports independent per-channel configuration, handling ±10V to ±10mV voltage, 0(4) to 20mA current, 2/3/4-wire Pt100/Pt1000 RTDs, and 8 standard thermocouple types across all input and output signal ranges, while allowing dual-signal mapping per channel to achieve double the density. It features a high data resolution of 16-bit input (with adjustable filtering from 4kHz to 0.5Hz) and 14-bit output, where all output terminals maintain overload, short-circuit, and external voltage proof characteristics, supporting adjustable ±105% range monitoring and autonomous error reporting upon supply undervoltage, overload, or overtemperature, with an optional ColdClimate condensation-proof variant available.

FAQ View All FAQ

What is AIO216?

It is a compact analog input/output module that provides 16 channels within a single module to enable the measuring or output of all standard analog signals.
What standard current signal ranges does AIO216 support?

It supports standard current signal types within the ranges of 0 to 20 mA and 4 to 20 mA.
What are the voltage ranges of AIO216?

Its voltage measurement span covers ranges from ±10 V to ±10 mV.

What other temperature sensors does AIO216 support besides RTDs?

It also supports all standard types of thermocouples.
What is a concrete example of this dual-channel assignment on AIO216?

For example, a current output can be assigned to a voltage input so that up to twice the number of channels per module are provided.
