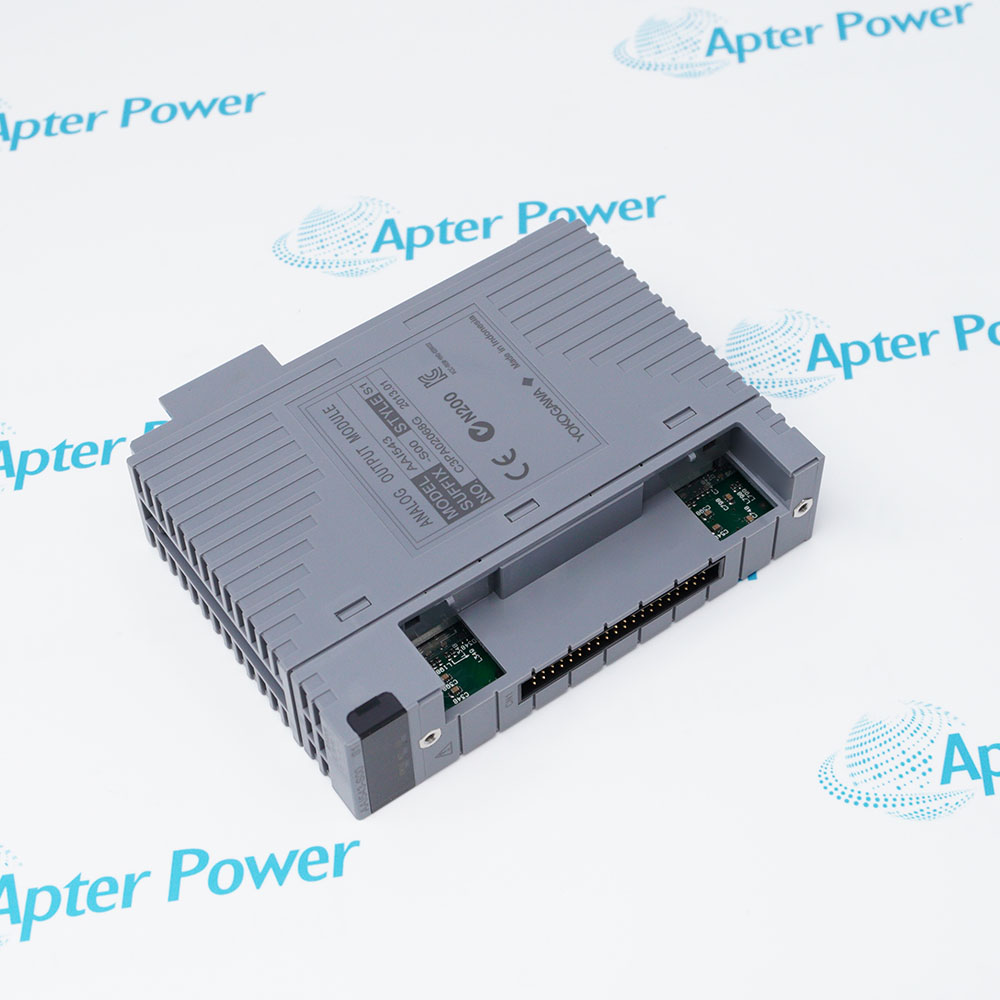

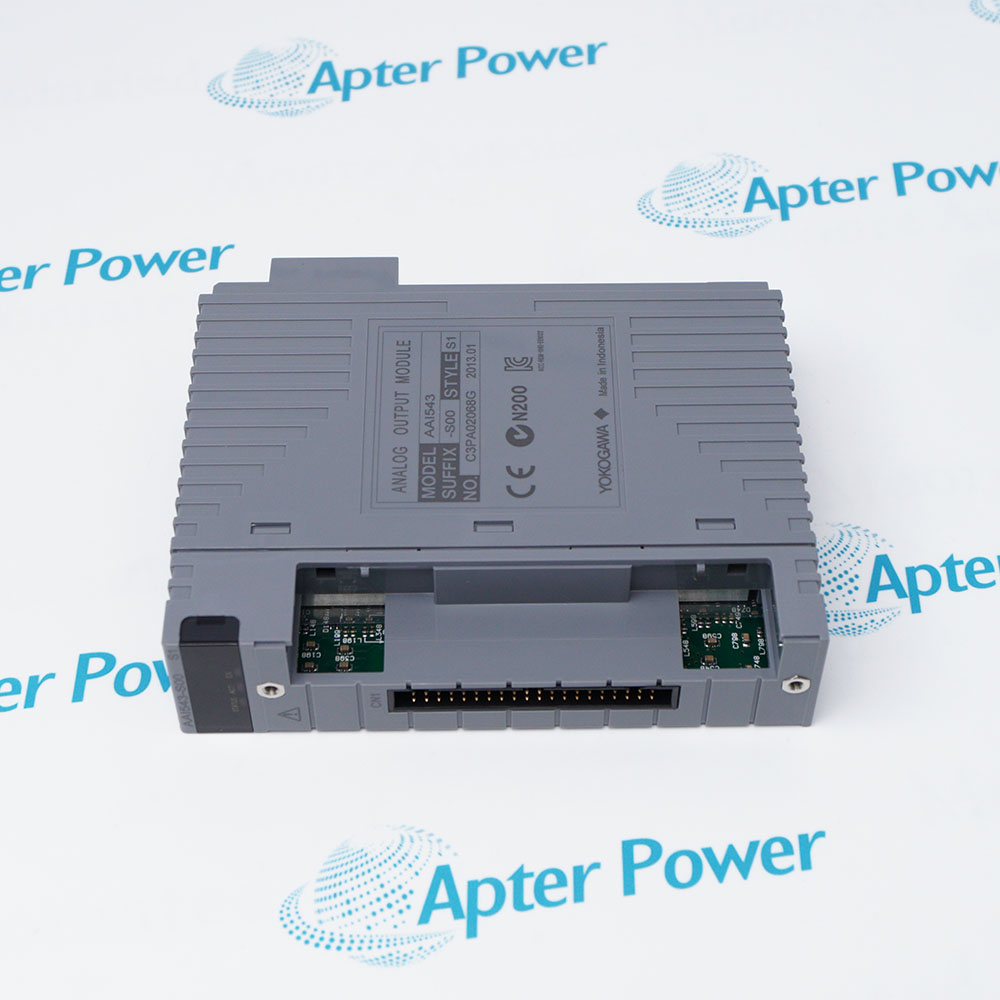

Technical specifications for AAI543-S00 S1
-
Manufacturer:Yokogawa
-
Product Category:DCS Systems
-
Spare Part Number:AAI543-S00 S1
-
Estimated shipping dimensions:3.2x10.6x13cm
-
Weight:0.3 kg
-
Tariff Code:8537101190
-
Counliy of origin:Japan
-
Output channels:16
-
Output signal:4 to 20 mA DC
-
Channel isolation:Isolated
-
Output update period:10 ms
-
Settling time:60 ms
-
Load resistance:0 to 750 ohms
-
Open-circuit behavior:Output open-circuit detection
-
External connection:Pressure clamp terminal, MIL cable or KS cable
Information
Overview
Manuals
Common Applications
Product Precautions
AAI543-S00 S1 distributes sixteen independent current commands from one FIO position while isolating every output channel and supporting documented redundant switch-over behavior.
- Drives sixteen independent 4 to 20 mA loops.
- Provides channel isolation for every output path.
- Updates output commands every 10 ms.
- Supports pressure-clamp, MIL-cable and KS-cable field interfaces.
AAI543-S00 S1 should be matched to the documented system position, companion hardware and retained project configuration before the channel or station is returned to control.
Important Notice: Preserve the complete AAI543-S00 S1 identity and verify its documented electrical, network or signal response before release.
Yokogawa AAI543-S00 S1 Manuals & Downloads
Yokogawa AAI543-S00 S1 Official Technical Reference Excerpt (PDF)Yokogawa AAI543-S00 S1 Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
Control-valve positioning
Sends independent 4 to 20 mA commands to final control elements.
Drive and actuator reference
Provides current references to supported field devices.
Redundant FIO output
Maintains analog commands in the documented redundant module arrangement.
Sixteen-loop cabinet retrofit
Replaces a matched output module while retaining field terminations.
Before installing Yokogawa AAI543-S00 S1, confirm the documented system, interfaces and controlled configuration.
1
Confirm AAI543-S00 S1 and the assigned redundant position.
2
Record all sixteen loop tags and safe output requirements.
3
Place final elements in the approved manual or maintenance state.
4
Remove field power before changing terminal or cable connections.
5
Preserve polarity, shields and isolated channel conductors.
6
Inspect the terminal block and cable interface for full engagement.
7
Drive controlled output points and compare field current.
8
Confirm open-circuit diagnostics and final-element response before release.
Technical notes
Preserve the complete AAI543-S00 S1 identity and verify its documented electrical, network or signal response before release.
FAQ View All FAQ
-
How many current outputs are available on Yokogawa AAI543-S00 S1?The module provides sixteen analog output channels.
-
Which command signal is generated by Yokogawa AAI543-S00 S1?Each channel produces a 4 to 20 mA DC output.
-
Does Yokogawa AAI543-S00 S1 isolate its output channels?Yes. The AAI543 architecture provides isolated output channels.
-
How often does Yokogawa AAI543-S00 S1 update its outputs?The documented output update period is 10 ms.
-
What settling time applies to Yokogawa AAI543-S00 S1?The documented settling time is 60 ms.
-
Which loop load can Yokogawa AAI543-S00 S1 drive?The published load resistance range is 0 to 750 ohms.
-
How does Yokogawa AAI543-S00 S1 report a broken output loop?The module provides output open-circuit detection for the affected channel.
-
Which field interfaces can terminate Yokogawa AAI543-S00 S1?Pressure-clamp terminal blocks, MIL connector cabling and the dedicated KS cable arrangement are documented.
