Technical specifications for 8280-4001
-
Manufacturer:WOODWARD
-
Product Category:Gas Turbine Control
-
Spare Part Number:8280-4001
-
Estimated shipping dimensions:37.4x24.1x5.5cm
-
Weight:2.35 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Product model:LECM
-
OEM part number:7607E05
-

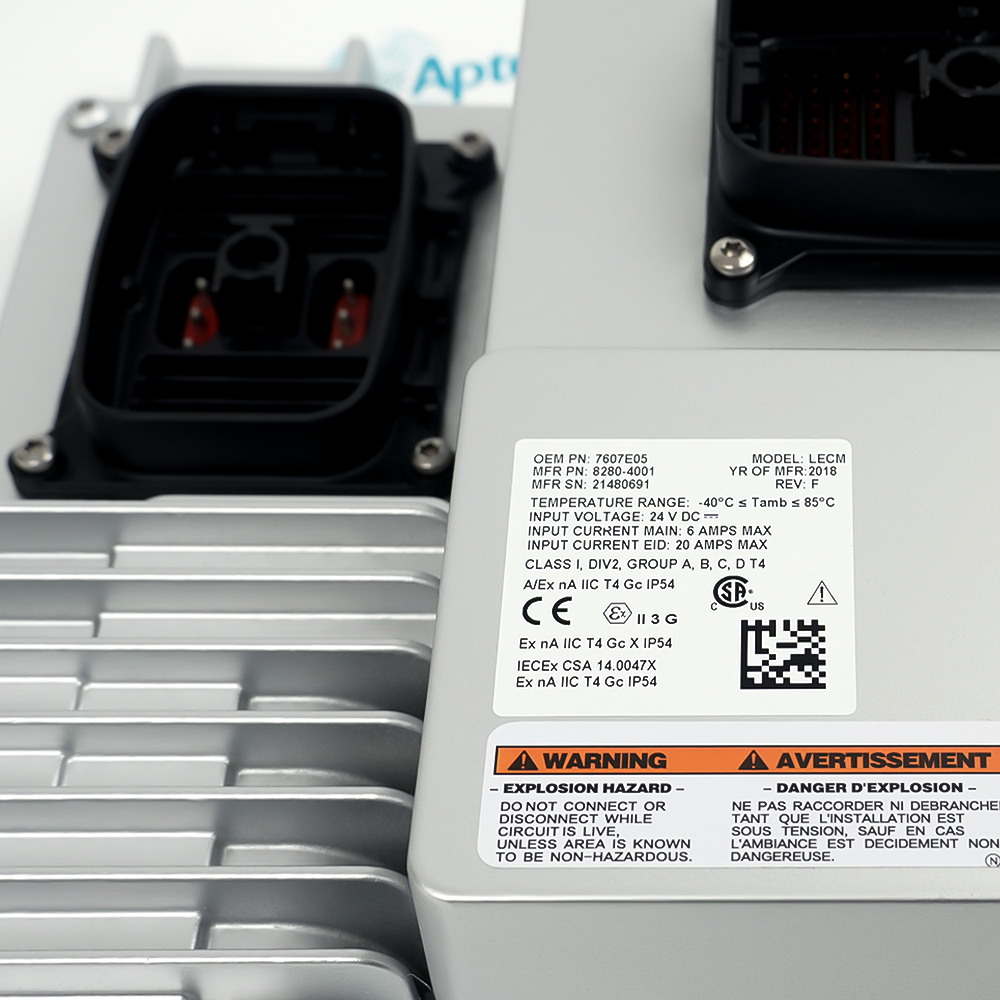

Nameplate revision:F
-
Manufacture year:2018
-
Nameplate serial number:21480691
-
Input voltage:24 V DC
-
MAIN input current:6 A maximum
-
EID input current:20 A maximum
-
Ambient temperature:-40 to +85 degC
-
Ingress protection:IP54
-
North American hazardous-location class:Class I, Division 2, Groups A-D, T4
-
ATEX marking:II 3 G; Ex nA IIC T4 Gc X; IP54
-
IECEx certificate:IECEx CSA 14.0047X
Information
Overview
Manuals
Common Applications
Product Precautions

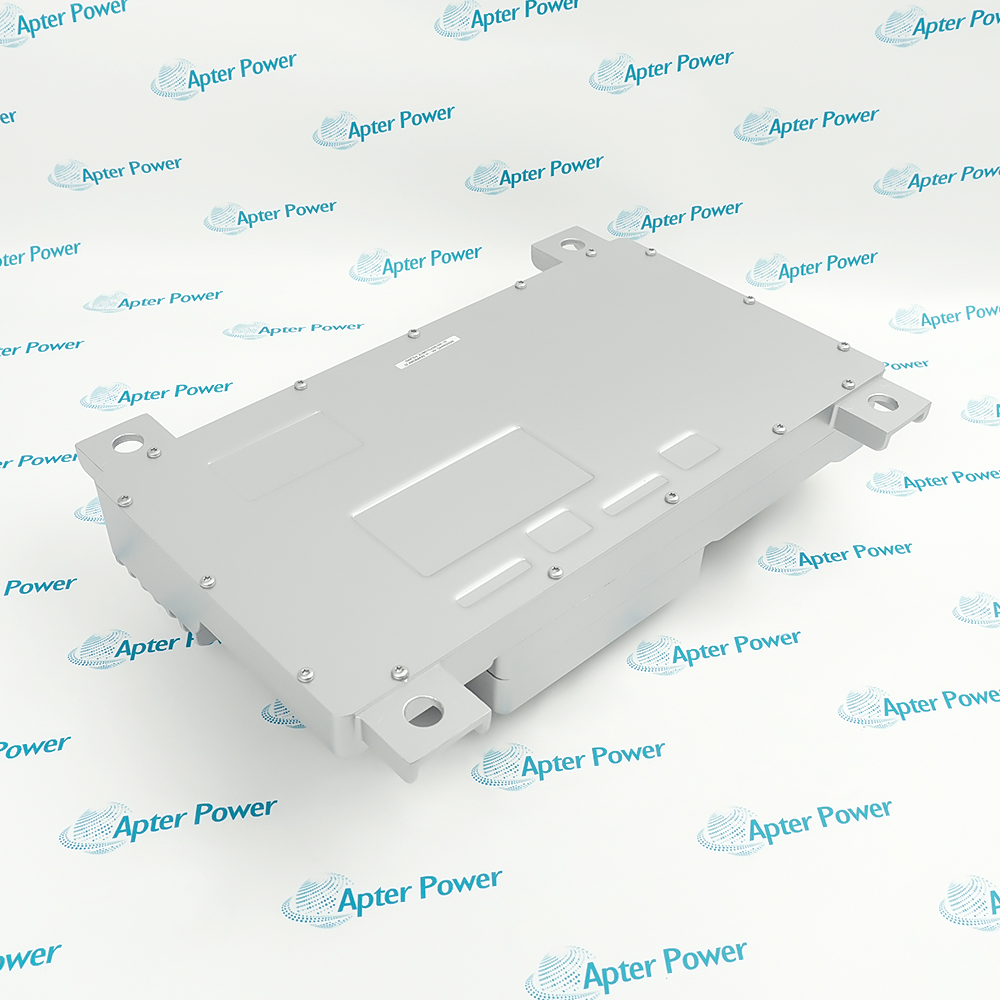

Woodward 8280-4001 is an LECM Large Engine Control Module for engine-mounted control. It coordinates engine operation, monitoring, protection and communications within the configured LECM system.
- Consolidates engine-control functions in one modular assembly
- Shares application data across independently processed LECM modules
- Supports service, HMI/PLC and diagnostic communication paths
- Coordinates control routines, protection alarms and data logging
The 8280-4001 installs as part of the Woodward LECM architecture with the engine-OEM harnesses, mating connectors, programmed application and selected MAIN/EID module arrangement. LECM systems serve reciprocating engines in power generation, marine propulsion, locomotive, industrial-engine and process applications.
Important Notice: Confirm the 8280-4001 and OEM 7607E05 nameplate identities, module stack, programmed application, mating connectors, protective-earth connection and hazardous-area status before energizing or replacing the assembly.
Apter Power 8280-4001 Manuals and Guides
Apter Power 8280-4001 Product Technical Reference PDF8280-4001 Engineering Installation and Verification WorkbookThe first document presents model-specific technical identity and engineering data. The second provides a separate installation, connection and commissioning workflow.
8280-4001 power-generation engine controlApplies the engine-mounted LECM architecture to reciprocating-engine generator packages.
8280-4001 marine-propulsion automationCoordinates control, monitoring and protection functions for configured marine engine systems.
8280-4001 gas and dual-fuel applicationsSupports application software for engineered gas, diesel or dual-fuel combustion systems.
8280-4001 LECM service integrationProvides service, HMI/PLC, diagnostics and IIoT communication paths through the LECM platform.
Read the applicable WOODWARD installation instructions before work. Verify 8280-4001 and the installed-system configuration.
1Verify the complete 8280-4001 marking and the assigned Woodward power-generation control position before work.
2Isolate the applicable power and field energy before disconnecting 8280-4001.
3Record the installed conductor, connector and module position before replacement of 8280-4001.
4Use ESD controls and protect the keyed interfaces while handling 8280-4001.
5Confirm the companion hardware listed for 8280-4001 matches the approved system drawing.
6Restore the documented configuration before applying process or machine power.
7Run a controlled functional and diagnostic test for 8280-4001 before release.
8Retain the final wiring and test record with the 8280-4001 maintenance history.
Technical notes
Isolate the 24 V DC supply and hazardous-area circuits, preserve every keyed connector and CAN identity, then reload only the approved application and prove protection, diagnostics and commanded outputs.
FAQ View All FAQ
-
What is 8280-4001?WOODWARD 8280-4001 is woodward large engine control module (lecm). It is an engine-mounted controller that executes the approved application for sensing, protection, sequencing and actuator control.
-
Which system uses 8280-4001?Use 8280-4001 only in the documented Woodward Large Engine Control Module system arrangement and the installed hardware configuration.
-
What should be checked before installing 8280-4001?Confirm the complete marking, assigned position, companion hardware and approved configuration before field work.
-
How should wiring be handled when replacing 8280-4001?Record every connector and conductor before removal, preserve polarity and shielding, and follow the applicable manufacturer connection instructions.
-
How is 8280-4001 configured after replacement?Restore only the approved project or device settings, then verify status and diagnostics before automatic operation.
-
How should 8280-4001 be commissioned?Energize under controlled conditions, exercise the intended system function and record the final diagnostic state.
-
What maintenance record is needed for 8280-4001?Retain the as-found connection record, installed position, configuration revision and functional-test result.
-
Can 8280-4001 be substituted directly?A substitution requires complete catalog-number, hardware-revision, interface and system-compatibility checks against the controlling documentation.
