Technical specifications for 8200-203
-
Manufacturer:WOODWARD
-
Product Category:General Automation
-
Spare Part Number:8200-203
-
Estimated shipping dimensions:33x20.2x6.4cm
-
Weight:1.56 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Trip philosophy:De-energize-to-trip
-
Unit A/B/C supply class:120 Vac/dc each
-
AC input range per kernel:88-132 Vac, 12.5 VA
-
DC input range per kernel:90-150 Vdc, 4.77 W
-
Operating temperature:-25 to +60 deg C
-
Architecture:Three independent speed-sensing units, two-out-of-three voting
Information
Overview
Manuals
Common Applications
Product Precautions
WOODWARD 8200-203 is an evidence-bounded ProTech 203 de-energize-to-trip overspeed protection system. Woodward Manual 85205 identifies 8200-203 exactly as the de-energize-to-trip ProTech 203 model with 120 Vac/dc power for all three independent units.
- Exact part number: 8200-203
- Trip philosophy: De-energize-to-trip
- Unit A/B/C supply class: 120 Vac/dc each
- AC input range per kernel: 88-132 Vac, 12.5 VA
System role: It monitors three magnetic-pickup speed signals with three independent kernels and a two-out-of-three voted overspeed trip output. Only facts stated by the cited Woodward material are published; sibling, successor and third-party data are not transferred. Architecture boundary: Integrate the three power supplies, magnetic pickups, trip relays, reset wiring, grounding and final actuating equipment exactly as shown in Manual 85205. Do not substitute the energize-to-trip 8200-202 or the 24 Vdc and 220 Vac ProTech 203 variants; loss-of-power behavior and supply requirements differ. Before installation or replacement, verify the complete physical label, host equipment, companion hardware, wiring and approved commissioning procedure. Origin and HS code remain unpublished unless an exact manufacturer record or the physical package label establishes them.

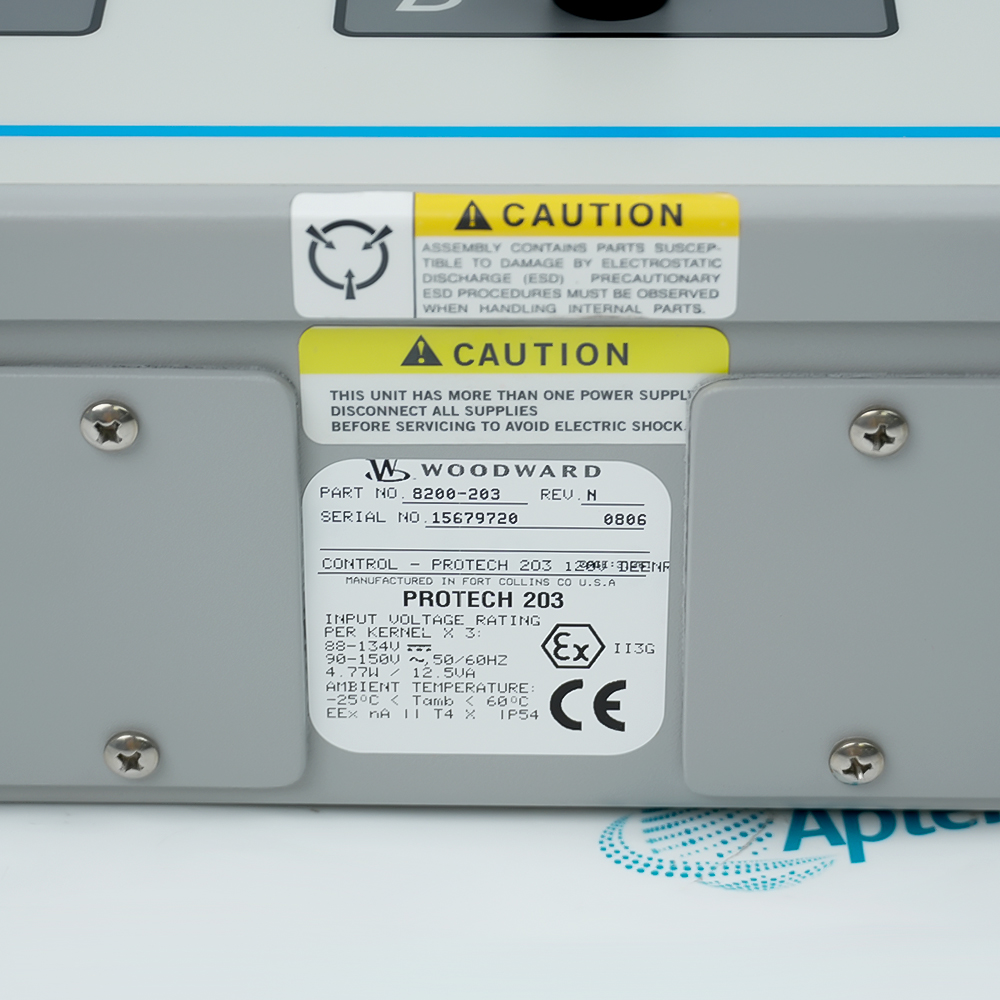

Important Notice: Verify the complete WOODWARD 8200-203 physical label and installed-system documentation before use.
