6ES7523-1BL00-0AA0

Name: 6ES7523-1BL00-0AA0
Brand: Siemens
SKU: 6ES7523-1BL00-0AA0

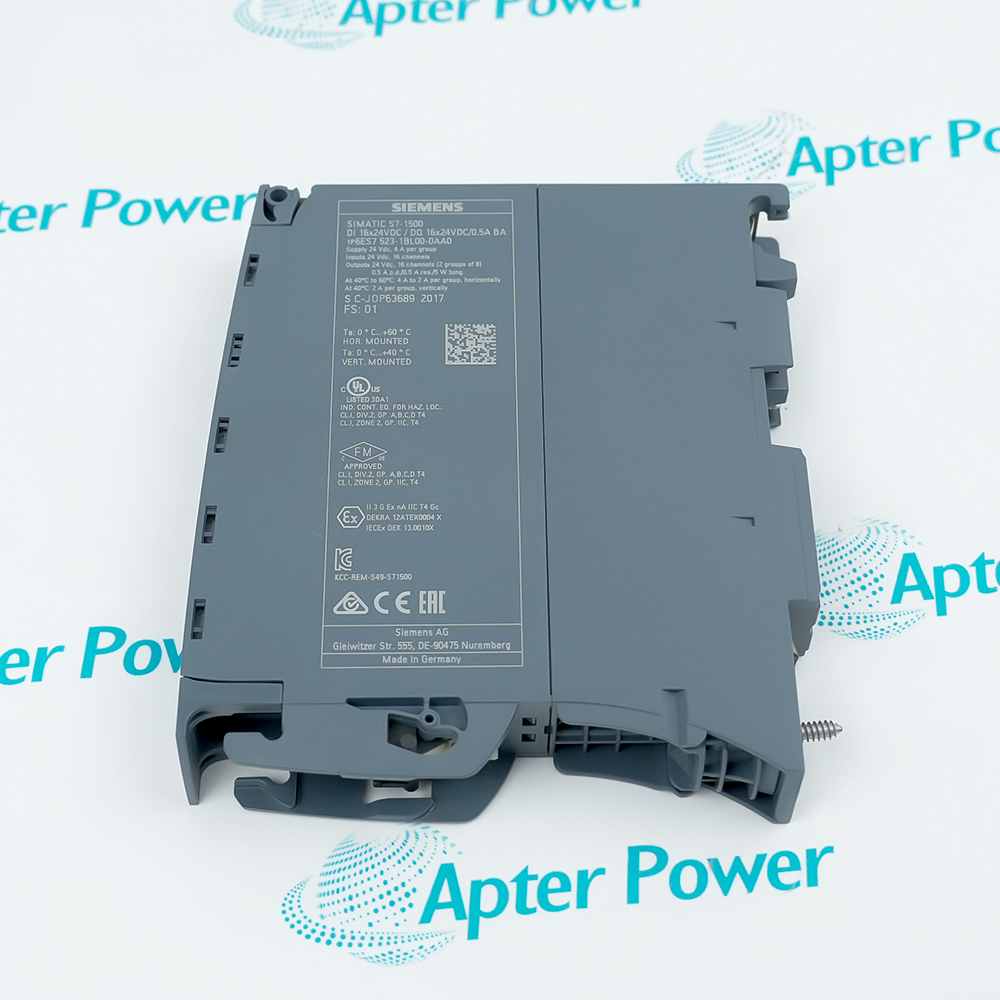

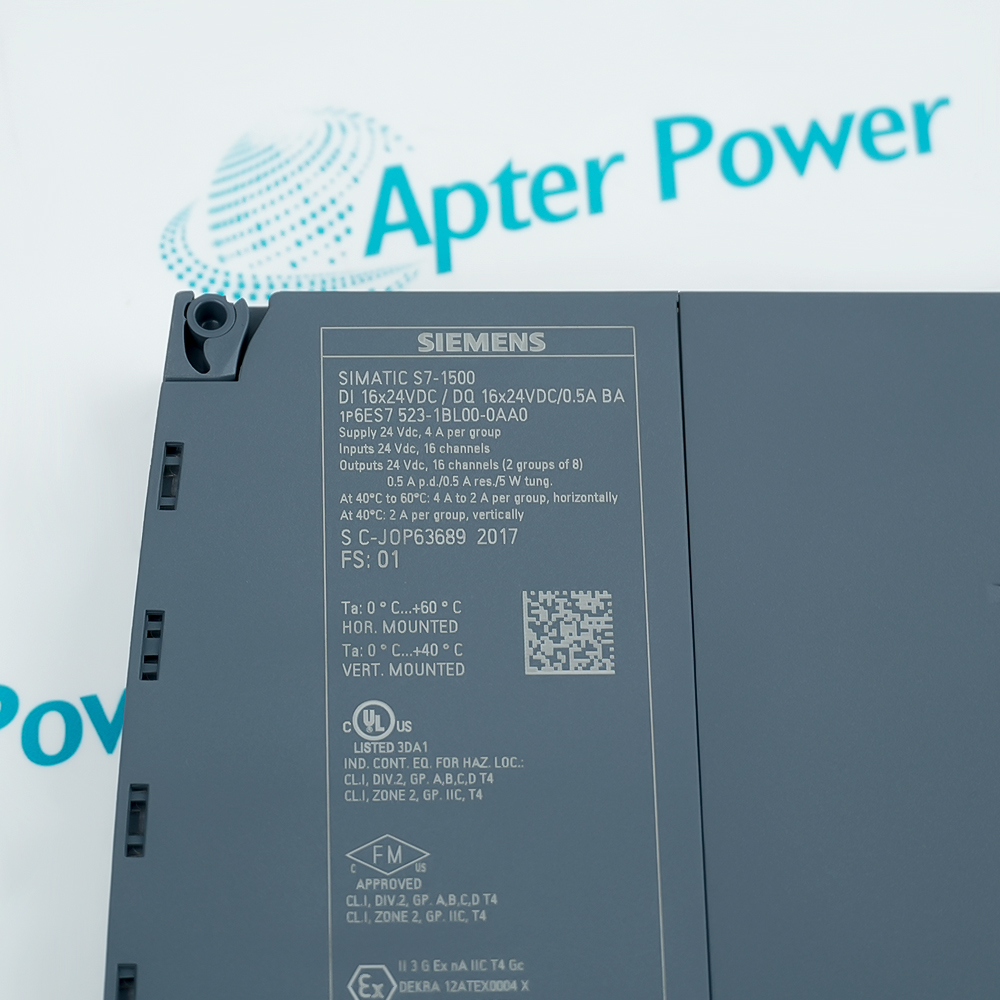

Digital input/output module

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

SIMATIC S7-1500 Digital I/O Module
DI16x24VDC & DQ16x24VDC/0.5A BA
Supports SIL2 Shutdown
Includes Push-In Front Connector

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 6ES7523-1BL00-0AA0

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 6ES7523-1BL00-0AA0

Manufacturer:

Siemens
Product Category:

PLC Systems
Spare Part Number:

6ES7523-1BL00-0AA0
Estimated shipping dimensions:

2.5x12.8x14.6cm
Weight:

0.3 kg
Tariff Code:

8537101190
Counliy of origin:

Germany
Rated value (DC):

24 V
Max. Supply voltage:

28.8 V
Min. Supply voltage:

19.2 V
Current consumption, max.:

30 mA
Rated value (DC):

24 V
Power available from the backplane bus:

1.1 W
Power loss, typ.:

3.45 W
Number of digital inputs:

16
Digital inputs, parameterizable:

No

Ask for Quote

Information

Overview Manuals Common Applications Safety-Oriented Shutdown

The 6ES7523-1BL00-0AA0 functions as a combined digital input and output module within the SIMATIC S7-1500 platform. Operating under the Basic functional class at a nominal 24VDC, the hardware integrates 16 digital inputs and 16 digital outputs.

SIMATIC S7-1500 Digital I/O Mixed Module
16-Channel 24VDC/0.5A Transistor Output (BA Class)
16-Channel 24VDC Input (BA Class / Typ. 3.2ms Delay)

The input channels are wired in a single common group of 16, utilizing a 3.2 ms typical signal delay and fulfilling IEC 61131 Type 3 characteristics. The 16 transistor outputs provide a rated current of 0.5A per channel. These output circuits are segmented into two distinct groups of 8 channels, with each group rated for a maximum aggregate load of 4A.

The 6ES7523-1BL00-0AA0 is built in a 25 mm width form factor to reduce space requirements on the S7-1500 DIN rail. It interfaces with the centralized CPU or distributed interface modules via the integrated backplane bus, enabling cyclic data exchange and systematic diagnostics for industrial automation processes.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Siemens 6ES7523-1BL00-0AA0 Digital input/output module Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Automotive Manufacturing

Collects digital signals from cylinder limit switches on assembly lines and controls the switching of field solenoid valves.

Water & Wastewater Treatment

Monitors pump run/fault status switch signals and controls the start/stop of dosing pumps and motorized valves.

Food & Beverage Packaging

Reads position signals from photoelectric sensors on conveyors and controls sorting cylinders and indicator lights.

Pharmaceutical Industry

Monitors alignment switches at various stations of packaging lines and controls the interlocking of drive devices.

Plastics & Rubber Machinery

Collects switch signals of injection molding machine safety doors and mold alignment, and controls heater contactors.

Printing & Paper Industry

Collects signals from paper feed mechanism position sensors and drives clutches and braking electromagnets.

The Siemens 6ES7523-1BL00-0AA0 supports safety-oriented shutdown of output load groups, allowing connected actuators to be switched off in a controlled manner when integrated into appropriately designed automation systems. This function helps reduce the risk of unintended machine operation during emergency stop sequences, maintenance activities, or controlled machine shutdown procedures. The implementation of safety-related functions depends on the overall system architecture and must comply with the applicable functional safety standards.

The module divides its digital outputs into independent load groups, enabling selected output circuits to be de-energized without affecting the operation of the remaining control system. This configuration provides greater flexibility when designing machine safety concepts and supports the separation of standard automation functions from safety-related shutdown requirements.

Alternative Names

6ES7523 1BL00 0AA0

Technical notes

6ES7523-1BL00-0AA0 operates under an atmospheric temperature range from -30 °C to +60 °C during horizontal installation. The electronic assembly utilizes electronic short-circuit protection for the transistor outputs and performs permanent parameter self-tests during runtime, ensuring continuous signal processing stability without manual recalibration.
