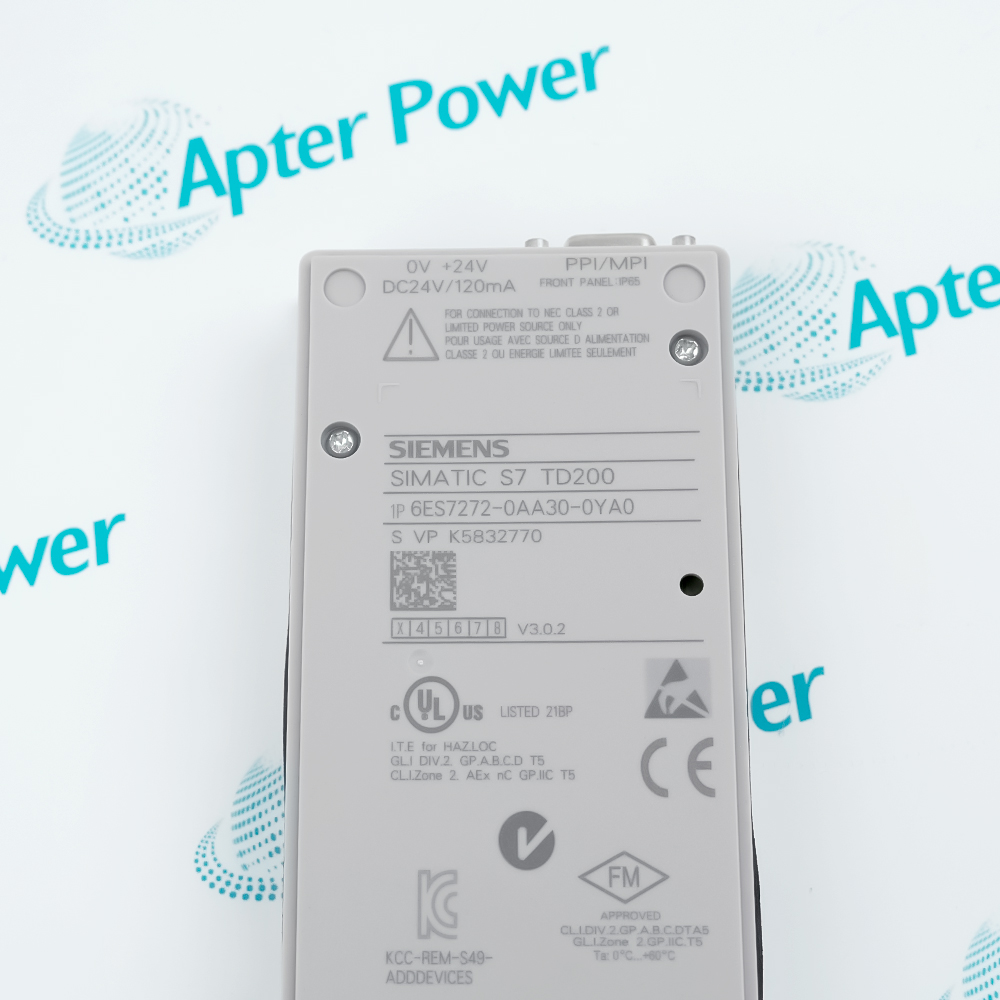

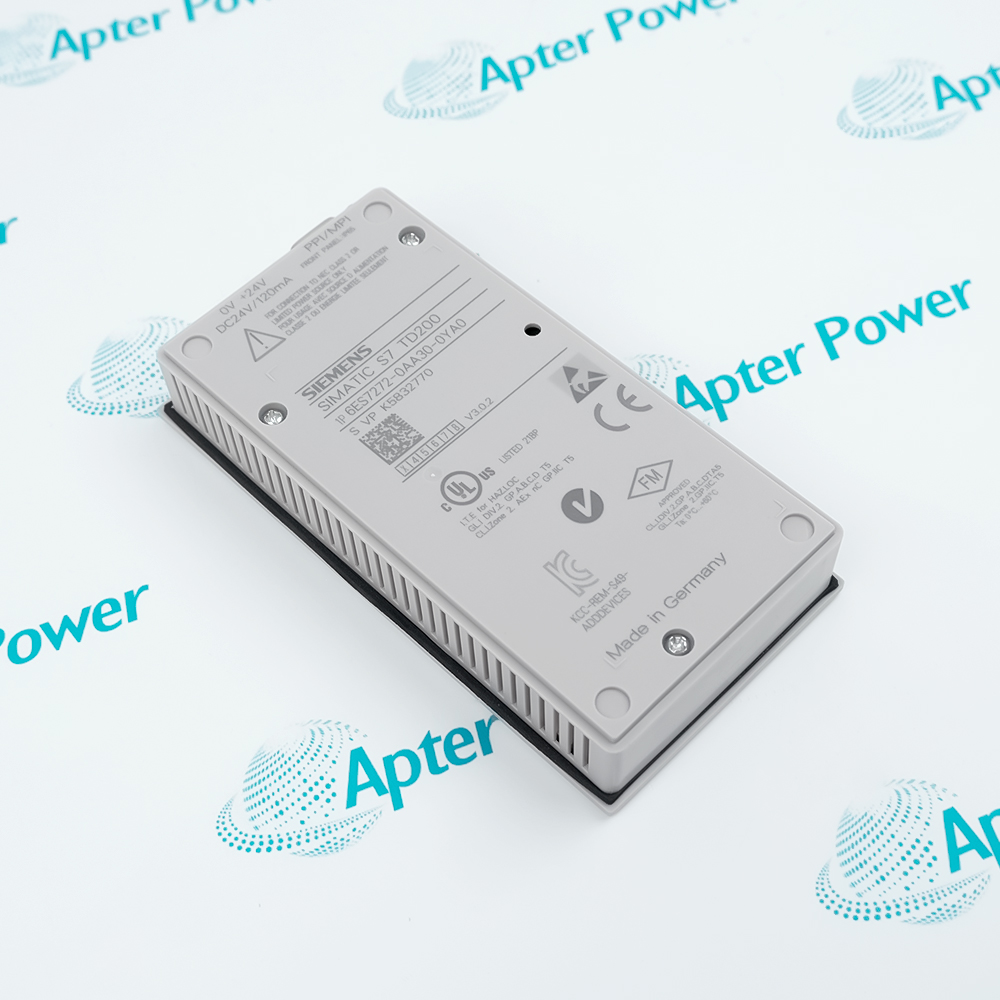

The 6ES7272-0AA30-0YA0 is a text display operator interface module engineered for the SIMATIC S7-300 and S7-200 PLC hardware platforms holding the official designation TD 200. Within compact industrial automation systems and small independent machine control networks this module serves as foundational human-machine interface (HMI) hardware to establish a communication link between operators and internal PLC control logic. It features a backlit monochrome liquid crystal display to deliver real-time data display across two text lines.
IP65 high protection rating on the front
Embedded in Siemens STEP 7-Micro/WIN software ecosystem
Oil-resistant industrial-grade membrane keypad
This module incorporates a highly flexible physical keypad configuration on its front panel. The operational interface integrates nine rugged industrial membrane keys which include five user-programmable function keys labeled F1 through F5. These keys are linked to internal PLC V-memory areas through bit mapping via the PPI protocol at the hardware level.
Operators can use the up and down arrow keys to scroll through active system alarms while utilizing the customizable function keys or menu keys to modify variables or adjust timer parameters or manually start and stop field motors or recall low-level process menus. This button-based interaction layout is more resilient in dusty or oily industrial workshops compared to touchscreen alternatives and eliminates operational errors caused by field operators wearing protective chemical gloves.
The 6ES7272-0AA30-0YA0 implements the Siemens proprietary Point-to-Point Interface (PPI) protocol and communicates over an RS-485 physical layer connector hooked to the integrated communication port of the S7-200 CPU. For network cabling and power transmission the module demonstrates a high level of engineering flexibility.
