Technical specifications for 6ES7193-6PA00-0AA0
-
Manufacturer:Siemens
-
Product Category:PLC Systems
-
Spare Part Number:6ES7193-6PA00-0AA0
-
Estimated shipping dimensions:11.6x3.5x1.2cm
-
Weight:0.1 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Power loss:Typ. 0.1 W
-
Hardware configuration max.:Supports up to 64 I/O modules
-
Degree of protection:IP20
-
Ambient temperature during operation:-30 °C to +60 °C
-
Certifications:CE, cULus, FM, ATEX, IECEx, KC
-
Isolation tested with:707 V DC
-
Atmospheric relative humidity:5% to 95%, non-condensing
-
Max. Current consumption:Max. 30 mA at 5 V DC backplane bus
Information
Overview
Manuals
Common Applications
Product Precautions

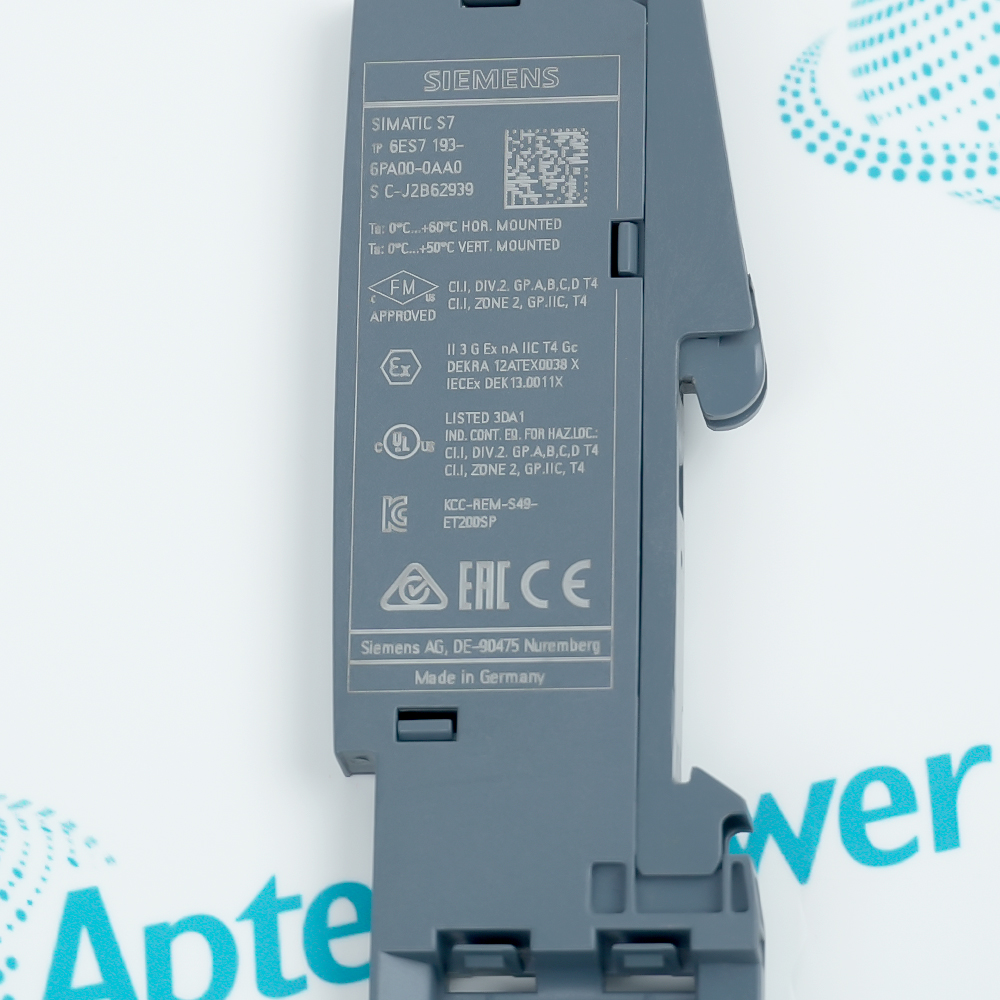

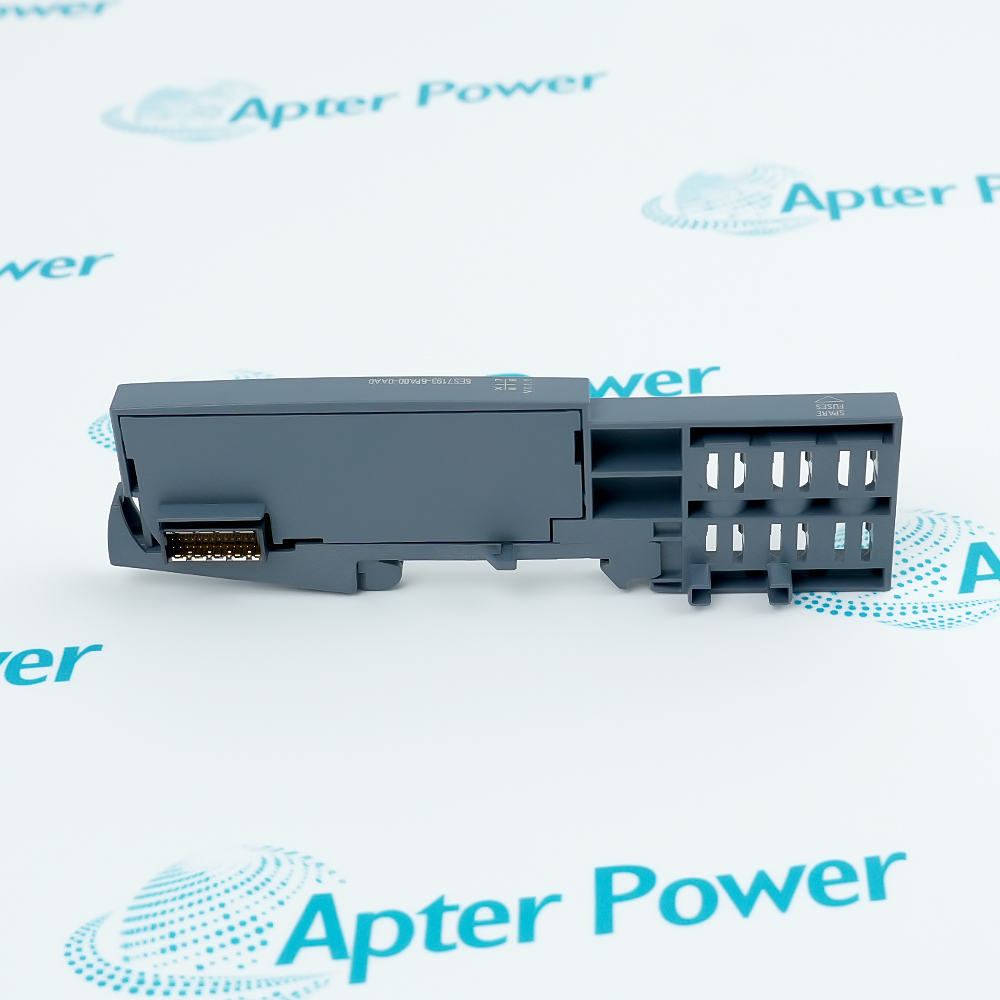

The 6ES7193-6PA00-0AA0 is the server module for the SIMATIC ET 200SP system, cooperating with the BusAdapter BA 2xRJ45 to terminate the station. The station setup provides two RJ45 ports for PROFINET IO networks and connects via copper cables up to 100 meters.
- Complies with green industrial standards
- The internal space of the module provides 3 dedicated physical storage slots
- Internally integrates impedance matching circuits and active/passive signal loop-back logic
The 6ES7193-6PA00-0AA0 also bears the baseline responsibility for system-level hardware error-proofing and field network safety protection. Structurally, the module features a special slide-in mechanical interlocking mechanism, once clipped tightly to the last BaseUnit, it automatically locks onto the 35mm standard DIN rail, effectively preventing backplane open circuits caused by long-distance transit of industrial control cabinets or high-frequency vibrations from heavy machinery.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7193-6PA00-0AA0 Server Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Used in body stamping, welding, and final assembly lines. It terminates the bus at the end of ET 200SP remote stations in robot cells, ensuring packet-free, high-speed PROFINET communication between multi-axis robots and the main PLC.
Oil & Gas
Used in remote valve rooms, long-distance pipeline stations, and drilling platforms. Leveraging its FM/ATEX explosion-proof certifications and -30°C to +60°C wide temperature range, it terminates distributed topologies inside harsh outdoor control cabinets.
Lithium Battery Manufacturing
Used in battery electrode coating machines, roller presses, and dry room workshops. Its minimum absolute humidity dew point of -60°C allows it to operate safely in lithium electrode production dry rooms with strict moisture constraints.
Wind Power Generation
Used in the main control, yaw, and pitch control systems of wind turbines. The module features high vibration and shock resistance, ensuring that backplane communication remains secure despite severe shaking in high-altitude nacelles.
Railway Transportation
Used in subway and high-speed rail Building Automation Systems (BAS), tunnel ventilation, and power distribution boxes. It utilizes its 707 V DC isolation voltage rating to isolate strong electromagnetic surge interference along the tracks.
First, this module does not support hot-swapping; removing it while the system is powered will instantly disrupt communication for the entire ET 200SP station and trigger system faults.
Second, during installation, it must be snapped onto the DIN rail and slid firmly to the left until self-locked, ensuring a tight connection with the bus contacts of the last BaseUnit to prevent backplane open circuits caused by transit or heavy machinery vibrations.
Lastly, since it is the sole physical and electrical termination component (a single point of failure device) required for the station to operate, it must be stocked proportionally during onsite commissioning and in the spare parts warehouse to prevent an accidental loss or damage from paralyzing the entire production line.
Second, during installation, it must be snapped onto the DIN rail and slid firmly to the left until self-locked, ensuring a tight connection with the bus contacts of the last BaseUnit to prevent backplane open circuits caused by transit or heavy machinery vibrations.
Lastly, since it is the sole physical and electrical termination component (a single point of failure device) required for the station to operate, it must be stocked proportionally during onsite commissioning and in the spare parts warehouse to prevent an accidental loss or damage from paralyzing the entire production line.
Alternative Names
6ES7193 6PA00 0AA0
6ES7193-6PAOO-OAAO
6ES7I93-6PA00-0AA0
6ES7I93-6PAOO-OAAO
Technical notes
The Siemens 6ES7193-6PA00-0AA0 is the Server Module for the SIMATIC ET 200SP distributed I/O system. As a mandatory terminal component at the extreme right end of the station rack, it has no external wiring or storage functions. Its core responsibility is to terminate the backplane bus signal loop and secure the rail. Missing or damaging this module will cause a backplane bus open fault, halting system operation. Standardly included with the Interface Module (IM), it automatically occupies the last slot in TIA Portal configuration, serving as the electrical cornerstone to ensure stable communication and support the expansion of up to 64 I/O modules.
FAQ View All FAQ
-
What is 6ES7193-6PA00-0AA0?It is the Server Module for the Siemens SIMATIC ET 200SP distributed I/O system.
-
What is the primary function of 6ES7193-6PA00-0AA0?It is used to terminate the backplane bus of an ET 200SP station, completing the communication loop.
-
Does 6ES7193-6PA00-0AA0 require an external power supply?No, it draws power directly from the backplane bus and has no external wiring terminals.
-
Does 6ES7193-6PA00-0AA0 support hot-swapping?No, removing the server module while the system is powered will disrupt the entire station's communication.
-
Are there any LED indicators on 6ES7193-6PA00-0AA0?No, this module is a purely physical and electrical termination component and has no diagnostic LEDs.
