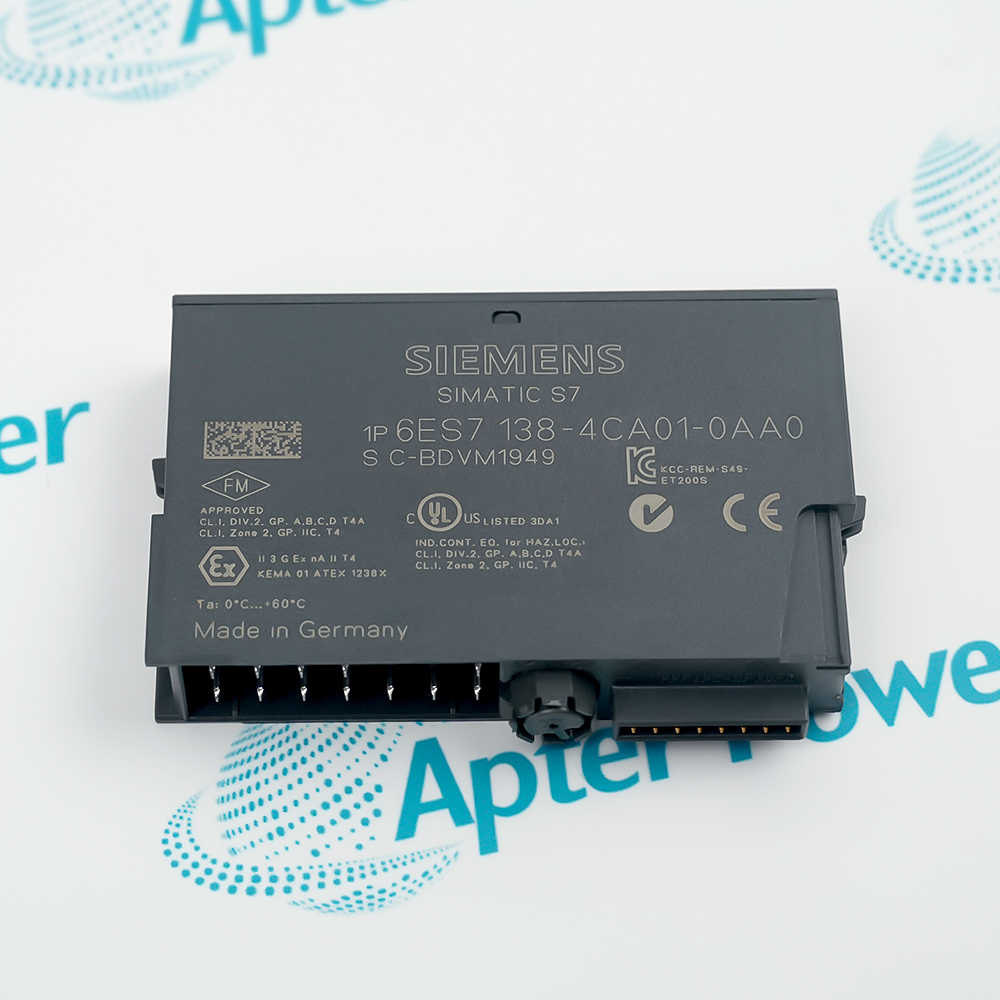

The 6ES7138-4CA01-0AA0 is a power module (PM-E) belonging to the SIMATIC product family, utilized specifically for the SIMATIC ET 200S distributed I/O platform. Installed on a terminal rail, this module establishes an independent 24V DC potential group for subsequent electronic input/output modules hooked up to its right side, maintaining a clear electrical boundary between external load power and the underlying backplane communication bus.
Establishes safe potential groups to distribute load power to adjacent I/O modules
Integrates reverse wiring protection to prevent hardware damage from installation errors

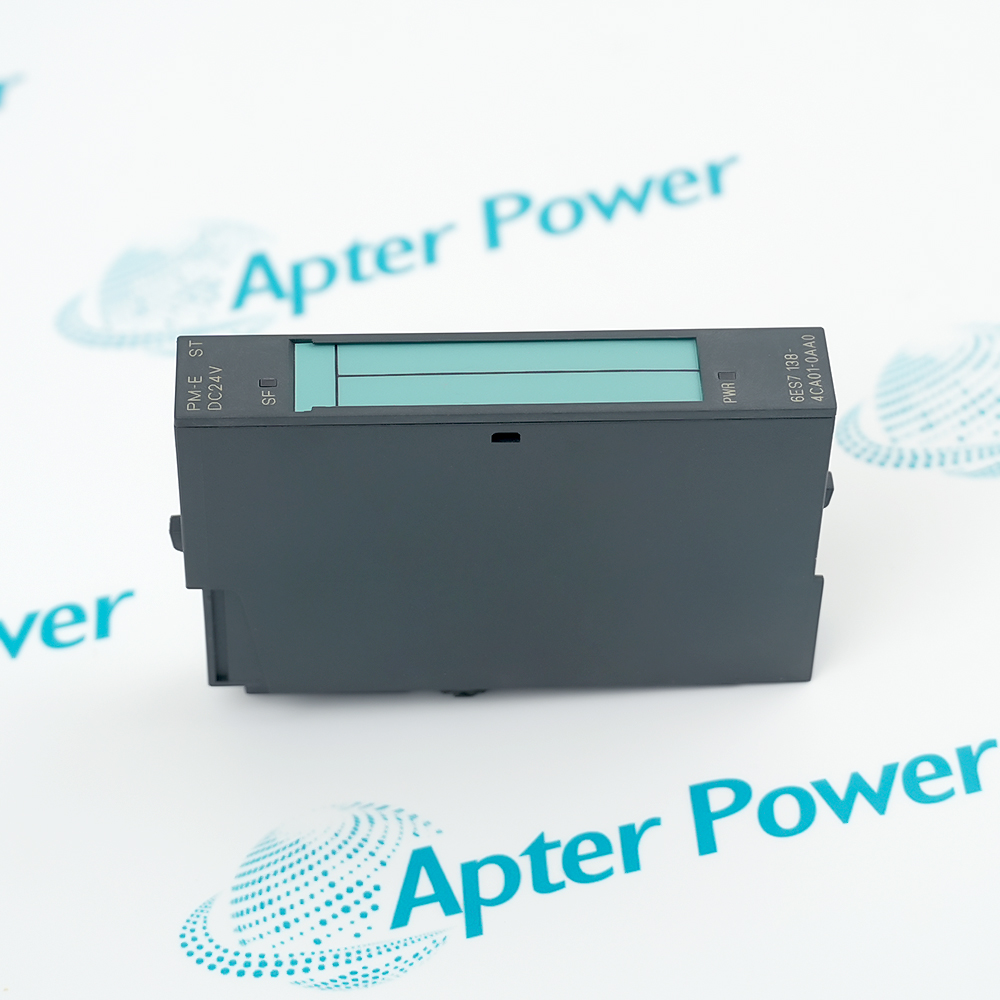

Delivers instant status updates on voltage loss and system faults via PWR/SF LEDs
In terms of electrical metrics and compliance, the hardware handles a continuous current-carrying capacity of up to 10 Amps, with an internal current consumption of just 4 mA and a fixed power loss of 0.1 Watts during operation. Furthermore, it is rated for an isolation voltage barrier of 500 V DC to prevent voltage leakage between circuits, and carries official CE certification and UL Listings, verifying compliance with mandated global safety codes and industrial hardware quality protocols.
When the module is mechanically snapped onto the dedicated TM-P terminal module (Terminal Module), its built-in copper contacts automatically establish a physical connection with the internal P1 and P2 voltage buses on the base. This structure, combined with the rail-mounting features, ensures electrical contact stability in high-vibration industrial environments and allows for local replacement of the power module without stopping backplane communication across the entire ET 200S distributed station. On a physical level, this provides a power control foundation for continuous production line operations, avoiding the risk of total network paralysis caused by a power anomaly in a single potential group.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7138-4CA01-0AA0 PM-E power module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Metal Stamping Presses
Feeds power to high-density digital output modules driving pneumatic safety interlocks and part ejectors.
Commercial HVAC Multi-Zone Systems
Partitions power delivery into independent zones for air dampers, allowing maintenance on one zone without disrupting others.
Pulp and Paper Mills
Protects adjacent processing modules from voltage fluctuations caused by heavy hydraulic roll adjusters on the factory floor.
CNC Machine Tooling Units
Groups and supplies power to limit switches and coolant control valves, separating them from heavy spindle motor lines.
Wind Turbine Pitch Control
Supplies power to I/O interfaces that monitor blade angles, maintaining reliable isolation inside the rotating hub.
Pharmaceutical Packaging Systems
Provides reverse polarity protection for downstream I/O cards to avoid hardware damage during rapid field deployment.
First, the total current consumption of all I/O modules mounted on its right side must never exceed the module's 10 A current-carrying limit; once nearing this threshold, a new power module must be inserted to split into a new potential group.
Second, ensure correct positive and negative polarity for the incoming 24V DC power supply during wiring; although the module features reverse polarity protection, a prolonged reverse connection can cause external supply anomalies or module non-operation.
Lastly, when the red SF LED on the front panel lights up, it typically indicates missing load voltage or a short-circuit fault; before unplugging or replacing the module locally, the primary supply to the terminal module (TM-P) must be troubleshot first, and never force a replacement under a short-circuit condition to prevent damaging the new hardware.
The 6ES7138-4CA01-0AA0 is a PM-E 24V DC power module for the Siemens Siemens website ET 200S distributed I/O system. This device is primarily used to establish independent potential groups, distributing load power to adjacent input/output modules while providing electrical isolation. It features a 10A current-carrying capacity along with reverse polarity protection, and utilizes on-panel green (PWR) and red (SF) LED indicators to deliver local status diagnostics for load voltage loss and operational faults.
A power module or power electronic module provides the physical containment for several power components, usually power semiconductor devices.
How does the 6ES7138-4CA01-0AA0 power module work?
A power module is a DC/DC converter integrating control circuitry, transistors, and inductor into one single package. This simplifies the bit of materials, or BOM, for your power solution, and can help to reduce solution size, as you can see with both examples on the right.
