Simatic operator panel op 73micro for simatic s7-200
3" lc display, backlit with graphics capability
Configurable wincc flexible 2004 micro hsp upwards
Contains open-source-sw, which is provided free of
Charge. for details see enclosed cd
The 6AV6640-0BA11-0AX0 is an operator panel purpose-built for interaction with SIMATIC S7-200 programmable logic controllers (PLCs). This HMI terminal features a 3-inch backlit LC display with graphics capability, allowing for clear presentation of process parameters and system icons. For software integration, the panel is configurable using WinCC Flexible 2004 Micro HSP (Hardware Support Package) and upwards. The device contains built-in open-source software, with full details and licensing agreements provided on the enclosed CD.
Purpose-built for S7-200 PLCs, perfectly embedding the proprietary Siemens PPI communication protocol
Membrane keys with tactile feedback, resistant to wear and chemicals
Graphical 160x48 mono LCD displays bar graphs and logos

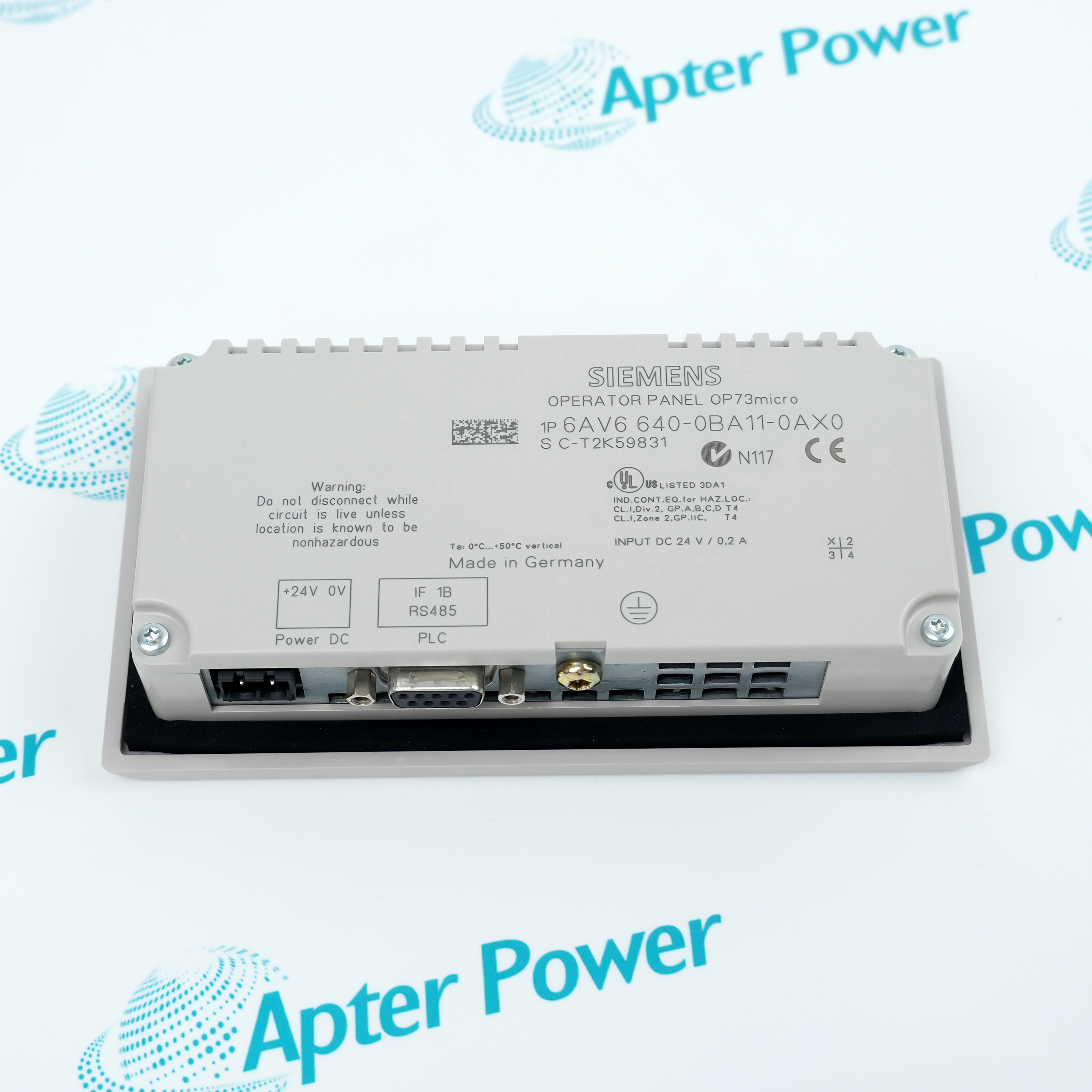

The 6AV6640-0BA11-0AX0 features one isolated RS485 serial physical port on the bottom, utilizing a standard 9-pin Sub-D connector. This interface embeds the proprietary Siemens PPI communication protocol and supports a maximum transmission speed of 187.5 kbit/s, allowing for both point-to-point connection with a single PLC and integration into a PPI multi-master network topology for multi-point monitoring.
The unit operates on a 24V DC power supply with a permissible voltage range of 20.4 to 28.8V DC. In a standard point-to-point PPI connection, it draws power directly from the physical port of the S7-200 CPU via the original twisted-pair communication cable, reducing secondary wiring inside the cabinet. Its front bezel meets IP65 and NEMA 4X protection ratings, providing resistance against dust, water splashes, and high-frequency industrial electromagnetic interference. Engineering project creation and screen configuration are based on the WinCC Flexible 2004 Micro software environment or higher versions equipped with the HSP patch.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6AV6640-0BA11-0AX0 OP 73micro Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Packaging Machinery Industry
Serves as the local panel for small semi-automatic sealing, coding, or strapping machines to input packaging speed, set count targets, and display runtime status.
HVAC and Refrigeration Systems
Mounted on building thermostatic control boxes or small-to-medium chillers to set target temperature/humidity, adjust fan speeds, and prompt compressor fault alarms.
Textile Machinery Industry
Used in single-machine electrical boxes for small-to-medium weaving, flat knitting, and winding machines to set yarn winding cycles, fine-tune tension parameters, and record shift outputs.
Woodworking Machinery Industry
Functions as the side-mounted HMI port for automatic edge banding machines or single-head boring machines to set edge-band heating temperatures and input drilling depth positioning data.
Pharmaceutical Packaging & Labeling Equipment
Applied in local control boxes of semi-automatic vial labeling and tablet counting/bottling machines to adjust conveyor photoelectric synchronization delays and manage small batch numbers.
Food Processing and Baking Equipment
Used in industrial ovens, dough mixers, and small pasteurization tanks to store and recall simple recipe profiles and display heating progress via bar graphs.
When operating the 6AV6640-0BA11-0AX0, ensure the connection cable strictly complies with original Siemens PPI specifications to prevent screen flickering caused by unstable backplane power draw. Never use sharp objects to press the membrane keyboard to avoid physical damage and water ingress. Since this panel is exclusively compatible with WinCC Flexible, do not attempt to use TIA Portal software for direct online downloads.
The Siemens 6AV6640-0BA11-0AX0 is a 3-inch monochrome LCD key-operated HMI panel dedicated to SIMATIC S7-200 PLC systems. It features a 10.4-inch display with a resolution of 160 x 48 pixels and graphical capability, equipped with 4 programmable function keys. It communicates via an integrated RS485 port using the PPI protocol and is configured via WinCC Flexible Micro software. This catalog number is officially discontinued and available only as a spare part.
What type of industrial hardware component is the Siemens 6AV6640-0BA11-0AX0?
The 6AV6640-0BA11-0AX0 is a SIMATIC HMI OP 73micro operator panel designed for machine-level monitoring.
Which specific PLC system is compatible with the 6AV6640-0BA11-0AX0 operator panel?
The 6AV6640-0BA11-0AX0 is exclusively compatible with the SIMATIC S7-200 micro PLC series.
How do operators use the 6AV6640-0BA11-0AX0 interface during daily production?
Operators use the 6AV6640-0BA11-0AX0 to view system states and input commands via its built-in membrane keys.
What are the display screen characteristics of the 6AV6640-0BA11-0AX0 terminal?
The 6AV6640-0BA11-0AX0 features a 3-inch backlit monochrome LCD display with graphics capability and 160 x 48 pixels.
Which engineering software is required to configure the 6AV6640-0BA11-0AX0 panel?
The 6AV6640-0BA11-0AX0 requires WinCC Flexible 2004 Micro with Hardware Support Package (HSP) or higher versions.
