The 6SL3055-0AA00-4CA5 is the SINAMICS Advanced Operator Panel AOP30, a language-neutral input/output device with memory expansion designed for firmware V2.4 or higher. It is a vital optional cabinet-mounted component for the SINAMICS drive system, specifically utilized for the commissioning, operation, and monitoring of converters.
Firmware Memory Expansion
IP55 Degree of Protection
Language-Neutral Versatility
The 6SL3055-0AA00-4CA5 features a backlit LCD with 240 x 64 pixels and a 26-key membrane keypad for intuitive parameterization and diagnostics in plain text. It communicates via an RS232 serial interface and provides a high degree of protection reaching IP55 at the front, ensuring reliable performance in demanding industrial environments.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6SL3055-0AA00-4CA5 AOP30 Operator Panel Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas
Used for driving pumps, compressors, and fans in extraction and processing plants. It enables local monitoring and control of high-power drives in demanding environment.
Power Generation
Applied in power plant auxiliary systems, such as cooling water pumps and boiler feed pumps. It supports efficient commissioning and diagnostics of large converter systems.
Marine Engineering
Integrated into ship propulsion systems, thrusters, and deck machinery. The robust design and IP55 protection ensure reliable operation in maritime conditions.
Metal Processing
Utilized in rolling mills, coilers, and heavy-duty conveyor systems. It provides clear plain-text diagnostics and parameter access for complex drive lineups.
Water Management
Optimal for large-scale water supply pumps and wastewater treatment centrifugal systems. It allows operators to perform local setpoint adjustments and status visualization.
Mining Industry
Deployed in mine hoists, conveyor belts, and crushing equipment. It facilitates the management of multi-motor drives controlled by a single Control Unit.
The module is equipped with a dot-matrix backlit LCD and a 26-key membrane keyboard, integrating 5 status LEDs (RUN, READY, FAULT, ALARM, LOCAL/REMOTE). Communication is established via RS232 serial interface, with a maximum cable distance of 10 meters to the Control Unit (CU). The device provides IP55 degree of protection at the front and IP20 at the rear, mounted on cabinet doors and secured by four M4 screws with a maximum tightening torque of 1.5 Nm. The module features a memory card slot for firmware expansion and parameter backup. Functional scope includes drive commissioning, parameter set editing, fault buffer access, and LOCAL/REMOTE mode switchover.
What is the primary function of the Siemens 6SL3055-0AA00-4CA5 SINAMICS AOP30?
The AOP30 is an input/output device for SINAMICS converters, providing a user interface for commissioning, parameterization, monitoring and diagnosis of drive systems.
Which drive systems are compatible with the 6SL3055-0AA00-4CA5 operator panel?
It is designed for SINAMICS G130, G150, S120, S150, and SINAMICS DCM, supporting multi-motor drives controlled by a single CU320-2 Control Unit.
What are the display and input specifications for the 6SL3055-0AA00-4CA5?
The device features a backlit LCD display with 240 x 64 pixels and a membrane keypad with 26 keys including a numeric keypad and function keys.
What is the significance of the "memory expansion" and "language-neutral" features in 6SL3055-0AA00-4CA5?
It includes memory expansion for firmware V2.4 or higher, and the language-neutral design requires the desired language to be downloaded to the AOP30 prior to commissioning.
What are the technical requirements for interface, power supply, and protection for 6SL3055-0AA00-4CA5?

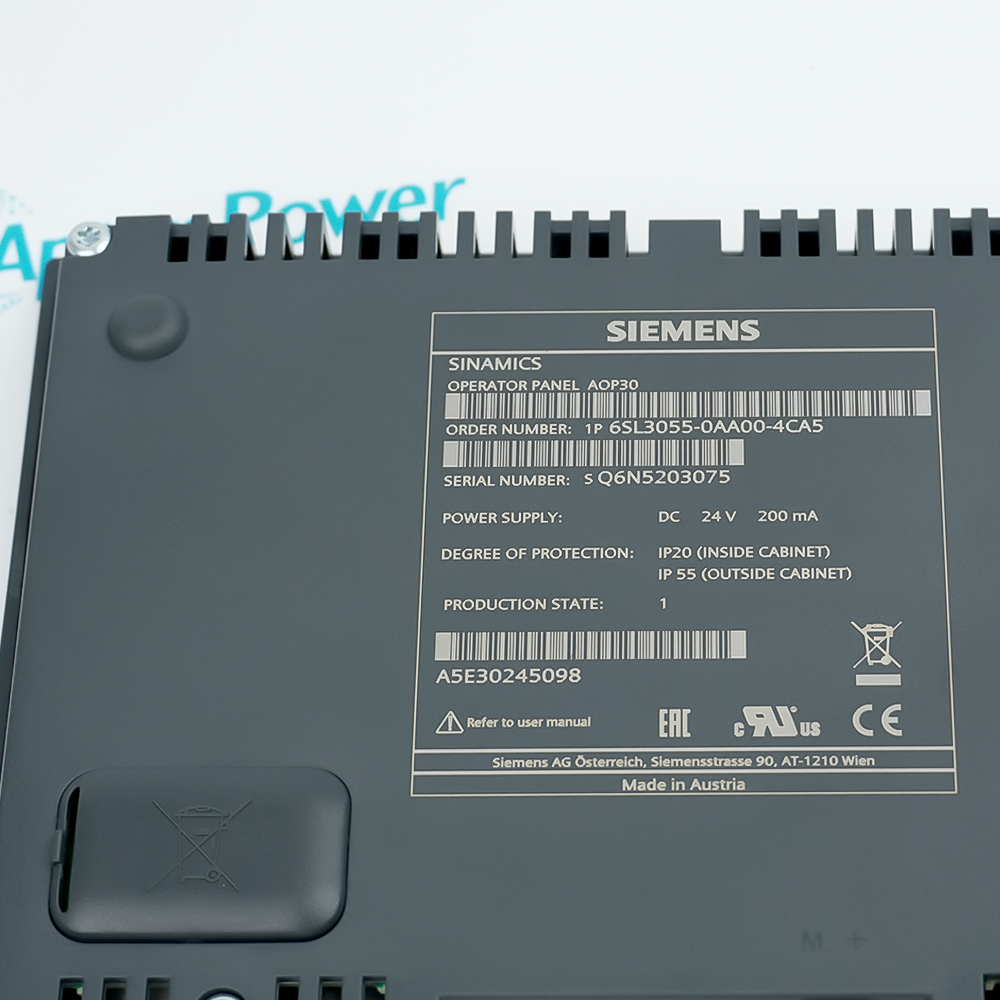

It uses an RS232 serial interface (9-pin Sub-D) and 24V DC power supply, with IP55 degree of protection at the front and IP20 at the rear.
