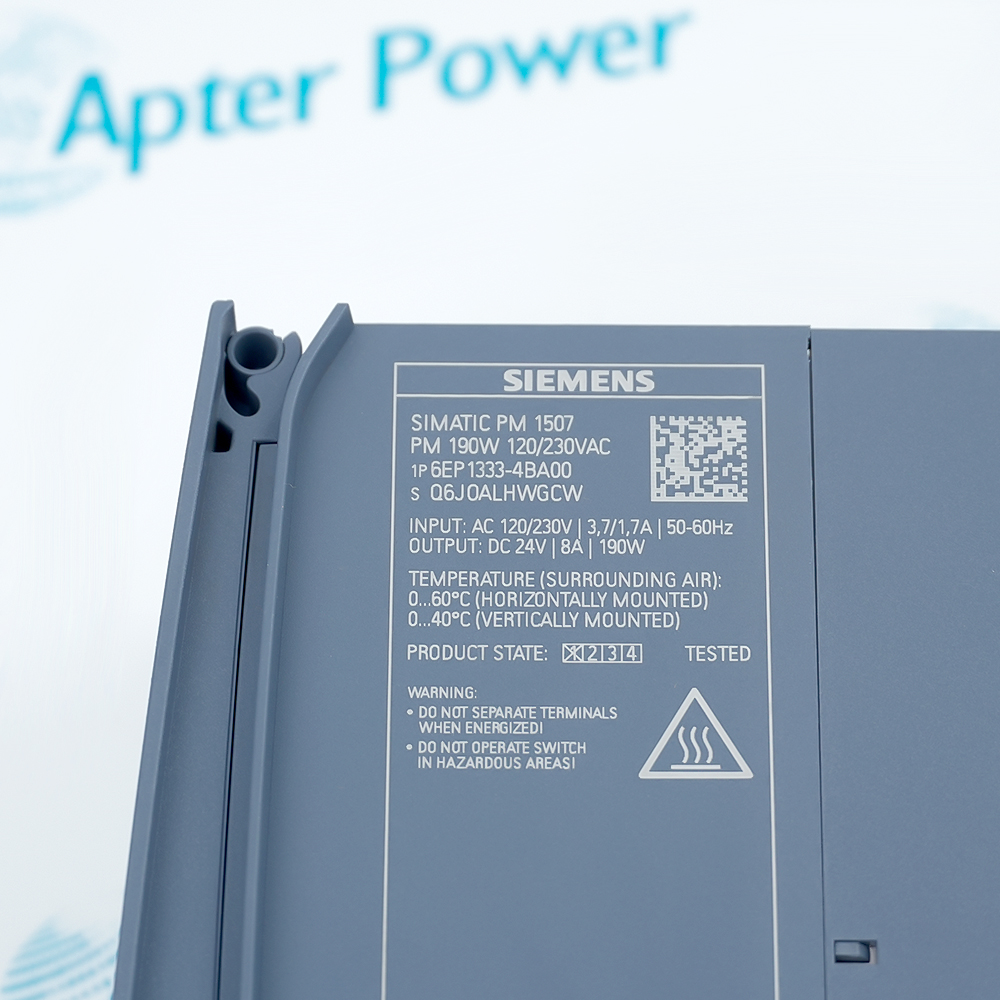

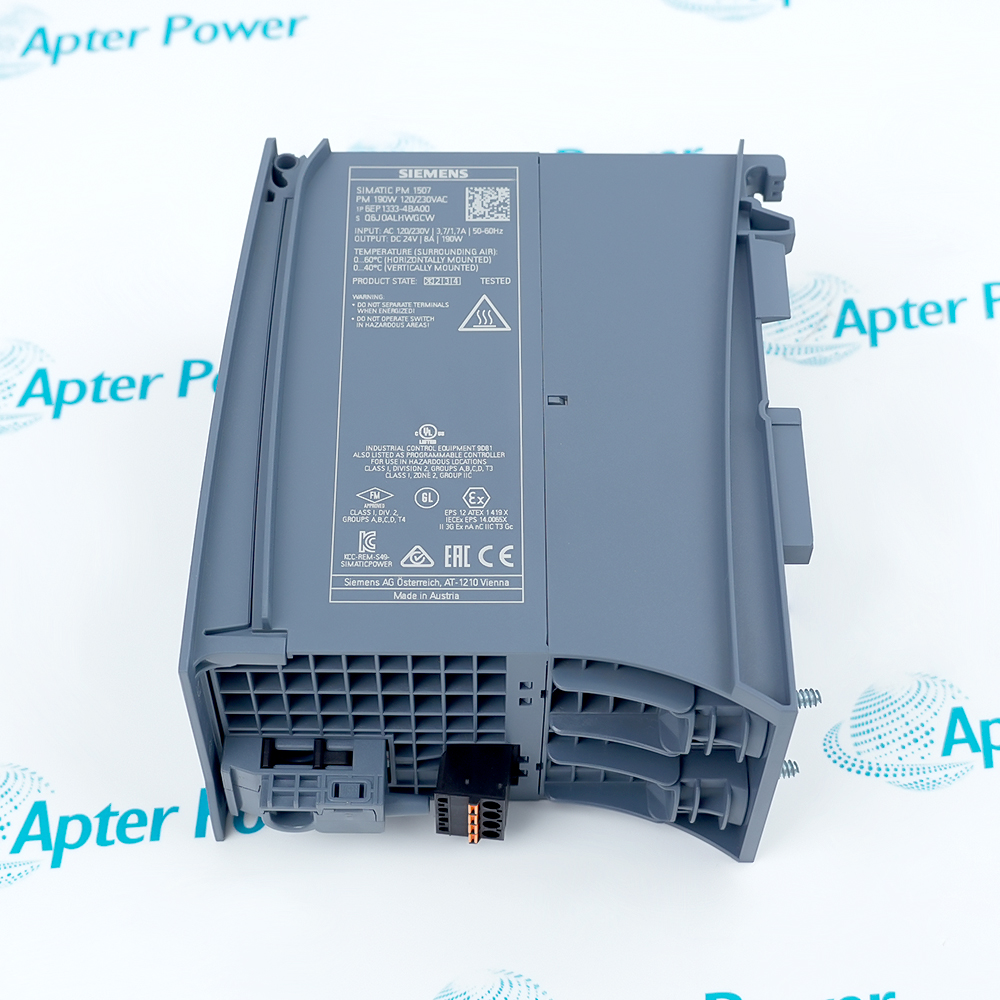

6EP1333-4BA00

Technical specifications for 6EP1333-4BA00

• Manufacturer:
  Siemens
• Product Category:
  PLC Systems
• Spare Part Number:
  6EP1333-4BA00
• Estimated shipping dimensions:
  7.5x12.5x14.6cm
• Weight:
  0.7 kg
• Tariff Code:
  8537101190
• Counliy of origin:
  Germany
• Input network:
  Single-phase AC
• Rated input voltage:
  120/230 Vac
• Input voltage range 1:
  85 to 132 Vac
• Input voltage range 2:
  170 to 264 Vac
• Line frequency:
  45 to 65 Hz
• Input current at 120 V:
  3.7 A
• Input current at 230 V:
  1.7 A
• Power-failure buffering:
  20 ms minimum at 93/187 V
• Inrush current:
  62 A maximum at 25 degC
• Inrush duration:
  3 ms maximum
• Feeder protection:
  16 A characteristic B or 10 A characteristic C
• Rated output voltage:
  24 Vdc
• Rated output current:
  8 A
• Rated output power:
  192 W
• Output tolerance:
  1%
• Residual ripple:
  50 mV maximum
• Voltage peak:
  150 mV maximum
• Efficiency:
  90%
• Power loss:
  19.6 W typical
• Current limitation:
  8.4 to 9.6 A; 9 A typical
• Short-circuit current:
  35 A typical for 70 ms
• Overvoltage limit:
  Less than 28.8 V
• Parallel operation:
  2 units for power increase
• Electrical isolation:
  Primary/secondary
• Degree of protection:
  IP20
• Protection class:
  Class I with protective conductor
