How many total I/O points does Schneider Electric 140DDM39000 provide?

Schneider Electric 140DDM39000 provides 24 total I/O points.

How are the inputs on 140DDM39000 arranged?

The 140DDM39000 arranges its 16 sink inputs into two groups of eight.

How are the 140DDM39000 outputs divided into groups?

The 140DDM39000 divides its eight solid-state outputs into two groups of four.

What field voltage is used by 140DDM39000?

The 140DDM39000 uses 24 V DC field power.

How much controller addressing does 140DDM39000 require?

The 140DDM39000 requires one input word and half of one output word in the controller.

What current can each 140DDM39000 output point carry?

Each 140DDM39000 output point can carry up to 0.5 A.

How is each 140DDM39000 output group protected?

An internal 5 A fuse protects each 140DDM39000 output group.

Which field-power faults can 140DDM39000 indicate?

The 140DDM39000 can indicate a blown output fuse and a loss of output field power.

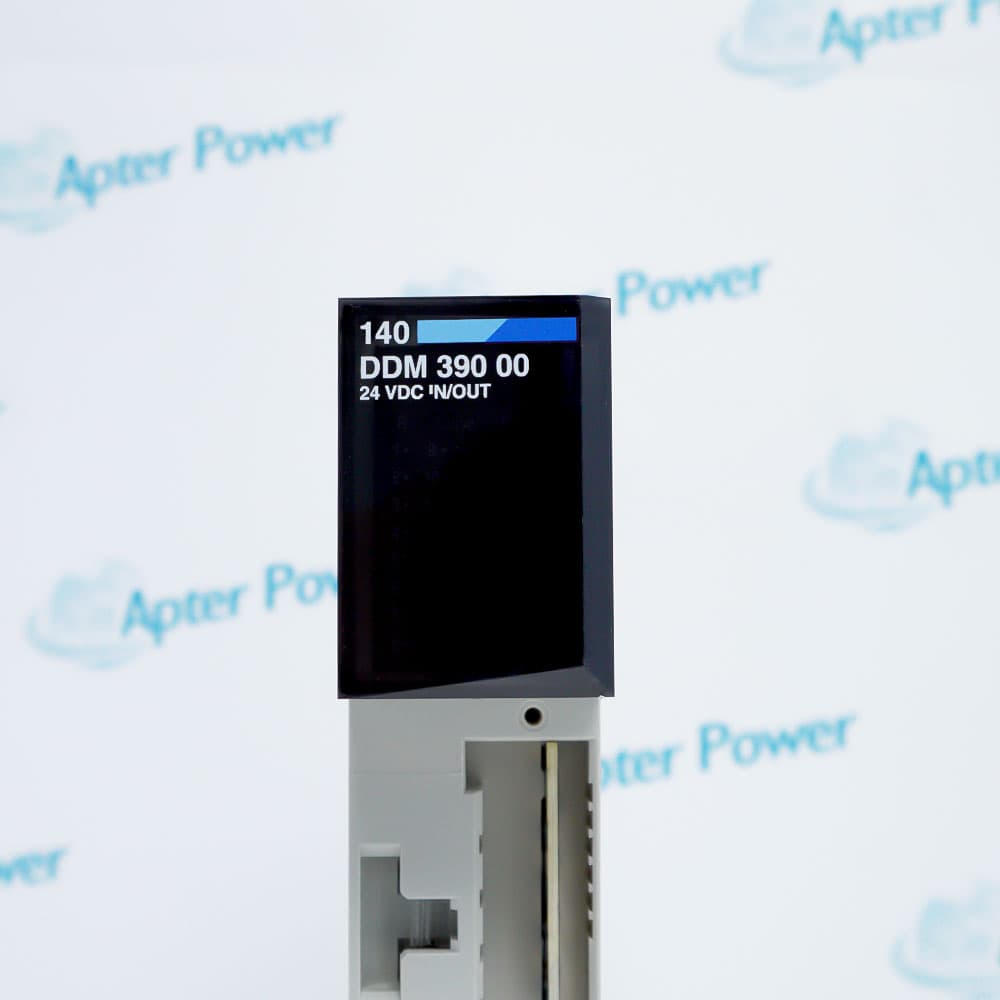

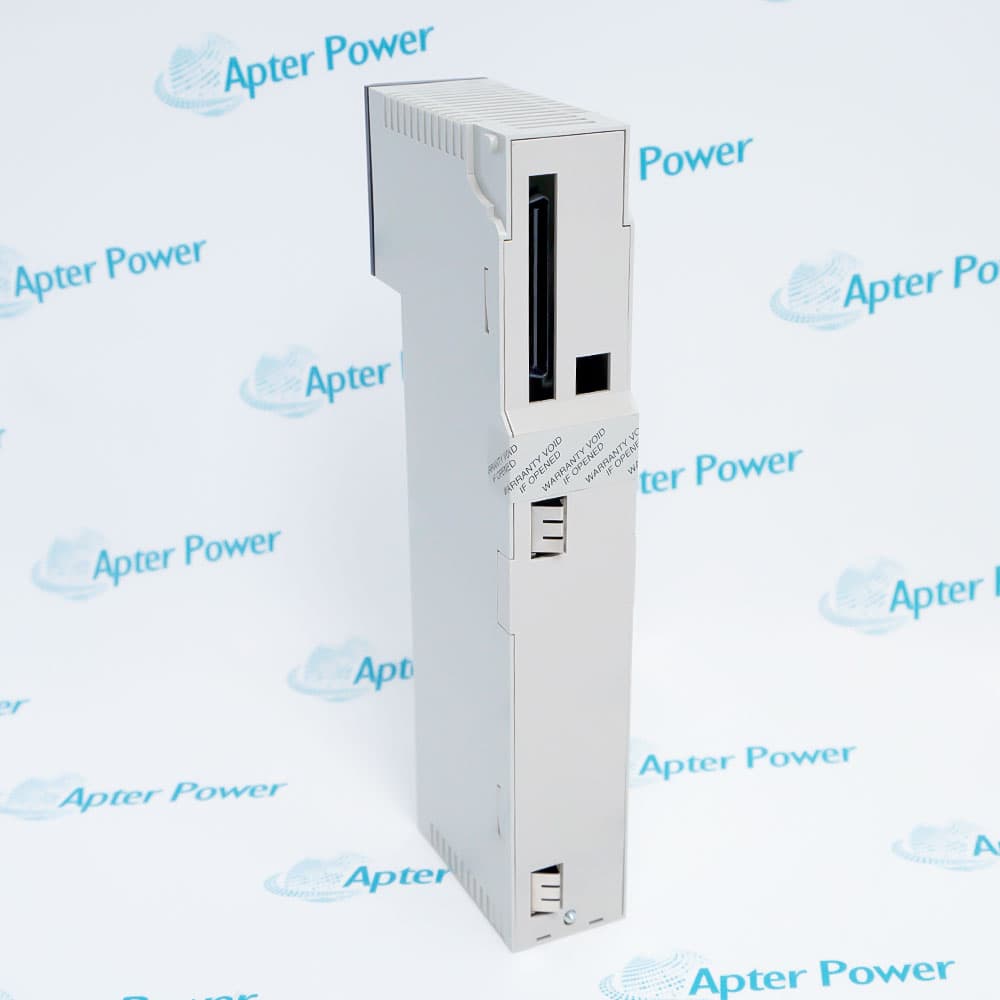

140DDM39000

Name: 140DDM39000
Brand: Schneider Electric
SKU: 140DDM39000

Mixed I/O Module

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Schneider Electric 140DDM39000 is a mixed Modicon Quantum discrete-I/O module with 16 sink inputs and eight solid-state outputs. Its 24 V DC channels are arranged as two input groups of eight and two output groups of four.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 140DDM39000

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 140DDM39000

Manufacturer:

Schneider Electric
Product Category:

PLC Systems
Spare Part Number:

140DDM39000
Estimated shipping dimensions:

4x10.5x25cm
Weight:

0.4 kg
Tariff Code:

8537101190
Counliy of origin:

France
Total I/O:

24 points
Inputs:

16 sink inputs, 2 groups of 8
Outputs:

8 solid-state outputs, 2 groups of 4
Field voltage:

24 V DC
Addressing:

1 input word and 0.5 output word
Output current:

Up to 0.5 A per point, 2 A per group, 4 A per module
Output response:

Up to 1 ms in either direction
Bus current:

330 mA

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The 140DDM39000 combines field sensing and switching on one Quantum module so a controlled cabinet can exchange 16 input states and eight output commands.

16 sink inputs in two groups
Eight solid-state outputs in two groups
24 V DC field circuits
One input word plus half an output word

Separate input and output field circuits exactly as shown in the approved wiring drawing. Respect the 0.5 A point, 2 A group and 4 A module output limits. Keep the two output-group fuses identifiable and accessible. Map one input word and half an output word in the controller project.

Important Notice: Confirm the complete Schneider Electric 140DDM39000 marking, installed hardware arrangement, circuit assignments and cabinet records before installation or replacement.

Schneider Electric 140DDM39000 Manuals & Downloads

Schneider Electric 140DDM39000 Technical Reference (PDF)Schneider Electric 140DDM39000 Installation & Commissioning Guide (PDF)

The first document presents model-specific technical information; the second provides a separate installation, verification and acceptance workflow.

Mixed cabinet I/O

Combines 16 inputs and eight outputs in one rack position.

24 V DC sensing

Reads two groups of eight sink inputs.

Solid-state switching

Controls two groups of four field outputs.

Fault diagnostics

Indicates bus state, field-power loss and point faults.

Read the applicable Schneider Electric instructions before work. Verify the complete 140DDM39000 identity, installed hardware arrangement and every connected circuit before isolation or replacement.

Record the complete 140DDM39000 marking.

Isolate both input and output field supplies.

Confirm 24 V DC circuit polarity and grouping.

Verify all 16 input labels and states.

Check all eight output loads and current limits.

Inspect both 5 A output-group fuses.

Review Active, field-power and fault LEDs.

Document point-by-point input and output acceptance.

Technical notes

Keep the two input groups and two output groups separated according to the cabinet drawing. Each output must remain within 0.5 A, each group within 2 A and the complete 140DDM39000 within 4 A.

FAQ View All FAQ

How many total I/O points does Schneider Electric 140DDM39000 provide?

Schneider Electric 140DDM39000 provides 24 total I/O points.
How are the inputs on 140DDM39000 arranged?

The 140DDM39000 arranges its 16 sink inputs into two groups of eight.
How are the 140DDM39000 outputs divided into groups?

The 140DDM39000 divides its eight solid-state outputs into two groups of four.
What field voltage is used by 140DDM39000?

The 140DDM39000 uses 24 V DC field power.

How much controller addressing does 140DDM39000 require?

The 140DDM39000 requires one input word and half of one output word in the controller.
What current can each 140DDM39000 output point carry?

Each 140DDM39000 output point can carry up to 0.5 A.
How is each 140DDM39000 output group protected?

An internal 5 A fuse protects each 140DDM39000 output group.
Which field-power faults can 140DDM39000 indicate?

The 140DDM39000 can indicate a blown output fuse and a loss of output field power.
