How many remote drops can Schneider Electric 140CRP93200C manage?

The published maximum is 31 drops on one RIO network.

How much I/O data is available per drop with Schneider Electric 140CRP93200C?

Each drop supports up to 64 input words and 64 output words.

Which cable type is specified for Schneider Electric 140CRP93200C?

Use the documented 75-ohm coaxial RIO cable system.

Why does Schneider Electric 140CRP93200C have two F connectors?

The two elbowed female F connectors support the installed redundant coaxial cable paths.

What transmission rate applies to Schneider Electric 140CRP93200C?

The RIO transmission rate is 1.544 Mbit/s.

Which start-up checks are performed by Schneider Electric 140CRP93200C?

The module performs power-up, LAN-controller and memory checks.

What should be recorded before replacing Schneider Electric 140CRP93200C?

Record both cable paths, terminators, connector labels, rack position, drop addresses and I/O word map.

How is Schneider Electric 140CRP93200C redundancy accepted?

Verify all drops on both cable paths, then test the approved single-path-failure condition while monitoring diagnostics.

140CRP93200C

Name: 140CRP93200C
Brand: Schneider Electric
SKU: 140CRP93200C

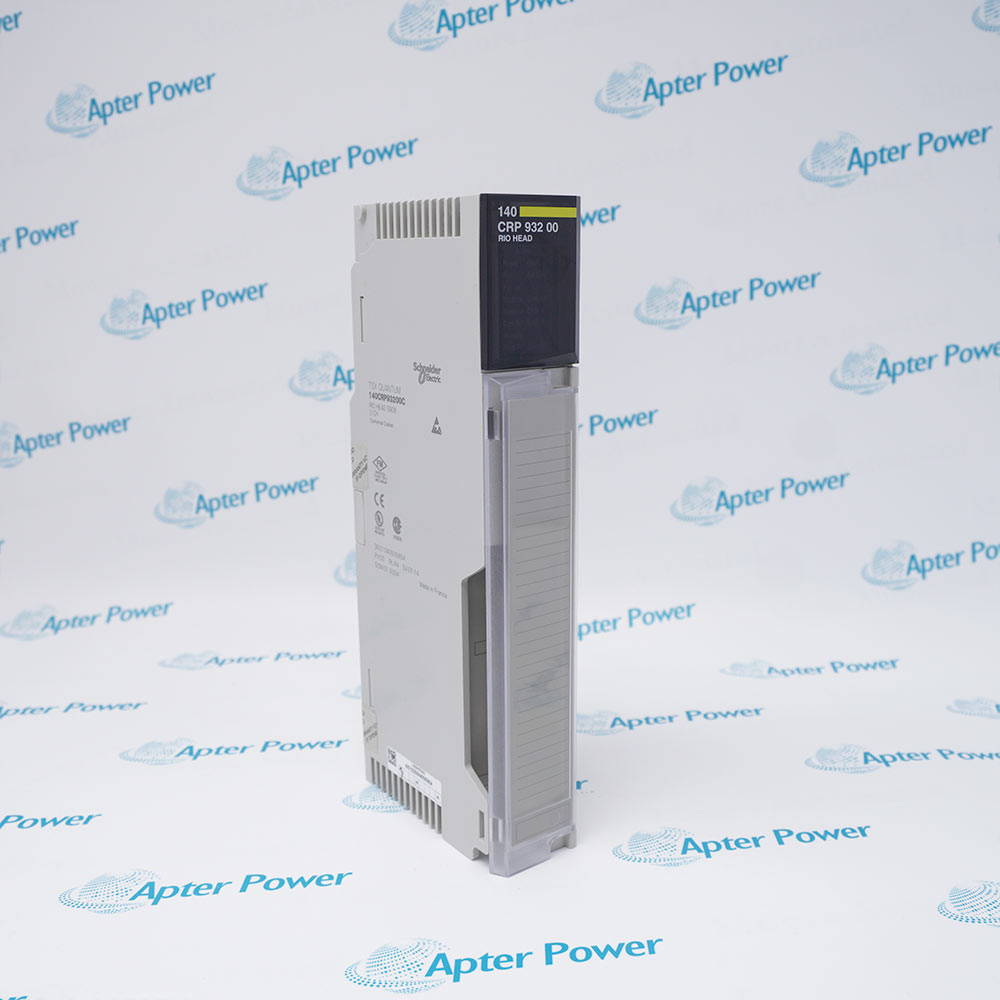

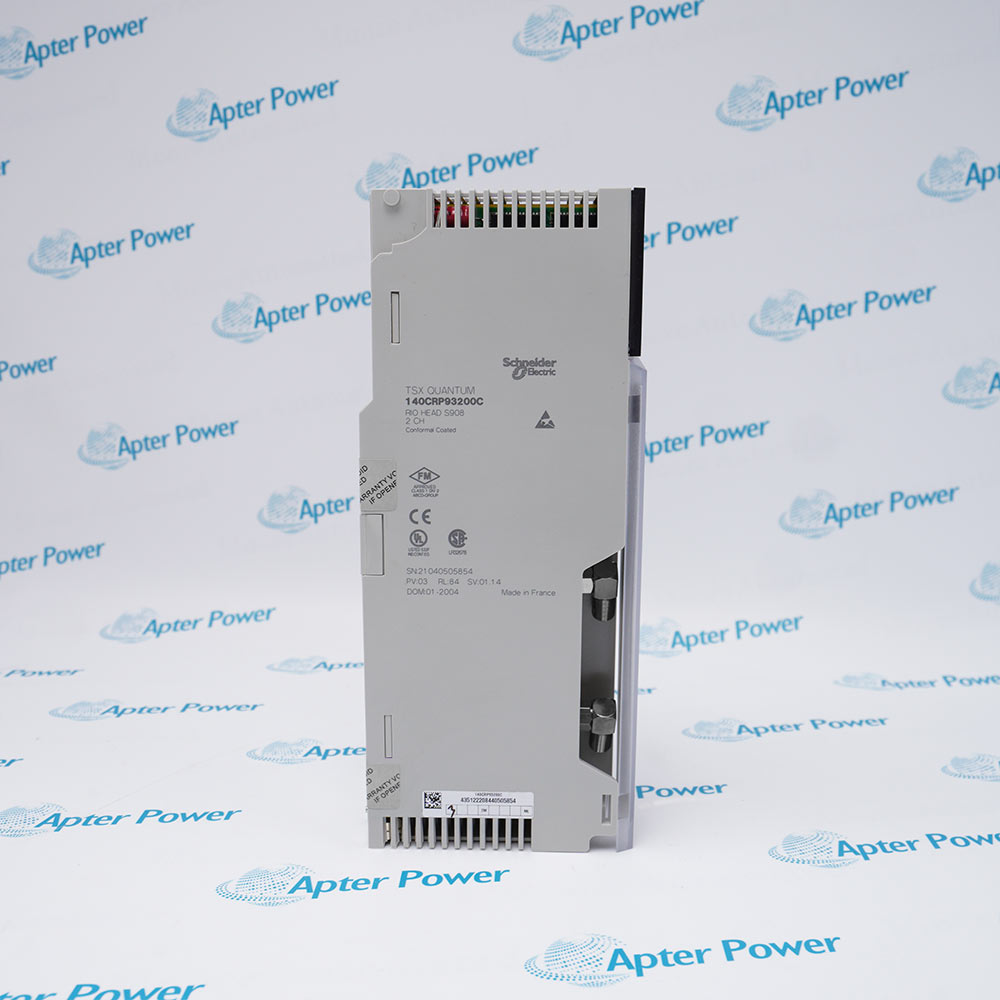

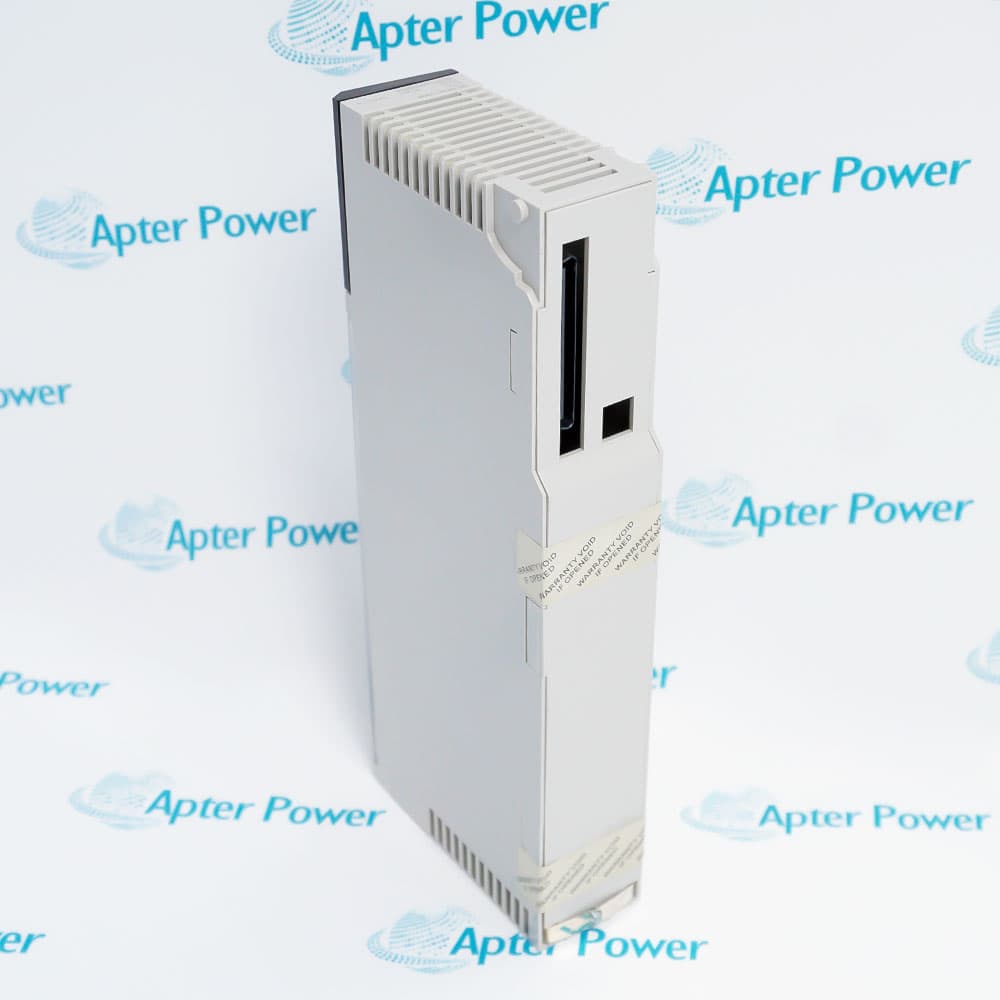

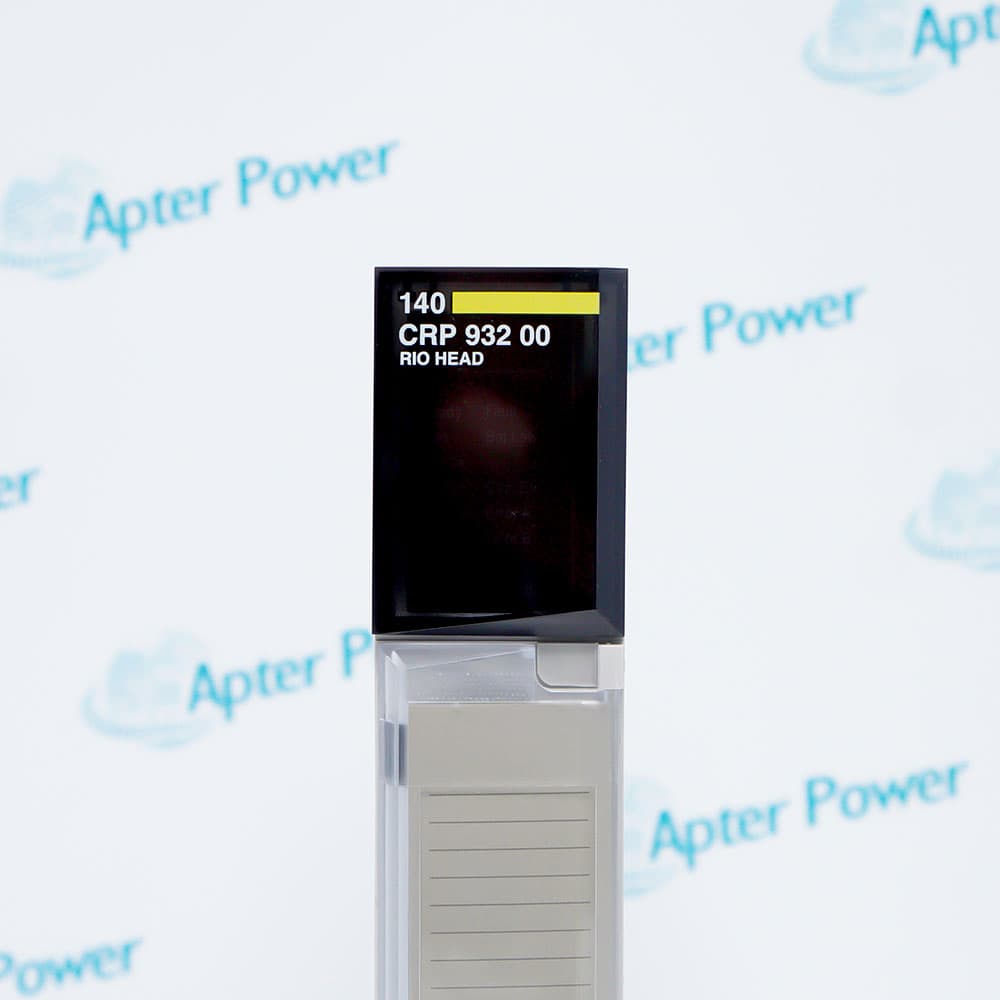

RIO Head Adapter

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Schneider Electric 140CRP93200C is a two-connector Modicon Quantum remote-I/O head adapter for redundant 75-ohm coaxial cable networks.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Immediate Dispatch
Available for dispatch immediately.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 140CRP93200C

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 140CRP93200C

Manufacturer:

Schneider Electric
Product Category:

PLC Systems
Spare Part Number:

140CRP93200C
Estimated shipping dimensions:

4x10.5x25cm
Weight:

0.42 kg
Tariff Code:

8537101190
Counliy of origin:

France
Product range:

Modicon Quantum automation platform
Product type:

RIO head-end adapter module
Compatible systems:

Symax; Quantum 200/500/800 series
Maximum drops:

31 per network
I/O words per drop:

64 input / 64 output
Cable:

75-ohm coaxial
Transmission rate:

1.544 Mbit/s
Dynamic range:

35 dB
Coax isolation:

500 V DC centre-to-ground
Connections:

2 female elbowed F connectors for redundant cable
Start-up diagnostics:

Power-up, LAN controller and memory checks
Bus current:

750 mA for two channels
Power dissipation:

3 W for two channels
Operating temperature:

0–60 °C
Operating altitude:

Up to 5000 m

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

Schneider Electric 140CRP93200C connects the Quantum controller rack to as many as 31 remote-I/O drops through two elbowed F connectors and redundant coaxial paths.

31 drops per network
64 input and 64 output words per drop
Two redundant F connectors
1.544 Mbit/s coaxial RIO

Use Schneider Electric 140CRP93200C only with the documented rack, field interface and approved commissioning record for the installed application.

Important Notice: Confirm the complete 140CRP93200C identifier, companion hardware and wiring condition; do not substitute a nearby code without an engineering review.

Schneider Electric 140CRP93200C Manuals & Downloads

Schneider Electric 140CRP93200C Official Manual Excerpt (PDF)Schneider Electric 140CRP93200C Installation & Commissioning Guide (PDF)

The Official Manual Excerpt consolidates selected Schneider Electric manual pages; the Installation & Commissioning Guide organizes identity control, isolation, interface checks, functional testing and acceptance records.

Quantum RIO head end

Connects the controller rack to the installed coaxial remote-I/O network.

Redundant cable architecture

Maintains two documented RIO cable paths for communication continuity.

Multi-drop I/O network

Coordinates as many as 31 drops within the published word capacity.

Head-adapter replacement

Restores coaxial connectors, topology, drop map and diagnostics for the same model.

Apply these controls specifically to Schneider Electric 140CRP93200C before isolation, replacement, reconnection and final release.

Record both coaxial cable paths, connector labels and the complete drop map before disconnection.

Use only the documented 75-ohm coaxial network components and termination arrangement.

Protect F connectors from contamination and avoid bending or stressing the coaxial cables.

Verify the configured network contains no more than 31 drops.

Reconcile each drop with the 64-input-word and 64-output-word capacity.

Restore both redundant paths before judging network health.

Review power-up, LAN-controller and memory diagnostics after energization.

Prove communication to every affected drop and verify cable-failover response before release.
