What device identity or role does Schneider Electric 140CPU65160S publish?

For 140CPU65160S, the manufacturer states Unity safety processor. Do not replace it with a nearby suffix value.

What clock frequency rating is specified for Schneider Electric 140CPU65160S?

Record 266 MHz for 140CPU65160S and verify the field arrangement against the controlled drawing or project.

How does Schneider Electric define the internal ram of 140CPU65160S?

The exact-model source gives 1024 kB. Use it together with the actual 140CPU65160S nameplate and installation record.

Which safety software is associated with Schneider Electric 140CPU65160S?

140CPU65160S is documented with Unity Pro XL Safety; this value belongs to the verified product configuration.

How many local racks are documented for Schneider Electric 140CPU65160S?

Use 1 as the 140CPU65160S local racks reference and resolve any field discrepancy before release.

How many remote i/o stations are documented for Schneider Electric 140CPU65160S?

The manufacturer record for 140CPU65160S specifies 31. Preserve it through selection, installation and acceptance.

What integrated ethernet rating is specified for Schneider Electric 140CPU65160S?

Schneider Electric identifies the integrated ethernet as 1 local Ethernet TCP/IP port; keep that exact entry in the 140CPU65160S record.

What integrated serial rating is specified for Schneider Electric 140CPU65160S?

The published 140CPU65160S value is 1 Modbus RS232/485 port. The installed configuration must remain within that boundary.

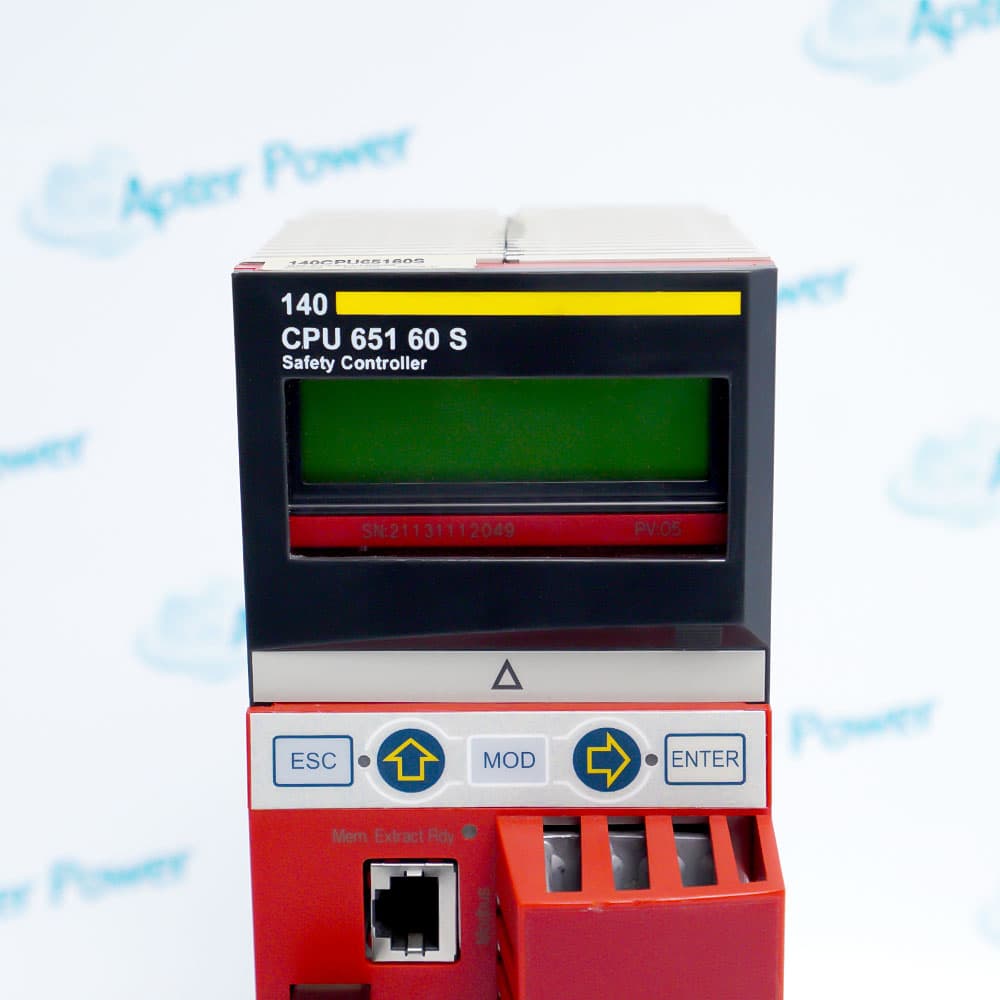

140CPU65160S

Name: 140CPU65160S
Brand: Schneider Electric
SKU: 140CPU65160S

Safety Processor

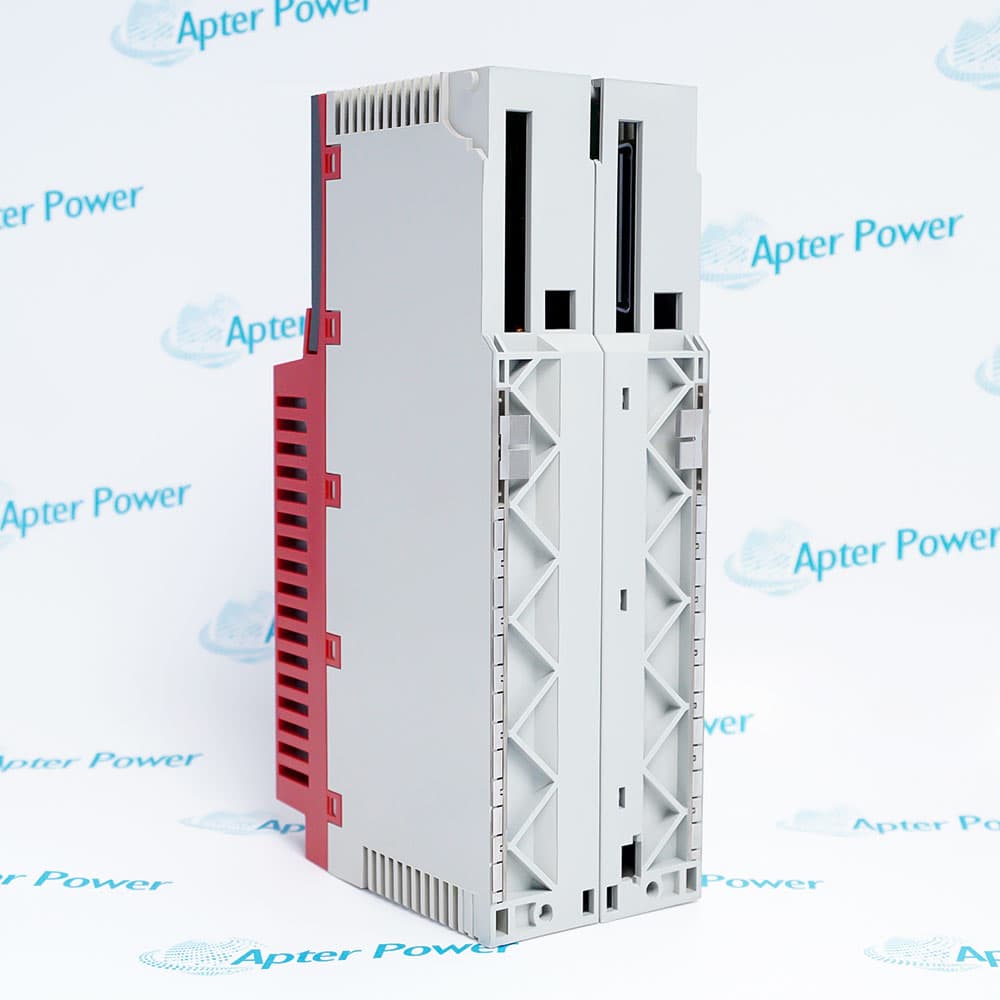

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

140CPU65160S is a 266 MHz Modicon Quantum Unity safety processor with 1024 kB internal RAM and integrated Ethernet, Modbus, Modbus Plus and USB connections.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Immediate Dispatch
Available for dispatch immediately.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 140CPU65160S

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 140CPU65160S

Manufacturer:

Schneider Electric
Product Category:

PLC Systems
Spare Part Number:

140CPU65160S
Estimated shipping dimensions:

8.1x13x25.1cm
Weight:

1.18 kg
Tariff Code:

8537101190
Counliy of origin:

France
Processor class:

Unity safety processor
Clock frequency:

266 MHz
Internal RAM:

1024 kB
Safety software:

Unity Pro XL Safety
Local racks:

1
Remote I/O stations:

31
Integrated Ethernet:

1 local Ethernet TCP/IP port
Integrated serial:

1 Modbus RS232/485 port
Integrated Modbus Plus:

1 local port
Integrated USB:

1 local port
Program expansion:

7168 kB with PCMCIA card
File storage:

8 MB with PCMCIA card

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

Schneider Electric 140CPU65160S executes Unity Pro XL Safety applications for a documented Quantum safety architecture.

Preserve the validated safety application and hardware signature.
Record Ethernet, Modbus and Modbus Plus addressing.
Retain the PCMCIA program and file-storage configuration.
Restore the key-switch and memory-port state from the controlled record.

The CPU coordinates local and remote Quantum I/O while executing the validated safety project. Processor firmware, project revision, network settings and rack population together define the approved system state.

Important Notice: Do not load or modify a 140CPU65160S safety project without the validated Unity Pro XL Safety revision and the controlled safety-validation procedure.

Schneider Electric 140CPU65160S Manuals & Downloads

Schneider Electric 140CPU65160S Technical Reference (PDF)Schneider Electric 140CPU65160S Official Manual Excerpt (PDF)

The technical reference presents exact-model engineering data and maintenance boundaries. The official excerpt contains selected unchanged Schneider Electric source pages for this exact model or its documented product family.

Quantum safety control

Executes a validated Unity safety application.

Remote I/O coordination

Manages the documented Quantum remote-I/O stations.

Multi-protocol integration

Uses the approved Ethernet, Modbus and Modbus Plus services.

Controlled processor replacement

Restores the exact CPU, project and memory-card baseline.

Schneider Electric 140CPU65160S installation checks: verify exact identity, retain configuration evidence and record the complete functional acceptance.

Verify the complete Schneider Electric 140CPU65160S marking before any selection or field work.

Record the installed position, connectors, conductors and configuration assigned to 140CPU65160S.

Place the connected equipment in its approved safe state and isolate all relevant energy sources.

Protect the safety processor and its mating interfaces from contamination, static discharge and mechanical damage.

Archive and checksum the safety project before removing the processor.

Record all network addresses and remote-I/O relationships.

Verify the PCMCIA card and battery-backed memory arrangement.

Complete the required safety validation before returning control authority.

Technical notes

Do not load or modify a 140CPU65160S safety project without the validated Unity Pro XL Safety revision and the controlled safety-validation procedure.
