      SNAP-AIMA-4

      Analog Input Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

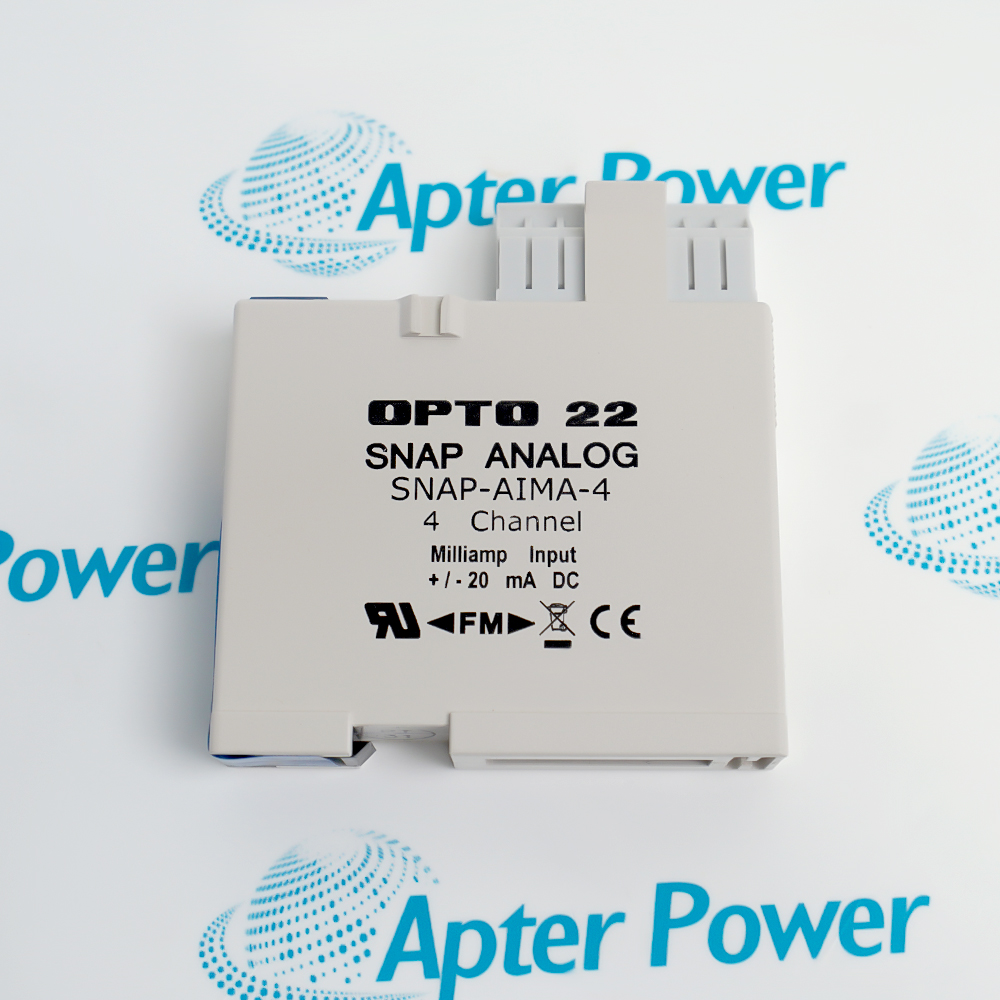

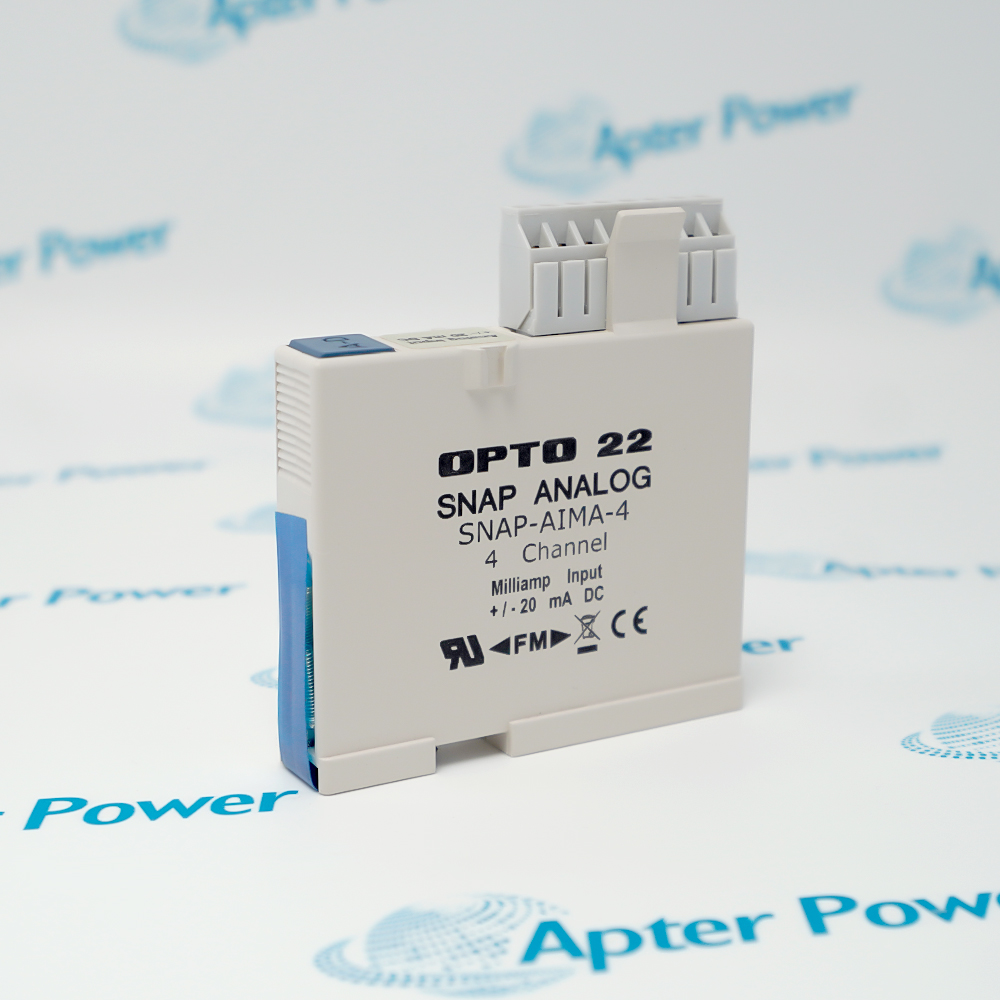

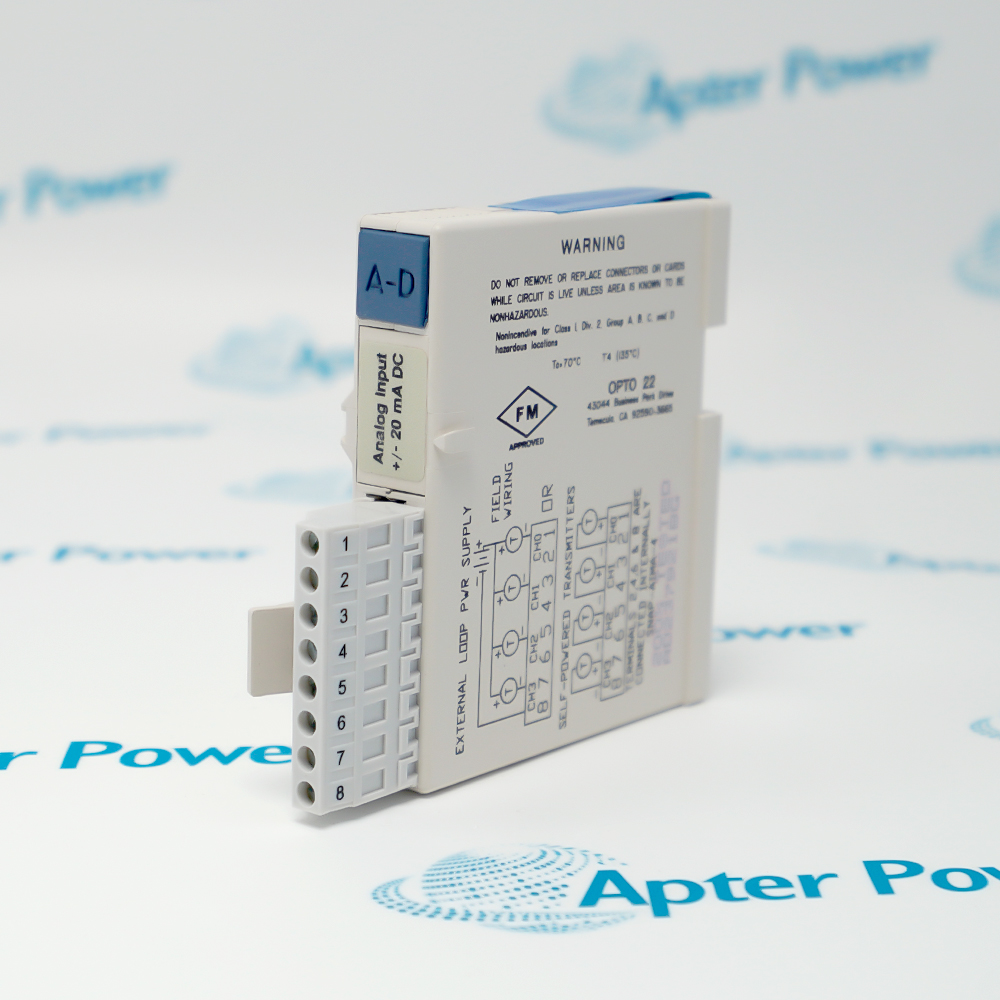

      Opto 22 SNAP-AIMA-4 is a analog input module for the SNAP PAC I/O platform. It is a four-channel current-input module for measuring -20 to +20 mA signals on a compatible SNAP mounting rack.

      Ask our team:

      Get a quick price for： SNAP-AIMA-4
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for SNAP-AIMA-4

      Technical specifications for SNAP-AIMA-4

      • Manufacturer:
        Opto 22
      • Product Category:
        PLC Systems
      • Spare Part Number:
        SNAP-AIMA-4
      • Estimated shipping dimensions:
        2x9x8.3cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Manufacturer:
        Opto 22
      • Product family:
        SNAP PAC I/O platform
      • Input channels:
        4
      • Input range:
        -20 to +20 mA
      • Overrange:
        ±22 mA
      • Resolution:
        0.8 µA
      • Data freshness:
        23 ms
      • Maximum survivable input:
        36 mA or 9 V DC
      • Common-mode voltage:
        250 V
      • Accuracy:
        0.05% or 10 µA
      • Isolation:
        1500 V
      • Module power:
        5 V DC ±0.15 V at 170 mA
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Opto 22 SNAP-AIMA-4 is a four-channel current-input module for measuring -20 to +20 mA signals on a compatible SNAP mounting rack.
      • Measures four bipolar current inputs
      • Provides 0.8 µA resolution
      • Refreshes channel data in 23 ms
      • Provides 1500 V isolation

      SNAP-AIMA-4 operates with its documented companion hardware and configured system interfaces.

      Engineered applications include Process current measurement, Bipolar analog sensing, Isolated remote I/O, Module replacement.

      Important Notice: Match SNAP-AIMA-4 to the supported rack and brain. Preserve loop polarity, field protection, channel scaling and isolation boundaries.

      Opto 22 SNAP-AIMA-4 Manuals & Downloads
      Opto 22 SNAP-AIMA-4 Technical Reference (PDF)Opto 22 SNAP-AIMA-4 Installation & Commissioning Guide (PDF)
      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.
      Process current measurement
      Acquires four -20 to +20 mA process signals.
      Bipolar analog sensing
      Measures positive and negative loop current within range.
      Isolated remote I/O
      Adds four analog channels at a SNAP PAC node.
      Module replacement
      Restores SNAP-AIMA-4 while retaining channel scaling and wiring.
      Read the applicable Opto 22 instructions before work. Verify SNAP-AIMA-4, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Confirm the complete SNAP-AIMA-4 marking and installed analog-input position before work.
      2
      Place the connected process in the approved maintenance state.
      3
      Isolate every applicable power and field circuit before disconnection.
      4
      Record connector, terminal, address, slot and companion-hardware identities.
      5
      Use grounded ESD controls and protect keyed interfaces from damage.
      6
      Preserve documented polarity, shielding, grounding and cable routing.
      7
      Restore power in the approved sequence and review diagnostics.
      8
      Prove the intended input, output or communications response and retain the acceptance record.

      Alternative Names

      Alternative Names

      SNAP-AIMA-4 SNAPAIMA4 Opto 22 SNAP-AIMA-4

      Technical notes

      Technical notes

      Match SNAP-AIMA-4 to the supported rack and brain. Preserve loop polarity, field protection, channel scaling and isolation boundaries.

      FAQS

      • What does the input channels mean for SNAP-AIMA-4 system compatibility?
        Input channels: 4. Preserve the setting when transferring the approved configuration.
      • Which acceptance record should retain the input range for SNAP-AIMA-4?
        Input range: -20 to +20 mA. Verify the nameplate and controlled project record agree.
      • What commissioning check applies to the overrange on SNAP-AIMA-4?
        Overrange: ±22 mA. Use this value when checking the analog input module against its installed position.
      • What wiring check follows from the resolution on SNAP-AIMA-4?
        Resolution: 0.8 µA. Retain it in the controlled replacement record.
      • Which data freshness belongs to SNAP-AIMA-4?
        Data freshness: 23 ms. Compare it with the existing terminal and companion-hardware assignment.
      • Which installed-system decision depends on the maximum survivable input of SNAP-AIMA-4?
        Maximum survivable input: 36 mA or 9 V DC. Apply it during the pre-energization wiring review.
      • What common-mode voltage should be verified before SNAP-AIMA-4 is installed?
        Common-mode voltage: 250 V. Confirm the installed system can support this value before startup.
      • How should the accuracy be matched for this analog input module?
        Accuracy: 0.05% or 10 µA. Do not replace it with a neighboring family value.
