Technical specifications for P0914XB

  • Manufacturer:
    Invensys
  • Product Category:
    DCS Systems
  • Estimated shipping dimensions:
    49.2x19.8x4cm
  • Weight:
    1.48 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Mounting orientation:
    Vertical DIN rail
  • Module positions:
    8
  • Supported occupants:
    FBMs or a combination of FBMs and FCMs
  • Power connections:
    Primary and secondary baseplate power
  • Communication connections:
    Redundant Module Fieldbus
  • Field interface:
    I/O signal cable connectors
  • Baseplate ID range:
    0 to 3
  • ID selection / factory setting:
    Two DIP switches / OFF-OFF, ID 3
  • Module attachment:
    Two rear connectors and two self-retaining hex screws
  • Required support:
    Braces, backplate or wall-supported DIN rail

Information

Overview Manuals Common Applications Product Precautions

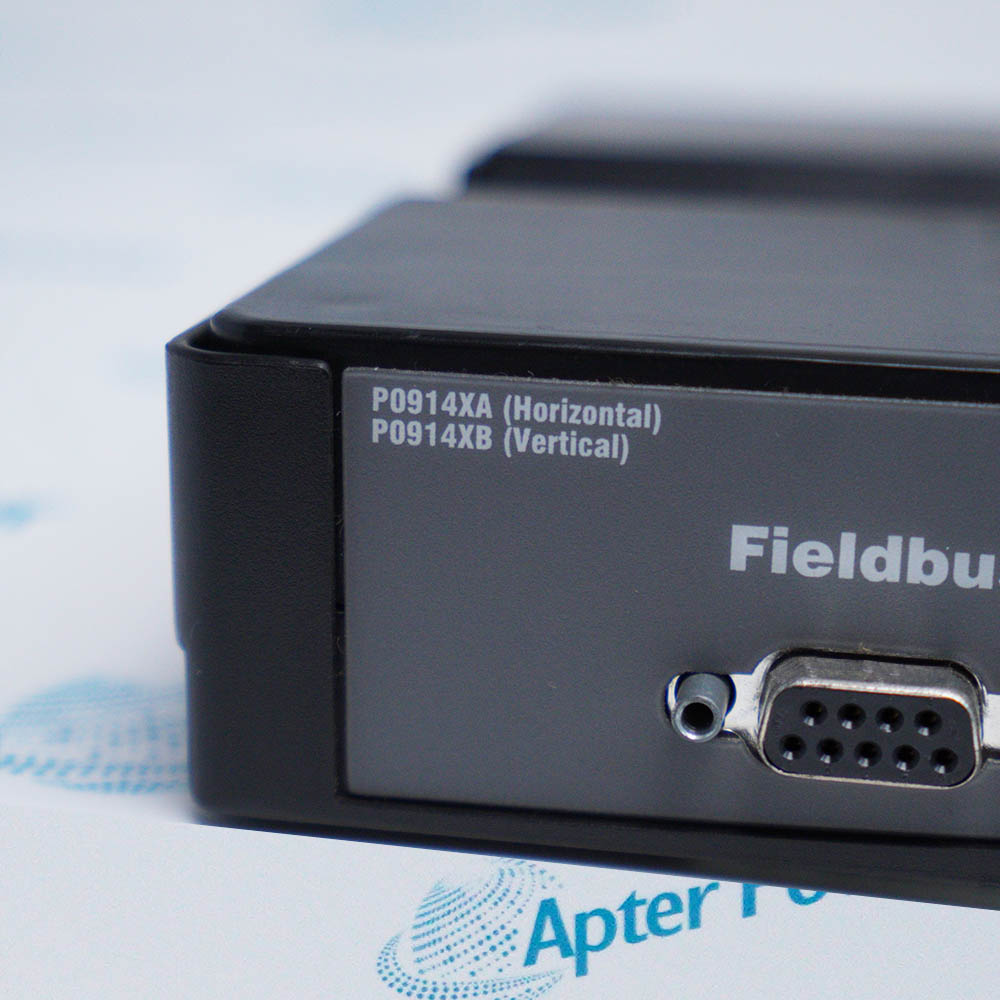

Within the Foxboro DIN rail-mounted FBM subsystem, P0914XB serves as the vertically oriented mechanical and connection carrier for installed FBMs and FCMs.
  • Eight FBM or mixed FBM/FCM positions
  • Vertical DIN-rail mounting arrangement
  • Primary and secondary power connections
  • Redundant Module Fieldbus and I/O interfaces

The supported rail, brace or backplate prevents movement and twisting while the two-position ID switch assigns a unique baseplate number within its FCM grouping. Each installed module engages two rear connectors and is retained by two self-retaining hex screws.

Important Notice: Verify P0914XB, vertical orientation, structural rail support, unique baseplate ID and every power, Fieldbus and I/O connection before returning the subsystem to service.

Foxboro P0914XB Manuals & Downloads
Foxboro P0914XB Technical Reference (PDF)Foxboro P0914XB Manufacturer Manual Excerpt (PDF)

The technical reference organizes exact characteristics and engineering boundaries. The manufacturer excerpt presents selected unchanged official pages used for exact-model review.

Vertical FBM subsystem mounting
Carries up to eight documented FBM or FCM positions on a supported vertical DIN rail.
Redundant power distribution
Accepts primary and secondary power cable connections for the mounted module group.
Module Fieldbus distribution
Provides the redundant communication path used by modules in the assigned baseplate grouping.
Controlled baseplate replacement
Restores the exact P0914XB orientation, identifier and connector arrangement during subsystem service.
Foxboro P0914XB installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
1
Confirm P0914XB and the vertical mounting orientation on the installed record.
2
Record all eight module positions, module identities and connected I/O cables.
3
Capture both power feeds, redundant Module Fieldbus paths and the current baseplate ID.
4
Place every affected loop and communication path in the approved safe state.
5
Support the baseplate before loosening its vertical DIN-rail set screws.
6
Inspect the rail support, clamps, connectors and threaded inserts before restoration.
7
Restore a unique ID from 0 to 3 within the same FCM or FCM-pair grouping.
8
Verify both power paths, module discovery, Fieldbus redundancy and required I/O responses.

Technical notes

Record the installed P0914XB baseplate ID, eight module positions, both power feeds and both Module Fieldbus paths before any baseplate work.

FAQ View All FAQ

  • How many module positions does Foxboro P0914XB provide?
    It provides eight positions for FBMs or a combination of FBMs and FCMs.
  • Which mounting orientation is specified for Foxboro P0914XB?
    The manufacturer identifies P0914XB as the vertical DIN-rail baseplate execution.
  • What structural support is required when installing Foxboro P0914XB?
    The vertical DIN rail must be supported by braces, a backplate or a wall to prevent movement or twisting.
  • Which connections are distributed through Foxboro P0914XB?
    The baseplate carries primary and secondary power, redundant Module Fieldbus and I/O signal cable connections.
  • How is the identifier selected on Foxboro P0914XB?
    Two DIP switches assign a baseplate ID from 0 to 3; the documented factory setting is OFF-OFF, or ID 3.
  • Why must the Foxboro P0914XB identifier be unique within its grouping?
    No two baseplates on the same FCM or FCM pair may use the same ID number.
  • How are modules secured to Foxboro P0914XB?
    Each module engages two rear connectors and is fastened with two self-retaining hex screws.
  • What checks complete commissioning of Foxboro P0914XB?
    Confirm rail support and ID, then verify both power feeds, redundant Fieldbus paths, installed module identities and the required I/O responses.
