Technical specifications for FCM10E
-
Manufacturer:Invensys
-
Product Category:DCS Systems
-
Spare Part Number:FCM10E
-
Estimated shipping dimensions:4.4x12.6x11.4cm
-
Weight:0.34 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Part number:P0914YM
-
Trunk interface:10BASE2 Ethernet, 10 Mbps
-
Module Fieldbus:2 Mbps
-
Redundant arrangement:Two FCM10E modules per FBM grouping
-
Non-redundant arrangement:One FCM10E per FBM grouping
-
Supported FBMs:Up to 30
-
Input supply:24 V DC +5%, -10%
-
Maximum consumption:7 W
-
Maximum heat dissipation:7 W
-
Status indication:Six front LEDs
-
Baseplate capacity:Up to eight FBMs or mixed FBM/FCM positions
Information
Overview
Manuals
Common Applications
Product Precautions

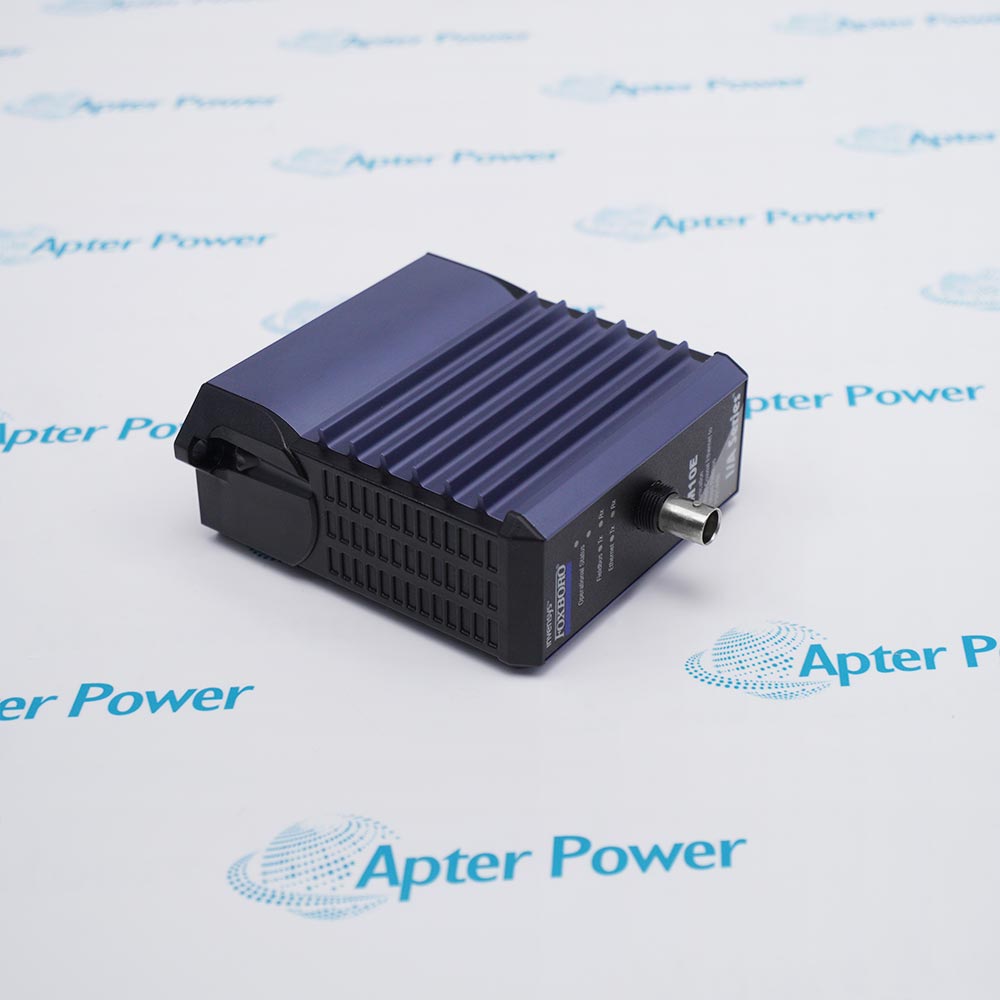

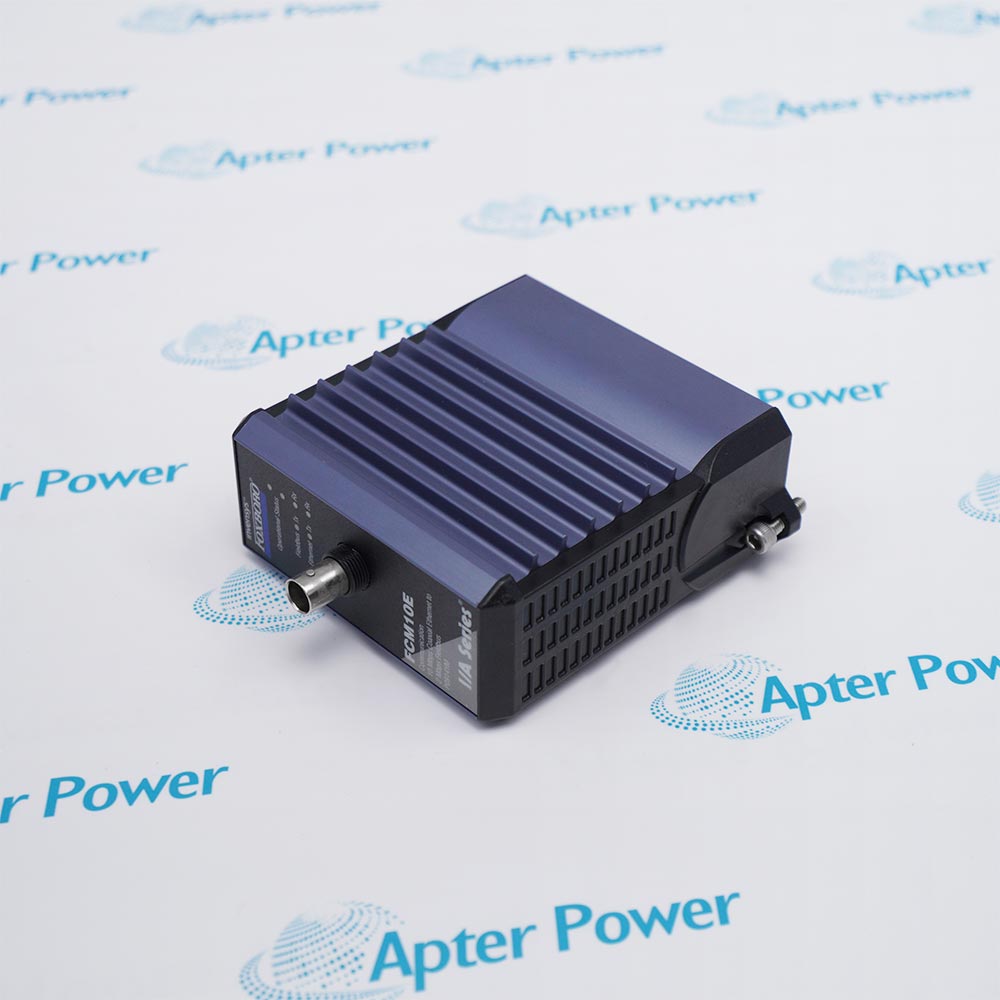

Foxboro FCM10E, part number P0914YM, isolates and bridges the I/A Series control-station trunk to a local grouping of as many as 30 Fieldbus Modules.
- 10 Mbps to 2 Mbps conversion
- Up to 30 FBMs per grouping
- Single or redundant operation
- Galvanically isolated interfaces
A redundant installation uses two FCM10E modules on the assigned baseplate positions, while a non-redundant grouping uses one. Network LEDs, baseplate identity and both Fieldbus segments must be evaluated together during restoration.
Important Notice: FCM10E is manufacturer part P0914YM. Do not confuse it with an FCM100E, FCM100Et or a fiber-optic FCM2F execution.
Foxboro FCM10E Manuals & Downloads
Foxboro FCM10E Technical Reference (PDF)Foxboro FCM10E Manufacturer Manual Excerpt (PDF)
The technical reference organizes exact characteristics and engineering boundaries. The manufacturer excerpt presents selected unchanged official pages used for exact-model review.
DIN-rail FBM communications
Links local 200 Series FBMs to an I/A Series control station.
Redundant Fieldbus gateways
Uses paired modules for an A/B communication path.
Distributed I/O groups
Supports remote FBM groupings connected to the Ethernet trunk.
Online module service
Allows module replacement without removing baseplate power or communications cabling.
Foxboro FCM10E installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
1
Verify FCM10E and P0914YM on the module label.
2
Record the baseplate ID, FCM identity and redundant partner position.
3
Save network topology and FBM grouping before disturbing hardware.
4
Follow the approved control-system impairment procedure.
5
Protect 10BASE2 and Module Fieldbus connectors from damage.
6
Restore the correct baseplate position for single or paired operation.
7
Check all six LEDs and both Fieldbus directions after power restoration.
8
Prove every attached FBM and redundant switchover before handover.
Technical notes
For FCM10E, retain the exact manufacturer identity, installed connection record and witnessed model-specific acceptance result.
FAQ View All FAQ
-
Which part number identifies Foxboro FCM10E?The manufacturer product specification lists P0914YM.
-
Which two network rates are converted by Foxboro FCM10E?It converts the 10 Mbps Ethernet trunk Fieldbus to the 2 Mbps Module Fieldbus and back.
-
How many FBMs can one Foxboro FCM10E grouping support?A single module or redundant pair can support up to 30 FBMs.
-
How is redundant service arranged for Foxboro FCM10E?Two FCM10E modules are installed for each redundant FBM grouping.
-
What do the front indicators show on Foxboro FCM10E?Six LEDs indicate Ethernet activity, Module Fieldbus activity and module operational status.
-
Can Foxboro FCM10E be replaced without removing baseplate cabling?Yes. The specification states that it can be removed or replaced without removing power or communication cabling.
-
Which input supply is used by Foxboro FCM10E?It operates from redundant 24 V DC input at +5 percent and -10 percent.
-
What completes commissioning of Foxboro FCM10E?Confirm both communication rates, attached FBM visibility, front indicators and redundant failover where a pair is installed.
