      P0916CC

      Termination Assembly
      In Stock
      Ships by Saturday, November 7
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

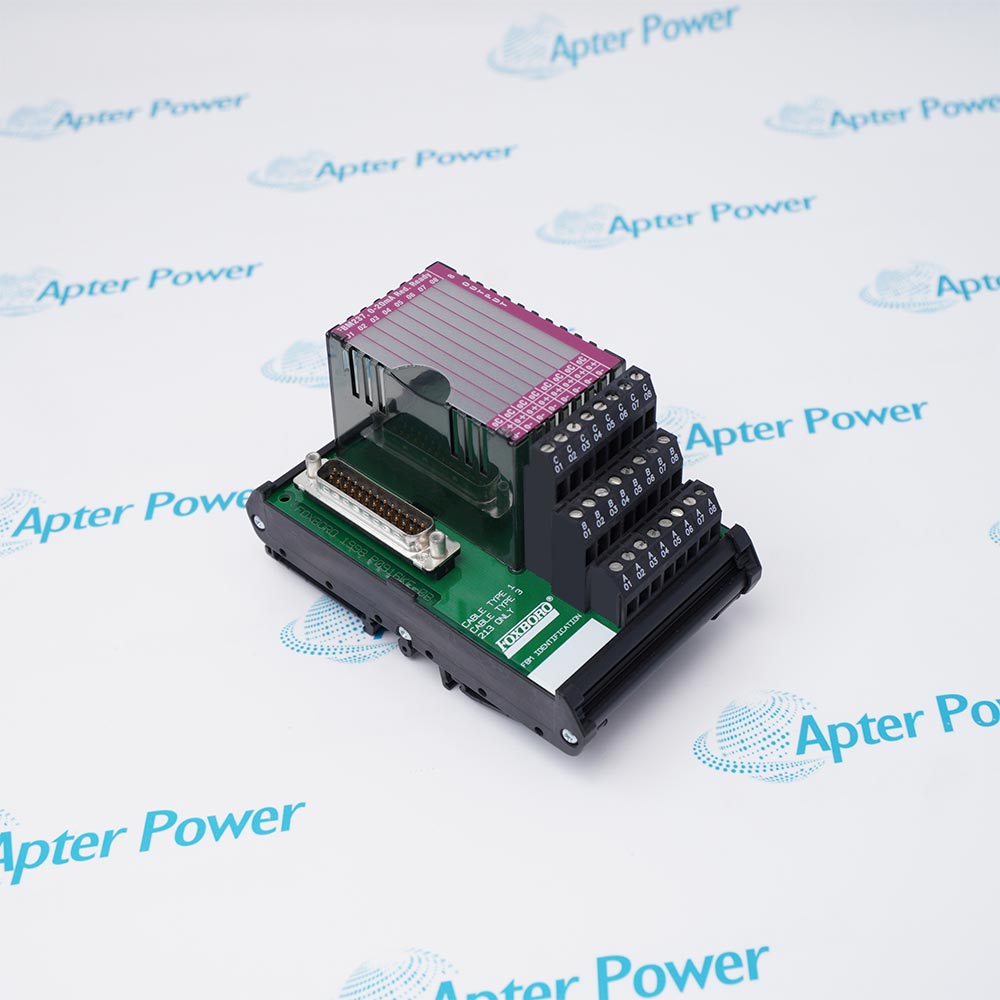

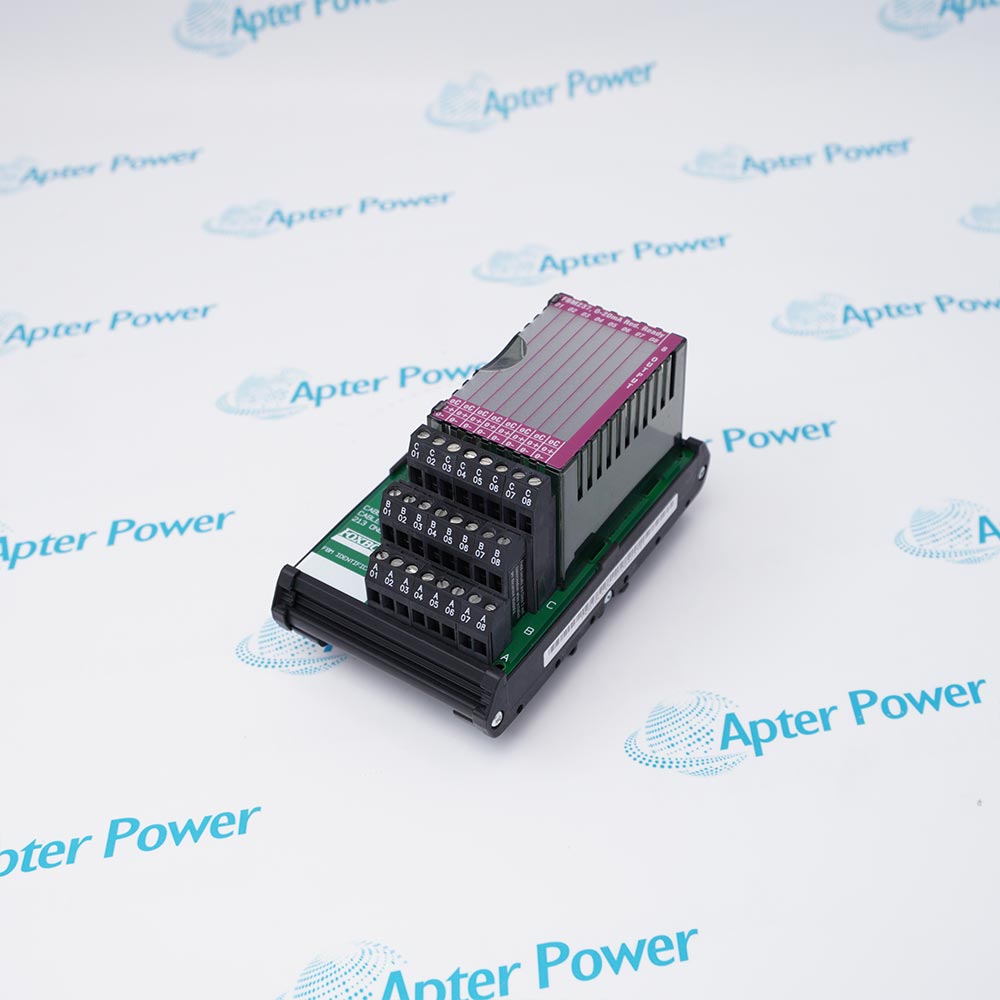

      P0916CC is the legacy compression-terminal assembly for FBM237, terminating eight isolated 0-20 mA analog output channels through a Type 1 cable.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for P0916CC
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for P0916CC

      • Manufacturer:
        Invensys
      • Product Category:
        DCS Systems
      • Spare Part Number:
        P0916CC
      • Estimated shipping dimensions:
        12.5x7.6x7.8cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Current superseding part:
        RH916YE
      • Associated module:
        FBM237
      • Output channels:
        8 x 0-20 mA DC
      • Terminal style:
        Compression
      • Termination material:
        Polyamide
      • Termination cable type:
        Type 1
      • Cable length range:
        Up to 30 m
      • Cable connection:
        25-pin male D-subminiature
      • Module operation:
        Single or redundant
      • Loop power:
        Internally and/or externally powered by selected TA
      • Signal compatibility:
        Electrically compatible with standard HART signals
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      Foxboro P0916CC provides the field-side compression terminals used by an FBM237 redundant analog-output installation and is superseded by RH916YE.
      • FBM237 termination
      • 8 analog outputs
      • Compression terminals
      • Type 1 termination cable

      The termination assembly is shared by the installed FBM237 arrangement and its eight field output loops. Internal or external loop power, redundant adapter selection and per-channel wiring must remain traceable.

      Important Notice: RH916YE supersedes P0916CC and P0916YE. A superseding TA is not an automatic substitute unless the cable, adapter, certifications and loop-power design are verified.

      Foxboro P0916CC Manuals & Downloads
      Foxboro P0916CC Technical Reference (PDF)Foxboro P0916CC Manufacturer Manual Excerpt (PDF)

      The technical reference organizes exact characteristics and engineering boundaries. The manufacturer excerpt presents selected unchanged official pages used for exact-model review.

      Redundant analog control outputs
      Terminates eight FBM237 output loops.
      HART-compatible current loops
      Supports the documented electrically compatible signal arrangement.
      Remote terminal cabinets
      Provides compression field terminals connected by a Type 1 cable.
      FBM37 upgrade wiring
      Supports approved migration paths using the documented TA arrangement.
      Foxboro P0916CC installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
      1
      Confirm P0916CC and the associated FBM237 pair or single module.
      2
      Record all eight output channels and their loop-power sources.
      3
      Place driven equipment in the approved safe or manual state.
      4
      Isolate both module and external field power where present.
      5
      Label Type 1 cable, redundant adapter and every field conductor.
      6
      Inspect compression terminals and shield practices.
      7
      Restore internally and externally powered loops exactly as recorded.
      8
      Stroke or simulate every output and verify failover before release.

      Technical notes

      For P0916CC, retain the exact manufacturer identity, installed connection record and witnessed model-specific acceptance result.

      FAQ View All FAQ

      • Which module uses Foxboro P0916CC?
        It is a termination assembly for the FBM237 analog output module.
      • How many output channels terminate on Foxboro P0916CC?
        It terminates eight 0-20 mA DC analog output channels.
      • Which terminal style is used by Foxboro P0916CC?
        The assembly uses compression terminals.
      • Which cable type connects Foxboro P0916CC?
        The manufacturer table specifies a Type 1 termination cable.
      • Which current part supersedes Foxboro P0916CC?
        RH916YE supersedes P0916CC and P0916YE.
      • Can Foxboro P0916CC serve a redundant FBM237 arrangement?
        Yes. FBM237 supports redundant modules through the documented adapter and shared field connection.
      • Which loop-power detail must be recorded for Foxboro P0916CC?
        Record whether each output is powered internally or by an external field supply.
      • What completes commissioning of Foxboro P0916CC?
        Verify current and direction on all eight outputs, then witness redundant transfer and the response of every driven device.
