Get a quick price for FBM219 P0916RH
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for FBM219 P0916RH
-
Manufacturer:Invensys
-
Product Category:DCS Systems
-
Spare Part Number:FBM219 P0916RH
-
Estimated shipping dimensions:4.5x11x11.5cm
-
Weight:0.3 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Discrete inputs:24 channels
-
Discrete outputs:8 channels
-
Supported levels:15 to 60 V dc; 120 V ac/125 V dc; 240 V ac through the matched TA
-
Filter/debounce:No filtering, 4, 8, 16 or 32 ms
-
Output action:Sustained or momentary with configurable fail-safe behavior
Information
Overview
Manuals
Common Applications
Product Precautions

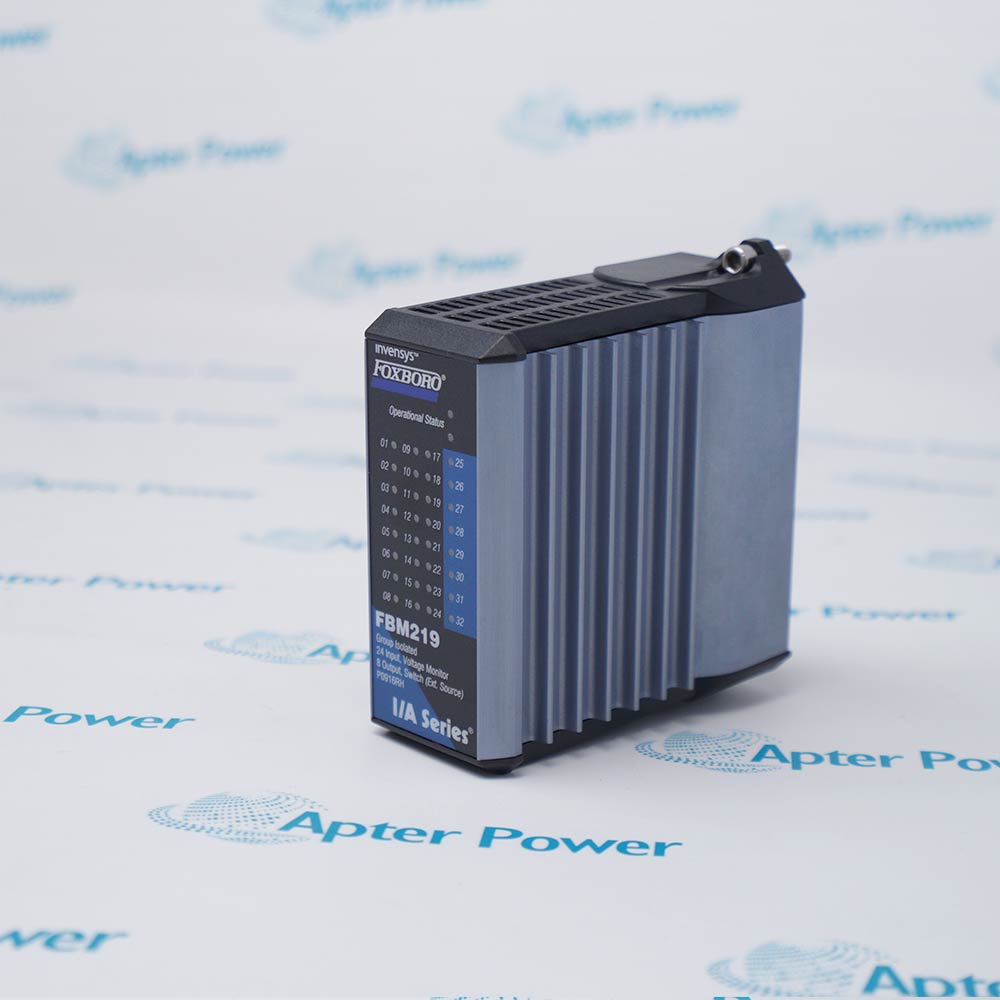

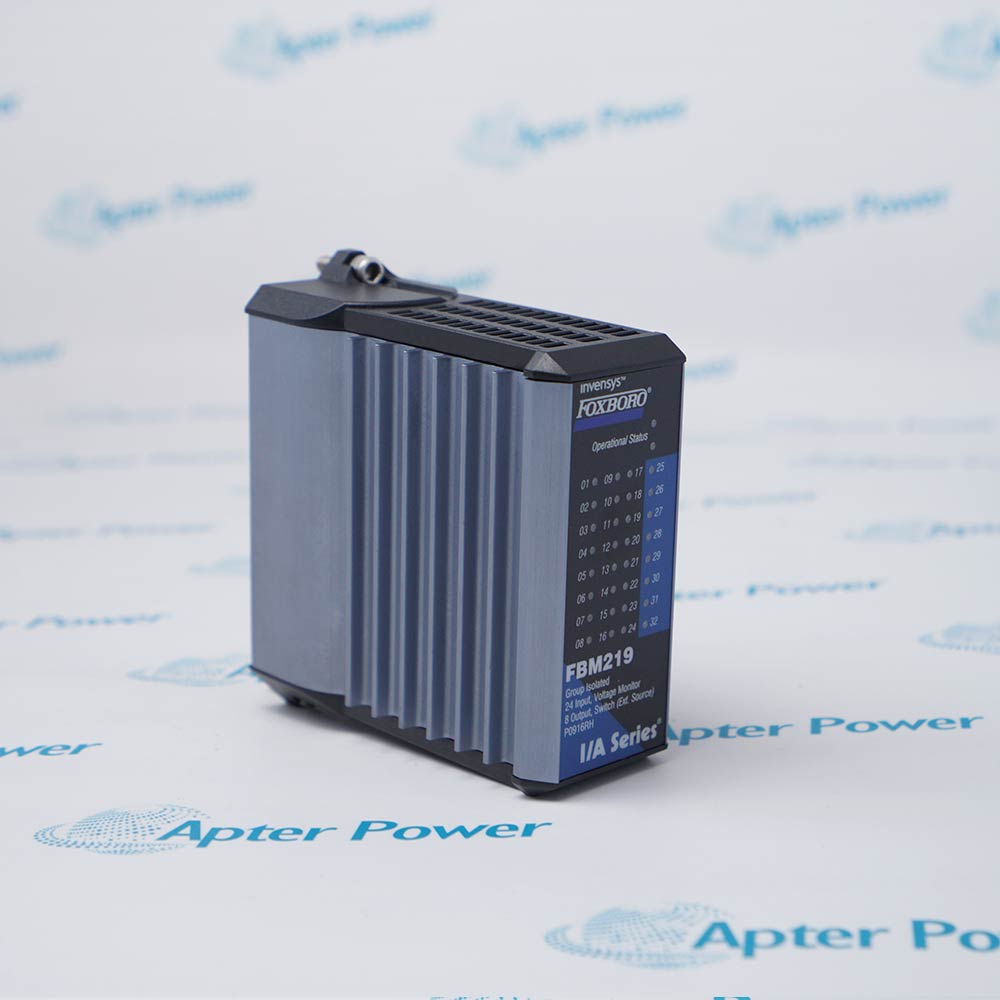

Foxboro FBM219 P0916RH combines twenty-four discrete inputs with eight discrete outputs for voltage-monitor, contact-sense and switching applications.
- Provides twenty-four inputs plus eight outputs for its discrete i/o interface module function.
- Handles mixed discrete sensing and controlled switching through the documented Foxboro system path.
- Works with the signal-specific termination assembly and module Fieldbus.
- Input and output groups are isolated according to the selected termination assembly.
The discrete i/o interface module belongs in the controlled Foxboro architecture and works with the signal-specific termination assembly and module Fieldbus. Its mating hardware, wiring, database configuration and final response must be checked together before release.
Important Notice: Use FBM219 P0916RH only with the signal-specific termination assembly and module Fieldbus; verify every interface and the controlled project configuration before energizing or pressurizing the subsystem.
Foxboro FBM219 P0916RH Manuals & Downloads
Foxboro FBM219 P0916RH Official Technical Reference Excerpt (PDF)Foxboro FBM219 P0916RH Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
System maintenance
Restores the documented discrete i/o interface module function in an existing Foxboro control system.
Signal-path service
Supports controlled testing of mixed discrete sensing and controlled switching at the assigned system position.
Planned replacement
Provides an exact-identity replacement path after the signal-specific termination assembly and module Fieldbus has been verified.
Commissioning
Allows the responsible engineer to prove configuration, diagnostics and response for twenty-four inputs plus eight outputs.
Before installing Foxboro FBM219 P0916RH, confirm the documented system, interfaces and controlled configuration.
1
Match the complete FBM219 P0916RH marking to the work order and installed position before removal.
2
Confirm the signal-specific termination assembly and module Fieldbus before disconnecting any interface.
3
Keep mixed discrete sensing and controlled switching within the documented electrical or pneumatic range.
4
Record terminal designations, polarity, common, shield and cable routing before disconnection.
5
Inspect mounting, connector keying, terminal condition and retention hardware before installation.
6
Restore the controlled database, range, alarm, filter and fail-state settings before energization.
7
Review local indicators and controller diagnostics during the controlled startup sequence.
8
Prove the intended response across twenty-four inputs plus eight outputs and record the acceptance result before release.
Technical notes
Use FBM219 P0916RH only with the signal-specific termination assembly and module Fieldbus; verify every interface and the controlled project configuration before energizing or pressurizing the subsystem.
FAQ View All FAQ
-
How many points are handled by Foxboro FBM219 P0916RH?The module provides 24 discrete inputs and 8 discrete outputs.
-
Which voltage classes can the termination assemblies for Foxboro FBM219 P0916RH support?Matched TAs cover low-voltage dc, 120 V ac/125 V dc and 240 V ac applications.
-
How can input debounce be configured on Foxboro FBM219 P0916RH?Available selections are no filtering or 4, 8, 16 and 32 ms.
-
Which output behaviors are configurable on Foxboro FBM219 P0916RH?The application can use sustained or momentary outputs with controlled fail-safe and fallback settings.
-
Why must the termination assembly for Foxboro FBM219 P0916RH be identified first?The TA determines signal conditioning, current limiting, fusing, relay arrangement and the applicable voltage interface.
-
What protection may Foxboro FBM219 P0916RH require for an inductive load?Use the approved diode or metal-oxide-varistor suppression specified for the connected output circuit.
-
Which Foxboro FBM219 P0916RH indicators assist point testing?Front LEDs show module operation and the states of the discrete input and output points.
-
What constitutes a complete I/O acceptance test for Foxboro FBM219 P0916RH?Exercise all assigned inputs and outputs, verify filtering and fail-safe action, and confirm controller status over the module Fieldbus.
