Technical specifications for T8800
-
Manufacturer:ICS Triplex
-
Product Category:DCS Systems
-
Spare Part Number:T8800
-
Estimated shipping dimensions:34x13x7cm
-
Weight:0.66 kg
-
Tariff Code:8537101101
-
Counliy of origin:USA
-
Product Type:Trusted 40-Channel 24 Vdc Digital Input Field Termination Assembly
-
System Family:Trusted 8000
-
Channel / Interface Summary:40 digital input channels; individual 50 mA channel fuses
-
Field supply:18–32 Vdc
-
Channels:40 digital inputs
-
Channel protection:40 × 50 mA fuses
-
FTA power dissipation:0.25 W
-
Operating temperature:0 to 60 °C
-
Official source:Rockwell Automation PD-T8800 Trusted 40 Channel 24 Vdc Digital Input FTA
-
Signal / Data Handled:up to forty 24 Vdc on/off field signals with optional line-monitoring arrangements
-
Compatible Components:Trusted digital input module, SmartSlot v1 cables, dual 24 Vdc field supplies and TS32/TS35 DIN rail
-
Lifecycle Reference:The official T8800 product description documents this assembly; confirm current lifecycle with Rockwell Automation.
-
Primary Application:Emergency shutdown contacts
-
Secondary Application:Fire and gas switches
-
Verification Note:Confirm the exact T8800 physical nameplate and controlled project record.
Information
Overview
Manuals
Common Applications
Product Precautions

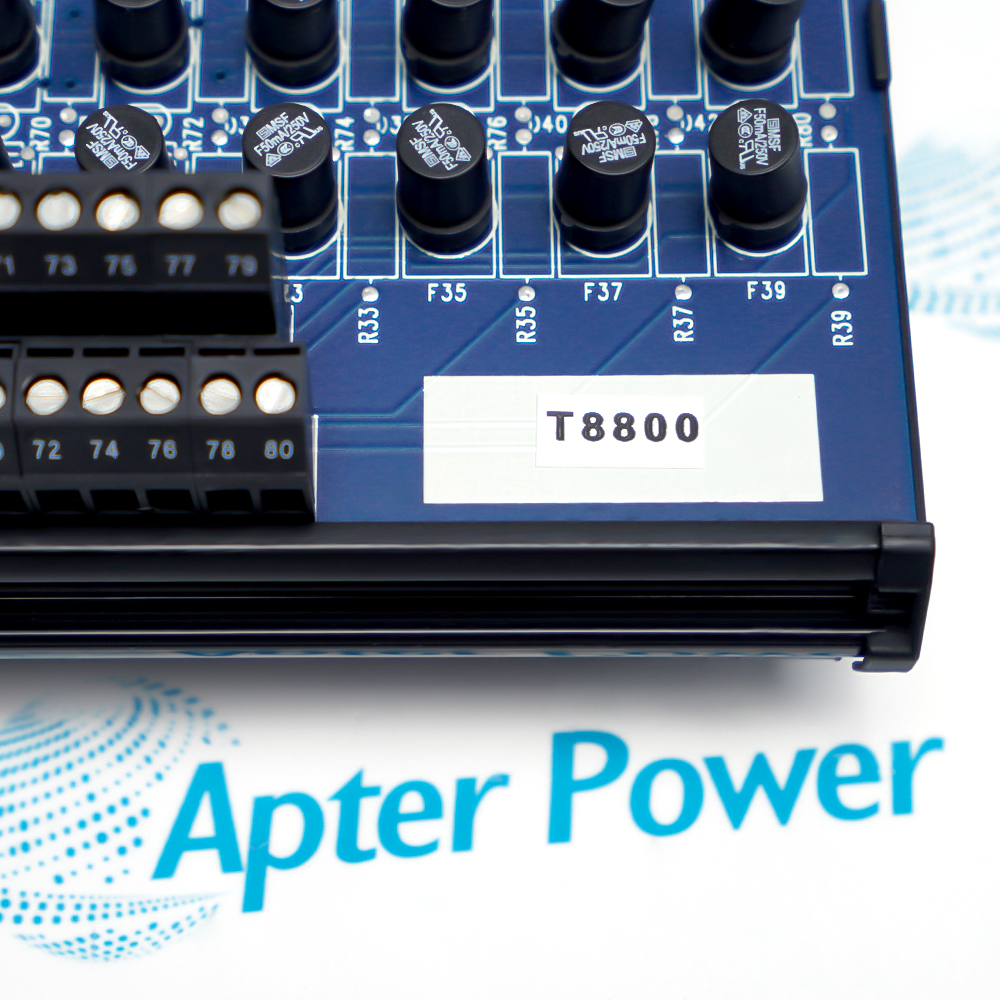

The T8800 is an ICS Triplex Trusted 40-Channel 24 Vdc Digital Input Field Termination Assembly for Trusted 8000 systems.
- 40 digital input channels; individual 50 mA channel fuses
- Designed for the Trusted 8000 architecture
- terminates discrete field contacts and routes forty protected 24 Vdc input signals to the matched Trusted digital input module
- Model-specific compatible hardware: Trusted digital input module, SmartSlot v1 cables, dual 24 Vdc field supplies and TS32/TS35 DIN rail
It terminates discrete field contacts and routes forty protected 24 Vdc input signals to the matched Trusted digital input module. It handles up to forty 24 Vdc on/off field signals with optional line-monitoring arrangements and works with Trusted digital input module, SmartSlot v1 cables, dual 24 Vdc field supplies and TS32/TS35 DIN rail. For dependable operation, follow the official model-specific system matching, wiring, environmental and commissioning instructions.
Important Notice: Confirm the exact T8800 physical nameplate, hardware revision and controlled project record before installation or replacement.
Apter Power T8800 Manuals and Guides
- Apter Power T8800 Product Reference Manual
- Apter Power T8800 Installation and Verification Reference
Important Notice: These are two separate Apter Power documents with different layouts and model-specific content, prepared from the manufacturer-published source identified in each document. Confirm the physical nameplate, current Rockwell Automation documentation, and host-system requirements before installation or replacement.
Emergency shutdown contacts
T8800 terminates discrete field contacts and routes forty protected 24 Vdc input signals to the matched Trusted digital input module.
Fire and gas switches
T8800 up to forty 24 Vdc on/off field signals with optional line-monitoring arrangements.
Valve-position feedback
T8800 terminates discrete field contacts and routes forty protected 24 Vdc input signals to the matched Trusted digital input module.
Machine trip inputs
T8800 up to forty 24 Vdc on/off field signals with optional line-monitoring arrangements.
Forty-channel discrete input marshalling
T8800 terminates discrete field contacts and routes forty protected 24 Vdc input signals to the matched Trusted digital input module.
Read Rockwell Automation PD-T8800 Trusted 40 Channel 24 Vdc Digital Input FTA and the applicable system installation instructions before use. Verify the exact model, revision, slot or base, termination hardware and field wiring.
1
Mount on TS32 or TS35 DIN rail in an approved horizontal or vertical orientation.
2
Verify both diode-commoned 24 Vdc supplies and field polarity before energization.
3
Use the specified SmartSlot cable arrangement and do not interchange incompatible FTA cables.
4
Replace channel fuses only with the officially specified rating and type.
5
Prove input state, line-monitoring response and diagnostic reporting for all used channels.
Alternative Names
T8800 ICS Triplex
ICS Triplex T8800
Trusted 8000 T8800
Technical notes
Official source: Rockwell Automation PD-T8800 Trusted 40 Channel 24 Vdc Digital Input FTA. Confirm the exact physical nameplate and current Rockwell Automation record before replacement.
FAQ View All FAQ
-
What is the ICS Triplex T8800?It is a Trusted 40-Channel 24 Vdc Digital Input Field Termination Assembly for Trusted 8000 control and safety architectures.
-
What does T8800 do?terminates discrete field contacts and routes forty protected 24 Vdc input signals to the matched Trusted digital input module.
-
What signals or data does it handle?up to forty 24 Vdc on/off field signals with optional line-monitoring arrangements.
-
Which components are compatible?Trusted digital input module, SmartSlot v1 cables, dual 24 Vdc field supplies and TS32/TS35 DIN rail.
-
Where is this model applied?Emergency shutdown contacts, Fire and gas switches, Valve-position feedback, Machine trip inputs, Forty-channel discrete input marshalling.
-
What should be checked before replacement?Confirm the complete model, physical nameplate, hardware revision, slot or base, termination hardware, field wiring, configuration and current official documentation.
