Technical specifications for FC-RUSIO-3224
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:FC-RUSIO-3224
-
Estimated shipping dimensions:12.7x12.7x12.7cm
-
Weight:0.8 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Storage temperature:–40°C ... +85°C
-
Relative humidity:10 ... 95% (non condensing)
-
Pollution:Pollution degree 2 or better
-
Approvals:CE; UL, TUV pending
-
Supply voltage:24 Vdc -15% ... +30%
-
Supply current:max 300mA (without field load)
-
Number of channels:32
-
Channel type:Universal safe (software configurable)
Information
Overview
Manuals
Common Applications
Product Precautions

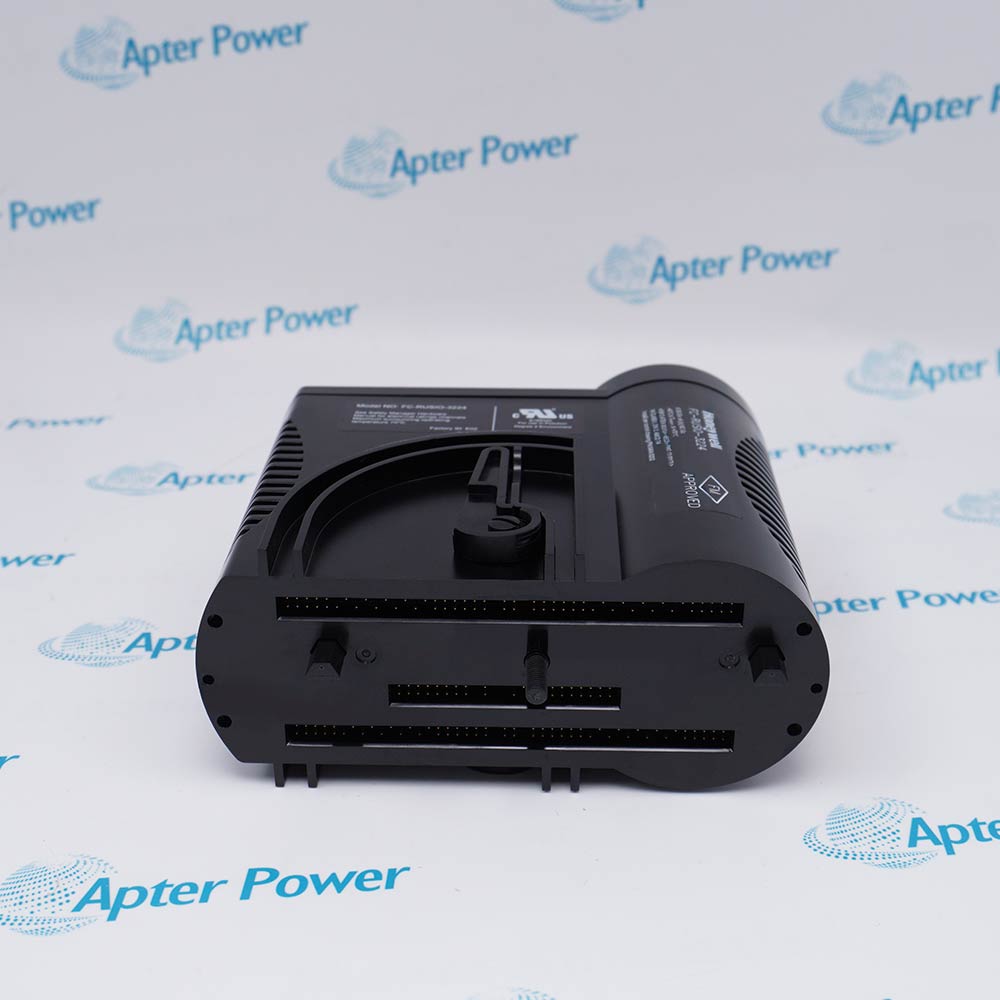

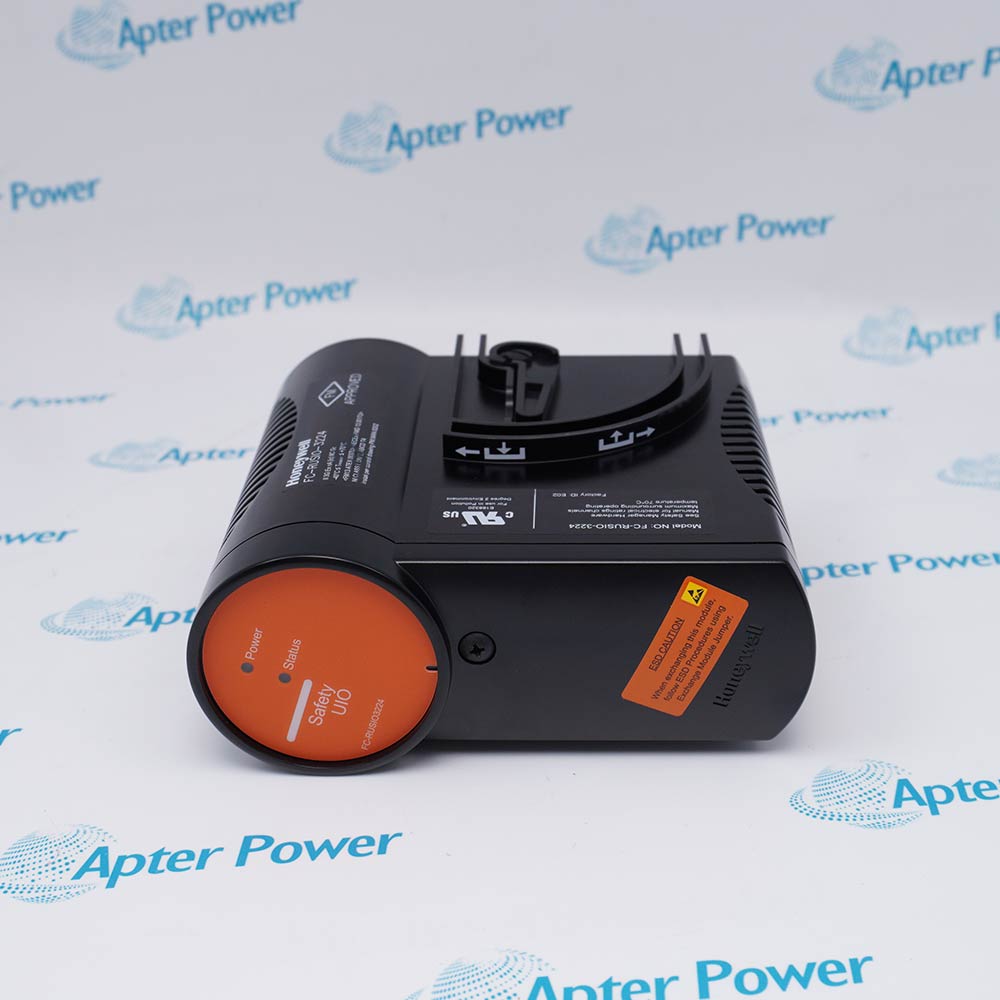

The FC-RUSIO-3224 is a 32-channel universal safe IO module based on the Safety Manager architecture, featuring a Honeywell Series C structure and requiring installation on an IOTA termination assembly. It is equipped with 32 universal channels that can be flexibly configured as DI, DO, AI, or AO, supports configuration within Safety Builder, and achieves communication with the SM controller through dual Ethernet links.
- Thirty-two universal channels configurable as DI, DO, AI, or AO
- Redundant configuration capability with partner modules
- Dual 100Mbaud Ethernet links for high-speed communication
Furthermore, the module features highly intelligent self-monitoring management capabilities. It monitors the operating temperature of its internal electronics and supply voltage in real time, while delivering precise hardware-level loop isolation during field channel short circuits or open circuits to prevent local faults from spreading. Through channel 32, users can configure a dedicated Emergency Shutdown function to execute specific process safety interlocks, while the distinctive FLASH nature of the memory allows for secure online upgrades of both system software and channel configurations without interrupting active production.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell FC-RUSIO-3224 Universal I/O module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas Refining
Configured as a safe Digital Input (DI) to monitor high-pressure sensors and initiate instant automatic valve closures during thermal runaways.
Petrochemical Processing
Uses the 1 ms Sequence of Events (SOE) timestamping to analyze the exact trip sequence when chemical reactor temperatures breach safe thresholds.
Natural Gas Pipelines
Isolates pipeline sections by processing 4-20 mA signals from upstream pressure transmitters and safely executing fast-acting isolation valve closures.
Chemical Manufacturing
Universally switches channels to match either thermocouples or control valves, ensuring immediate cooling chemical injection if a batch reaction destabilizes.
Thermal Power Plants
Monitors boiler flame status and safely cuts off fuel gas supply valves within milliseconds if a flame failure is detected.
Nuclear Power Generation
Manages secondary backup water cooling pumps and ventilation loops under harsh, high-reliability industrial enclosure conditions.
Power must be turned off before replacing the module in single-channel operation, as live hot-swapping is supported only under a redundant configuration. All channels are powered by the 24V DC main supply, so connecting external voltages outside the specified range is strictly prohibited. Channel function modifications must be configured precisely within the Safety Builder software, and proper cabinet ventilation must be maintained to prevent module temperature alarms caused by overheating electronics.
Alternative Names
FC RUSIO 3224
FC-RUSI0-3224
FC-RUS1O-3224
FC-RUS10-3224
Technical notes
The Honeywell FC-RUSIO-3224 is a 24 VDC remote universal safety I/O module for Safety Manager systems, certified up to SIL 3 under IEC 61508/61511. It provides 32 software-configurable channels supporting DI, DO, AI, and AO signals, with Channel 32 reserved for hardware ESD inputs. The module features dual 100 Mbaud redundant Ethernet links with a 1-millisecond SOE timestamp resolution. Built with a conformal coating, it operates within an ambient temperature range of -40°C to +70°C. For hazardous area installations, the hardware is certified under FM13ATEX0037U and IECEx FMG 13.0017U, carrying markings of II 3 G Ex nA IIC T4 Gc and Class I, Division 2, Groups A, B, C, D T4.
FAQ View All FAQ
-
What is Honeywell FC-RUSIO-3224?It is a Remote Universal Safe Input/Output module with 32 channels supporting 24V DC operating voltage, belonging to the Honeywell Safety Manager system.
-
What are the main features of FC-RUSIO-3224?Its prominent feature is universality, where each of the 32 channels can be independently configured via software as digital input, digital output, analog input, or analog output.
-
How to use products like FC-RUSIO-3224?It must be plugged into a dedicated Input/Output Termination Assembly (IOTA), connected to the main controller via a safety network, and then have each channel signal type defined in the configuration software to connect field devices.
-
What safety rating does FC-RUSIO-3224 comply with?It has passed rigorous international safety certifications, meeting the highest industrial Safety Integrity Level SIL 3 under the IEC 61508 standard with a single module.
-
Why do industrial systems need universal modules like FC-RUSIO-3224?It greatly reduces spare part types, optimizes cabinet space, and allows flexible modification of channel functions via software without changing the hardware layout.
