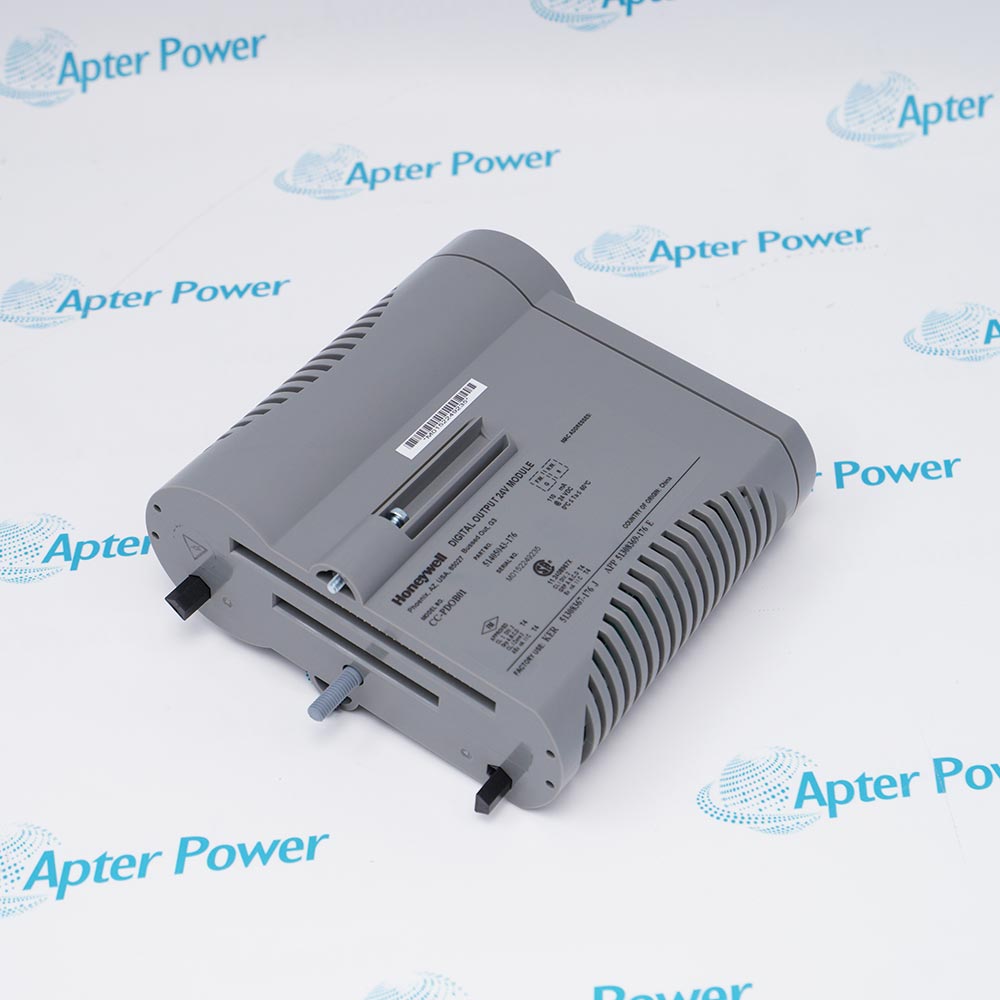

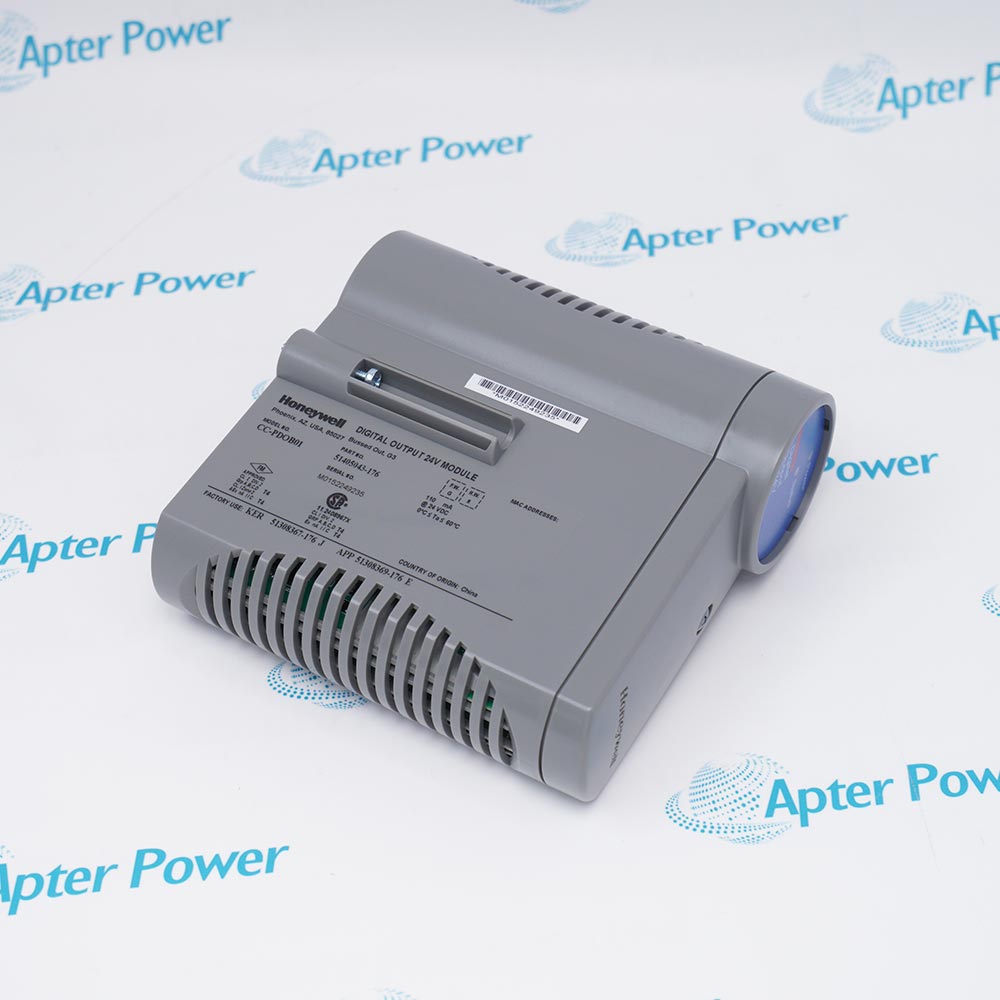

      CC-PDOB01 51405043-176

      Digital Output Module
      In Stock
      Ships by Friday, November 6
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      32-channel bussed 24 Vdc source digital output module for Experion Series C I/O. It supports fuse-less short protection and configurable FAILOPT behavior.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for CC-PDOB01 51405043-176
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for CC-PDOB01 51405043-176

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS Systems
      • Spare Part Number:
        51405043-176
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Output channels:
        32
      • Output type:
        Bussed 24 Vdc source
      • Maximum load voltage:
        30 Vdc
      • Per-channel load:
        0.5 A
      • Group limit:
        4 A per 8 channels; no short
      • Module limit:
        6 A
      • Galvanic isolation:
        1500 Vac RMS or +/-1500 Vdc
      • Short protection:
        Electronic; fuse-less
      • Safe behavior:
        FAILOPT hold or safe value
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      Honeywell CC-PDOB01 51405043-176 is a 32-channel bussed 24 Vdc source digital output module for Experion Series C I/O.
      • Provides thirty-two bussed 24 Vdc source outputs.
      • Drives solenoids, relays and other discrete process loads.
      • Supports nonredundant or redundant Series C IOTA arrangements.
      • Applies channel diagnostics, safe-state behavior and electronic short protection.

      Check group and module current limits together. FAILOPT behavior must match the approved process safe state before field power is restored.

      Important Notice: Verify the complete CC-PDOB01 51405043-176 identity, installed system position, connections and controlled functional result before release.

      Honeywell CC-PDOB01 51405043-176 Manuals & Downloads
      Honeywell CC-PDOB01 51405043-176 Official Manufacturer Excerpt (PDF)Honeywell CC-PDOB01 51405043-176 Installation & Commissioning Guide (PDF)
      The first document records verified technical evidence. The second organizes controlled preparation, installation, commissioning and handover.
      Solenoid valve outputs
      Provides thirty-two bussed 24 Vdc source outputs.
      Interposing relay commands
      Drives solenoids, relays and other discrete process loads.
      Motor starter control
      Supports nonredundant or redundant Series C IOTA arrangements.
      Redundant discrete actuation
      Applies channel diagnostics, safe-state behavior and electronic short protection.
      Honeywell CC-PDOB01 51405043-176 installation checks must preserve the exact identity, system assignment and witnessed acceptance record.
      1
      Confirm CC-PDOB01 and part 51405043-176.
      2
      Record all 32 channel, group and load assignments.
      3
      Place field outputs in their approved safe state.
      4
      Isolate bussed 24 Vdc power before module work.
      5
      Verify CC-TDOB01 or CC-TDOB11 matches the intended redundancy.
      6
      Check group and module current limits before energization.
      7
      Test configured FAILOPT and short-circuit diagnostics.
      8
      Retain the witnessed output and redundancy acceptance record.

      Technical notes

      Check group and module current limits together. FAILOPT behavior must match the approved process safe state before field power is restored.

      FAQ View All FAQ

      • How many outputs are provided by Honeywell CC-PDOB01 51405043-176?
        The module provides thirty-two bussed 24 Vdc source outputs.
      • Which IOTAs pair with Honeywell CC-PDOB01 51405043-176?
        CC-TDOB01 is the nonredundant IOTA and CC-TDOB11 is the redundant IOTA.
      • What per-channel current applies to Honeywell CC-PDOB01 51405043-176?
        The Series-C specification lists 0.5 A per channel under the documented conditions.
      • What group and module limits apply to Honeywell CC-PDOB01 51405043-176?
        Without a short, the limits are 4 A per group of eight and 6 A per module.
      • How does Honeywell CC-PDOB01 51405043-176 protect shorted outputs?
        It uses electronic fuse-less short-circuit protection.
      • Which safe-state options are documented for Honeywell CC-PDOB01 51405043-176?
        FAILOPT can be configured to hold the last value or drive the selected safe value.
      • What isolation is documented for Honeywell CC-PDOB01 51405043-176?
        The specification lists 1500 Vac RMS or plus/minus 1500 Vdc galvanic isolation.
      • What completes commissioning of Honeywell CC-PDOB01 51405043-176?
        Prove output direction, load current, diagnostics, FAILOPT behavior and redundancy where fitted.
